03 Grand Cherokee Overland Build

  • HTML tutorial
tsteb112

tsteb112

Rank IV

Pathfinder I

1,212
Greenville
stickel said:
Nice! Are you going to whip out the label maker for those switches or will it be like a memory game ;)
Click to expand...
For now probably memory lol. I really don’t know what I’m going to use them all for yet. I want one for an underhood light, rock lights and rear camping lights. Other than that I’m really not to sure what to add. Any suggestions?


Sent from my iPhone using Tapatalk

stickel

stickel

Rank V
Launch Member

Member III

2,268
Las Vegas, NV
First Name
Mike
Last Name
Stickel
Member #

9020

Oh man that's a loaded question :smirk:

You've got lights:
  • bumper
  • fog
  • light bars
  • ditch
  • reverse lights
  • roof rack/camping lights
  • rock lights
You could wire up an inverter/power outlet in the back. There's solar options or battery chargers, onboard air, all of the things. That's what's coming off the top of my tired, stressed out head. You'll find things to hook up there lol

tsteb112

tsteb112

Rank IV

Pathfinder I

1,212
Greenville
stickel said:
Oh man that's a loaded question :smirk:

You've got lights:
  • bumper
  • fog
  • light bars
  • ditch
  • reverse lights
  • roof rack/camping lights
  • rock lights
You could wire up an inverter/power outlet in the back. There's solar options or battery chargers, onboard air, all of the things. That's what's coming off the top of my tired, stressed out head. You'll find things to hook up there lol
Click to expand...
I’m sure I will. I can’t wait. I’ve thought heavily about an inverter and probably will when the time is right. The front bumper fog lights are spliced into the factory fog light wires. I’ll have rock lights, camping lights, and an underhood light in the near future. I just need to find some time to do it.


Sent from my iPhone using Tapatalk

  • Like
Reactions: stickel
tsteb112

tsteb112

Rank IV

Pathfinder I

1,212
Greenville

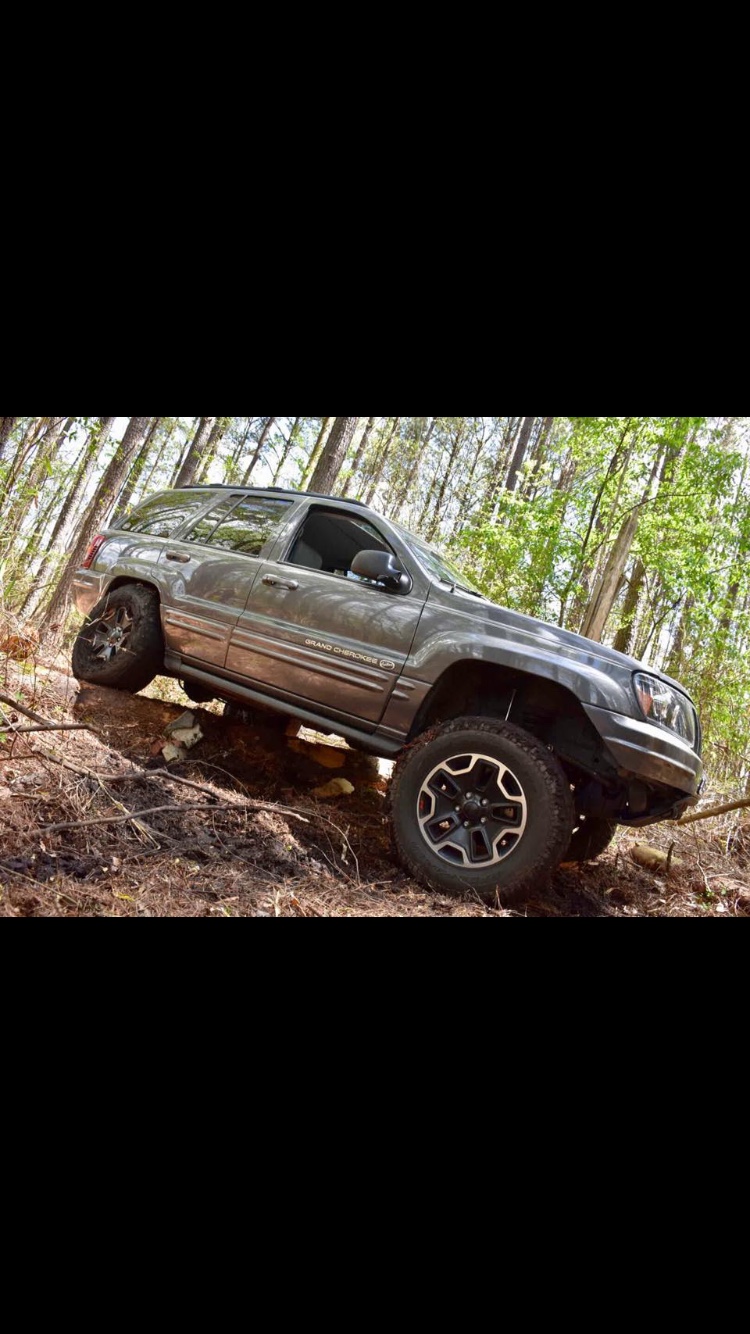

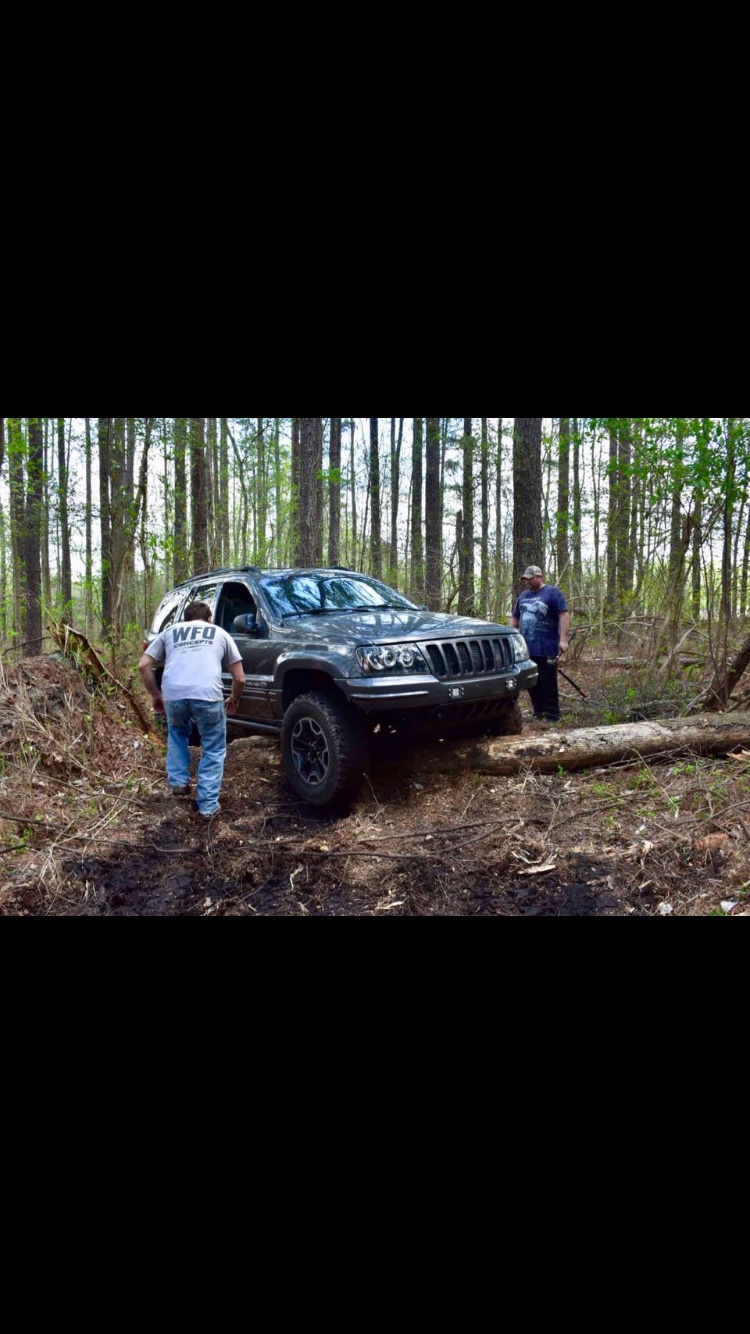

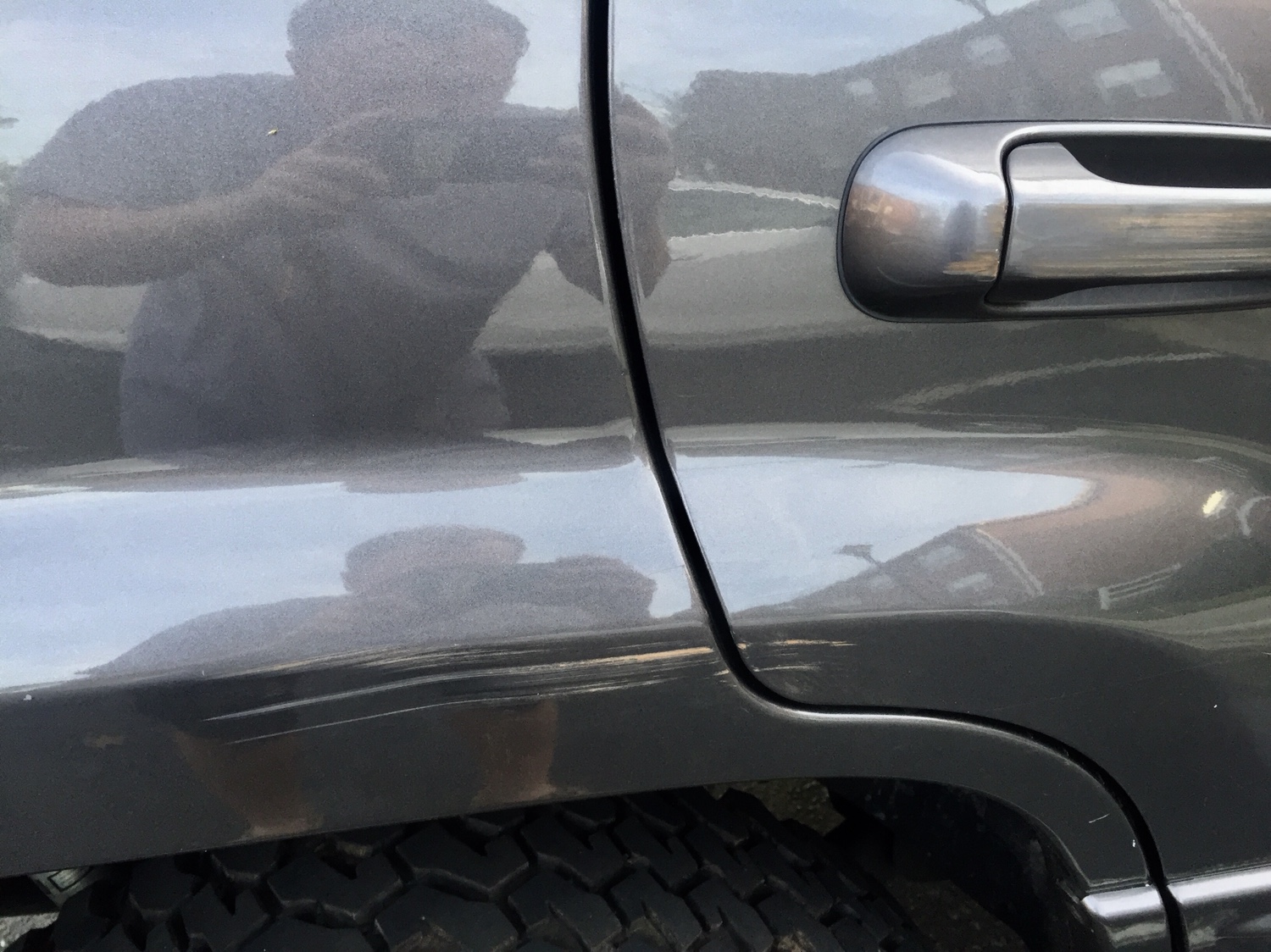

Went wheeling for the first time in months on a friends private property. We are currently making trails through woods on his property. Some of these were very tight for my long wheelbase wj and I made some contact with a tree that we later cut down. It should buff out though.



Sent from my iPhone using Tapatalk

  • Like
Reactions: Ronald Miranda and Aussie571
KerrClan74

KerrClan74

Rank I
Launch Member

Traveler I

233
Portage, MI
Member #

10956

Nicely done! Honestly you could wrap the tube around the sides and not even need the original bumper. It looks good without it. I like the build. I have been debating the DIY bumper build and this gives me hope of a good outcome. Thanks for sharing!

  • Like
Reactions: Aussie571
tsteb112

tsteb112

Rank IV

Pathfinder I

1,212
Greenville
Thanks for the comments. We are debating on making plates for the sides, just not right now. I have about $350 or so in material I think.


Sent from my iPhone using Tapatalk

  • Like
Reactions: KerrClan74
tsteb112

tsteb112

Rank IV

Pathfinder I

1,212
Greenville

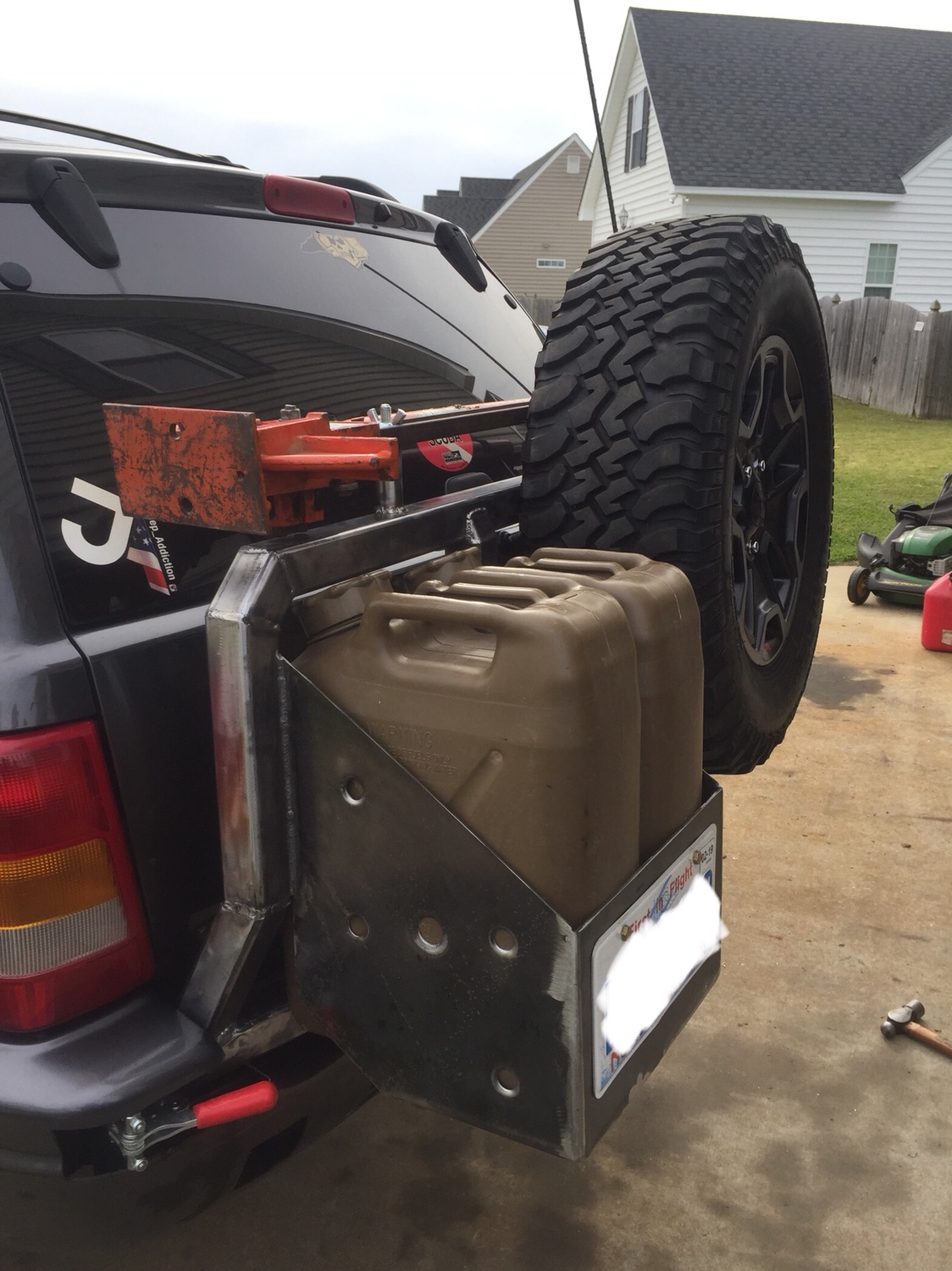

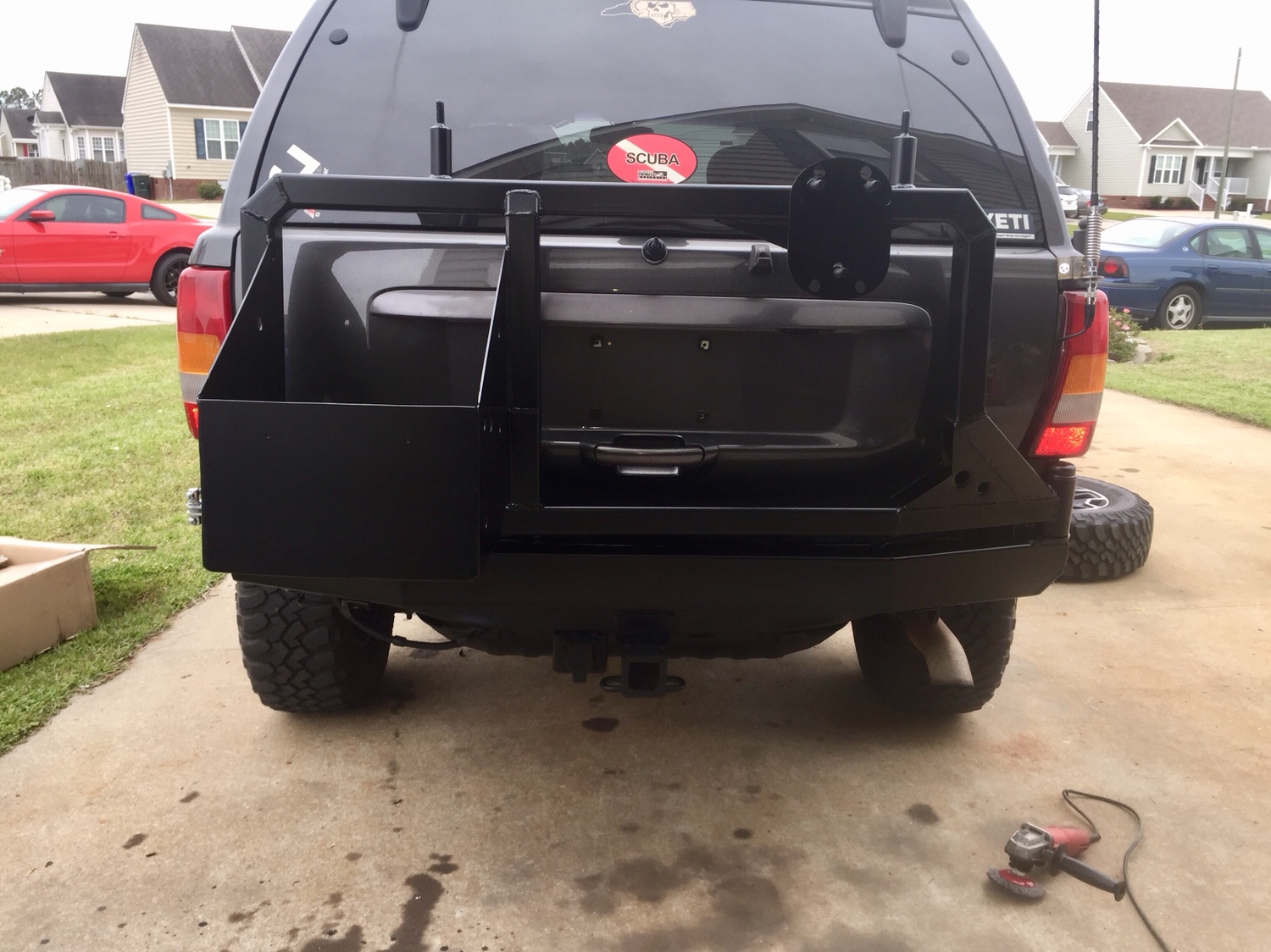

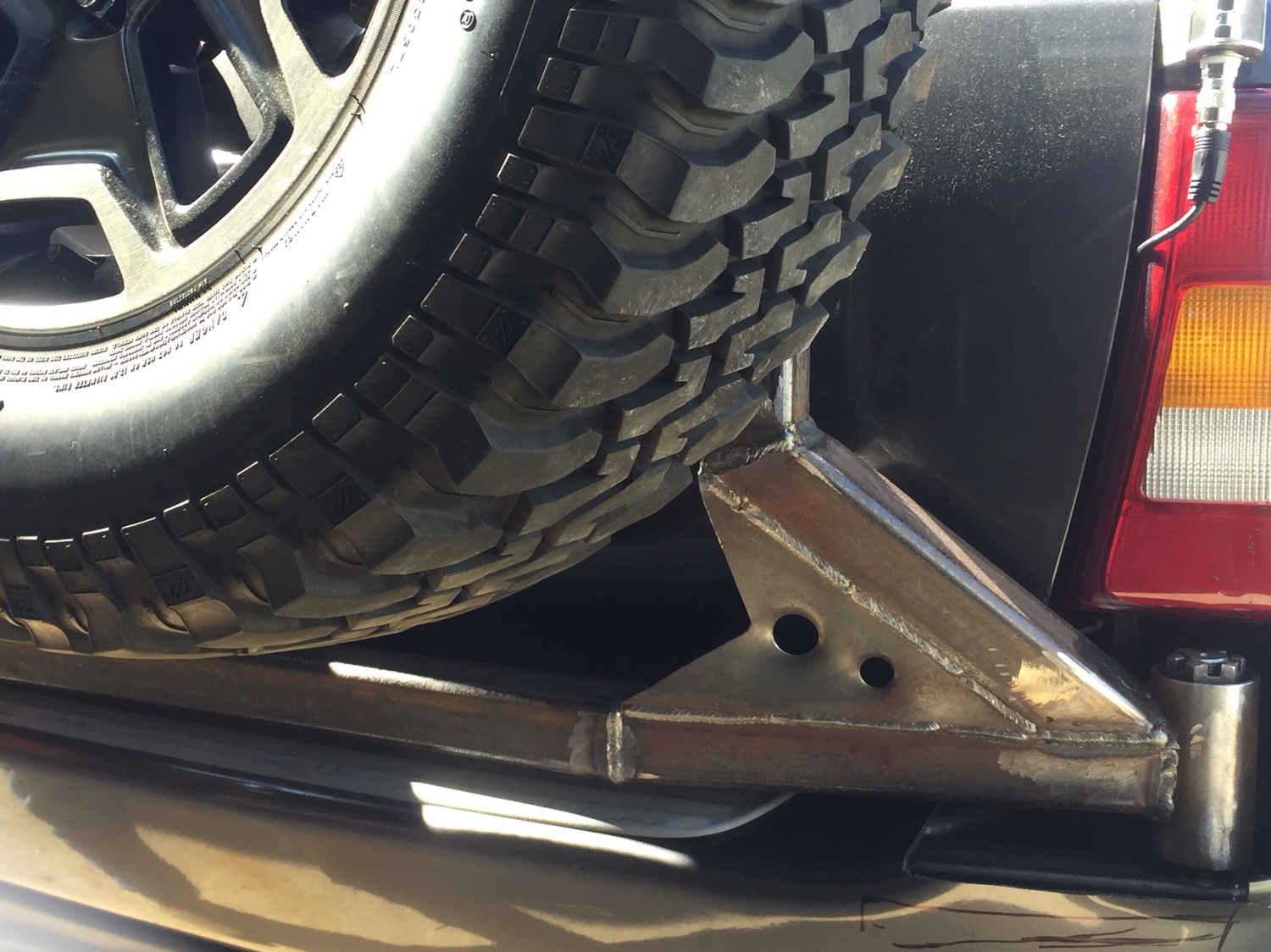

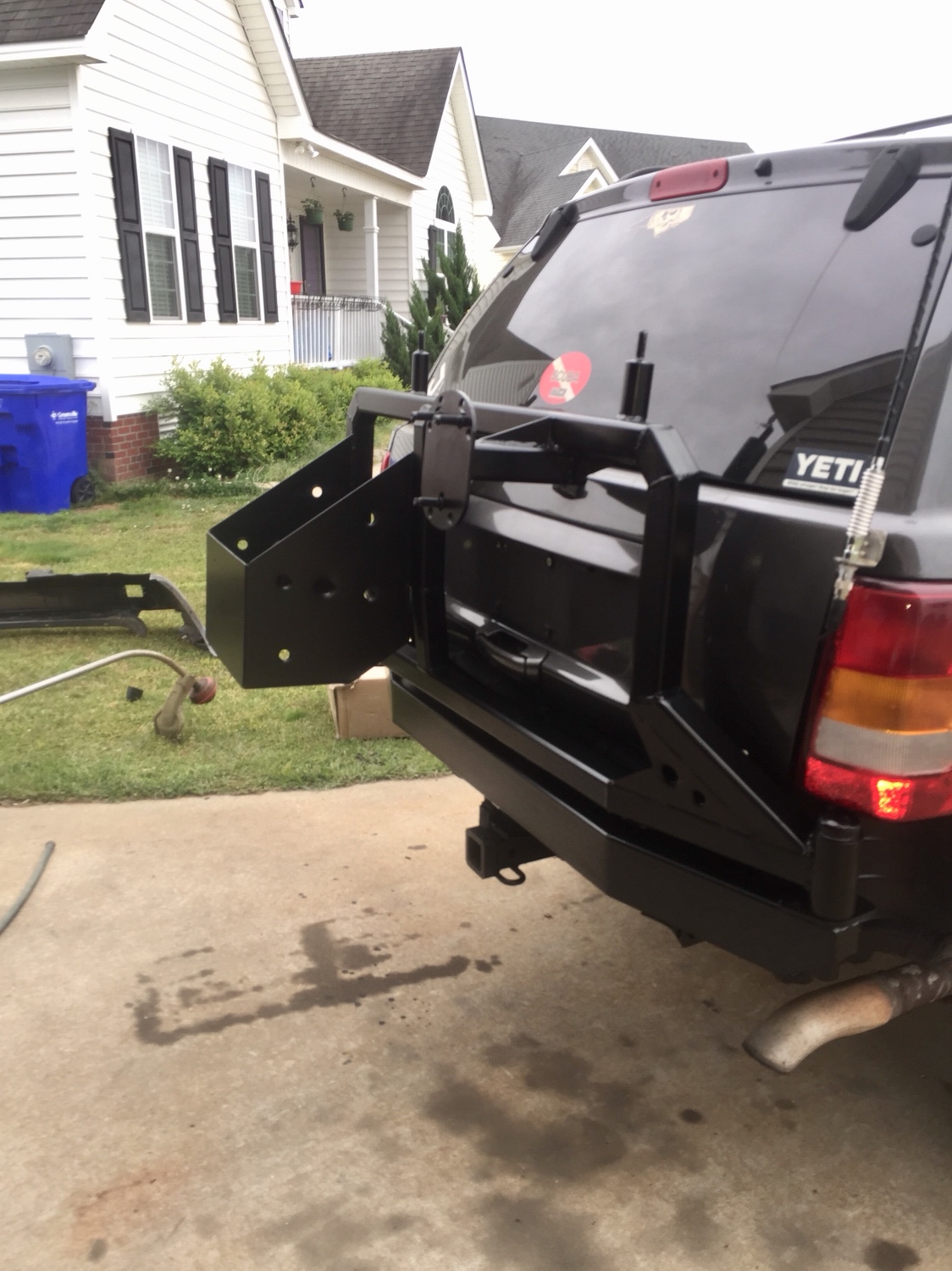

Alright it’s all done minus the highlift rack and paint. It bolts on the left and right sides under the taillights through nutserts. We used 5/16” bolts. 3 on the passenger side, 2 on the driver due to interference issues. The bottom are 9/16” bolts I believe and there are 4 that tie into the hitch. It doesn’t move at all. I’m ecstatic and can’t wait to clean it up and get it painted.



Sent from my iPhone using Tapatalk

  • Like
Reactions: KerrClan74 and Aussie571
Ronald Miranda

Ronald Miranda

Rank III
Launch Member

Enthusiast III

646
18.465161, -69.953888
Member #

10107

tsteb112 said:

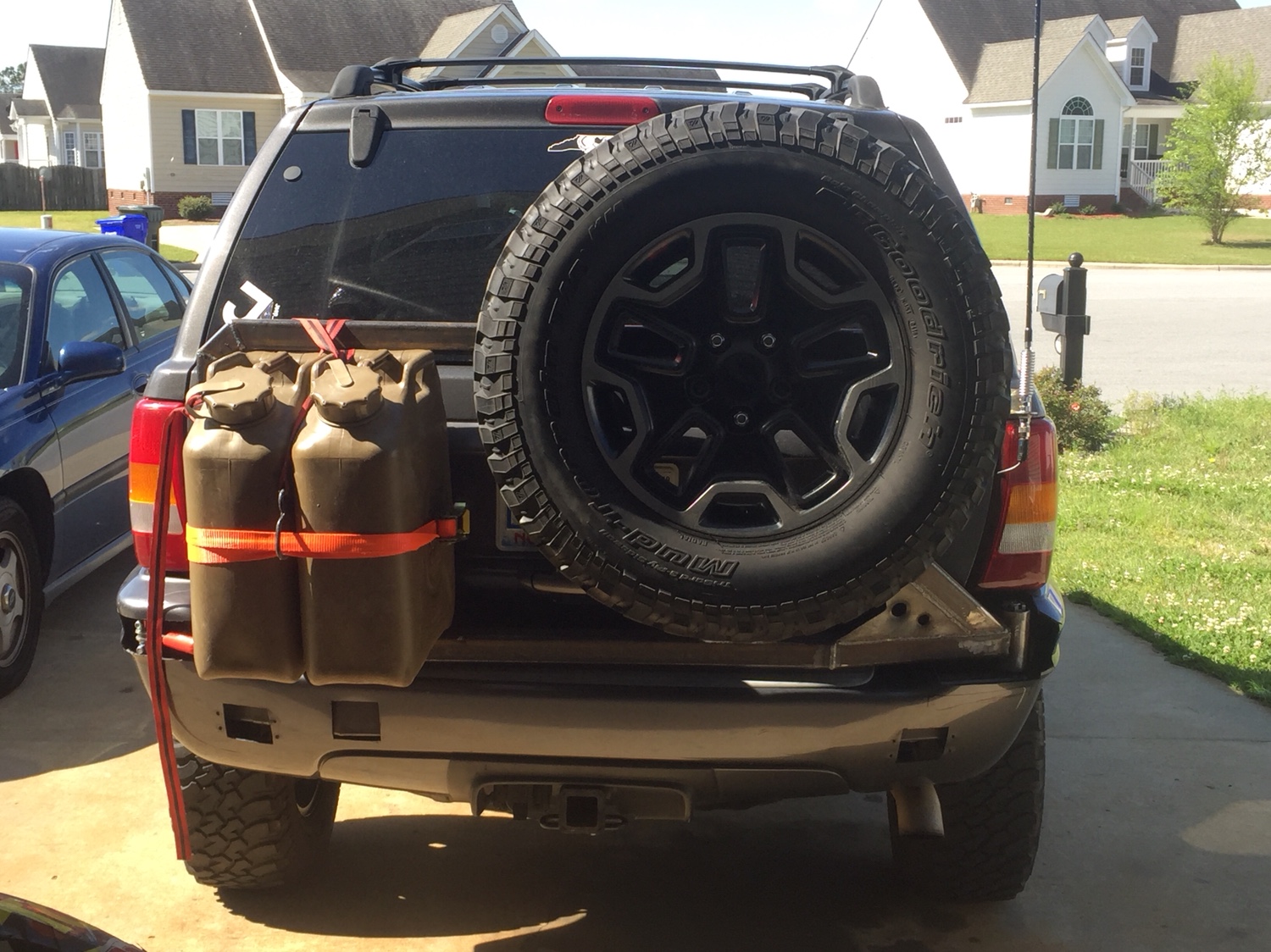

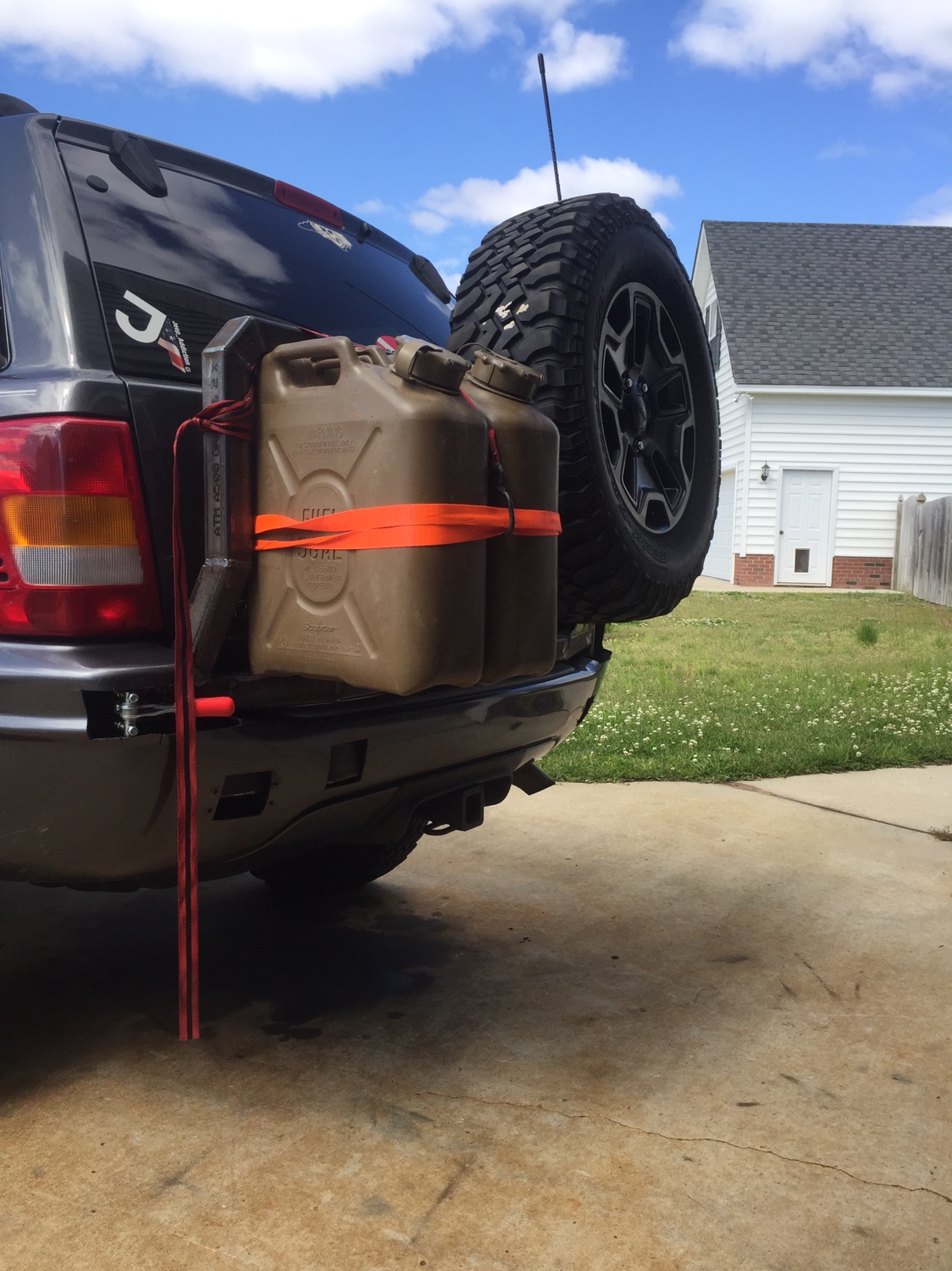

All done with the tire carrier. Built a hi lift mount to top it off. Did two coats of kryon fusion rattle can for right now. Going to let them cure, sand down and do s couple more coats this week.



Sent from my iPhone using Tapatalk
Click to expand...
One of the best setups I've ever seen!! Great work!

Sent from my SM-G935F using OB Talk mobile app

  • Like
Reactions: Aussie571
Phildirt

Phildirt

Rank IV
Launch Member

Advocate II

943
Jacksonville FL 32224
That looks great. Would like to do something similar on my Suburban. I do like it better without the bumper cover on it though. Shows off that fabrication and looks more rugged.

tsteb112

tsteb112

Rank IV

Pathfinder I

1,212
Greenville
Phildirt said:
That looks great. Would like to do something similar on my Suburban. I do like it better without the bumper cover on it though. Shows off that fabrication and looks more rugged.
Click to expand...
Yeah that’s how I have it now. I might paint the sides black to have it flow better


Sent from my iPhone using Tapatalk
