1984 Ford Bronco Project

[M Rose]

Thanks. My chiropractor has been liking all the extra hours and work. It's a good thing I don't sleep much normally! Probably being more fussy than I need to be for it's intended purpose. But the hope is that it will last for awhile.

When you are done with your 84, you want to do my 89?



[Dakota Houligans]

When you are done with your 84, you want to do my 89?

Would be fun. Might have to take it out and enjoy it for a bit before I take on another.



[Dakota Houligans]

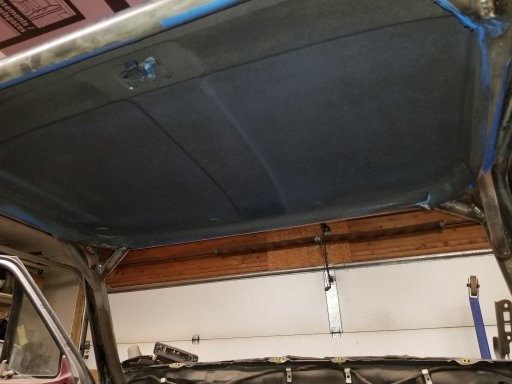

Sanded and cleaned the roof in preperation for primer and lizard skin.
View attachment 135914

Taped off a few things and sprayed the primer.

View attachment 135915

View attachment 135916

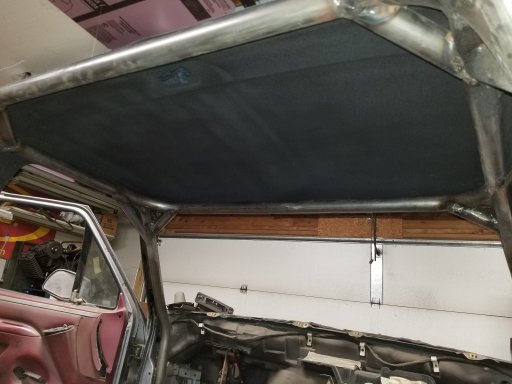

Time for the sound control layers

View attachment 135917

View attachment 135918

And now a few coats of their heat resistant coating.

View attachment 135919

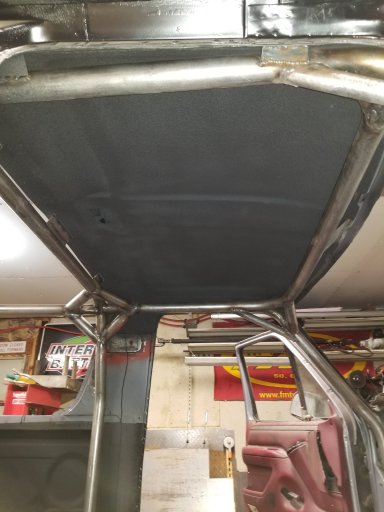

And after it dried.

View attachment 135920

View attachment 135921

Now its time to make some brackets and get the visors mounted.



[Dakota Houligans]

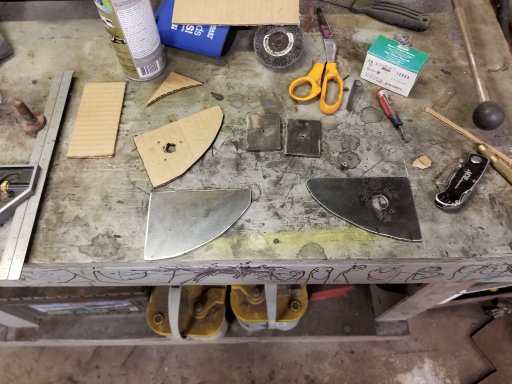

Made some brackets to mount the visors onto the cage.

View attachment 136327

All welded in.

View attachment 136328

View attachment 136329

And a test fit of the visors.

View attachment 136330

View attachment 136331

Turned out alright. Keeps them out of my line of sight but still usable.



[Dakota Houligans]

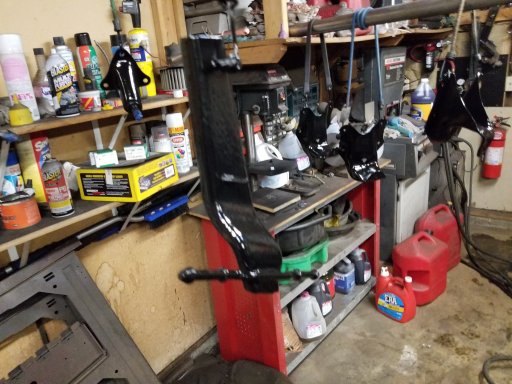

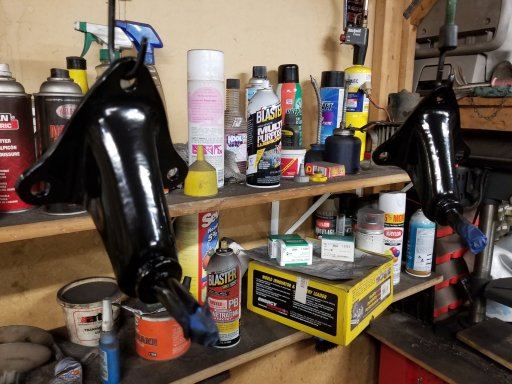

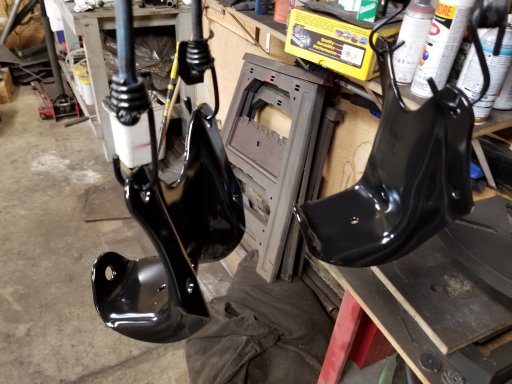

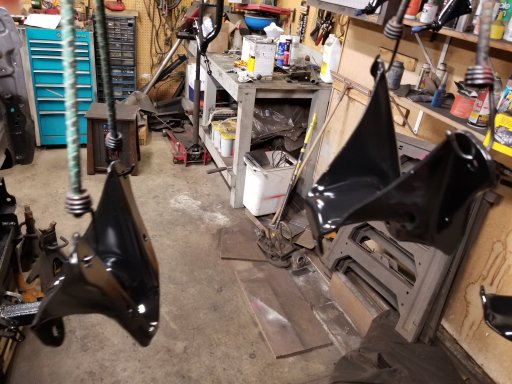

Cleaned up some brackets for the rear suspension and exhaust. After some time with wire wheels and die grinders I decided that it was good enough.

View attachment 136941

View attachment 136942

All sanded and ready for some primer and paint.

View attachment 136943

After 2 coats of epoxy and 2 coats of valspar industrial coating. Good enough for a beater Bronco.

View attachment 136945

View attachment 136946

View attachment 136947

View attachment 136948



[Dakota Houligans]

Time to start fitting the dash back in.

View attachment 136950

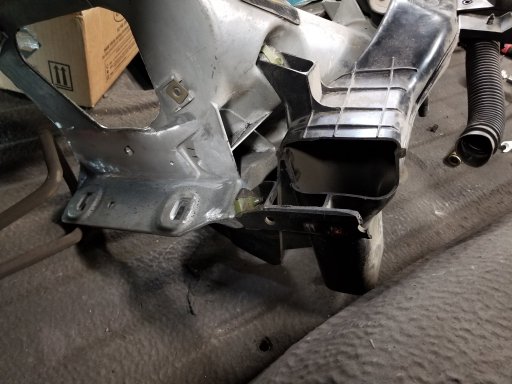

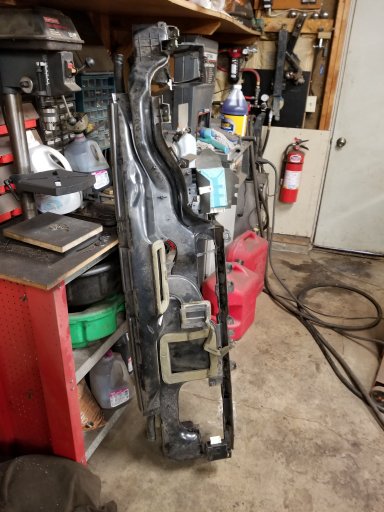

I removed all the wiring and then separated the hvac plenum from the main dash cover.

View attachment 136951

View attachment 136952

I figured it would be easier to work with them as separate parts and them final fit them together. After holding them in place as best I could I marked the area to be cut out.

View attachment 136953

View attachment 136954

Then the trimming started

View attachment 136955

And after what seemed like a few hundred times in and out. It was fitting pretty good.

View attachment 136956

View attachment 136957

View attachment 136958

I got a little carried away on the passenger side.

View attachment 136959

Then it was time to start cutting the inner piece.

View attachment 136960

View attachment 136961

View attachment 136962

And another few hundred times in and out and it was fitting.

View attachment 136963

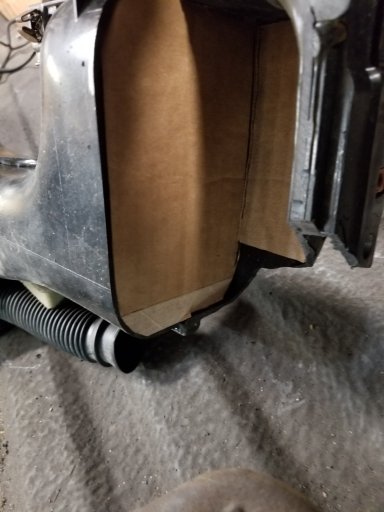

Then I made some cardboard templates to reseal the ducking that I cut out to fit around the cage.

View attachment 136964

View attachment 136965

Now I just have to decide if I want to patch it with metal or maybe some plastic of some kind. Though about fiberglass too but it can be a pain without some sort of frame to support it. Oh well I figure something out. But for now I think I should get some sleep.



[Abreu93]

I've had the bronco for about 12 years. Needed some work when I got it.
View attachment 44108 View attachment 44107
So I fixed some rust and started making changes.View attachment 44109 View attachment 44110 View attachment 44111 It got a little more involved than I had hoped. View attachment 44112
But eventually we started spraying bed liner on it.View attachment 44113 View attachment 44114 View attachment 44115 View attachment 44116 View attachment 44117 View attachment 44119 View attachment 44118 View attachment 44120 View attachment 44122 After all the body stuff was done It was time to start on the rest of the stuff. The old engine was tired. The axles where open diffs with 3.55 gears. And the interior needed some help.

That was some super awesome body work, how much did it cost you?



[Dakota Houligans]

That was some super awesome body work, how much did it cost you?

The old green body probably cost around $600 is to bedliner the outside. Don't remember how much in the sheet metal. The newer gray body will have a larger price tag in the end. But it's mostly time and materials since I'm dump enough to do it myself.



[Dakota Houligans]

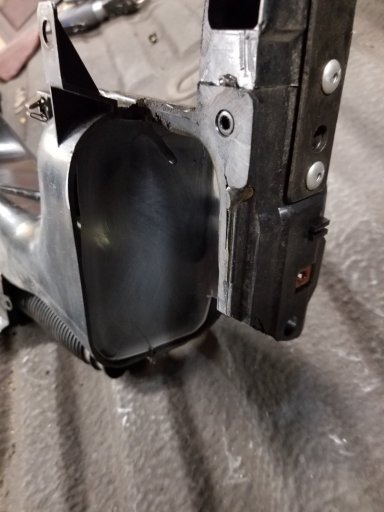

I managed to get some plastic formed to fit with a little help from some heat and a die grinder.

View attachment 138332

View attachment 138336

Then I cleaned and scuffed both pieces with a red scotch bright pad and the ducting. I put a fed spots of super glue on to hold them in place.

View attachment 138337

View attachment 138338

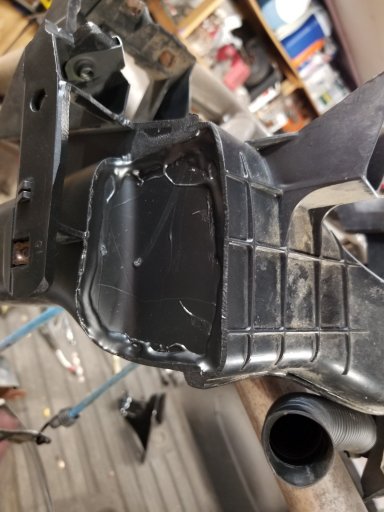

After that I used some 2 park plastic glue to seal it up. It flowed a little more than I hoped but it worked out well for what I needed.

View attachment 138340

View attachment 138341

Then it was time for a little trim black paint. My ocd would let me leave it as it was.

View attachment 138342

View attachment 138343

Turned out pretty decent. And this way both my outer hvac ducts are still functional.



[Lanlubber In Remembrance]

I managed to get some plastic formed to fit with a little help from some heat and a die grinder.

View attachment 138332

View attachment 138336

Then I cleaned and scuffed both pieces with a red scotch bright pad and the ducting. I put a fed spots of super glue on to hold them in place.

View attachment 138337

View attachment 138338

After that I used some 2 park plastic glue to seal it up. It flowed a little more than I hoped but it worked out well for what I needed.

View attachment 138340

View attachment 138341

Then it was time for a little trim black paint. My ocd would let me leave it as it was.

View attachment 138342

View attachment 138343

Turned out pretty decent. And this way both my outer hvac ducts are still functional.

What kind of glue are you using ? What are you doing to hold the shapes of your patches, a heat gun. Where did you get the plastic to make your patches ?
Are you loosing any of your ducts ? Looks like your getting down to the nitty gritty of it all now. Is your motor and drive line coming along too ? Awsome



[Dakota Houligans]

What kind of glue are you using ? What are you doing to hold the shapes of your patches, a heat gun. Where did you get the plastic to make your patches ?
Are you loosing any of your ducts ? Looks like your getting down to the nitty gritty of it all now. Is your motor and drive line coming along too ? Awsome

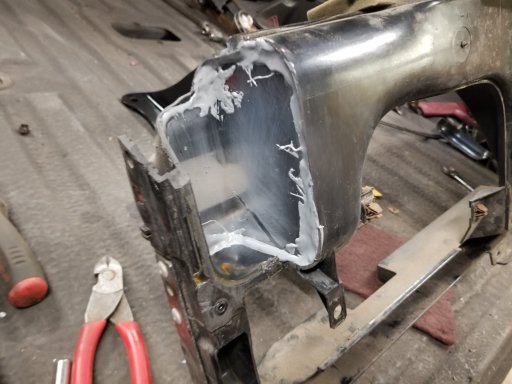

The glue is a SEM 2 part adhesive called "Multi-Plastic Repair Material". It is used to repair bumpers and plastics on auto body repairs. Even when dry it remains a little flexible to allow expansion or twisting of materials. I've had good luck with most of the SEM adhesives.

View attachment 138523

There isn't anything holding the shape. I heated the plastic with a map gas torch and let it fold over the edge and then cut out the basic shape with an air saw and fine tuned it with a 3 inch 36 grit roloc disc. I had to heat some areas again to get the cures and slow right. Though about it afterwords but I didn't take and pictures of it. Or a video could have been interesting. I got the plastic from a friends pile of left overs. Couldn't tell you if its plexi, acrylic, lexan, or whatever. I don't think its regular Plexiglas though it was pretty tough and I didn't crack any of it. The only ducts I may lose are the 2 that blow on the side windows. I need to do another test fit and see if I can modify them to still work. They originally ran right where the cage runs. Unfortunately the motor and drive train is mostly just collecting dust and ideas at the moment. I'm trying to get some of the interior back together to free up space.



[Dakota Houligans]

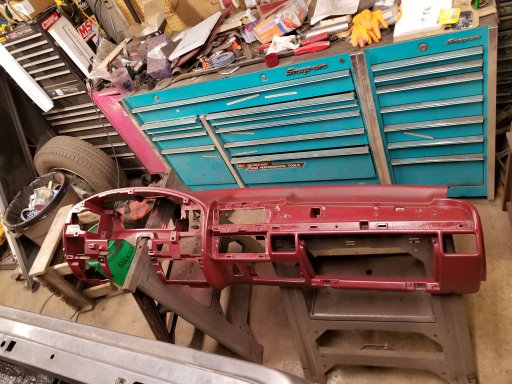

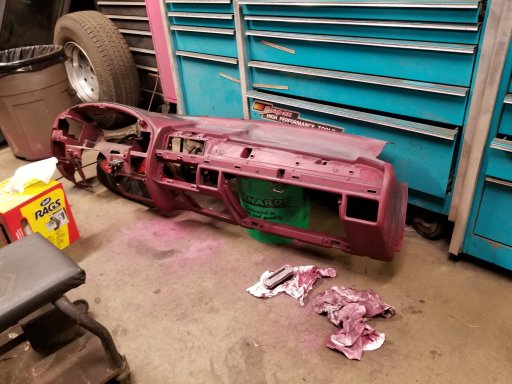

Started working on cleaning up the dash. I used a little paint solvent on rags to clean the spray paint the previous owner had put on it.

View attachment 146149

View attachment 146151

It took a fair bit of scrubbing but I got most of it cleaned off and ready to get it returned to closer to it's original color.

View attachment 146152

View attachment 146153

I still have some more dash pieces to clean up and the door panels. And after that hopefully I'll get to repainting them.



[Dakota Houligans]

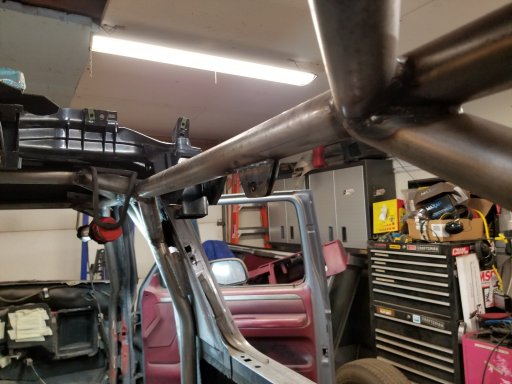

Cut out some tabs to mount the shoulder belt for the rear seat belts to the cage if we have the top off.

View attachment 146155

The tabs in place.

View attachment 146156

View attachment 146157

Then I spend about 4 hours sanding the cage. Now its all cleaned up and wiped down. Now to find the spare time to get some primer and paint on it.

View attachment 146158



[Dakota Houligans]

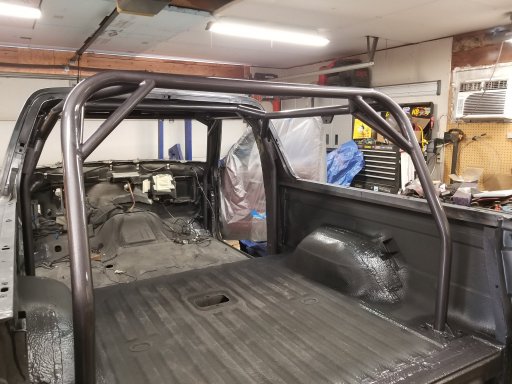

I got the cage wiped down and primered with some PPG black epoxy.

View attachment 146652

View attachment 146653

View attachment 146655

View attachment 146654

And then I sprayed it with the same color as we are going to do the body. I'm using a charcoal/gray color with a mix of pearls containing blue, violet, and red.

View attachment 146647

View attachment 146648

View attachment 146649

View attachment 146650

View attachment 146651

So far so good. We'll see how good it is when it's all dry. Hoping not too many runs.



[Dakota Houligans]

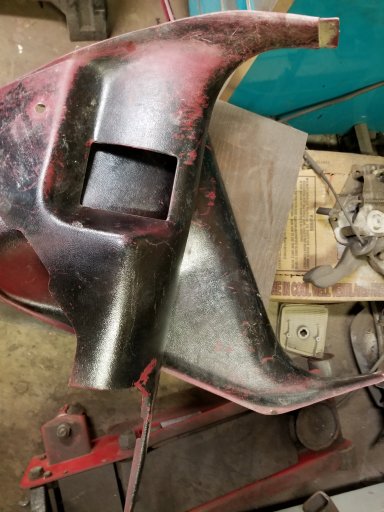

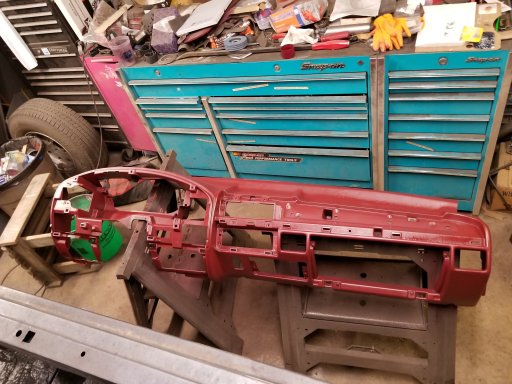

I cleaned as much of the old crappy pain of the dash as I could. I also did the glove box, and a few other lower parts that go on the dash. I scrubbed them with a cleaning solvent that is used for cleaning up automotive paints.

View attachment 149069

View attachment 149070

View attachment 149071

I had a few spots on the dash that I needed to fix before re-coating it. I used more of the plastic from the duck work modifications and the SEM plastic 2 part plastic repair to patch some missing pieces. All the pieces got lightly sanded at slow speed with a 36 grit grinding disk on a die grinder to give the adhesive a good surface to bite.

View attachment 149072

View attachment 149073

View attachment 149074

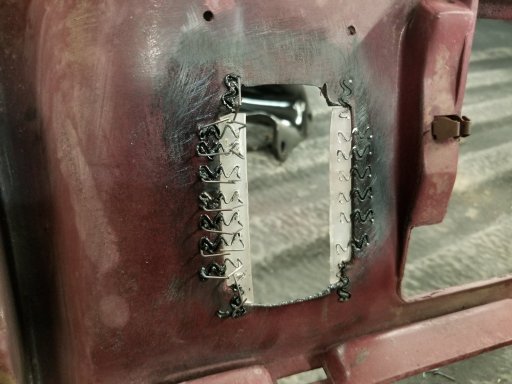

Then it was time to fix a few cracks in the dash. For those I used these plastic repair pieces. They are normally put in a tool that heets them up and you melt them into the plastic. Since I don't have the tool I used a torche to get them glowing and quickly melted them into the plastic to reinforce the cracks. I put them on the back side of the dash.

View attachment 149075

I also trim off the legs.

View attachment 149081

View attachment 149082

Then after trimming the legs off. I scuffed the area with the 36 grit and applied the plastic adhesive over the repair.

View attachment 149083

View attachment 149084

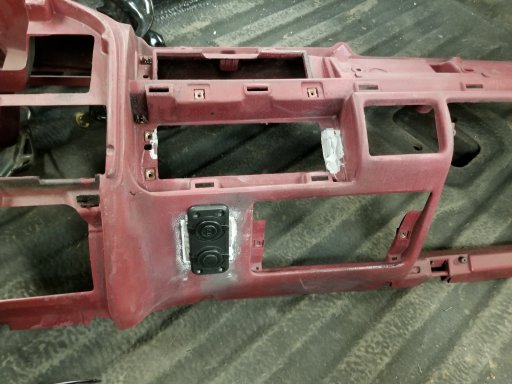

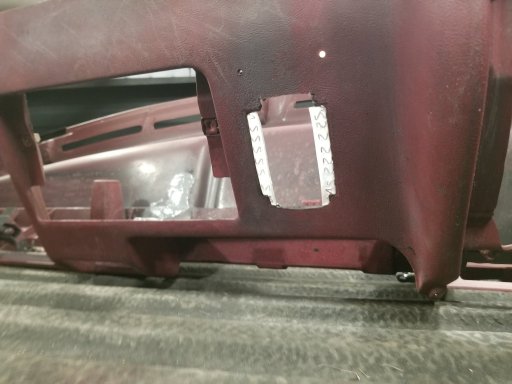

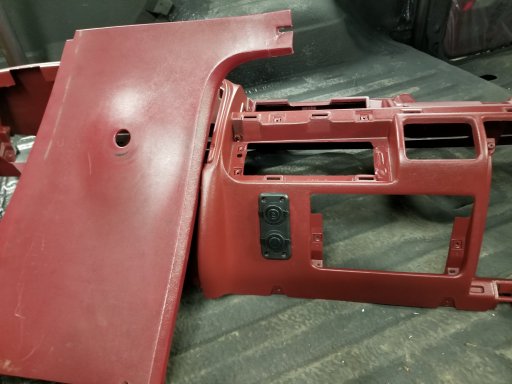

We wanted to replace the original cigarette power port with the double usb and cigarette lighter type. The hole was a little to big so I filled in the sides with more plastic.

View attachment 149085

Again I used the clear plastic and the metal reinforcement.

View attachment 149086

View attachment 149087

Then I scuffed and applied the plastic adhesive with some more plastic around the edge. It was wider so help reinforce the edges.

View attachment 149088

View attachment 149089

After a little sanding and shaping it filled it fairly well.

View attachment 149090

View attachment 149091

View attachment 149092



[Dakota Houligans]

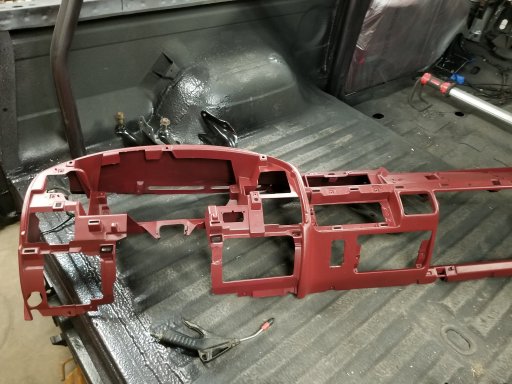

Now it was time to return it to the original color. First I scrubbed it all with a special soap that has some grit in it and helps to remove a leftover junk that would mess up the new coating. Then you spray it down with a wax and grease remover at wipe it down until clean. Right before you spray the color you spray down an adhesion promoter that is used wet on wet. The color has to go on while the adhesion promoter is still wet so it will melt into the plastic.

View attachment 149093

After the first light coat. of SEM Color Coat.

View attachment 149094

View attachment 149095

View attachment 149096

After 3 lightish coats it actually looked pretty decent.

View attachment 149097

View attachment 149098

View attachment 149099

This is how it looked before.

View attachment 149101

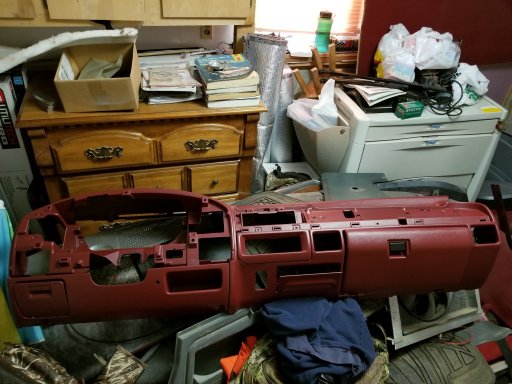

And of course a sort of final assembly picture to see about what it is like back together.



View attachment 149102

View attachment 149103

View attachment 149104

Turned out pretty good. I still have several panels and trim pieces to fit around the cage and then probably do the same refinishing to them.



[M Rose]

Wow...this makes me realize I need an air compressor badly so I can do some repair to my plastic pieces in my ’89.



[Dakota Houligans]

Air compressors defiantly come in handy. I just upgraded to an 80 gallon industrial compressor about a year ago. Used to have a little craftsmen 20-30 gal that did ok for small projects. It's nice now I never have to wait for the compressor to catch up. Just make sure you get one that is up to the task you want it to do. Mine is overkill for most home shops. But it has all the goodies to make sure I always have enough cool dry air for tools or painting.



[Dakota Houligans]

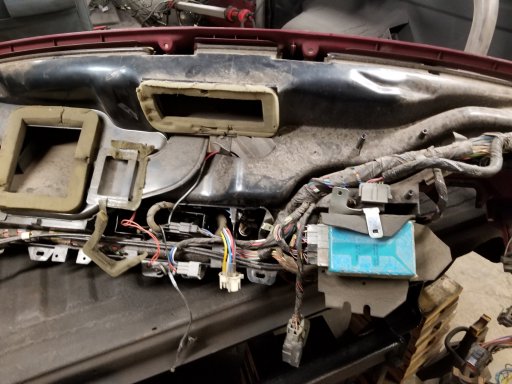

Did a little more work on the dash. The foam seal on the vents was just about non existent. So I found some D shaped weatherstripping and used it to seal the vent connections.

View attachment 153943

I also painted the bracket that holds the drivers side of the dash and the steering column up. Just used some spray can trim black.

View attachment 153944

Then I started on fixing some of the wiring in the dash. The headlight connector looks like it has gotten hot a time or two.

View attachment 153945

Brought home a replacement. They come with the wires but I removed them and just reused the factory ones.

View attachment 153946

I also patched up the wiring that had been spiced into for a alarm or remote start at some point in it's past.

View attachment 153947

I cheated a little. I used uninsulated butt connectors to crimp the wires together and then soldered them and used sealing heat shrink over top.

View attachment 153949



View attachment 153948

After I patched up the wiring. I put the duct work back into the dash. I also put the wiring back in. The dash is reassembled but waiting for me to finish some body work before I reinstall it. Don't really want to fill it with sanding dust after I got it looking so nice.



[Dakota Houligans]

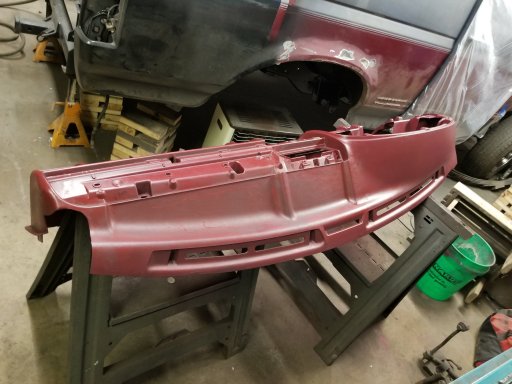

Found a little spare time the other day and got out the wire wheel, sandblaster, and sander out and cleaned up the rear axle. Then some primer and paint.

View attachment 153950

View attachment 153951
