Waterproofing the Plano Sportsman box

  • HTML tutorial

whistlepunk

Rank III
Launch Member

Enthusiast I

874
Bend, Oregon, USA
First Name
DAVID
Last Name
LAVINSKI
Member #

8944

Thanks for the tip. I was looking at the Plano boxes since i can not afford any of the nicer overland specific ones and was concerned about the waterproof issue.


SubeeBen

Rank V

Advocate I

2,309
Alpine, CA
First Name
Ben
Last Name
Jacques
Member #

10566

That foam gasket is awesome did that in an old ice chest of mine & works great. Still have to install on my front door of the house but had my priorities that day.


brien

Sonoran Space Program
Staff member
Moderator
Member

Off-Road Ranger I

3,402
Tucson, AZ
First Name
Brien
Last Name
Wankel
Member #

3553

Ham/GMRS Callsign
K7XPO
Curious to know, since this post is a little older, how have these seals held up over time?
I did this mod about a little over a year ago and they've held up just dandy. the seals still look just as good as the day i first stuck them on. For what it's worth, I didn't use any glue or anything, i just used the adhesive backing that comes on the seals.

EDIT: i did make sure to clean the surface with alcohol before sticking them on, however


JersT4R

Rank V
Member
Investor

Traveler III

2,352
Norfolk, VA
First Name
Jeremy
Last Name
Bailey
Member #

8880

Thanks for the write up and pics, it was easy to follow. I just did this last night to my Plano 1919 (or Heavy-Duty) 108 qt trunks using the MD Window Seal Medium Gaps from Lowes.


Mike G

Rank VI
Launch Member

Traveler III

3,745
San Jose, CA
Member #

1334

After driving 3 hours on the freeway in the pouring rain, I can say that the gasket worked great. No water got into my trunks. It also kept out the dirt and sand during a sand storm in Death Valley.

Last edited:
  • Like
Reactions: Nomadik Nova

mhoadley

Rank II
Launch Member

Enthusiast I

442
Collinsville, Canton, CT, USA
Member #

15461

Some time ago I posted a picture of my storage solution using 8 Plano boxes... yeah 8. They break down as follows for 2 adults and 2 kids:
2 boxes for clothing
2 boxes for sleeping bags, air mattresses, air pump and wool blankets
2 dry food storage
1 kitchen and stove
1 miscellaneous (glow sticks, toilet paper, lanterns, batteries, fan, inverter big nets...)

With so many boxes not all of them fit in my Jeep. As a matter of fact I only fit 4 in my jeep along with an ice chest and in my Trailer I fit 4 Plano boxes and another ice chest. Because of my trailer being open they need to be water tight from rain and dirt and mixtures of the two.

So now on to the sealing of these boxes. For this I use Plano Sportsman 1719 68 Quart boxes all of my Overlanding boxes are Black (hunting/fishing are green).

Items needed are as follows:
Plano Box

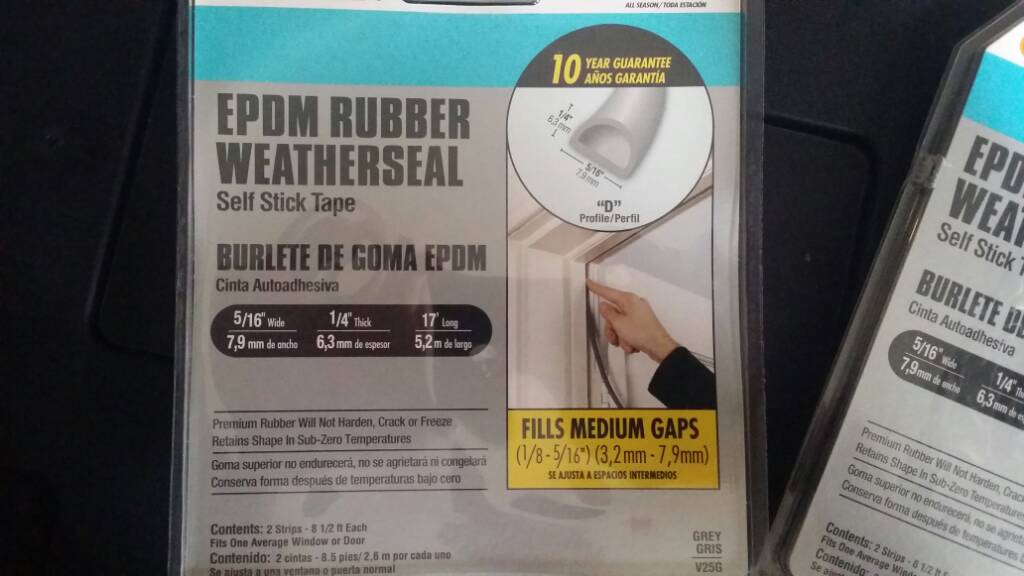

EPDM rubber weather seal D profiled 5/16 wide 1/4 thick (see pic)
Super glue
Scissors
Ball point pen
Alcohol wipes (not pictured)

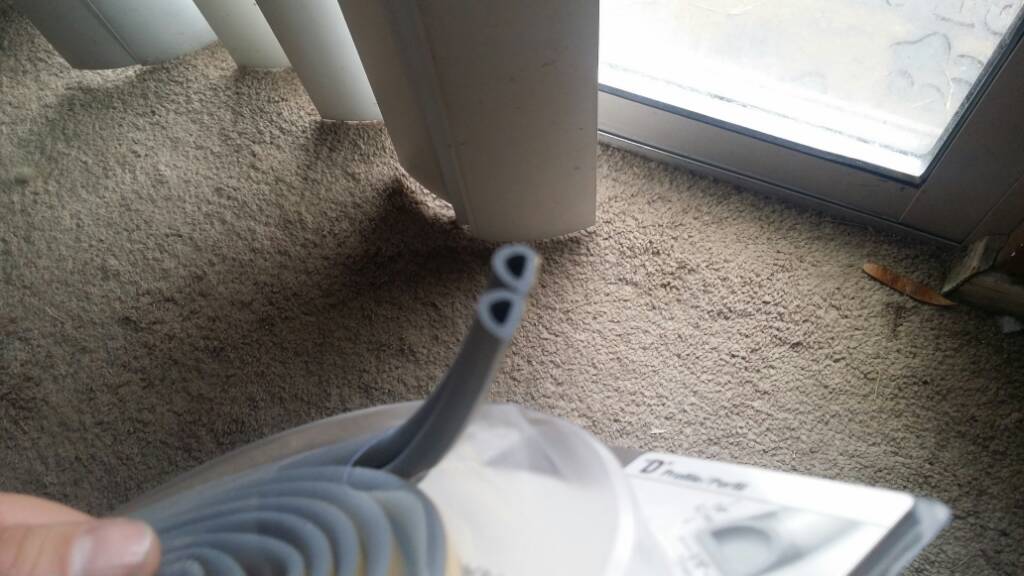

Weather seal and profile:






Tools:


Now that you have your supplies you are ready to do this simple task.

Step 1:
Start by flipping the lid over and cleaning the surface of the lip using alcohol wipes.

Step 2:
Place super glue in the straight channel of lid and allow a minute for the glue to start getting tacky. Note do not apply to the corners as the glue actually prevents the gasket from sealing against the plastic.



Step 3:

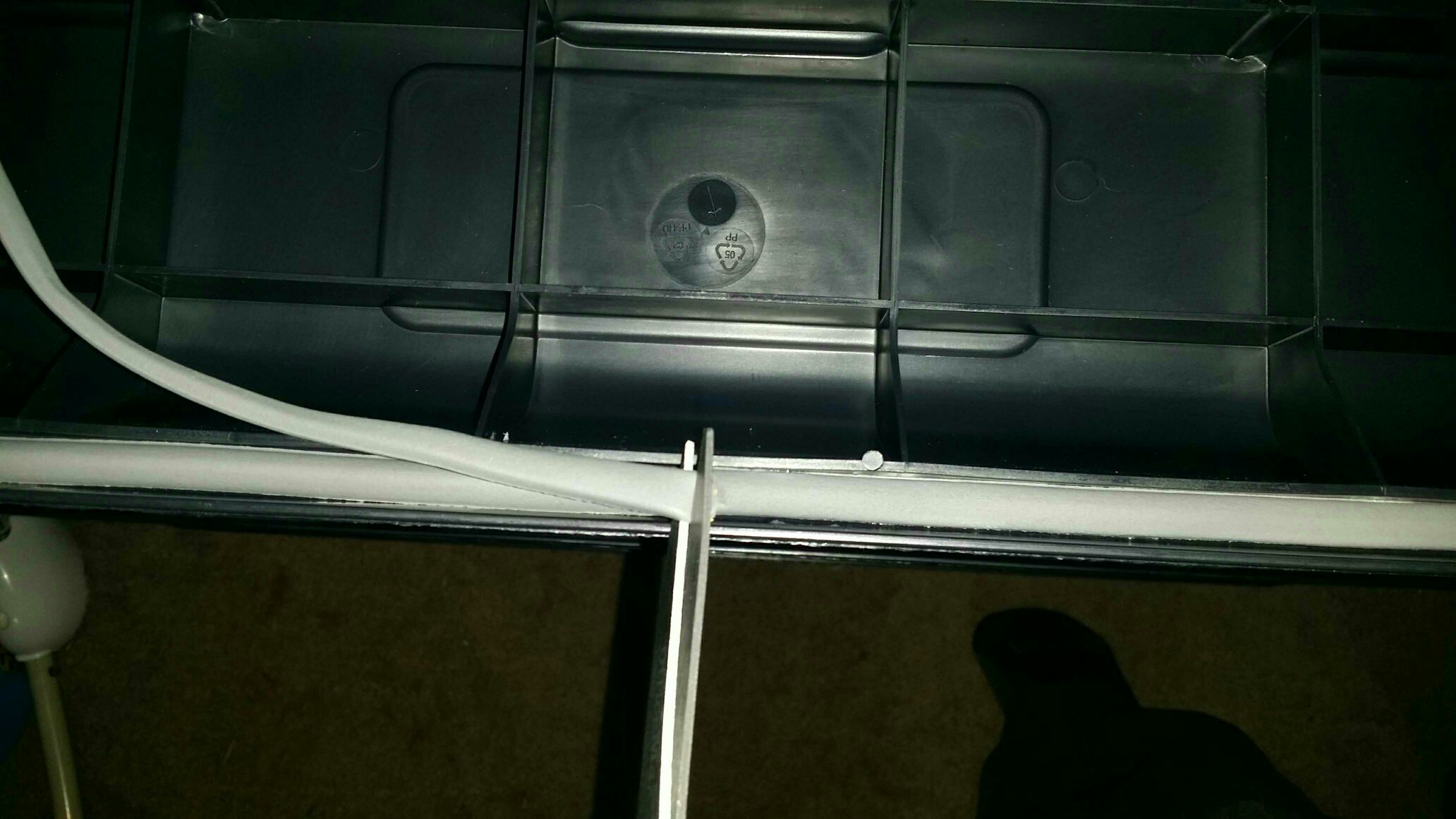

In my case I needed to seperate the two gaskets. They are both 5/16 wide and they simply pull apart. Apply gasket to channel using ball point pen to press the gasket into place. Note this can be done using you're finger if your don't have sausages for fingers.



Step 4:
Trim gasket as close to the starting point as possible.



Step 5:
Leave lid upside-down for 1 hour minimum to allow glue to set.

Step 6:
Reinstall lid and enjoy.

Sent from my SM-N900V using OB Talk mobile app

Great write up OP! I got some sportsman totes for Xmas and just did this to them last night. It seemed like the lid didn’t want to latch on to the tote at first, but at last, it latched. I’m thinking they just need some use to be broken in, but either way +1 on this write up.


layne12

Rank 0

Contributor I

60
Austin, TX, USA
First Name
LAYNE
Last Name
LOMAGLIO
i plan to do the same on mine, you can never have enough waterproofing.. I did test my Plano last weekend. We did trail ride, and huge water splashes (kids love it), and hundred of miles on heavy rain going about 65mph. As soon as i got home, I brought the boxes down and all our clothes and gears are dry! I'm pleasantly happy and i may grab a few more of these plano boxes.
Everything stayed dry prior to waterproofing your Plano Trunks? I’m planning on doing this weather stripping method myself but I didn’t expect them to already be waterproof!


layne12

Rank 0

Contributor I

60
Austin, TX, USA
First Name
LAYNE
Last Name
LOMAGLIO
i plan to do the same on mine, you can never have enough waterproofing.. I did test my Plano last weekend. We did trail ride, and huge water splashes (kids love it), and hundred of miles on heavy rain going about 65mph. As soon as i got home, I brought the boxes down and all our clothes and gears are dry! I'm pleasantly happy and i may grab a few more of these plano boxes.
Everything stayed dry prior to waterproofing your Plano Trunks? I’m planning on doing this weather stripping method myself but I didn’t expect them to already be waterproof!


RoarinRow

Rank V
Launch Member

Member III

2,771
Elk Grove, CA, USA
First Name
Rolando
Last Name
Nispiros
Member #

17011

Ham/GMRS Callsign
KN6JJS
Thanks for the tip. Interesting I found a small Plano box at Walmart this evening. I was pleasantly surprised. Bought it for $15. Has a strong plastic smell though.
