I really like the way that rack is done. Eventually I'd like to rip the Garvin off my roof and do something with a little more capacity, something that matches the lines a little better, and is a little more sturdy.

I'm a sucker for a Jeep build

  • Like
Reactions: timberwolf_120
timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

Got some pics of the output on my led headlights

Off (outside view)


Low beam


High beam


In cab view



Parking lights


Low beam


High beam



Sent from my SAMSUNG-SM-G890A using Tapatalk

  • Like
Reactions: murps
timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

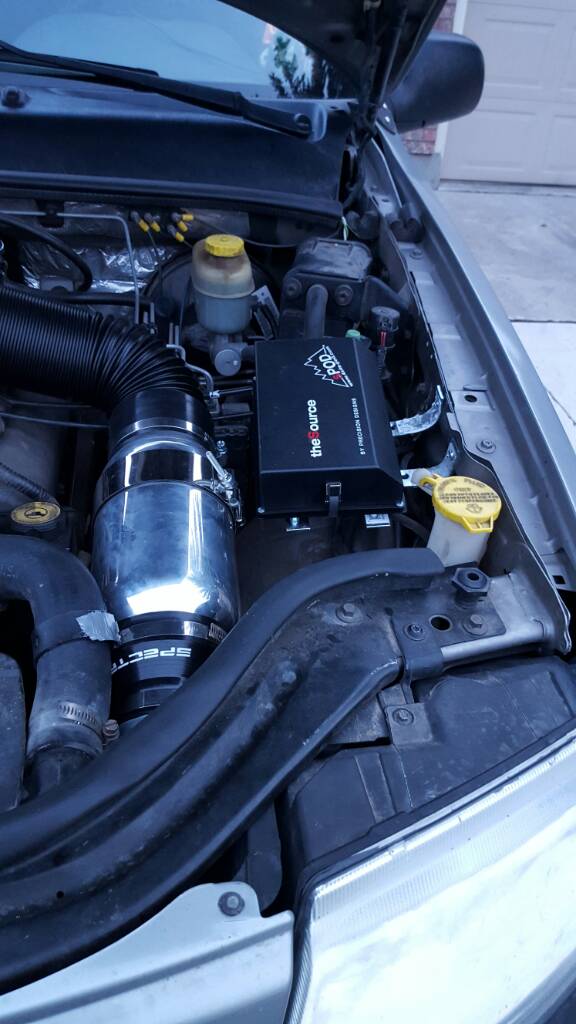

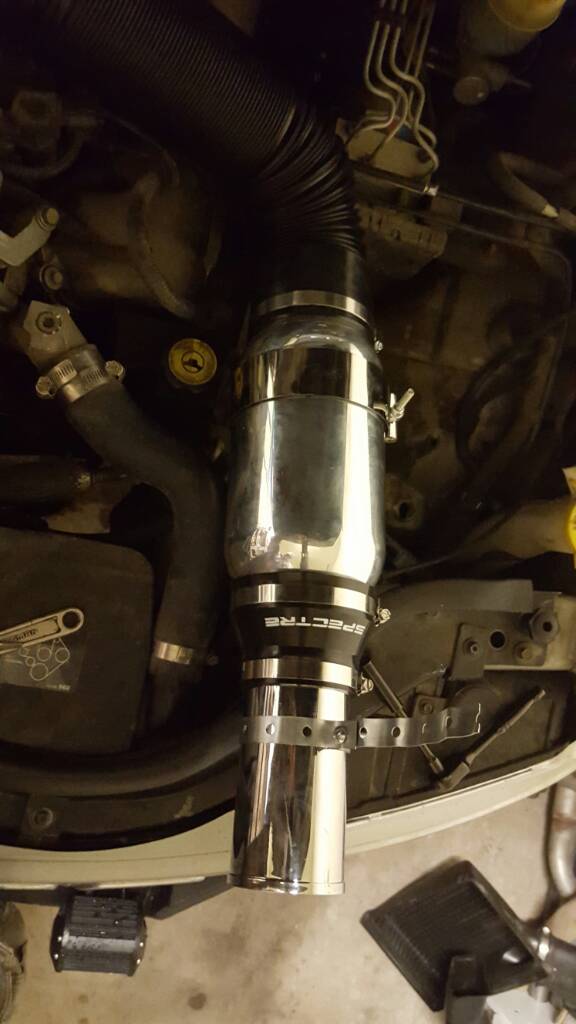

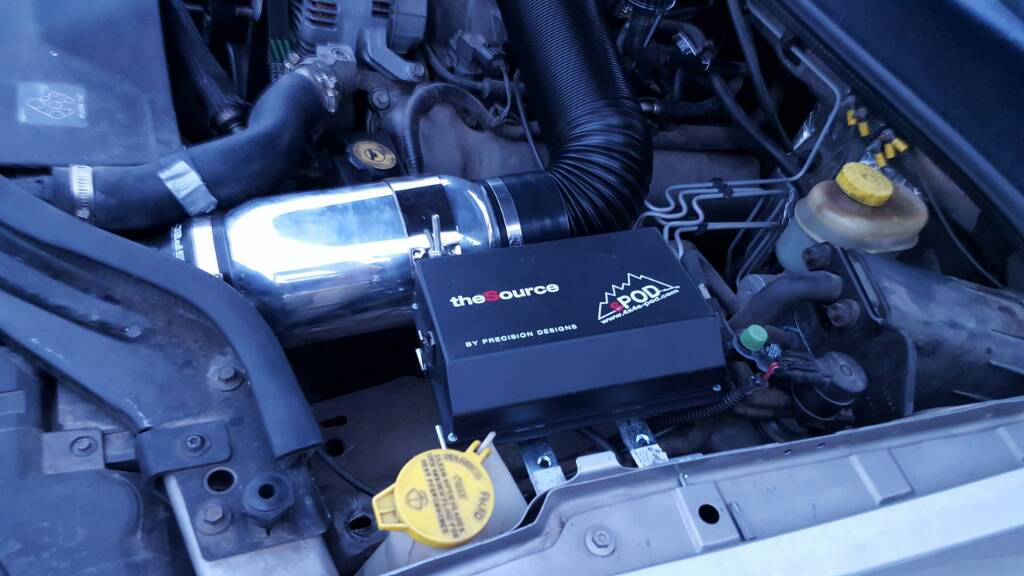

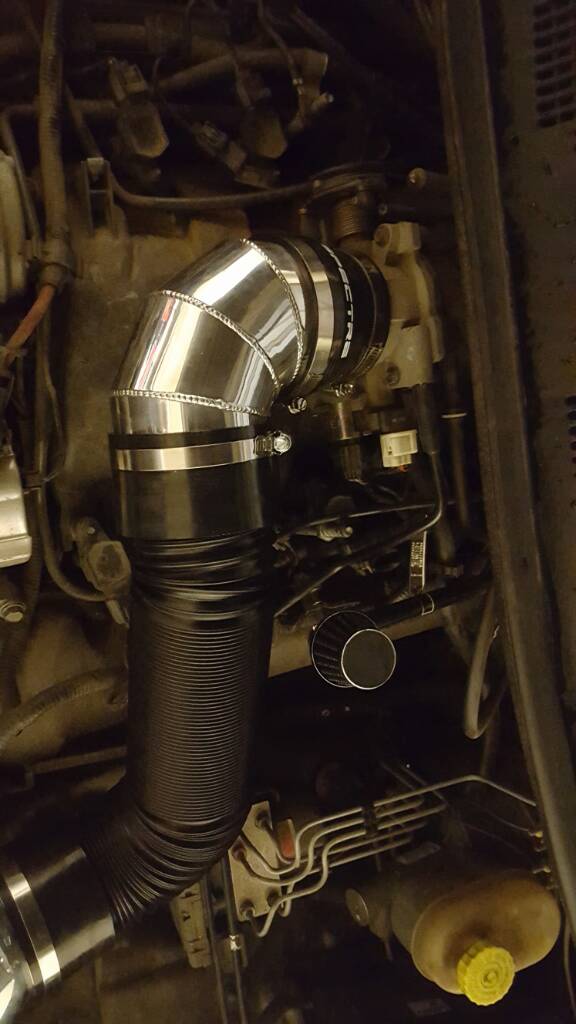

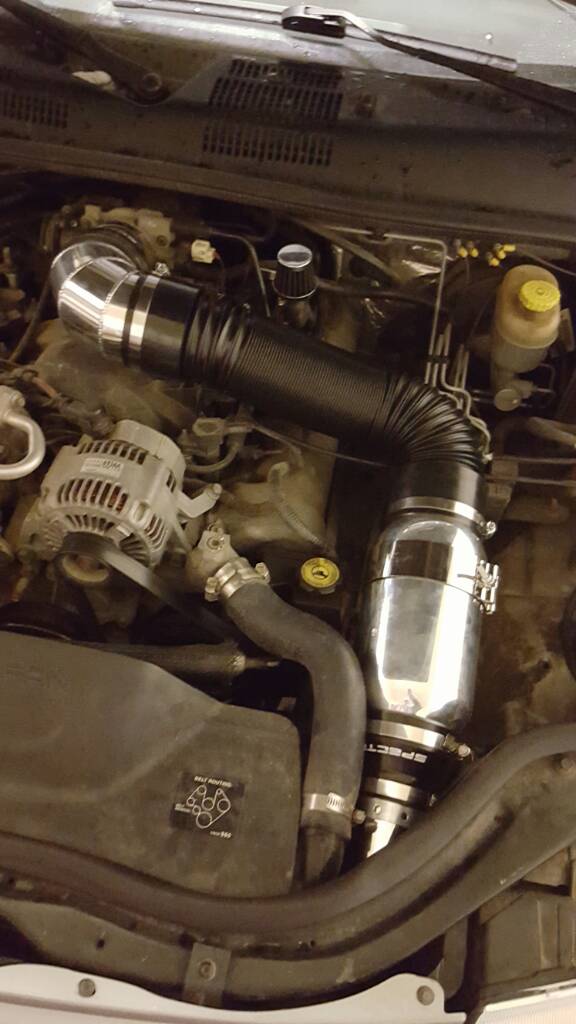

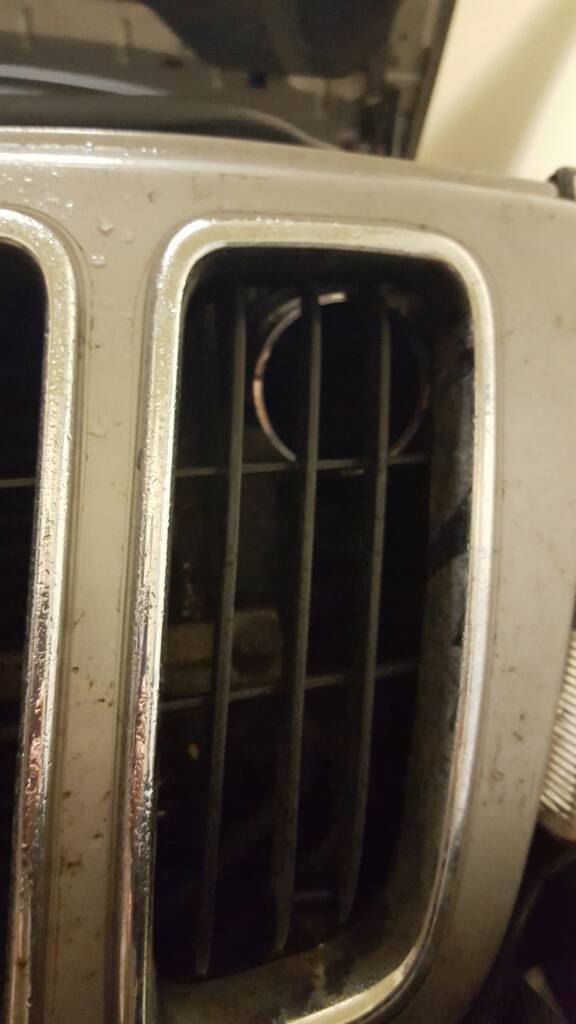

Finally got the intake system setup and mounted in.
This damn weather is making it a nightmare to do any work.









Sent from my SAMSUNG-SM-G890A using Tapatalk

timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

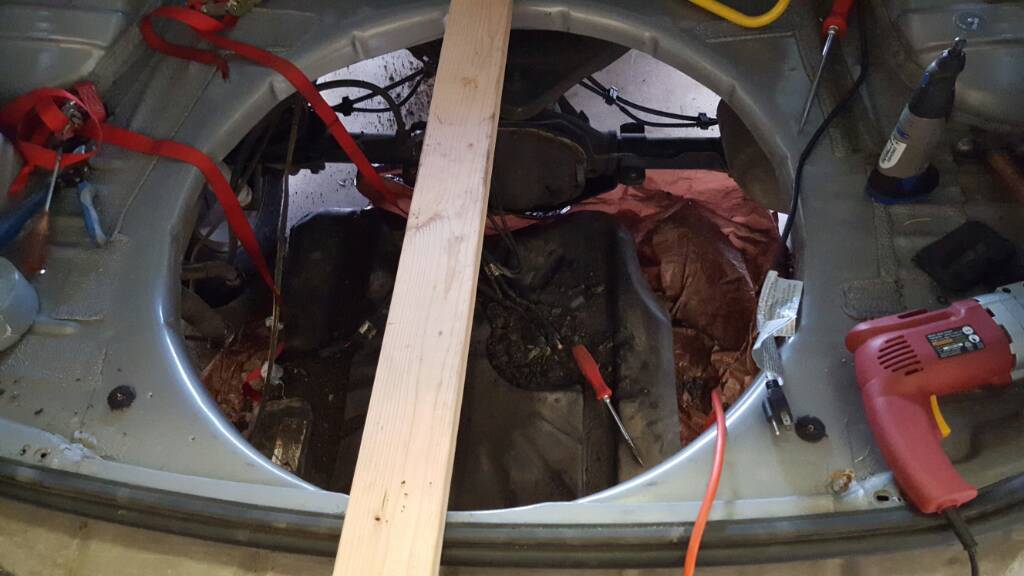

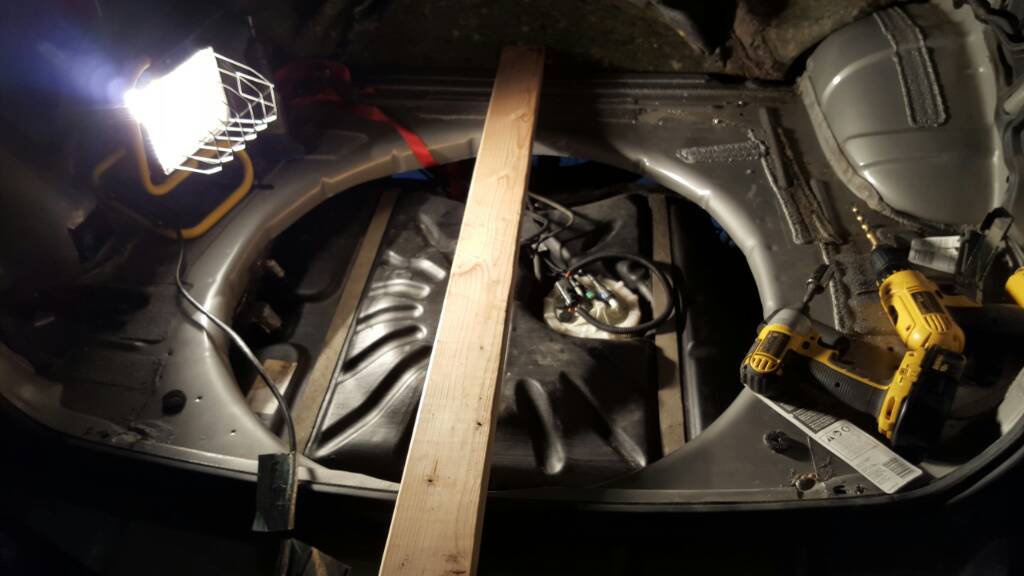

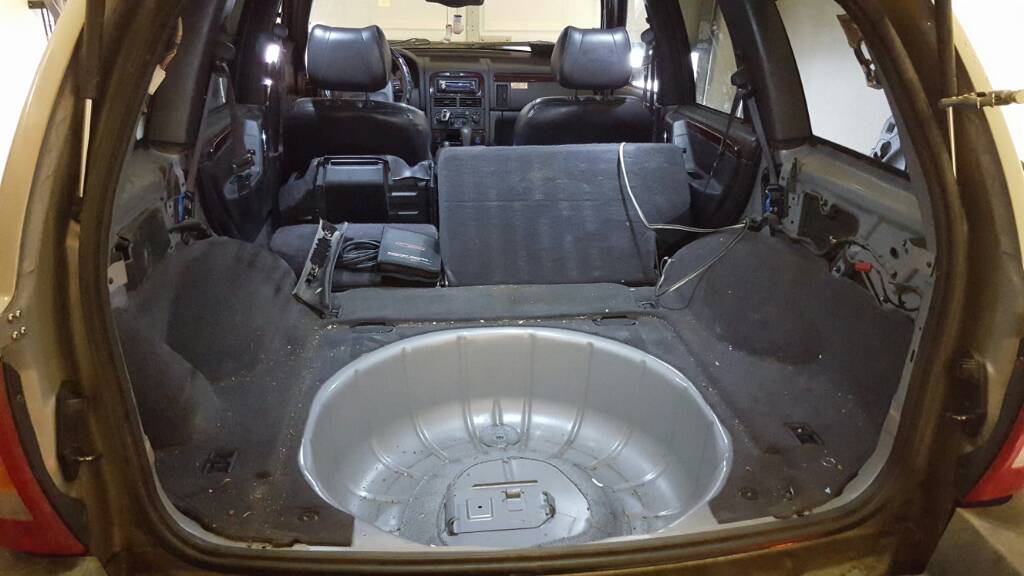

Well fuel pump is going out in the jeep so decided to just make things easy and tackle my tank tuck at the same time.













Sent from my SAMSUNG-SM-G890A using Tapatalk

  • Like
Reactions: WJ - Firefly
Overland-Indiana

Overland-Indiana

Overland Bound - Midwest Regional Ambassador
Launch Member

Influencer II

3,316
Kokomo
Member #

0750

Your a brave man!! The tank tuck, from what I have heard is well worth it though!! Gotta be honest, I love my XJ but i REALLY miss my WJ.. :disrelieved:

  • Like
Reactions: timberwolf_120
timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

jordanbrooks said:
Your a brave man!! The tank tuck, from what I have heard is well worth it though!! Gotta be honest, I love my XJ but i REALLY miss my WJ.. :disrelieved:
Click to expand...
Whys that? Lol

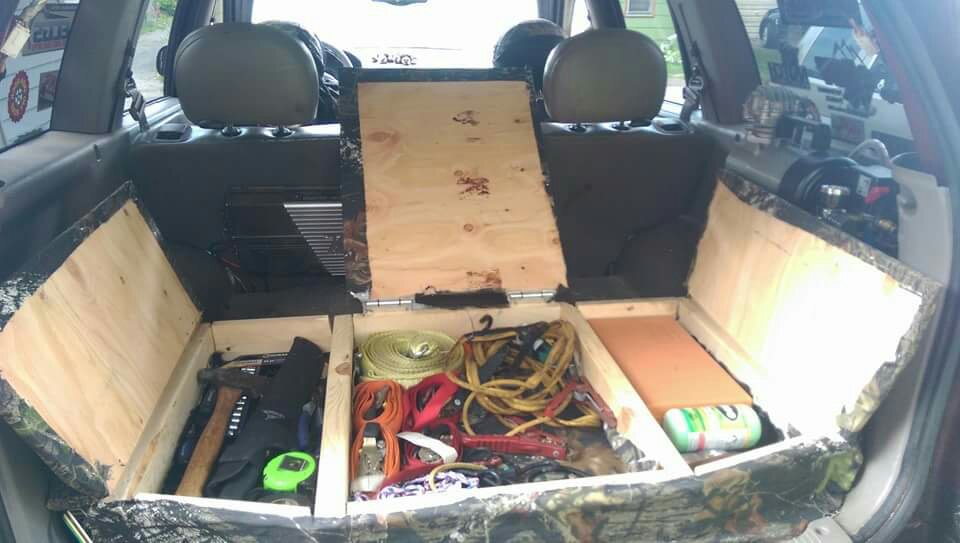

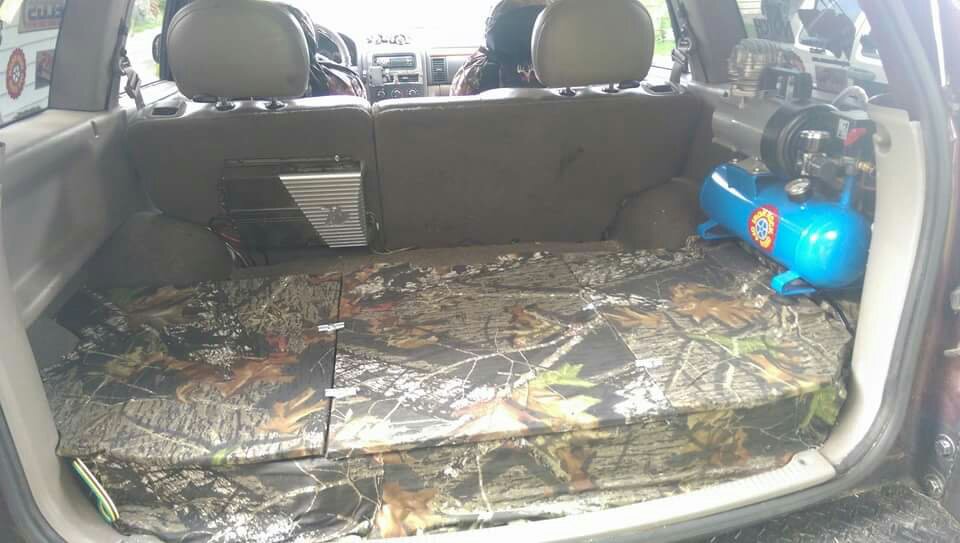

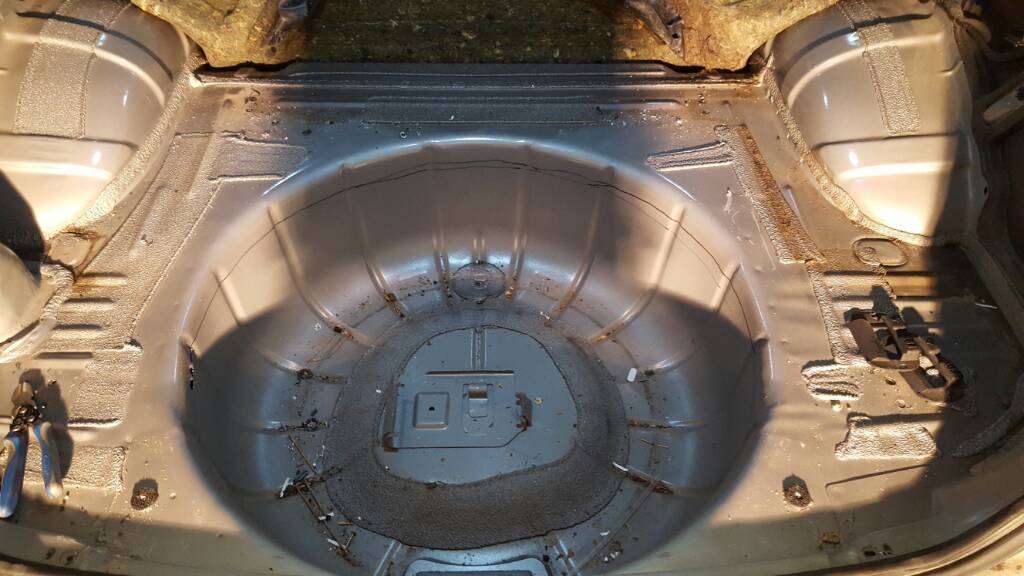

And yea I know it's gonna net me a ton of rear ground clearance. And I didn't plan on using the spare tire well for anything just gonna build something like this over it so a tank tuck was even an easier decision lol





Sent from my SAMSUNG-SM-G890A using Tapatalk

Overland-Indiana

Overland-Indiana

Overland Bound - Midwest Regional Ambassador
Launch Member

Influencer II

3,316
Kokomo
Member #

0750

WJ had more comforts and more space... Wife liked it, she hates the XJ as of now. But, it is still bone stock so once I get it lifted and modded I'm sure she will come around. I am waiting to do modifications until I find out what the dealer is going to do about the rear leaf suspension.

  • Like
Reactions: WJ - Firefly and timberwolf_120
roamingtimber

roamingtimber

Rank V
Launch Member

Advocate II

2,528
North Cascades, Washington
Member #

0525

I've thought about the tank tuck, but I don't know if I could could cut off all that sheet metal. I use my spare tire well as a big trunk at the moment too. I've been thinking of doing a rear bumper with a huge skid plate for the tank as part of it. I know it wouldn't help my departure angle any, but at least I wouldn't have to worry about punctures.

timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

Eh it's all super thin anyways lol I'm replacing it with 11gauge steel.

As for punctures I'm not really worried about the stock skid plate is pretty stout. But your right I make a bumper tie in later on for a skid plate.

Sent from my SAMSUNG-SM-G890A using Tapatalk

timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

Well looks like the jeep is gonna be on hold for a while. After a close encounter with losing my dog the other day had to rethink life and the path I was going down. After scrambling to get money together to pay for his bills I decided it was time to relax and rethink lifting my jeep, atleast at present time.
Returned my tires and rims I had bought just a month earlier, and will only be finishing the install of parts I currently have for it. So jeeps gonna be neglected pretty much for the next couple years till I can save up to get my lift and tires.
Life goes on and I will still be around.



Sent from my SAMSUNG-SM-G890A using Tapatalk

murps

murps

Rank V
Launch Member

Advocate II

2,309
Denver, CO, USA
First Name
d
Last Name
m
Member #

0711

timberwolf_120 said:
Well looks like the jeep is gonna be on hold for a while. After a close encounter with losing my dog the other day had to rethink life and the path I was going down. After scrambling to get money together to pay for his bills I decided it was time to relax and rethink lifting my jeep, atleast at present time.
Returned my tires and rims I had bought just a month earlier, and will only be finishing the install of parts I currently have for it. So jeeps gonna be neglected pretty much for the next couple years till I can save up to get my lift and tires.
Life goes on and I will still be around.



Sent from my SAMSUNG-SM-G890A using Tapatalk
Click to expand...
family first.

timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

Yea no denying that. Plus I'll feel a lil better wheeling it now that i have steel bumpers and tank tuck in work

Sent from my SAMSUNG-SM-G890A using Tapatalk

Last edited:
timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

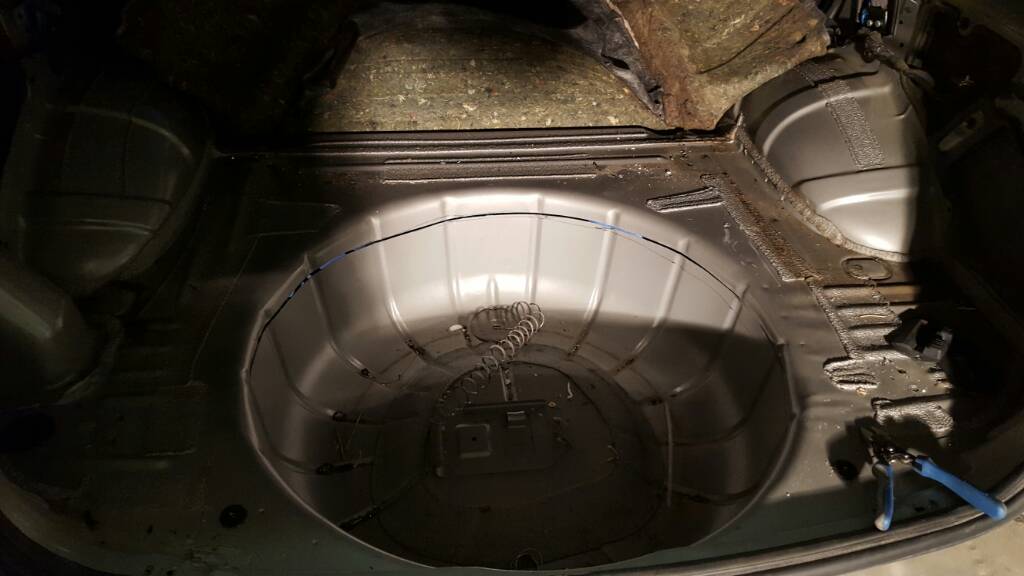

Tank tuck almost done. Here's what I have so far tho.
Already tested the filler neck and it fills just fine. If ya don't like it drill through the unibody rails. I didn't have a hole saw big enough for it nor anymore money to get one.
Have to cut the box template out of the steel I got and then seal that up, cut the carpet and it'll be good to go.

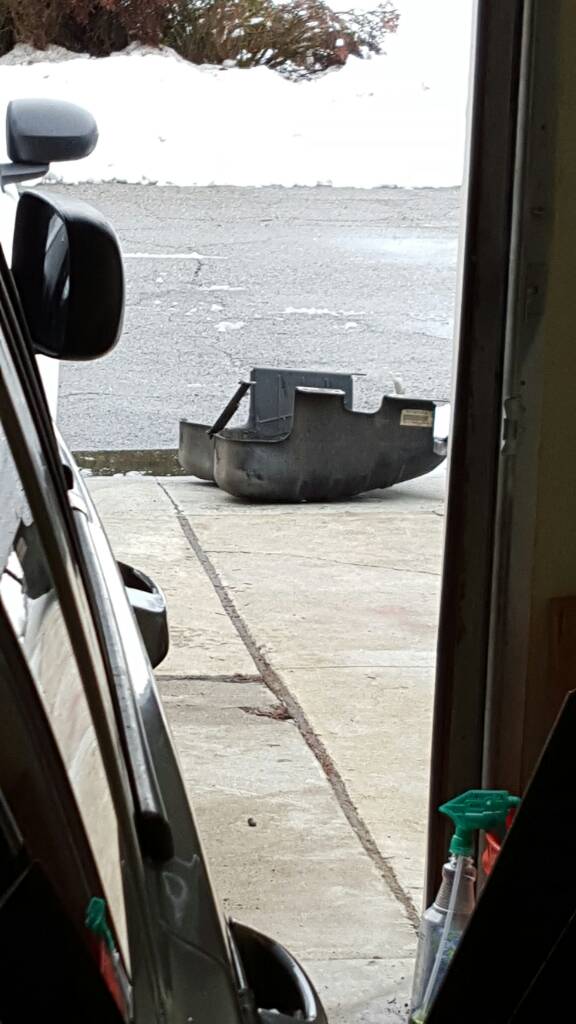

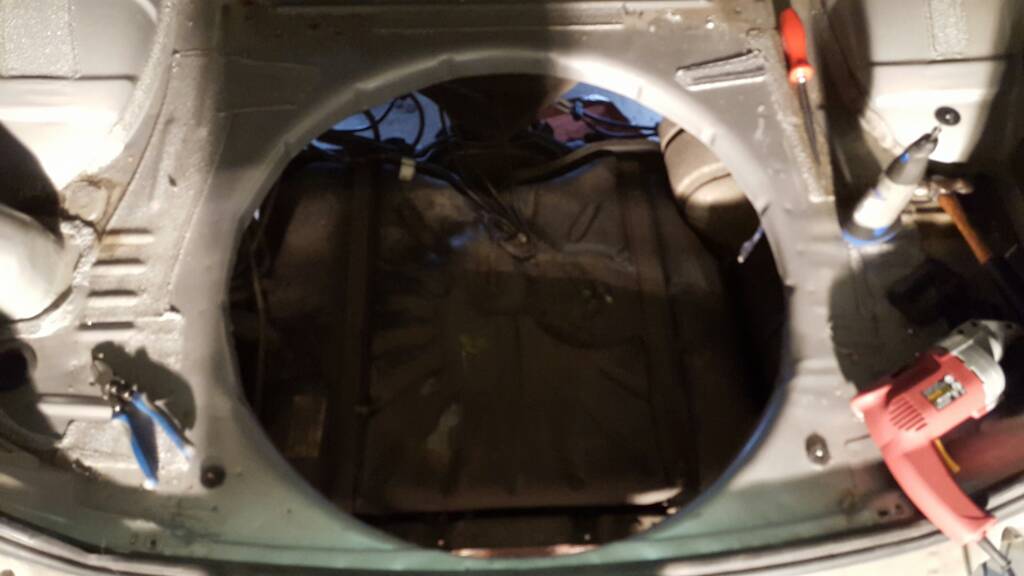

Cut 5.5" out of the skid itself and then 4 5/8" out of the filler neck.

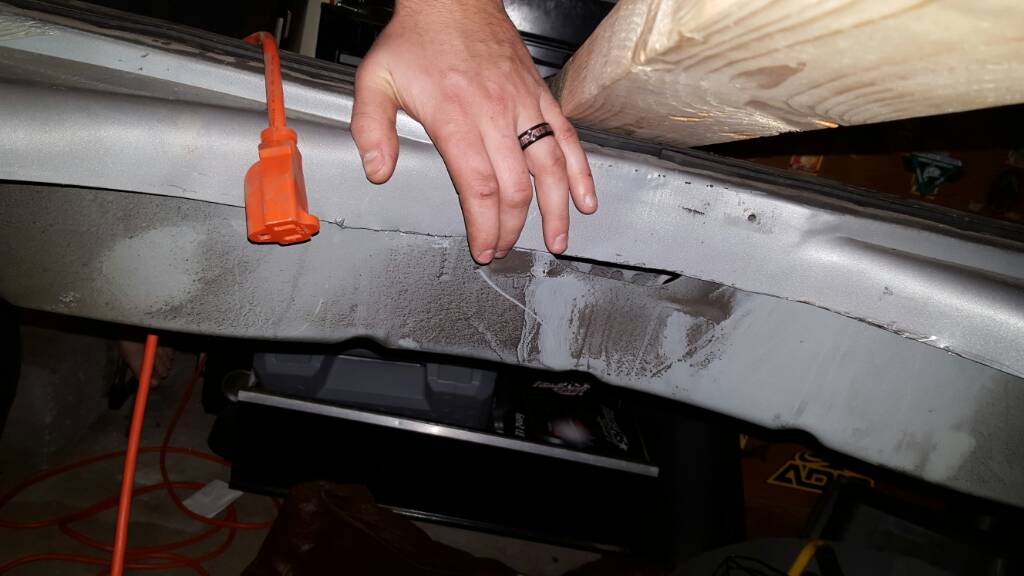

This pic shows where I was unable to cut with the metal sheers so I just cut it with my Dremel tool took a while but didn't want to have sparks by the fuel tank lol

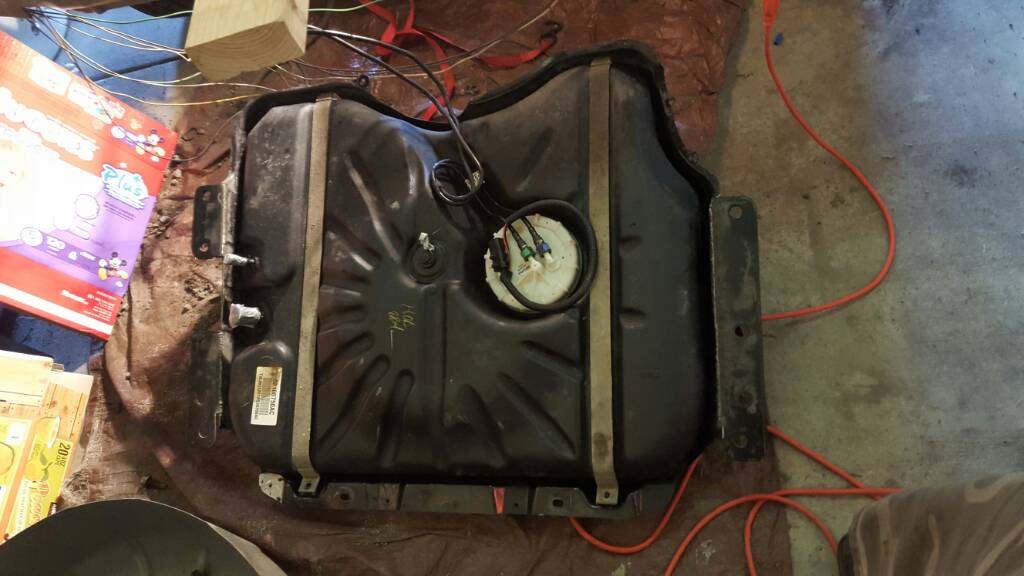

Tank mounted back in the newly modified skid


Hole cut for fuel lines


Tank back in and checking clearance

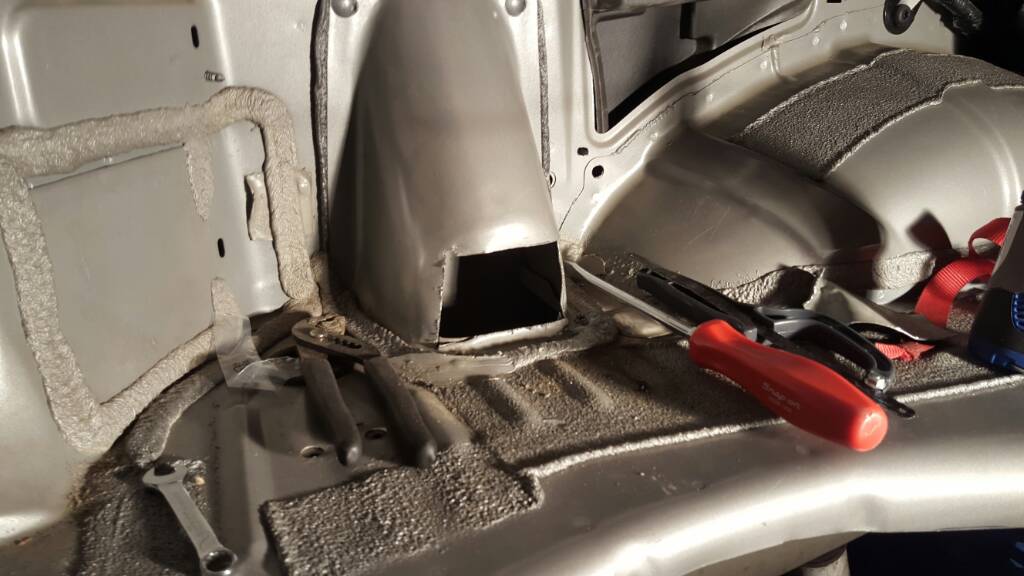

filler neck is slightly more bent than I would like but it fills just fine no splash back or overflow issues.

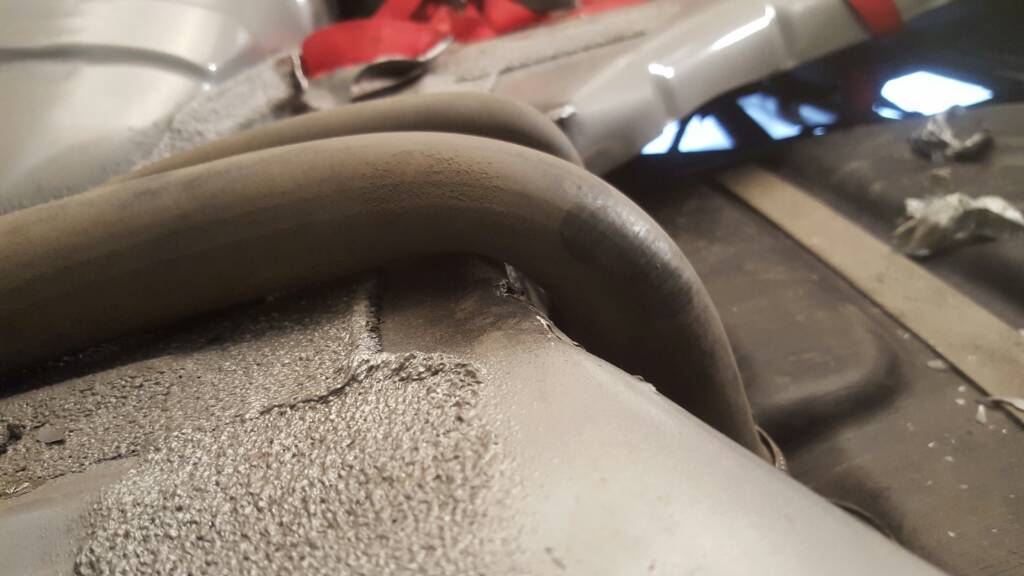

lines installed

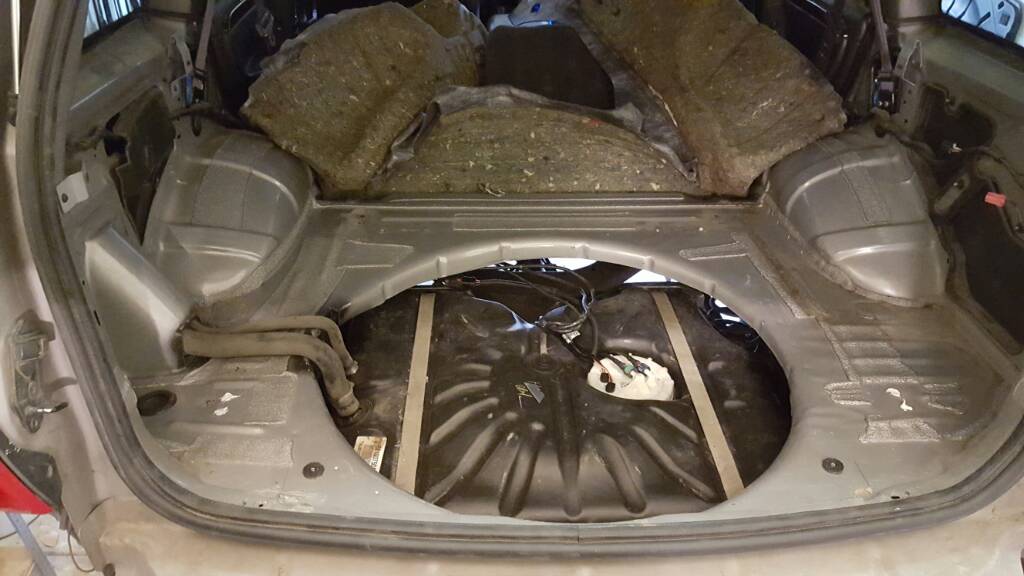

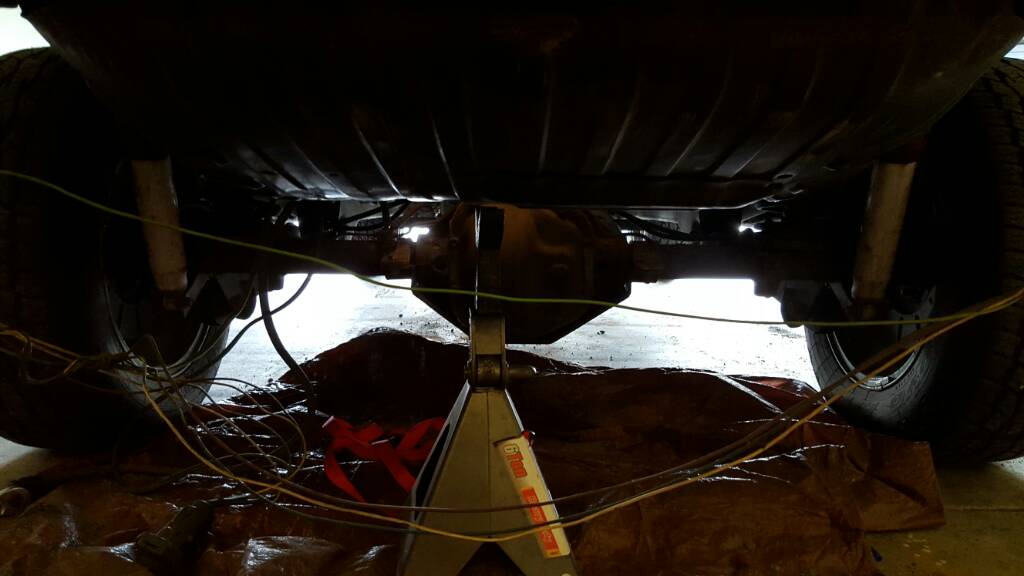

Don't have a before but this is after gained a ton of clearance

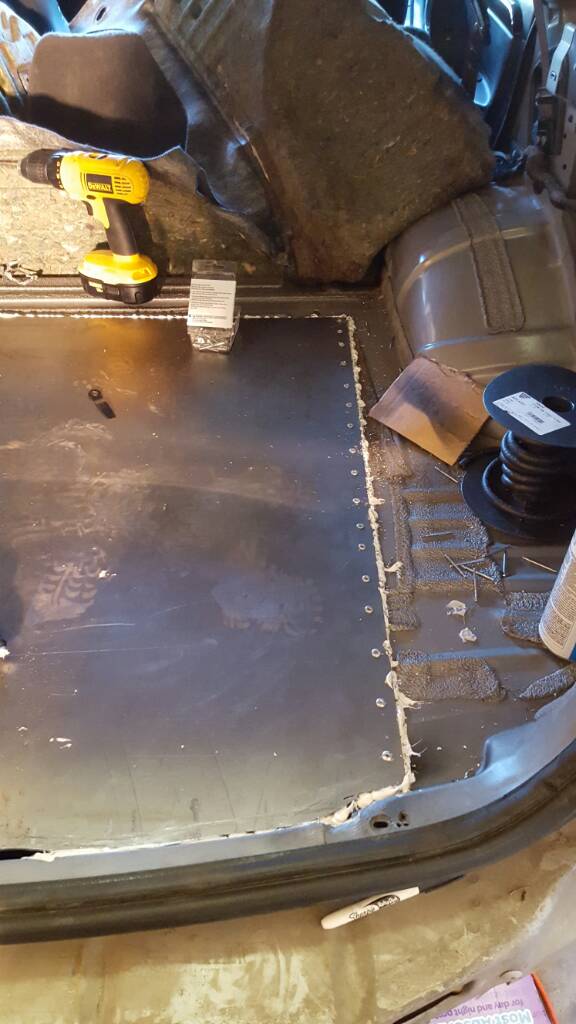

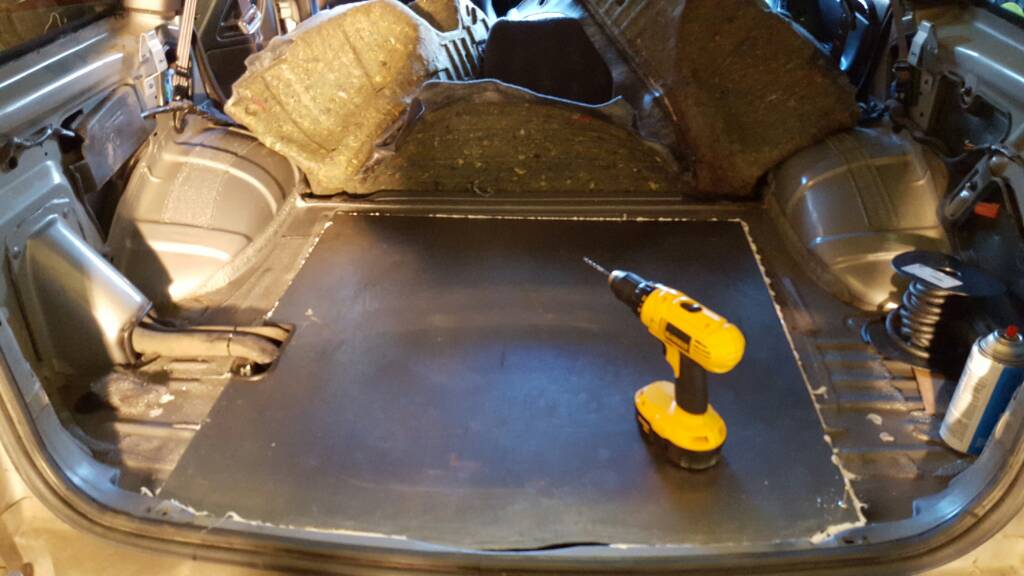

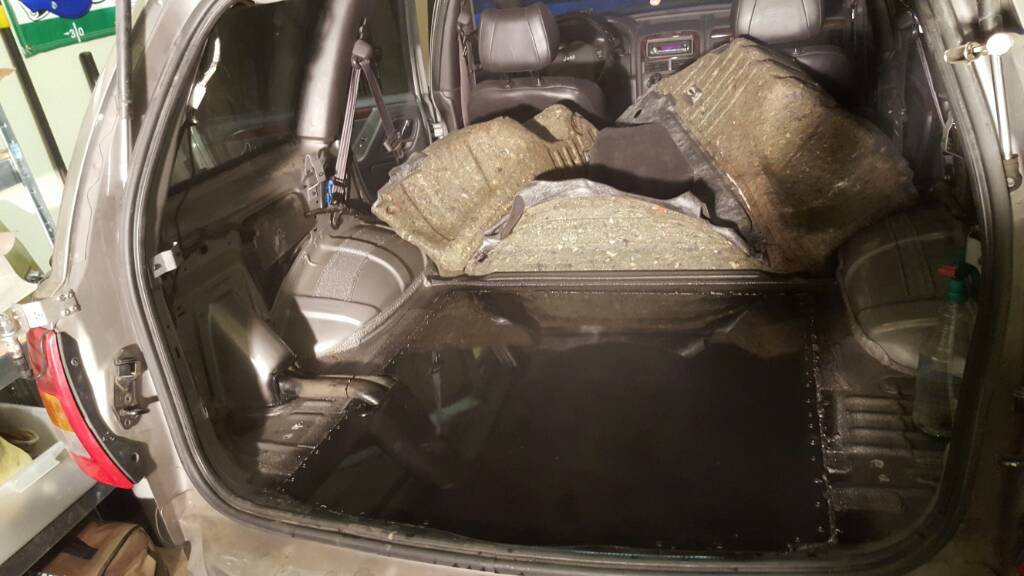

New plate floor (11ga steel) on and sealed with loctite weather proof that will stand up to 150° sealer


I like overkill lol 16 rivots per side


All painted

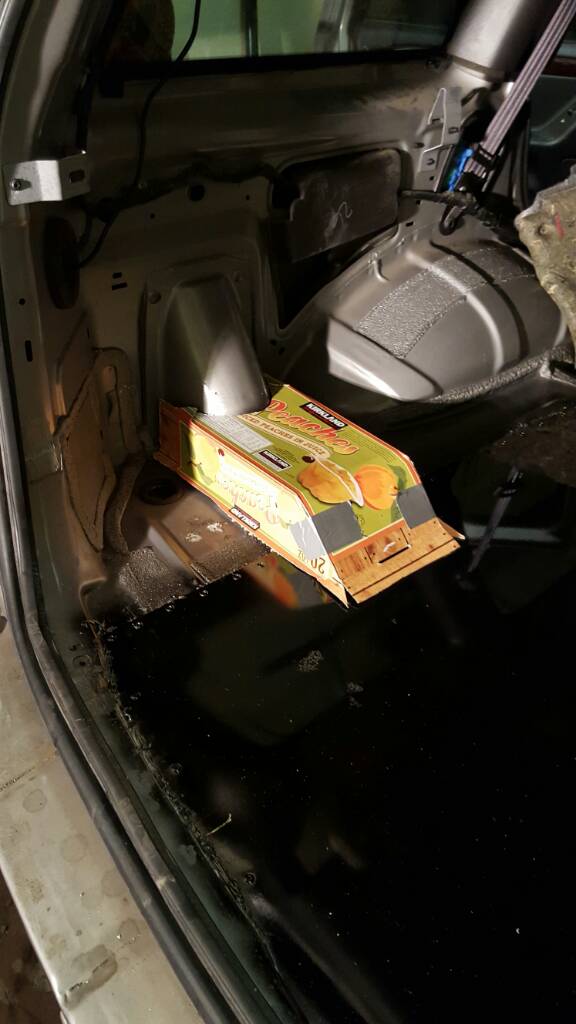

Used a peach box as a template for my fuel like cover

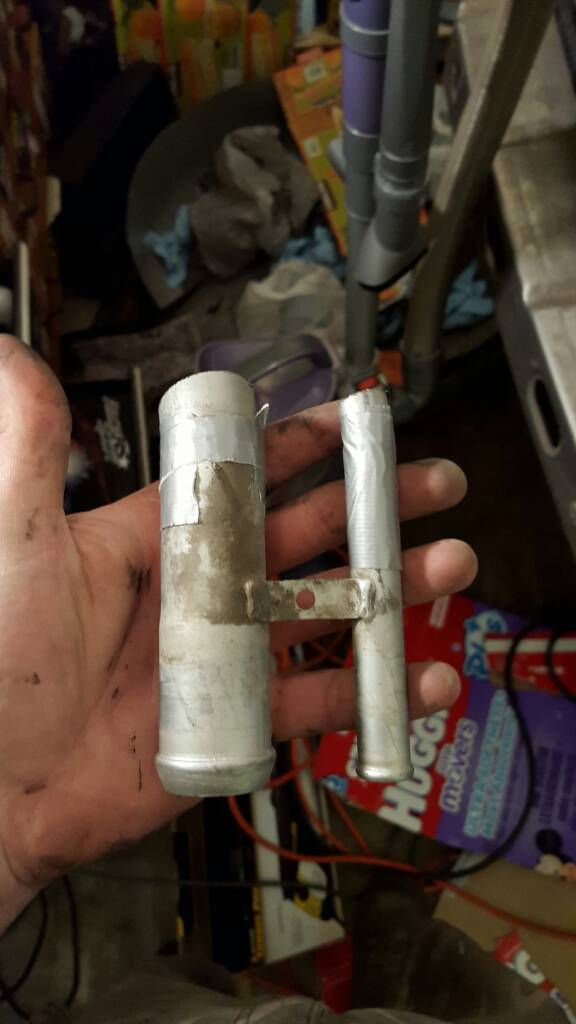

Piece of the filler neck I cut off.


The fuel line box will eventually be covered with this so not worried about damaging it







Sent from my SAMSUNG-SM-G890A using Tapatalk

  • Like
Reactions: murps
timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

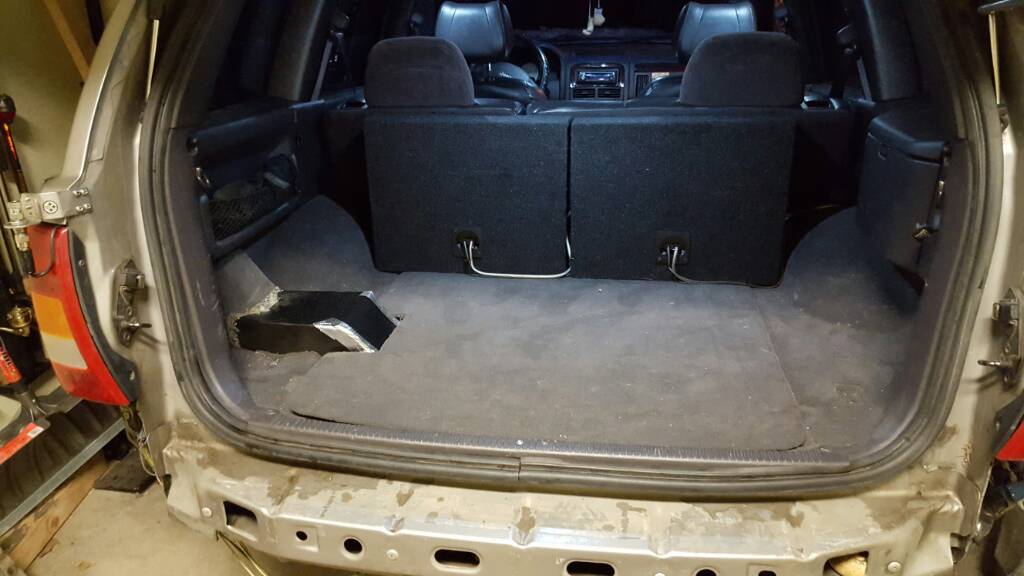

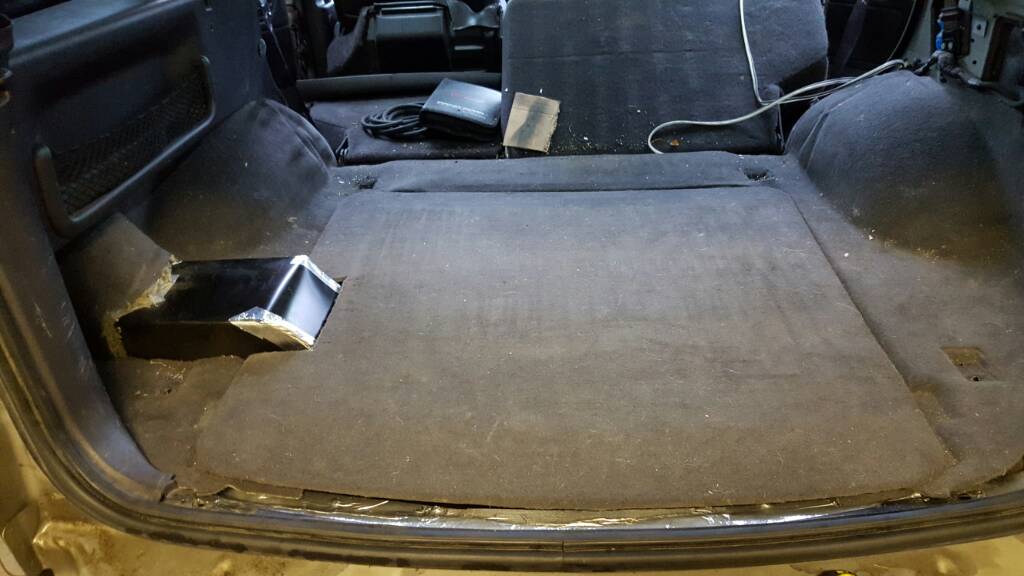

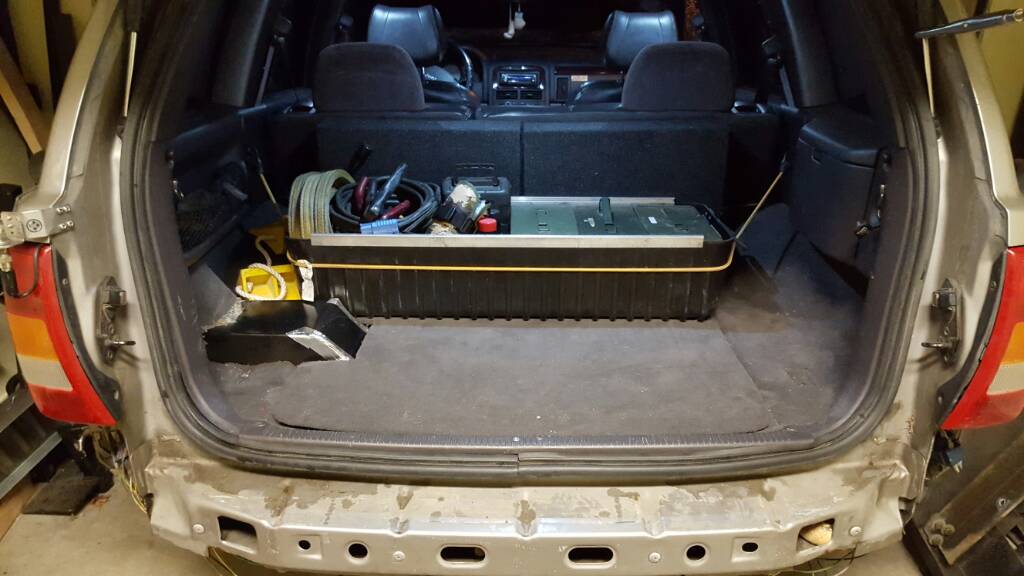

Tank tuck complete!






Gonna try to get all the wiring done this weekend since has calmed down a bit.

Also looking for new shocks and possibly getting new springs as well as isolators.
Looking at the freedom offroad kit since it's on 300 bucks shipped with shocks and springs.

Sent from my SAMSUNG-SM-G890A using Tapatalk

timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

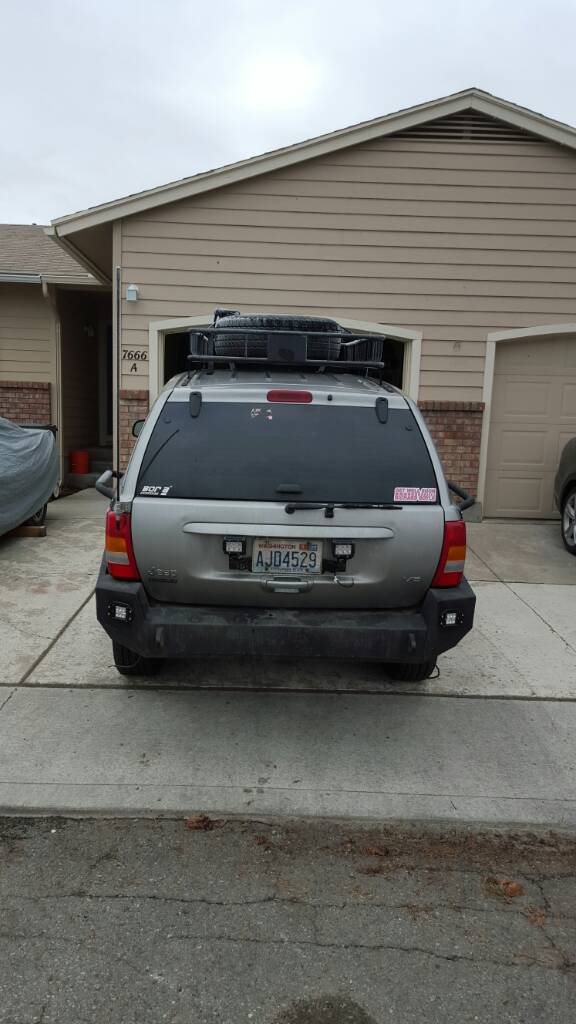

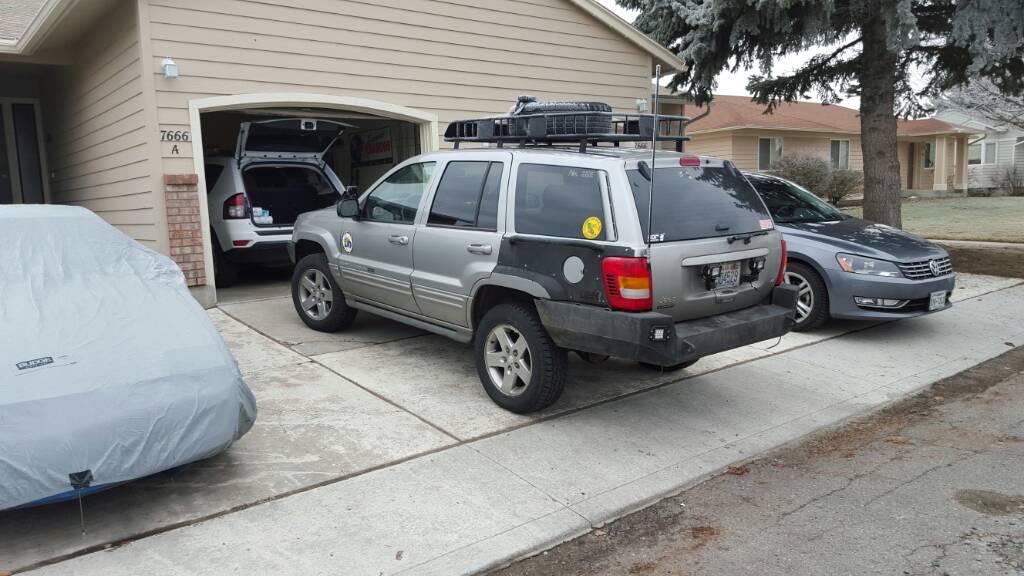

Finally got around to installing my rear bumper again and my recessed reverse lights.




Threw the spare tire on the rack till I get money to build my setup in the back.

Sent from my SAMSUNG-SM-G890A using Tapatalk

timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

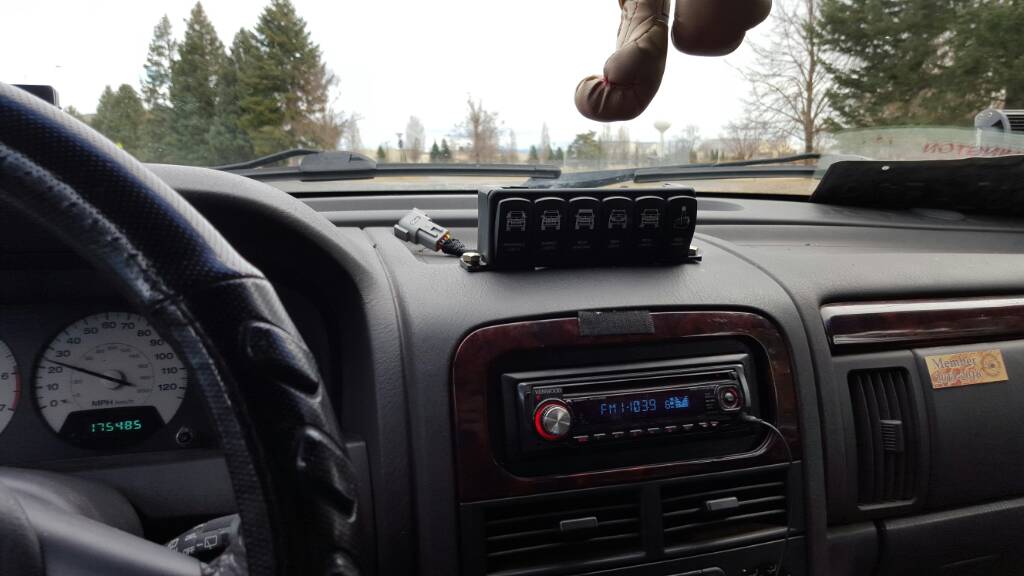

Got my spod switches mounted up. Not my favorite but I can reach all the buttons comfortably.

Also picked up the wood and hardware for my rear cargo area.

Sent from my SAMSUNG-SM-G890A using Tapatalk

timberwolf_120

timberwolf_120

Rank VI
Founder 500
Launch Member

Influencer II

3,059
Ridgecrest, CA
Member #

0115

Worked on installing the spod today. Found out my cables are about 4ft too short so I got in contact with them to see about an exchange/purchase longer ones.

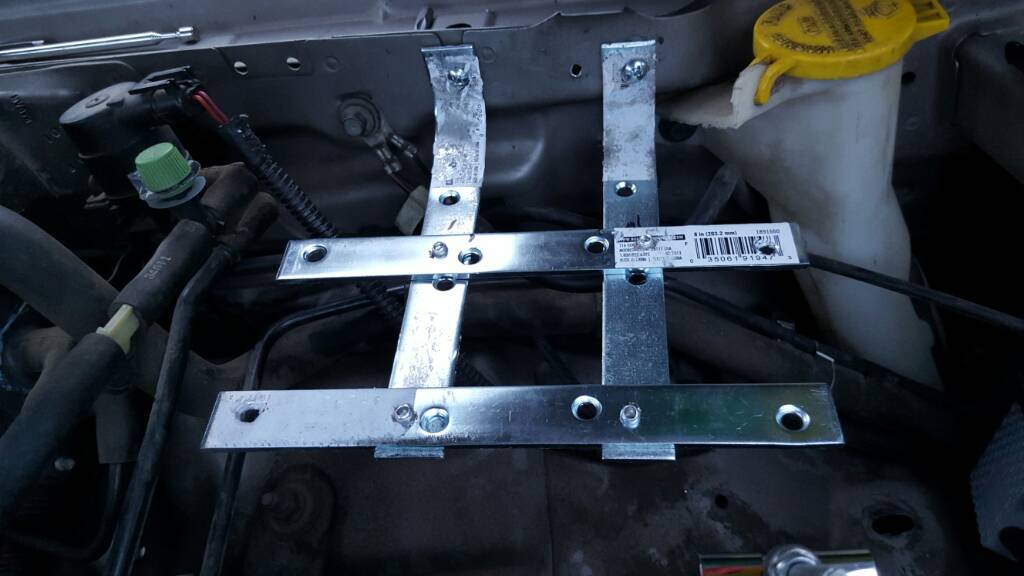

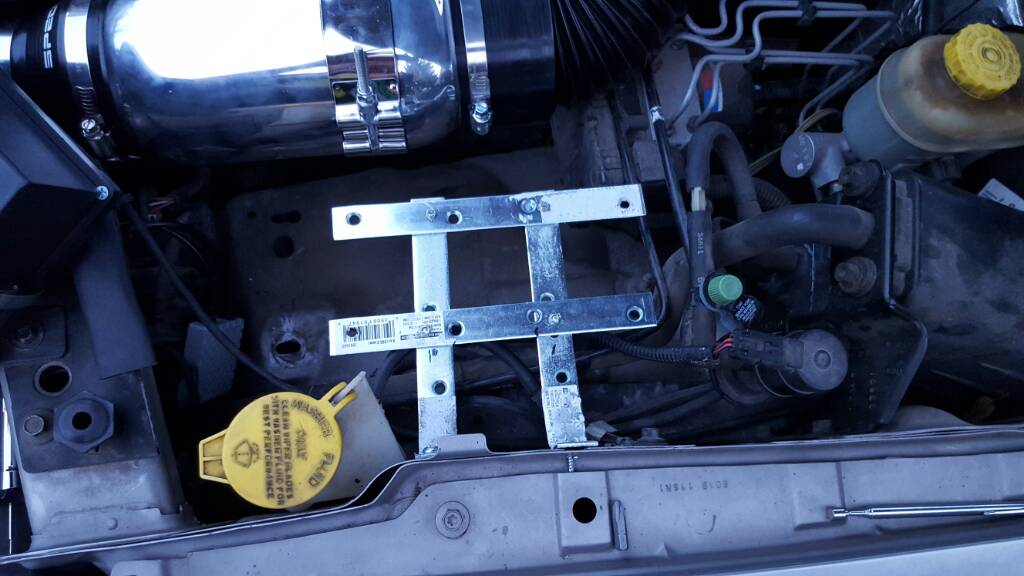

Anyways here the bracket I made up its kinda flex so I'd like to add some beefier bolts to it eventually.









Of course when I decide to do my snorkel I'll be moving this setup somewhere else lol

Sent from my SAMSUNG-SM-G890A using Tapatalk
