i have the smittybilt xrc 9500lb winch and couldnt be happier. i use and abuse it and it has performed amazing every single time.
Winch Roll Call!
- Thread starter Joel S
- Start date
Expedition Master III

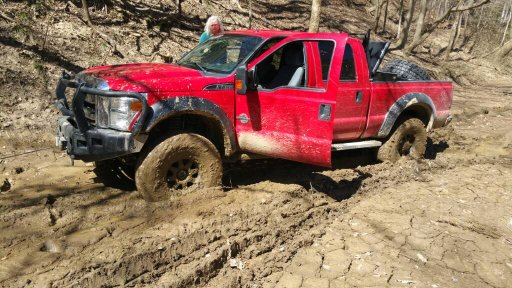

That weight, dry, level, but with 3 snatch blocks. Yes believable, but....MUD..... I would not have been anywhere near or even want to be near that cable. a 3/8" WINCH CABLE at the minimum, something in a commercial rating would be even better. That whole set-up was working way below a 1.5-....or...- 1.0 safety factor. On a positive note, that Smittybilt was a real TROOPER!
Educator I
- 10,890
- First Name
- Jim
- Last Name
- Bro
- Member #
-
12989
- Service Branch
- USAF DAV
Expedition Master III
Not too obtrusive sticking out, unlike some designs. If you had a HAWSE fairlead and synthetic line, that unit would be very trim and tucked in on the front, when viewed in profile.[emoji7]
Educator I
- 10,890
- First Name
- Jim
- Last Name
- Bro
- Member #
-
12989
- Service Branch
- USAF DAV
I actually do, that pick was when it was new, then I found out how heavey the line was and replaced it....
Jim
Smittybilt X20 12K competition winch (synthetic line, waterproof, wired/wireless remote) installed on Midwest Overland Industries hidden bumper mount for Colorado ZR2. OEM hook has been replaced with closed Smittybilt AWS recovery point.
Last edited:
Educator I
- 10,890
- First Name
- Jim
- Last Name
- Bro
- Member #
-
12989
- Service Branch
- USAF DAV
Thanks! Love the hidden winch and added some customization of my own (Aluminum plate over the bumper / under the hawse fairlead). Same material as skid plate [emoji41][emoji1303]
Enthusiast III

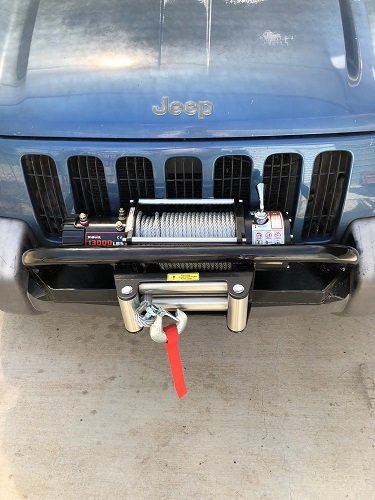

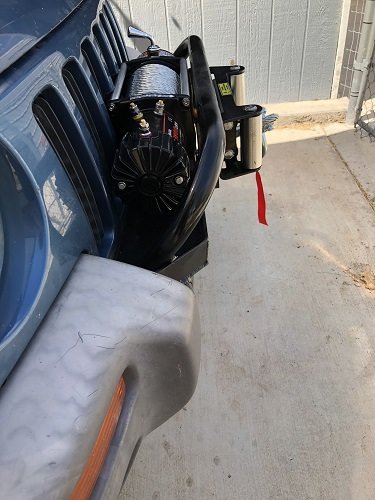

I’ve owned warm products and they’re exceptional. This time around I bought a 12,000 lb Badland from Harbor Freight. I’ve disassembled it pre install and I’m surprised at how well it was made and how well it has held up to abuse. I’d buy another one.
Attachments
Enthusiast III
Advocate III
- 5,584
- First Name
- Michael
- Last Name
- Rose
- Member #
-
20990
- Ham/GMRS Callsign
- W7FSB
- Service Branch
- US ARMY Retired
Looks likenI am the nutcase... I run a Mile-Marker Hi18K hydraulic winch... 90’ of 9/16 cable... hasn’t let me down yet.
Attachments
Expedition Master III
Your the first that has piped in on this as a actual user. A real user of this style in the civilian market.
You said it hasn't let you down. Limitations or issues with the P/S activation under load etc., can you give some feedback to us in the peanut gallery.
One other area I would like to hear about, is from our Aussie members who use winches not seen or rare in North America.
Not Warns or Super, or Ramseys, but those like are seen in 4W/Drive action, etc.
Contributor III
I always wanted to get a Mile Marker. But there just wasn’t enough useful feed back to read on before I had to make a choice. Too many people don’t actually know enough about fluid properties to adequately describe benefits and downfalls. I’d be interested to hear more feedback.
Advocate III
Finally had to use my winch for the first time during Easter Jeep Safari. It was on the Gatekeeper obstacle on the 'Behind the Rocks' trail. I made it up to the last couple feet and just could not get over the last ledge. I probably could have 'bounced' it a bit more to get there, but since I stil had to drive the Jeep over 1,000 miles home, I was playing it somewhat safe. :o
Here I am before making my attempt, getting last ninute advice on my line.. You can see, I already had the winch controller connected and ready. :p
Advocate III
- 5,584
- First Name
- Michael
- Last Name
- Rose
- Member #
-
20990
- Ham/GMRS Callsign
- W7FSB
- Service Branch
- US ARMY Retired
The hydraulic winch under load is a lot slower than an Electric winch, but can pull all day at full load without needing to cool down. There isn’t a need to upgrade your charging system or get a second battery.
I did a few upgrades to my steering system because I wanted to, not because I had to. I adapted a transmission cooler to use as a power steering cooler, added a remote reservoir, and I made my Saginaw Steering Pump into a high flow unit by drilling out the flow orifice to 5/32” and stretching the piston spring to 2 1/4”.
The MM Hydraulic winch fails to a completely closed position which means that the fluid bypasses the winch and only goes from pump to steering gear box to cooler to reservoir.
Right now my winch is on my dead Dodge Ram, but soon will be on my 89 Bronco. I am going to need to worry about some conversion fittings or adapting parts from the Dodge to the Ford, as the Mile Marker winch is designed for use one Saginaw power steering systems.
I did a few upgrades to my steering system because I wanted to, not because I had to. I adapted a transmission cooler to use as a power steering cooler, added a remote reservoir, and I made my Saginaw Steering Pump into a high flow unit by drilling out the flow orifice to 5/32” and stretching the piston spring to 2 1/4”.
The MM Hydraulic winch fails to a completely closed position which means that the fluid bypasses the winch and only goes from pump to steering gear box to cooler to reservoir.
Right now my winch is on my dead Dodge Ram, but soon will be on my 89 Bronco. I am going to need to worry about some conversion fittings or adapting parts from the Dodge to the Ford, as the Mile Marker winch is designed for use one Saginaw power steering systems.
Expedition Master III
I did not realize that it was a Saginaw system only, or is that because of your initial purchase model? Slow can be good over fast when recovery is concerned. The idea of continuous use with no worries about "overheating" is fantastic in situations where a winch is called on for use 'over and over'
Since vehicles have gotten smaller, PS coolers are pretty rare these days. Also the manufactors move to ELECTRONIC PS has also added to complicated steering issues.
Advocate III
- 5,584
- First Name
- Michael
- Last Name
- Rose
- Member #
-
20990
- Ham/GMRS Callsign
- W7FSB
- Service Branch
- US ARMY Retired
No it’s not a Saginaw system only, the kit I got happened to be a full install kit for a military HMMWV. Mile Marker makes a fitting kit for just about any application, but I think it’s over priced for 4 fittings. I’ve heard of guys getting a local hydraulic shop to make custom hoses for as little as 30 bucks for the pair.
As for the PS Cooler, any Automatic transmission cooler will work. Since it goes in on the return side of the steering gear box, just simple transmission cooler hose and hose clamps can be used. Just cut the return line coming off of the gear box with enough hose left over to reuse the gear box and power steering pump fittings. Place the cooler inline for the splice of the hose you just cut. Pretty easy peasy.
You mentioned also smaller power steering pumps... it’s not the size that matters as long as long as you have the volume (GPMs) needed to push the fluid. There are a lot of articles on how to make a high flow power steering pump with out any money investment. As for volume of fluid on the smaller pumps, adding a reservoir after the cooler but before the pump is the only way to go. I have even seen people make their reservoir a heat sink as well.
Advocate III
- 5,584
- First Name
- Michael
- Last Name
- Rose
- Member #
-
20990
- Ham/GMRS Callsign
- W7FSB
- Service Branch
- US ARMY Retired
I’m getting ready to pull the winch off of the dodge, when I install it into the Bronco I will write up a complete tech guide with pictures.
