Finally got my emblem #13713. Which is crazy since I saw someone post their badge #5000 something in just March 2017! This community is growing fast.

So I went to Home Depot and spent a good 30 min in the hardware section brainstorming how to do this.
View attachment 67411
View attachment 67412

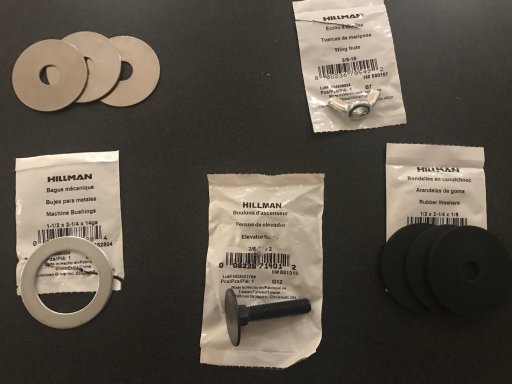

Here’s all the parts I got View attachment 67414

I found something called an elevator bolt (middle bottom of the picture above) which was perfect. A large flat head. It honestly would have probably been just fine by itself with a washer on the back but I wanted more to contact the 3m adhesive so I got some of these rubber washers View attachment 67413

Then I got a ring washer to push on the rubber washer but not the elevator bolt because the elevator bolt has a slight taper on the underhead View attachment 67415

Then I went a little overkill. I put fender washer so there would be pressure on the large ring washer and the bolt. And then I wanted only rubber to contact the grill View attachment 67416View attachment 67417

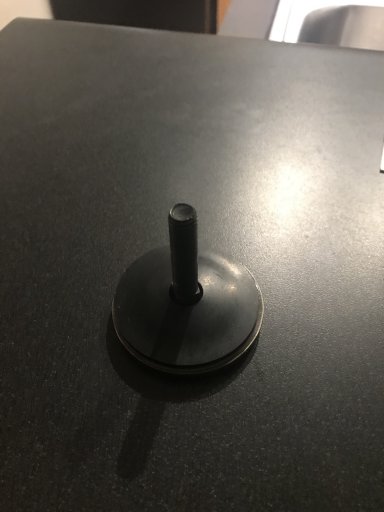

Then it was just a rubber washer, fender washer, and a wing nut for the back View attachment 67418

Hopefully it all stays together.
