Needs a trasheroo, 6” lift, bigger tires. And a skottle.My new "off-road" vehicle arrived today.
Influencer III
19540
Needs a trasheroo, 6” lift, bigger tires. And a skottle.My new "off-road" vehicle arrived today.
Off-Road Ranger I
16968
Gotta get the drone footage first.Needs a trasheroo, 6” lift, bigger tires. And a skottle.My new "off-road" vehicle arrived today.
Member III
17011
You mocking me! lolNeeds a trasheroo, 6” lift, bigger tires. And a skottle.
Advocate I
19015
Traveler III
Enthusiast III
Member III
17011
Trail Blazer I
15310
I feel you on the lift. I inteded to do it for 2 years before i pulled the trigger. I do not regret it at all though. Take the plunge!Bought and installed a used arb single compressor for the tires. Had a chopped up harness so that was fun.
Next purchase, I really should do a lift. Been saying that for years but probably be the next thing.
Traveler III
Putting two options together. Lead times are bit hard but completely understandable. Hopefully have something for the next event in the fall.I feel yeah on the lift. I inteded to do it for 2 years before i pulled the trigger. I do not regret it at all though. Take the plunge!Bought and installed a used arb single compressor for the tires. Had a chopped up harness so that was fun.
Next purchase, I really should do a lift. Been saying that for years but probably be the next thing.
Trail Blazer I
15310
Which setups are you looking at?Putting two options together. Lead times are bit hard but completely understandable. Hopefully have something for the next event in the fall.
Member III
17968
Enthusiast III
Great information, and a clean set up!!! you make it so incredibly simple.!!! Thank You!!!.

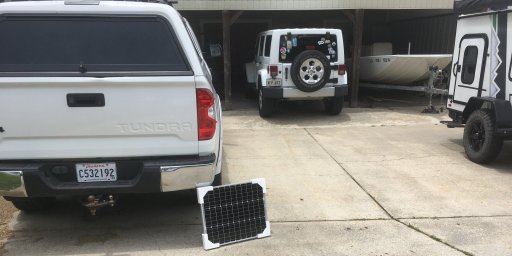

With as used to camping without solar as you are already, @Billiebob, you might find you don't need as much as 200w of panel.
I've used a 120w folding panel for years on my trailer, feeding 100ah of deep cycle (two 50ah batteries) through a simple Zamp Charge Controller. It's been plenty for what I need: a low draw 12v ARB fridge, 12v water pump, air compressor, trailer lights, 2x 12v outlet which I use for charging mobile devices, camera batteries, etc.
The system is independent of the starting system. I've found that strapping my folding panel to the roof of the RTT when parked or underway, it does a great job keeping the deep cycles topped off all year long.
I have a 1000w inverter hooked up to the deep cycle, too, that I use occasionally to charge my bike battery or run an electric hair clipper, etc.
The charge controller shows me how much the panel is putting in, charging status, battery condition, etc. and can be easily set for different types of batteries; AGM, etc, though the one I have does not do lithium batteries, I don't think.
View attachment 197132
.
It's worked so well for me that I'm duplicatingthe same exact set up on my van so I have redundant systems that can run independently if away from basecamp or if I just take the van for a photography outing. Then whoever is back at camp still has power, too.
Yes, anything you connect to the deep cycle should be fused. Easiest is to connect a Blue Sea Fuse Block to your battery, then run your wiring from that to whatever outlets, lights, air compressor, etc. I have a 12 circuit Blue Sea at right in the image above, though the link I provided goes to a 6 circuit. Most people find that once they have a solar set up and power stored in a deep cycle, they find other 12v things they'd like to power, too. Like a fan, another outlet with USB like you show, etc. So, sometimes it's easier to go ahead and install a fuse block with more circuits from the start.
I do have an inline battery charger/maintainer, too (a NOCO Genius Mini 2), that takes shore power and keeps your batteries in shape when parked. Though with my panel on the roof full time through the winter, or moved around camp when camping, I haven't had to use it to charge/maintain my batteries in a over a year and half.
Here's my current power center setup, though it certainly does not need all this to be effective for what you want to do:
View attachment 197136
Clockwise from top left:
- 110 outlet box (in from shore power, out from inverter),
- 2x 50ah deep cycles (stacked)
- toggle switches above the batteries for the rock lights, trailer lights, air compressor, water pump, etc
- 12 circuit Blue Sea Fuse Block (right wall)
- ARB air compressor relay
- ARB air compressor beneath that
- Genius Mini2 battery charger/maintainer
- 1000w pure sine inverter
- port for passing through air hose, extension cords, etc
Looks more complicated than it is.
Hope that helps. If there's any other info I can help with, let me know.
.
Enthusiast III
Last thing I bought was a Noco jump starter. Already managed to use it haha.So, we all probably have a huge list of upgrades and things we want to buy..
So what is the last thing you bought, and what is next on the list?
Last things I bought that where on the list are a pack of zip ties and some good working gloves :P
Next thing, besides actually getting a Landcruiser is going to be some locking nuts for the spare tire and a spare lamp kit ;)
Advocate III
26163
Influencer III
19540
Off-Road Ranger I
16968

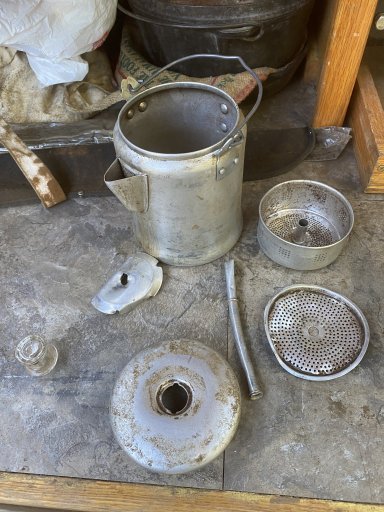

That will buff right out.I’m in the market for a new coffee maker. Mine bounced loose this weekend, and didn’t survive.
View attachment 200045
i hear ya!I’m in the market for a new coffee maker. Mine bounced loose this weekend, and didn’t survive.
View attachment 200045
