That is a really nice DIY work! Thanks for sharing! Two questions, please:
  • How is the entire storage box connected to the rig?
  • And what happened to the interior panelling of the rear door?
Thanks,
Bjoern


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

The box will be attached to the Rig due the strap points in the trunk. Easy in and easy out will be the thing to make.
The rear door will have a wooden panel which if I can will extend with some 3d printed parts.
And also will it have some extra features which I am not sure of what they will be. Depends on how the storage will work out.

  • Like
Reactions: El-Dracho

El-Dracho

Ambassador, Europe
Moderator
Member
Supporter
Investor

Off-Road Ranger III

13,288
Lampertheim, Germany
First Name
Bjoern
Last Name
Eldracher
Member #

20111

Ham/GMRS Callsign
DO3BE
Great! Simple, well thought out and the ideas well realized! I am curious how it continues! Have fun building!

  • Like
Reactions: Robert OB 33/48

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

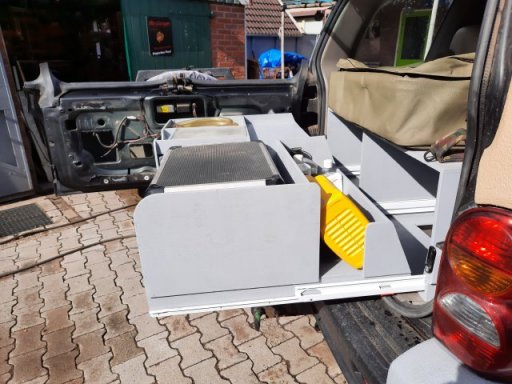

And giving it some paint.
7.jpgIt does look good as I may say.
8.jpgColor coded
9.jpgStill plenty of space. Also in all the boxes.
5.jpgDo I have OCD? Well it is neat I guess.

Still in need of doing stuff. Like carpet on top and making two slide out tables.
So the tables will be used to make lunch or so, and to place the boxes if I like them to open.

  • Love
Reactions: grubworm

El-Dracho

Ambassador, Europe
Moderator
Member
Supporter
Investor

Off-Road Ranger III

13,288
Lampertheim, Germany
First Name
Bjoern
Last Name
Eldracher
Member #

20111

Ham/GMRS Callsign
DO3BE
Very nice! Great job, Robert! What kind of paint did you use to paint it?

I like it when you have exactly one place in the vehicle for each type of equipment, i.e. tools to tools, recovery gear to recovery gear, spare parts to spare parts, kitchen to kitchen and so on. When everything is in its assigned place, it takes less time to search (which is with regard to tools, recovery and safety gear definetly not a good idea) and you have more time for the beautiful things of traveling.

  • Like
Reactions: Robert OB 33/48

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Paint is a simple one from the DIY shop. Just simple grey.
And I used also some black. As I have noe more or less color organised stuff, hahaha.
Except for one box I still need to make the definite layout of the boxes. But for now, it is in there and it is working.

  • Like
Reactions: El-Dracho

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Todays work was mainly glueing the carpet tiles on the system.
Here is the compressor which is now installed in the care ready for use.

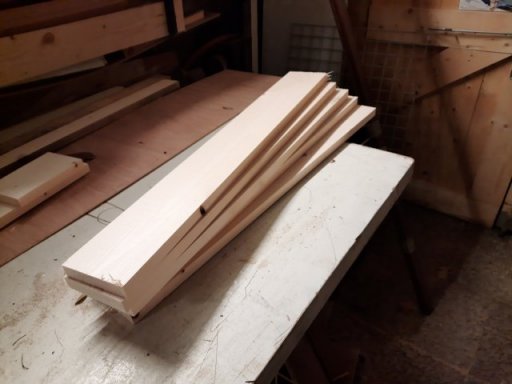

And now busy with glueing the planks together so I can make some slide out tables, which if it works out the way I like it also will be picknick tables.
Tomorrow I hope to finish one of them and on the monday the second one.


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Still working on the interior.
Today I made the door card and the axe holder.
And did some work to the slide out tables.
But that will be done more this evening.

achterklep met bijl.jpg


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

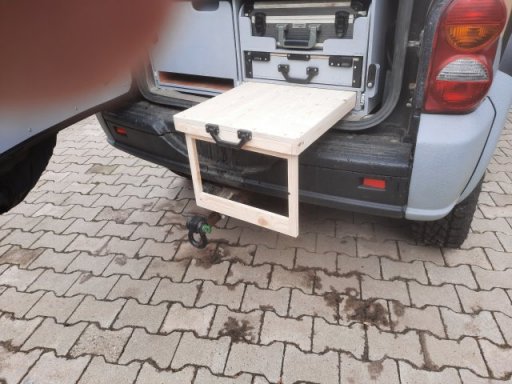

Almost finished table 1. Need to sand it down and also making the legs.
Fits really snug.
That was the result of the day.

  • Like
Reactions: El-Dracho

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Results of the day.

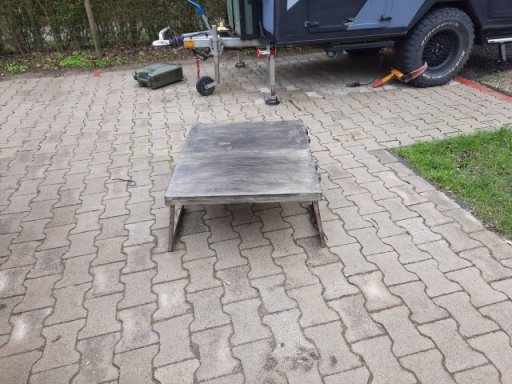

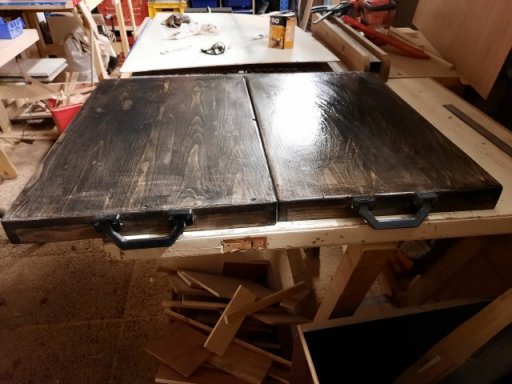

Almost done. More painting, and also making the slide out tables into stand alone tables.
So, I need to build some legs under them. Foldable ones.


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

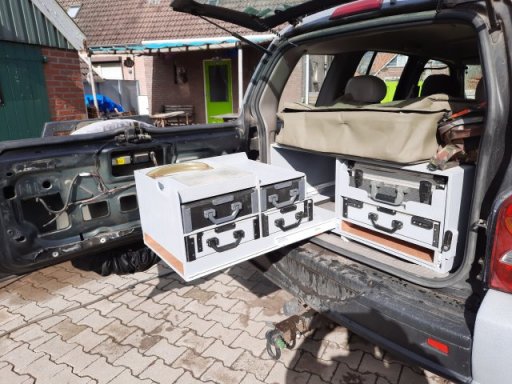

And here are my boxes. All tools, spare parts and more neatly sorted.

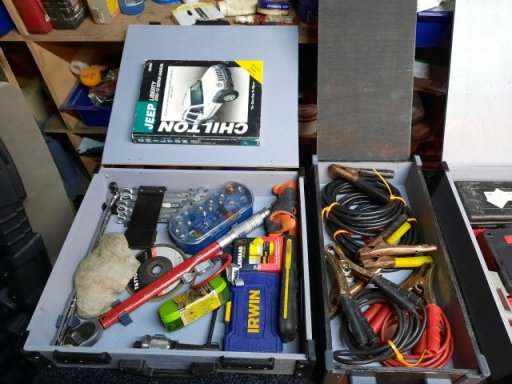

Tools and starter cables. Two sets, I can with them reach wider as with one set. You cant get close on tracks sometimes.
left to right. Air/light, Camping stuff, for my car awning and tarp. Spare parts.


Attachments

  • Like
Reactions: El-Dracho

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

And at last I think it is ready.
Last things painted so I hope you enjoyed this update to my interior.

Up to the next update/upgrade.


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

And the last boxes are done as well.

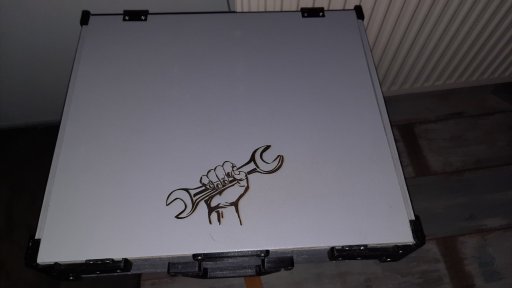

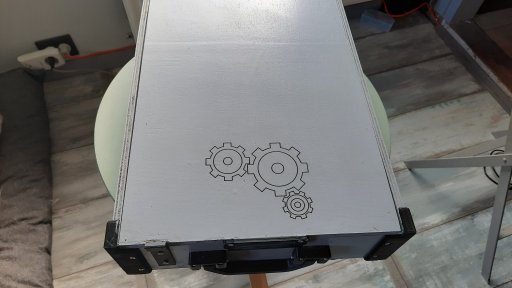

So I have the toolbox as above
the Starter cable box

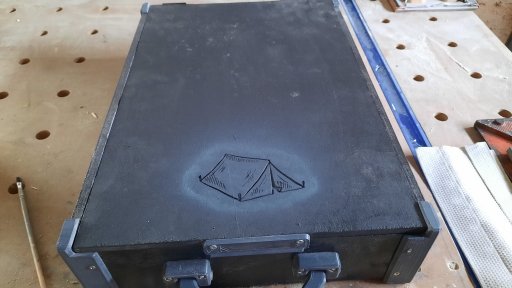

the camping box
the spare parts box

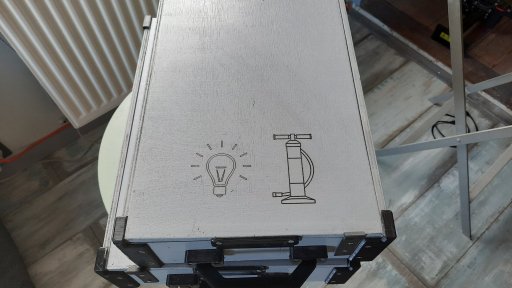

And the compressor tool box plus light.
Think it is clear if I tell someone what to fetch for me.
