Member III
I'm going to be running the bullet led lights also. How did you run your wiring? I was wanting run the clearance lights higher like you did, but may just run it through the bottom portion on my frame.
ROAM 1
- Thread starter pyrotyro
- Start date
Member III

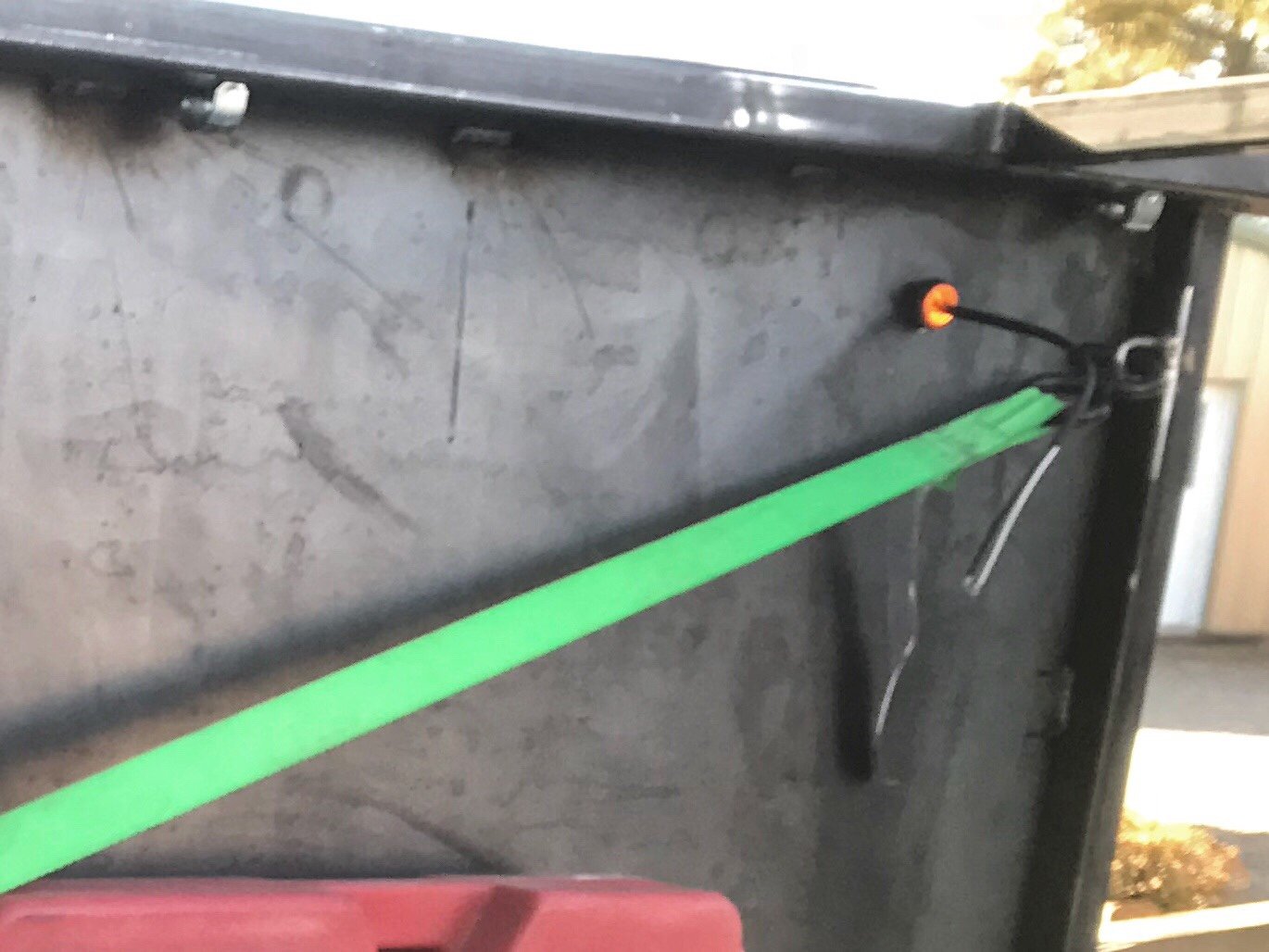

I am running all my wiring up under the top 1x2 frame rail. I tacked in some generic clamps to run my wires through and I’ll do my best to clean them up and keep it neat and out of the way. All my lights (save license plate light) are up high on the trailer like the side markers, as well as my aux power will need to be high to cross the trailer and be usable.
Sent from my iPhone using OB Talk
Member III
Question, are you using the Dexter 3500# axle? Did you use regular lug nuts with your TRD wheels, or something else?Caddis, your trailer looks similar than mine
Yes i have Dexter 3500# but also i got spacers. So in the spacers I have regular nuts and on the wheels I have the OEM toyota style lug nuts.
Sent from my iPad using Tapatalk
Member III
Got some more odds and ends done today.
Bulkhead in. This will separate the cargo area from the kitchen/ electrical area. Also got some 1/2” rubber mat fitted.

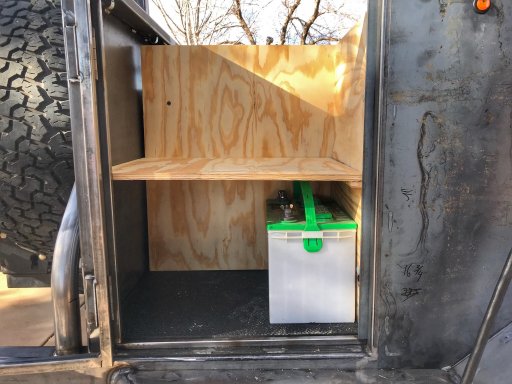

And then test fit the battery/ shelf. I will have my solar controller, small inverter, and all wiring connections in this area.
Also got the inside of the box and fenders caulked... gettin there!
Sent from my iPhone using OB Talk
Bulkhead in. This will separate the cargo area from the kitchen/ electrical area. Also got some 1/2” rubber mat fitted.
And then test fit the battery/ shelf. I will have my solar controller, small inverter, and all wiring connections in this area.
Also got the inside of the box and fenders caulked... gettin there!
Sent from my iPhone using OB Talk
Got the doors skinned and latches cut in.

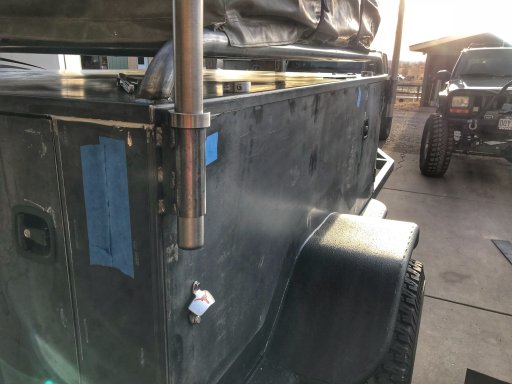

Then finished up the stabilizers and brackets
Did a little prep work to hopefully paint the bottom and flares tomorrow.
The lid should be done tomorrow, hopefully. Then we will build the rtt rack and other topside goodies!
Sent from my iPhone using OB Talk
Then finished up the stabilizers and brackets
Did a little prep work to hopefully paint the bottom and flares tomorrow.
The lid should be done tomorrow, hopefully. Then we will build the rtt rack and other topside goodies!
Sent from my iPhone using OB Talk

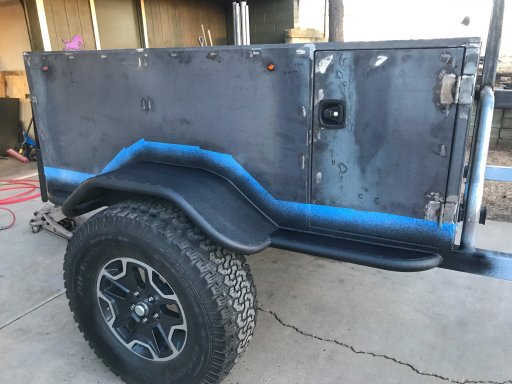

Stood this bad boy up today and painted the underside and fenders... primed it with por15 self etching, then bed lined it with raptor liner
Sent from my iPhone using OB Talk
Sent from my iPhone using OB Talk
Last edited:
Member III
Enthusiast I

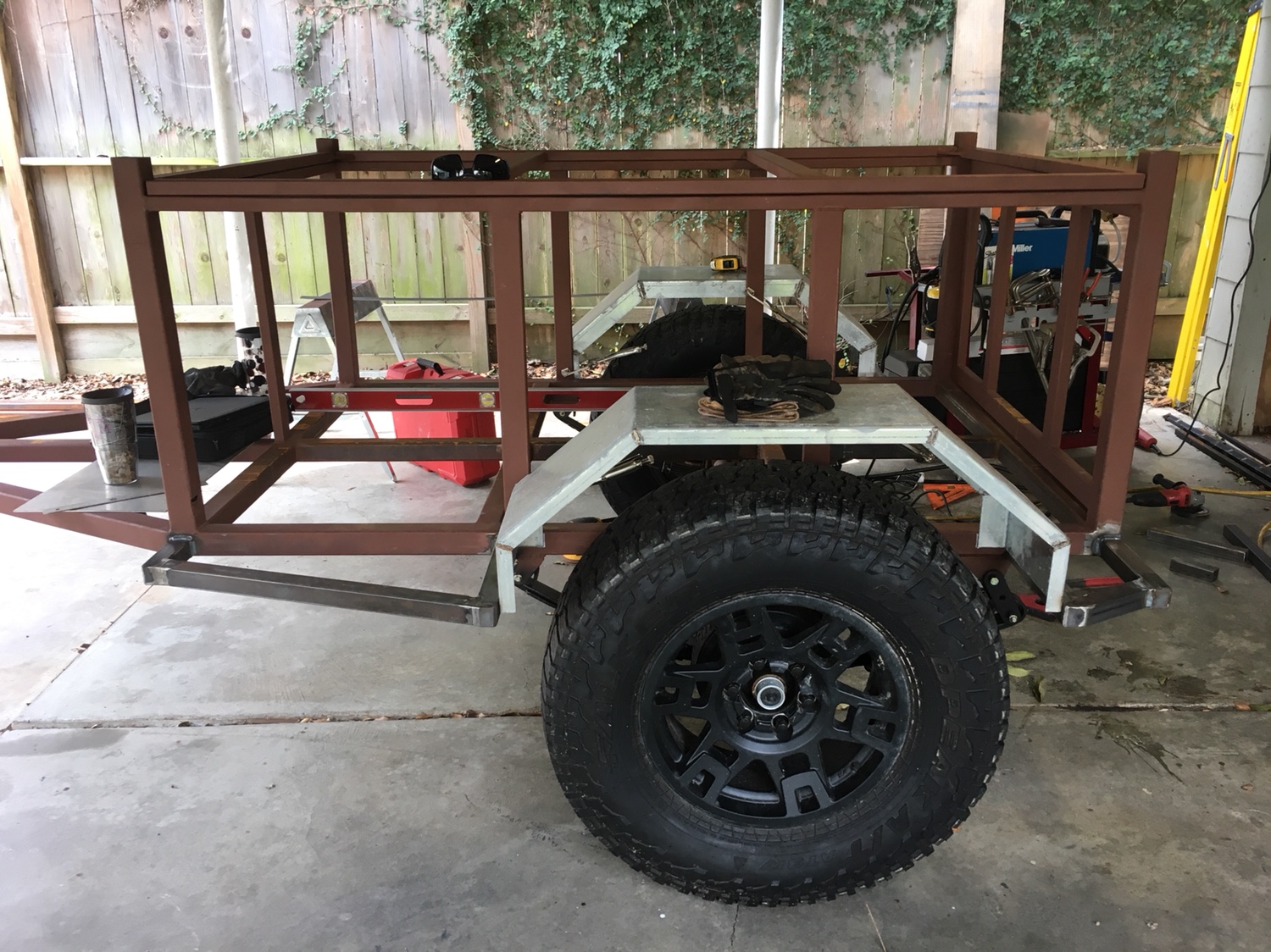

Looks amazing!Feels like we're finally getting somewhere! Got the box framed, front (bike rack) receiver in, and floor on.
Then got to work on the walls
Heres how she sits as of now. Note the spare tire is only mocked up.
The bike is pretty tight to the spare, I will probably just push it out an inch or two by drilling a new hole in the rack...
Sent from my SM-G955U using OB Talk mobile app
Nope. Just the bottom, fenders and frame rails. Going with a sand ish color on the box and top.
Thank you!
Sent from my iPhone using OB Talk
Hi, quick question...where you bought those latches ? Thanks
Sent from my iPad using Tapatalk

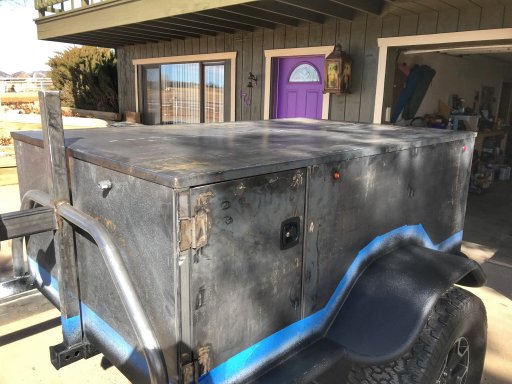

Picked up the lid today, fits good! Building rails for the rtt tomorrow!
Also got the rest of the frame rails bedlined today.
That’s all. Carry on [emoji41]
Sent from my iPhone using OB Talk
Also got the rest of the frame rails bedlined today.
That’s all. Carry on [emoji41]
Sent from my iPhone using OB Talk
Last edited:

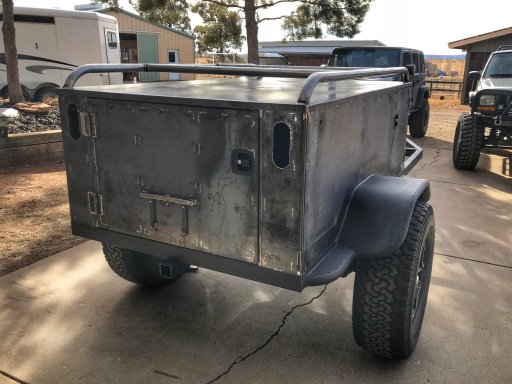

Started on the roof rails
Then got the tent up there and mocked up the awning. Had to build brackets for my adjustable poles, and then a bracket to compensate for the offset to avoid the door.
Sent from my iPhone using OB Talk
Then got the tent up there and mocked up the awning. Had to build brackets for my adjustable poles, and then a bracket to compensate for the offset to avoid the door.
Sent from my iPhone using OB Talk
Finished up some little things on the rack. Camp lights
Solar shower off the back
30w solar panel on the front
Painted the inside
Prepped the outside. Painting soon!!!
Sent from my iPhone using OB Talk
Solar shower off the back
30w solar panel on the front
Painted the inside
Prepped the outside. Painting soon!!!
Sent from my iPhone using OB Talk
Got very distracted working on the jeep. Installed a hydro assist, winch, wired it for 7 pin and brake controller. Then back to the trailer. Got a bunch done, trailer lights are all wired and it goes into the dmv to be inspected tomorrow.
Played with the kc lights to see how they throw. Pretty sweet!
Played with the kc lights to see how they throw. Pretty sweet!
Member III
I like the rear stabilizers. What the height from the ground to the bottom of your frame. I was going to do something like that, but was afraid the stands wouldn't be long enough.
