Overlanding Raptor Build

[Ncat]

So the truck came back from SVC Off-road and a visit to Deaver Springs as well. Deaver built me a custom leaf spring pack to manage the weight of the overlanding gear and to get a bit more clearance. Then SVC dovetailed the rear fenders to align with the Mojave high clearance bumper and built a custom winch mount. The winch is now in the old spare tire location under the bed. It turned out so well! SVC also installed a 30” Rigid light bar in the front bumper.



[Ncat]

I am so pleased with the new approach and departure angles



[Ncat]



[Ncat]

Finally got a damn pic to post normally!! LOL



[wingnut_cf]

Hey Ncat, you have a PM!



[trail_runn4r]

Amazing truck and build, keep it going!



[Ncat]

Amazing truck and build, keep it going!

Thank you!



[Sgt Beavis]

I'm glad I ran across this thread. I bought my Raptor last December and I've already ordered a Decked system and BajaDesigns fogs. I hope to start taking my family out on camping trips this spring..



[Ncat]

I'm glad I ran across this thread. I bought my Raptor last December and I've already ordered a Decked system and BajaDesigns fogs. I hope to start taking my family out on camping trips this spring..

Let me know if you have any questions, I have learned a lot by trial and error :)



[PonoAdventures]

I used the Runner HiLift Mount, awning mount (which worked great with my Yakima Slim Shady), MaxTrax mount, and low profile light bar mounts. I kept my single row 40” GGLighting LED on the front, and I bought a 40” GGLighting RTL (rear tail light bar) for the white rear work lights, amber chase lights and red running lights. I then added two BajaDesign side amber lights all controlled off of the Ford factory up fitter switches.
View attachment 113648

Great build! I have a regular F-150 but I have similar ideas for my truck. For the scene lightings, I was thinking of doing two per side. How do you like running it with only one per side? Does it light up camp enough to set up?



[Ncat]

Great build! I have a regular F-150 but I have similar ideas for my truck. For the scene lightings, I was thinking of doing two per side. How do you like running it with only one per side? Does it light up camp enough to set up?

Hi, the Baja designs lights were too focused. I swapped out with Auxbeam 5” single row LED floods and love them. I get great coverage on setting up camp and can turn on the factory side lights in the mirrors to supplement.



[Ncat]

As lockdown continues I am enjoying some good garage time and getting caught up on little projects that have been on the list for a while.

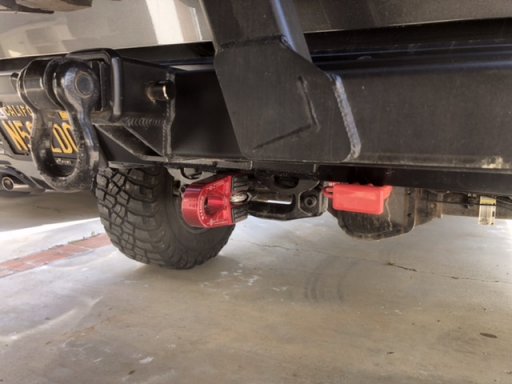

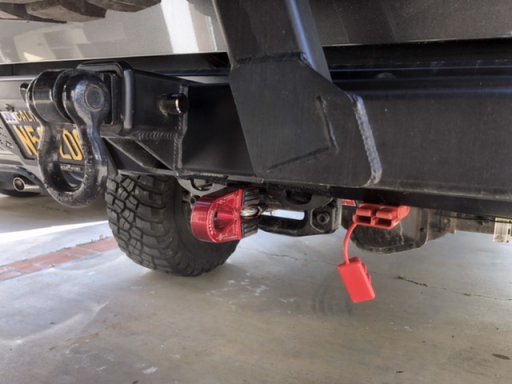

today I got the Anderson connectors mounted to my bumper and tied into my rear winch mounting solution. This will allow me to plug in jumper cables and also my air compressor without opening the hood, just a quick connect at the rear bumper.



[Ncat]

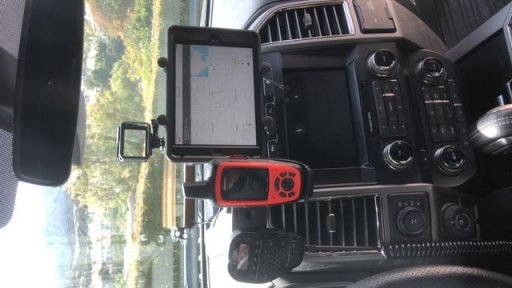

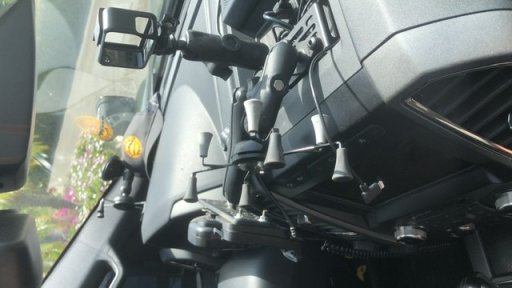

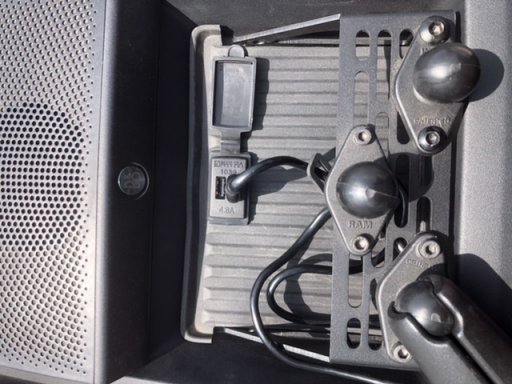

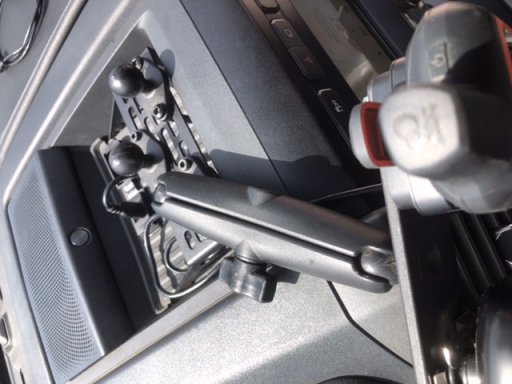

I also tore the dash apart and wired in a 2 USB power port in the dash trayTo have dedicated power for my Garmin GPS and my iPad. A lot of work, but thrilled with the end result!



[Ncat]

The end result!



[Ncat]

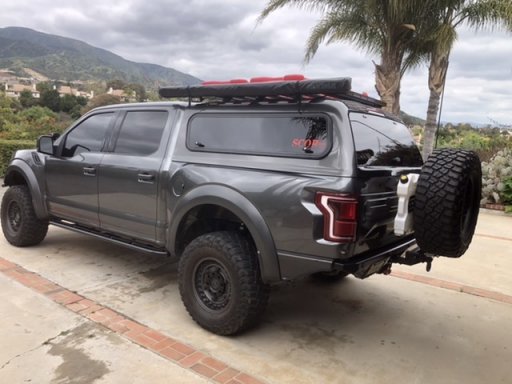

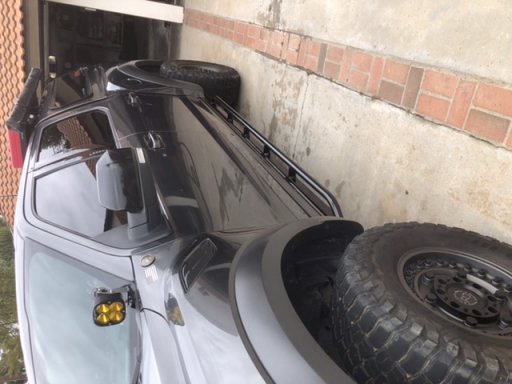

Finally got my rock sliders built for the truck! A local fabricator built them to my spec and design and I am very pleased! Can’t wait to get them out on the trail and test them.

they tuck up nice and tight and are welded to the frame with gusset plates for strength.



[Ncat]

I paid about a 1/4 of what the big shops are asking for off the shelf bolt on sliders.



[Ncat]

they make a decent step when the door is closed and a great step when open



[PonoAdventures]

I paid about a 1/4 of what the big shops are asking for off the shelf bolt on sliders.

What is the name of the shop if you don't mind me asking? Trying to get quotes out for a rear bumper and sliders.



[Ncat]

What is the name of the shop if you don't mind me asking? Trying to get quotes out for a rear bumper and sliders.

Sent you a DM



[Ncat]

After collecting parts for a while I launched my major reconfiguration of my roof rack system and a few other projects!

I added an additional Slimline 2 rack on the cab of the truck and moved all the recovery gear to the front rack.I then added a FrontRunner RTT to the rear rack. I built all new wiring harnesses for the roof racks that incorporates the rear tail light bar, side work lights and new front light bar.

I also added four 7” Auxbeam round lights on the bumper as well.
