Newbie Trailer build. AT-ST
- Thread starter CHAURY08
- Start date
I'll have to check I can't remember what he used but I got all the steel from my buddy who started the build.

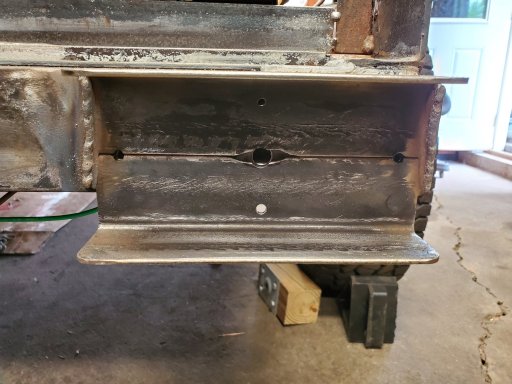

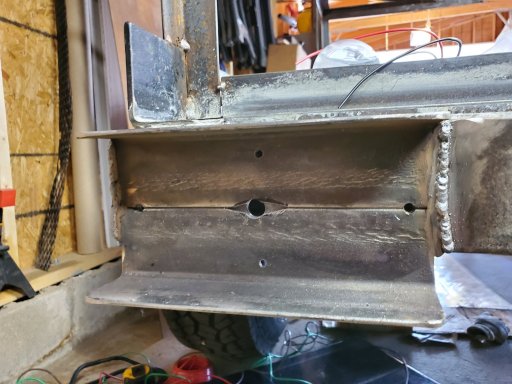

Took a little more time than expected but tail light brackets are actually welded on and tail lights wired. I know my weld jobs are horrible but I am new to this all and still learning a lot. I was having trouble with porosity but other than that I'm slowly getting there.
View attachment 155417View attachment 155418View attachment 155419View attachment 155420

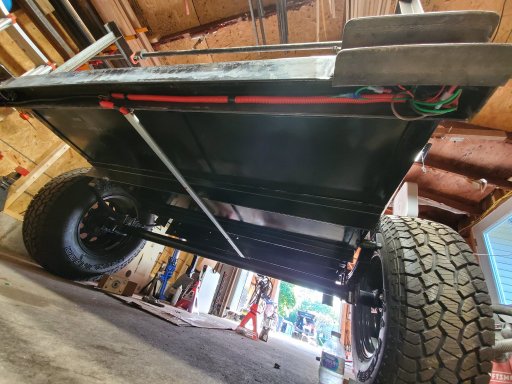

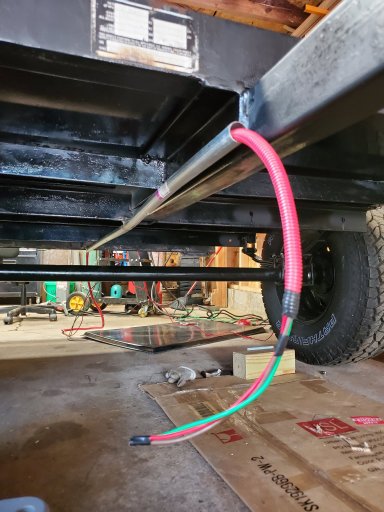

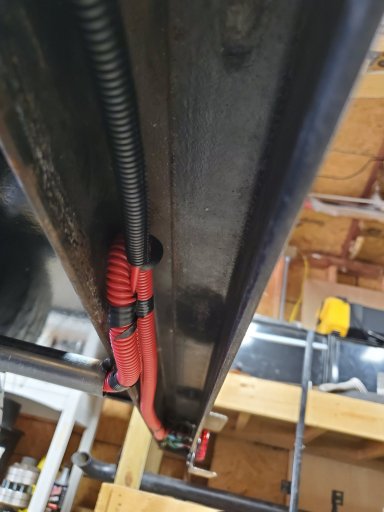

For the lights I tacked ¾" conduit down the middle of the and fed the wires through the conduit in a loom and just crimped all the connectors. I will eventually redo all the connectors and run the wires a little cleaner but for now this work and the lights work.

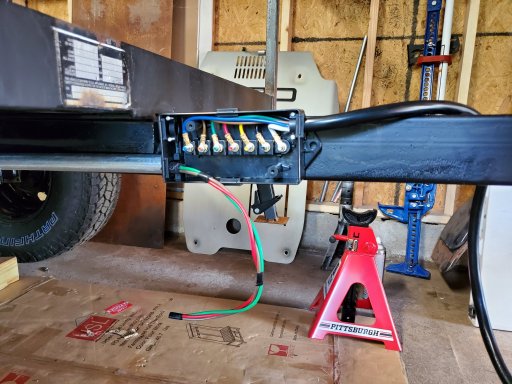

I did run into one issue. I bolted the box on the trailer. Ran wires from the box to the lights. I was able to get them to work but if you shook the trailer both lights would flicker and want to go out. I know nothing about how trailers wiring works but assume it grounds to the ball. Once I removed the trailer from the truck the lights wouldn't work. I ended up grounding the box to the frame which fixed the issue. Sorry for the mess of wires but just trial and error for me.
View attachment 155424View attachment 155423View attachment 155429View attachment 155425View attachment 155426View attachment 155432View attachment 155438
Took it for a test drive and check some clearance. View attachment 155433View attachment 155434View attachment 155435View attachment 155436
View attachment 155417View attachment 155418View attachment 155419View attachment 155420
For the lights I tacked ¾" conduit down the middle of the and fed the wires through the conduit in a loom and just crimped all the connectors. I will eventually redo all the connectors and run the wires a little cleaner but for now this work and the lights work.
I did run into one issue. I bolted the box on the trailer. Ran wires from the box to the lights. I was able to get them to work but if you shook the trailer both lights would flicker and want to go out. I know nothing about how trailers wiring works but assume it grounds to the ball. Once I removed the trailer from the truck the lights wouldn't work. I ended up grounding the box to the frame which fixed the issue. Sorry for the mess of wires but just trial and error for me.
View attachment 155424View attachment 155423View attachment 155429View attachment 155425View attachment 155426View attachment 155432View attachment 155438
Took it for a test drive and check some clearance. View attachment 155433View attachment 155434View attachment 155435View attachment 155436

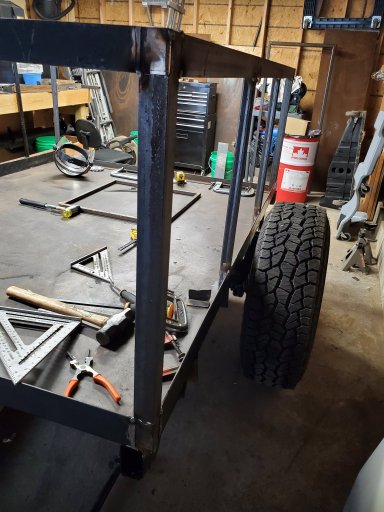

Did a little work today. Tacked on my side supports then redid the corner supports so the skin will lay flat. Do you guys think I need to add a support or two up front? Plan is to stich weld 2" tubing on all 4 corners. Run the roof rack off the top and run tubing inside that will drop down for supports.
View attachment 156189View attachment 156188View attachment 156190View attachment 156191View attachment 156192View attachment 156193
View attachment 156189View attachment 156188View attachment 156190View attachment 156191View attachment 156192View attachment 156193
Traveler III
- 953
- First Name
- Tyler
- Last Name
- Harman
- Member #
-
26489
Your trailer is really taking shape and looking great!
I think you might be inspiring me to do something similar and look forward to seeing the end result...
Thanks for sharing!
Thanks man. I'm really just winging it. Trying to figure everything out as I go.

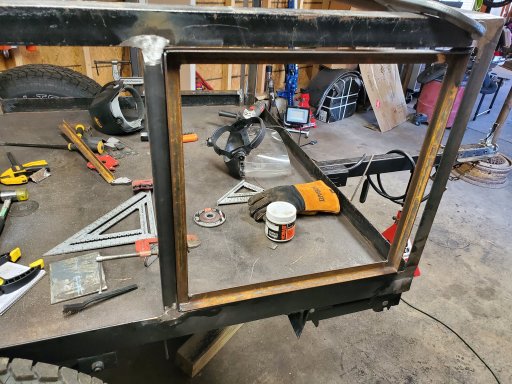

Haven't had much time for the trailer lately nor have I been keeping this up to date. But did get a little welding done and a lot of grinding. Welded the door frames together and tacked them on the trailer. Now to decide on hinges.
View attachment 158319View attachment 158320View attachment 158321View attachment 158322View attachment 158323View attachment 158324View attachment 158325
View attachment 158319View attachment 158320View attachment 158321View attachment 158322View attachment 158323View attachment 158324View attachment 158325
