DIY AWNING for $90 (ARB style awning) 9' x 9'

  • HTML tutorial
Amabob0

Amabob0

Rank III

Advocate II

760
Fontana CA
After about a years worth of intense use the awning is still going strong, ive used it at least 100 times and only changed a few couple things on it as upgrades not as repairs. I changed the velcro straps. They areScreenshot_20180124-185856.png 20180120_141329.jpg IMG_2603.JPG Screenshot_20180124-190349.png heavier duty and luckily the same price since they only come in packs of 10. Thats actually the exact amount needed. 2nd i replaced the straps on the tarp on the side of thr jeep with zip ties. Besides that everything is original and still VERY sturdy. Ive used it in 115 degree weather eith strong gusts in laughlin NV. Actually my ez-up brand canopy busted and collapsed while the awning stayed strong. Ive used it on every camping trip, picnic and even at work to keep out of the sun since i do construction, and some jobs dont allow for the work bench to fit somewhere covered. Ill post couple pictures i have of it being used. One last note, i made a case for it using extra HF tarp i had laying around.

  • Like
Reactions: GABEHERNANDEZ and tritonl
tsteb112

tsteb112

Rank IV

Pathfinder I

1,212
Greenville
Thanks for this idea. I've been toying around with the idea for awhile now and you may have just solved that. For a case, you could possibly use an umbrella storage bag with little modification. I see you've made a case with the tarp. I'm interested to see that as well. By the way, nice WJ. Mine is an 03 overland. The build thread is in the signature if you're curious. There's not too many build threads that are still active that I can find on this forum.

Amabob0

Amabob0

Rank III

Advocate II

760
Fontana CA
tsteb112 said:
Thanks for this idea. I've been toying around with the idea for awhile now and you may have just solved that. For a case, you could possibly use an umbrella storage bag with little modification. I see you've made a case with the tarp. I'm interested to see that as well. By the way, nice WJ. Mine is an 03 overland. The build thread is in the signature if you're curious. There's not too many build threads that are still active that I can find on this forum.
Click to expand...
By all means i say you do it, this is single handily the mod i use most on my jeep. Ive never seen an ARB awning extended in person but im sure this is not that much weaker if not probably has the same strength. Not to mention Arbs dont go this big. The umbrella idea is actually great! I hadnt thought about that maybe ill give it a try. Ill post a picture of my case tomorrow. Also, i appreciate it ive out tons of work into it but i havnt had time to start a build thread. I do have an instagram account with more build details though: wjbuild_blackpearl . Feel free to check it out, and ill make sure to subscribe to it to your build thread too. I always like to get ideas from others and follow builds, or see how they improve on what ive done

  • Like
Reactions: tsteb112
tsteb112

tsteb112

Rank IV

Pathfinder I

1,212
Greenville
Amabob0 said:
By all means i say you do it, this is single handily the mod i use most on my jeep. Ive never seen an ARB awning extended in person but im sure this is not that much weaker if not probably has the same strength. Not to mention Arbs dont go this big. The umbrella idea is actually great! I hadnt thought about that maybe ill give it a try. Ill post a picture of my case tomorrow. Also, i appreciate it ive out tons of work into it but i havnt had time to start a build thread. I do have an instagram account with more build details though: wjbuild_blackpearl . Feel free to check it out, and ill make sure to subscribe to it to your build thread too. I always like to get ideas from others and follow builds, or see how they improve on what ive done
Click to expand...
Cool! I’ll check out IG. I personally enjoy having build threads on forums. It allows others to chime in with advice/critiques while letting you show what you’ve build. I really need to build a swing away tire carrier. That’s priority numero uno right now. I’ll be following something similar to roamingtimbers tire carrier using the stock bumper


Sent from my iPhone using Tapatalk

Amabob0

Amabob0

Rank III

Advocate II

760
Fontana CA
tsteb112 said:
Cool! I’ll check out IG. I personally enjoy having build threads on forums. It allows others to chime in with advice/critiques while letting you show what you’ve build. I really need to build a swing away tire carrier. That’s priority numero uno right now. I’ll be following something similar to roamingtimbers tire carrier using the stock bumper


Sent from my iPhone using Tapatalk
Click to expand...
Yeah i do too, ive gotten most of my ideas from forums so id like to pass the knowledge. Im hoping to start a build thread soon

  • Like
Reactions: tsteb112
BradD

BradD

Rank II
Launch Member

Enthusiast I

404
rincon, GA
First Name
Brad
Last Name
Dixon
Member #

8579

If your still trying to figure out a good way to cover it while stored. Check out bimini storage covers for boats. They come in all colors and different sizes and are made for transport so they are really strong and have beefy zippers too.

Sent from my SM-G930V using OB Talk mobile app

  • Like
Reactions: tsteb112
Amabob0

Amabob0

Rank III

Advocate II

760
Fontana CA
BradD said:
If your still trying to figure out a good way to cover it while stored. Check out bimini storage covers for boats. They come in all colors and different sizes and are made for transport so they are really strong and have beefy zippers too.

Sent from my SM-G930V using OB Talk mobile app
Click to expand...
Thats a good idea, i couldnt source a zipper long enough so i used push clips. That would have been a way easier route.

Jason Mainville

Jason Mainville

Rank II

Enthusiast III

473
Glendale, Az
I think they do? I couldn't find them on the website but I also didn't look very hard. If your particular store has them they would be in the same area with the EMT couplings and connectors.

Road

Road

Not into ranks, titles or points.
Launch Member

Advocate III

3,379
On the road in North America
First Name
Road
Last Name
Dude
Member #

6589

Great job, @Amabob0 - both on the awning and 'splaining it so well. There's more than a little cleverness in there that a lot of folks might not think of when designing.

Amabob0

Amabob0

Rank III

Advocate II

760
Fontana CA

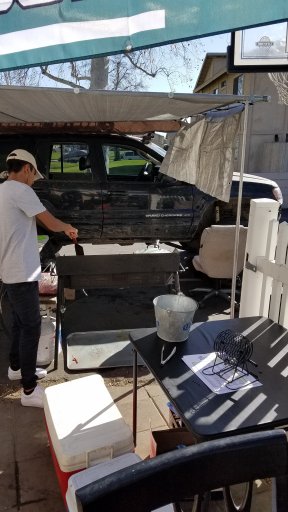

IMG_20180205_120406_015.jpg IMG_20180205_120406_015.jpg IMG_20180205_120406_015.jpg IMG_20180205_120406_015.jpg
tsteb112 said:
Spring break already? Lol it’s still cold here


Sent from my iPhone using Tapatalk
Click to expand...
Lol it felt like it, it got up to 86 degrees here in socal. It was fun, my wife, son, and i are philly fans so we we hosted a little party. Philly cheesesteaks and beer.
