Aux fuse box and relays

[4wheelspulling]

Some nice setups and work done here! Vance.



[trailhunter]

@trailhunter Sure thing, just make sure that you have an inline fuse between the battery and the bus bar/fuse box... preferably as close to the battery as possible. Also, make sure that your fuse and battery run are sized correctly for the draw of the items. Undersized wire will heat up and cause a fire. Here is a good reference [link].

Thanks!

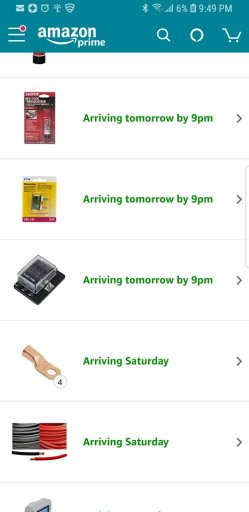

I'm going with 6 guage copper automotive wire with a bussman type-1 30amp fuse which I'll mount in the engine compartment and run through the firewall to the fuse box behind the radio. From fuse box, I'll install fuses based on wire size and application.

Appreciate the feedback
