Who does their own electrics?

[Tim]

Some tips from Ronny Dahl


Sent from my iPhone using OB Talk



[Sean S]

Some tips from Ronny Dahl


Sent from my iPhone using OB Talk

Perfect timing! Ronny is very cool and has a great channel. Can't wait to see his new electrical box. He seems to know his stuff.



[ZuLander]

I do all of my own, I'm sure partly because I installed 12 volt electronics for YEARS, both auto and marine.
I'm still in the "field, but I've switched to the home and commercial side of a/v and control systems.


Sent from my iPhone using OB Talk



[Tim]

I've just posted this elsewhere on the the forum but thought it worth adding here to make this thread a good source of reference.

This video is about dual battery systems but also covers the aspects involved like wiring choices:


Sent from my iPhone using OB Talk



[Tim]

Wiring size guide: how to decide what diameter cable you need to connect up accessories.

http://www.jtsonline.com.au/facts/cable/


Sent from my iPhone using OB Talk



[Tim]

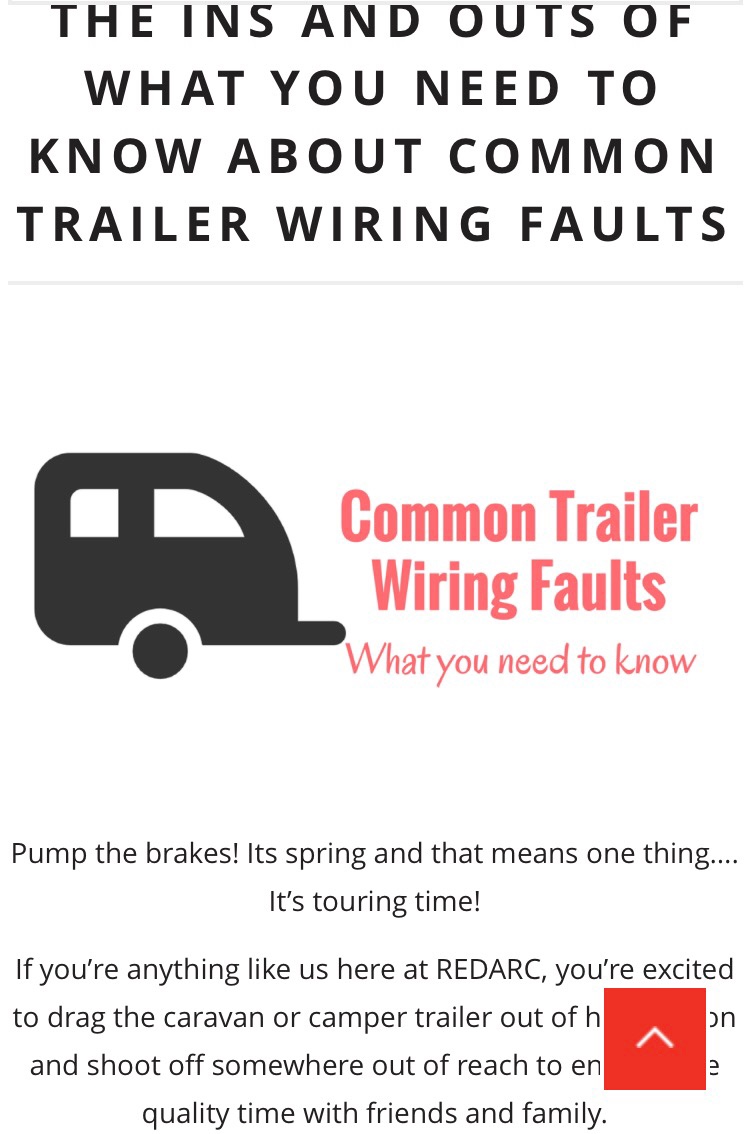

Checking your trailer electrics

https://www.redarc.com.au/blog/common-trailer-wiring-faults


Sent from my iPhone using OB Talk



[Username Not Found]

I do all of my own, but I'm also a licensed electrical contractor with an undergrad in electrical engineering.



[Tim]

It feels like things have moved on a bit in the last year or so. Now it's much easier to install electrical accessories with kits like ARB's Linx (https://linx.arb.com.au/) or the Power Distribution system from Perth Diesel Performance (http://perthdieselperformance.com.au/Power_Distribution_Module.html) and the sPOD system (https://www.4x4spod.com/). These give a structured and saleable approach although don't come cheap.

Like any other part of the build it pays to plan the electrical system of your Overland vehicle so you don't end up doing the wiring several times over. That said sometimes needs and budgets change... I know mine have! If I was to start again at any point I think one of these systems would be on the list.



[Jet_Pack_Jesus]

I've just posted this elsewhere on the the forum but thought it worth adding here to make this thread a good source of reference.

This video is about dual battery systems but also covers the aspects involved like wiring choices:


Sent from my iPhone using OB Talk

I have talked to those guys one the phone. they are great and helpful. to bad they don't sell in the states.



[Tim]

I have talked to those guys one the phone. they are great and helpful. to bad they don't sell in the states.

Yeah, they have a whole series of comprehensive videos on YouTube. Very helpful considering they are offering all that info for free. Good on them.


Sent from my iPhone using OB Talk



[Tim]

I do my own. I think it is a good idea to feel comfortable with the fundamentals of electrical things before taking on a job. I have a huge fear of causing an electrical fault or fire, so I use every precaution. I am still slowly working on my solar panel project. I am just down to the hinge/gas struts for the panel so it can lay flat on the roof rack or pivot up and be a wind fairing for when I have my roof cases/cargo on there.

The bulk of the 'lectrical things...
Traxide SC-80 based dual battery system
Solar Charge Controller
ARB 50qt fridge
CB/radios
Inverter (small one)
On board Viar 450p
Shower pump 12v
Rear camp lights
front single row 100w light bar.
Warn winch
ARB intensity lights, on relays hooked to high beams and wireless warn winch controller.


Aux battery side...

Main battery

Cargo cubby, with distribution block, aux battery protection isolator, wireless remote box for rear work lights.

Looks like a very neat and comprehensive install. Yep, causing a fire would be my worst nightmare. I’m lucky my rig is old school and doesn’t rely on computers but seeing it burn to the ground would would be a tad upsetting!


Sent from my iPhone using OB Talk
