What type of lifts are you running?

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!
  • HTML tutorial

Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

Hello!

Driving back from a fantastic trip but quickly realizing the whole drive what you got portion of my overlanding is over. (Watched several well built out rigs bottom out and one break a control arm on the trail) I have a 2018 Wrangler Sahara JKU with minimal body mods. Curious what type of lifts others are running. I have a RTT and don’t plan on doing crazy rock crawling. It’s also a city car/partial daily driver mainly to shuttle my dog to the park. I just want to get over obstacles without having to stack every two seconds! Oh and feel free to throw in a tire size opinion as well if you feel so inclined. Really torn between 35 and 37 when I lift her up.

Thanks in advance. All my wheeling friends crawl rocks and I think their recs are a bit too much for overlanding. Or maybe I’m wrong!

  • Like
Reactions: Overlanding Lawyer

Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

Non rubicon jeep you will need a re gear to run 37s and most likely a axle upgrade .
Thanks.

Yeah, I’m willing to do it all if it’s worth it/necessary for my goals. I had my mind set on running 35s on a 2.5 teraflex but I’m very open to other ideas.

I could kick myself for not getting a rubicon for vanity reasons but I love my jeep so don’t want to trade her in. Always knew I’d gut her out but didn’t think so soon


MMc

Rank V

Influencer II

1,749
San Dimas, Ca.
First Name
Mike
Last Name
McMullen
Member #

18647

Look at Camburg Off-Road for the mods, they do great work with lifts and extended travel. Camburdg.com In So Cal.

  • Like
Reactions: Krycol08

Smileyshaun

Rank V
Member

Member III

2,779
Happy Valley, OR, USA
First Name
Shaun
Last Name
Hoffman
Member #

4799

Thanks.

Yeah, I’m willing to do it all if it’s worth it/necessary for my goals. I had my mind set on running 35s on a 2.5 teraflex but I’m very open to other ideas.

I could kick myself for not getting a rubicon for vanity reasons but I love my jeep so don’t want to trade her in. Always knew I’d gut her out but didn’t think so soon

A little something to keep in mind all the extra tire in the world won’t do much good without lockers but if your truly just wanted to go over landing and light off roaring 35 will take your most anywhere.


donmontalvo

Rank I

Off-Road Ranger I

128
Devon, PA
First Name
Don
Last Name
Montalvo
Ham Callsign
GMRS: WRJJ303
Service Branch
US Army Veteran
Third Jeep, this time a 4dr Rubicon. I'm hoping this one is my last (turn 60 tomorrow).

I had the dealer put on their new 2" lift, which thankfully fixed the bowed front springs, and now includes Fox 2.0 shocks.

I also had them install my ICON Rebound Pro beadlock wheels, and 35" BFG KO2 tires.

I have it in writing from Jeep, if you have Dana44s (M200/M210) axles, you can move to 35" and it won't break your warranty, even though I am staying with stock 4:10 gearing.

Jeep told me if I wanted to go bigger, like 37", I would need a shop to swap out axles for Dana60s (one tons?), and 4:88 gearing (or higher), and the shop would need to support it...not to mention now you're talking about adjustable control arm swaps, replacing/reinforcing your steering, etc.

When I transitioned from rock crawling to overlanding, I decided that being close to retirement, I need/want the support.

If I were younger (or hit Lotto), I'd get the Dana60s, 4:88 gearing, and heck I'd go with 40"! :)


donmontalvo

Rank I

Off-Road Ranger I

128
Devon, PA
First Name
Don
Last Name
Montalvo
Ham Callsign
GMRS: WRJJ303
Service Branch
US Army Veteran
I meant to also mention, when I had a 2dr Jeep, I bought Rubicon take-off axles on Facebook Marketplace for $3500 with crate shipping included, and buddies handled the swap.

What a different they made, just needed aux switches to lock/unlock them independently. When I bought my 4dr Rubicon, I realized the 4:1 transfer case made it even better.

If you have the opportunity to trade up to a Rubicon, you'll never regret it...not only will you have a potent model, it'll be fully supported by Jeep.


zgfiredude

Rank II
Member
Adventure

Contributor III

327
Silt, CO, USA
First Name
Brian
Last Name
Nichols
Member #

28938

Start with really asking yourself what you want to do with it once done! There are lots of paths to take, and buy once, cry once will save you money in the long run. The RTT is weight up high (duh) so some lifts will be better with that than others! You can do ALOT with 34/35" tires without the weight and expense of 37s.

Where about do you live?

  • Like
Reactions: donmontalvo

Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

Thanks.

Yeah, I’m willing to do it all if it’s worth it/necessary for my goals. I had my mind set on running 35s on a 2.5 teraflex but I’m very open to other ideas.

I could kick myself for not getting a rubicon for vanity reasons but I love my jeep so don’t want to trade her in. Always knew I’d gut her out but didn’t think so soon

A little something to keep in mind all the extra tire in the world won’t do much good without lockers but if your truly just wanted to go over landing and light off roaring 35 will take your most anywhere.
Uh yeah the lockers. So much to be done to roll bigger tires and do bigger and bigger trails. I doubt I’ll be doing any bug rock crawls (so I say).

Happy to hear 35s can do the trick.


Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

Third Jeep, this time a 4dr Rubicon. I'm hoping this one is my last (turn 60 tomorrow).

I had the dealer put on their new 2" lift, which thankfully fixed the bowed front springs, and now includes Fox 2.0 shocks.

I also had them install my ICON Rebound Pro beadlock wheels, and 35" BFG KO2 tires.

I have it in writing from Jeep, if you have Dana44s (M200/M210) axles, you can move to 35" and it won't break your warranty, even though I am staying with stock 4:10 gearing.

Jeep told me if I wanted to go bigger, like 37", I would need a shop to swap out axles for Dana60s (one tons?), and 4:88 gearing (or higher), and the shop would need to support it...not to mention now you're talking about adjustable control arm swaps, replacing/reinforcing your steering, etc.

When I transitioned from rock crawling to overlanding, I decided that being close to retirement, I need/want the support.

If I were younger (or hit Lotto), I'd get the Dana60s, 4:88 gearing, and heck I'd go with 40"! :)
Wow thanks for all this info! My master plan was to slowly build up the Sahara to be trashed by future me and buy a rubicon once I transitioned the Sahara to a fully off road/fun car. But now I see I shouldn’t have let my hold ups keep me from the rubicon in the first place!

  • Like
Reactions: donmontalvo

Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

I meant to also mention, when I had a 2dr Jeep, I bought Rubicon take-off axles on Facebook Marketplace for $3500 with crate shipping included, and buddies handled the swap.

What a different they made, just needed aux switches to lock/unlock them independently. When I bought my 4dr Rubicon, I realized the 4:1 transfer case made it even better.

If you have the opportunity to trade up to a Rubicon, you'll never regret it...not only will you have a potent model, it'll be fully supported by Jeep.
I almost traded in my Sahara a few months back but had a hard time finding a rubicon that had what I wanted so I started building out the Sahara. A rubicon will definitely be my next pick. I suppose for now it’s “how much am I willing to pay” to essentially swap out everything. Good idea to look on FB marketplace.

There’s so much to consider. So much to think about and I’m sure glad everyone is giving me such great aspects, pros/cons


Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

I will also say I put that TeraFlex 2.5 inch lift on my Rubicon and it was great except for the bump stop were too long and I only ended up with about an inch of up travel.


Hmmm interesting. I’ve also looked into the RE lift system because one of my friends with three rock crawlers swears by them. I really need/want the extra clearance so I’ll need to dig deeper into what you’ve brought up!


Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

Start with really asking yourself what you want to do with it once done! There are lots of paths to take, and buy once, cry once will save you money in the long run. The RTT is weight up high (duh) so some lifts will be better with that than others! You can do ALOT with 34/35" tires without the weight and expense of 37s.

Where about do you live?


Once I’m done I just want to be able to do moderate trails on varied terrain. I want to get to more remote campsites but not have a heart attack or roll my jeep in the process haha (high hopes maybe). I don’t think I’ll ever be a hard trail person.

I’m pretty sure I don’t want 37s. And I need to figure out how high I truly want to go lift wise.

And I love the idea of pulling off the financial bandaid at once. Now just yo figure out *exactly* what that all is. You know…I talk about lockers and sway bars and all the goodies but do I really need them? Need vs want is hard to identify as a jeep owner haha

I’m up in the PNW/PDX area so I have every type of terrain easily at my fingertips


Bat21

Rank III
Member
Adventure

Member III

703
Pima County, Arizona, United States
First Name
Ben
Last Name
Ancona
Member #

40039

I was talking to the Currie guys at the expo...he told me they were coming out with springs specifically for overlanding Jeeps. A little stiffer to accommodate heavier loads. He also talked me out of a long arm suspension lift. I currently have a 4 inch pro comp lift.


ThundahBeagle

Rank III

Enthusiast III

792
Massachusetts
First Name
Andrew
Last Name
Beagle
Member #

0

While not a Ruby or even a Wrangler, I put Iron Rock Offroad springs in my old '99 Grand Cherokee, Pro Comp shocks, new spring isolators and moog sway bar links. That's was all from Kolak on the Jeep forums. Then, I put stock Wrangler rims with Goodyear tires. I love how it rides...when it's running.

No rock crawling here, though. Camp trails, carrying camp gear in the back and 2 kayaks on the roof or snowy, icy highways and back roads.

  • Like
Reactions: Krycol08

Outdoordog

Rank V
Member

Member III

1,473
Huntington Beach, CA, USA
First Name
Jino
Last Name
Hwang
Member #

21318

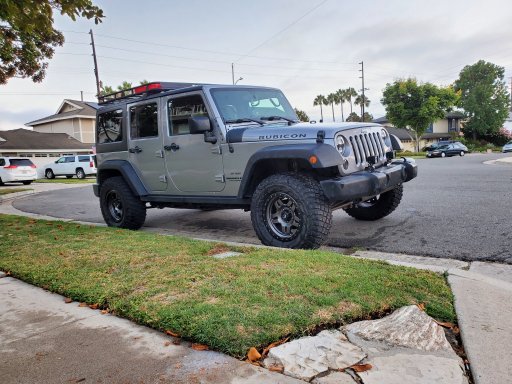

I have a 1.5" teraflex st1 lift and fox 2.0 with resevoirs on my '16 rubicon 4 door, 33" tires. It goes to a lot of places that some 4x4s can't. Mostly because of the lockers and sway bar disconnects. Later, I will change the springs to 2.5" and get 35" tires, waiting for the current set to wear down (bfg km3), tread lasts forever and a half with all the offroading I do.


By the way, that oil isn't from my jeep. My roommate has a POS caddy that leaks oil from his transmission.

  • Like
Reactions: MazeVX and Krycol08

Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

I was talking to the Currie guys at the expo...he told me they were coming out with springs specifically for overlanding Jeeps. A little stiffer to accommodate heavier loads. He also talked me out of a long arm suspension lift. I currently have a 4 inch pro comp lift.
Ohh that sounds great. I certainly have a heavier load when I'm out and about. Thanks for letting me know what you have as well.


Krycol08

Rank V
Member
Adventure

Contributor II

1,688
Portland, OR, USA
First Name
Krystle
Last Name
Cahill
Member #

28782

While not a Ruby or even a Wrangler, I put Iron Rock Offroad springs in my old '99 Grand Cherokee, Pro Comp shocks, new spring isolators and moog sway bar links. That's was all from Kolak on the Jeep forums. Then, I put stock Wrangler rims with Goodyear tires. I love how it rides...when it's running.

No rock crawling here, though. Camp trails, carrying camp gear in the back and 2 kayaks on the roof or snowy, icy highways and back roads.
Thanks for sharing! Sounds like even without rock crawling I should consider doing a little bit more
