I got the base for my drawer system/bed platform mostly finished up. Took awhile, but will definitely be worth it in the end
What Did You Do With Your Rig Today?
- Thread starter iamout
- Start date
I got the base for my drawer system/bed platform mostly finished up. Took awhile, but will definitely be worth it in the end
Member III
Looks good and with lots of storage. Is that a piano hinge in about the middle for access to storage behind the seat?
Member III
It’s actually just a piece of aluminum angle, the front piece is fully separate so it can be removed for the back seats. I wanted it wider than the box, so unfortunately I couldn’t hinge it back over the drawers. The way it is at the moment I just lift it up to get under the front section, I just have a wooden “T” under it for support, so it’s mostly open under there.
Enthusiast III
Installed a new head unit out of the 17-20 super duties into my 16 and planned out brackets for installing my new bump stops on the truck.
Here are the napkin designs.
Here are the napkin designs.
Member III
Hinged or not it's great that you have access to all that space. Thanks for getting back to me.
Advocate III
- 5,584
- First Name
- Michael
- Last Name
- Rose
- Member #
-
20990
- Ham/GMRS Callsign
- W7FSB
- Service Branch
- US ARMY Retired
I have the same napkin, it resides as my log book in my Bronco.
Enthusiast III

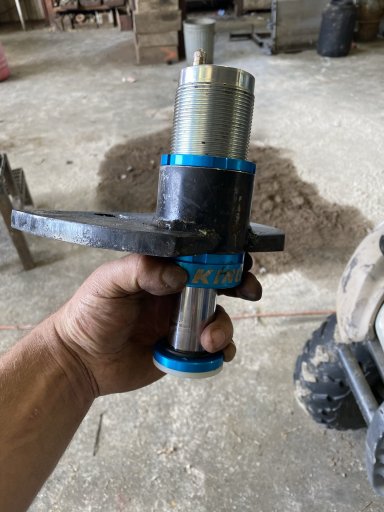

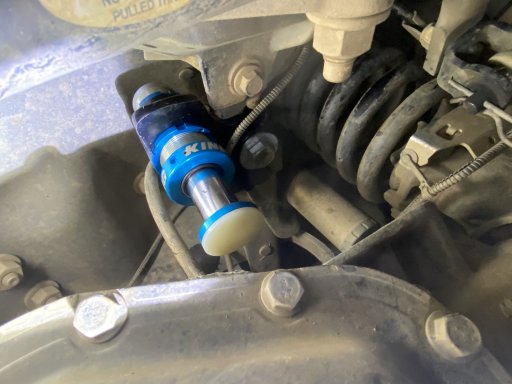

Fabbed up the front bump stop plates and got the King bumps mounted up. Now just to do the rear.
Member III
- 2,827
- First Name
- Jim
- Last Name
- covey sr
- Member #
-
16986
- Ham/GMRS Callsign
- none - BREAKER BREAKER HAND HELD CB AND WALKIE TALKIE
Really nice job and should help. Wish my LRD2 was as easy to solve, It took a new off road bumper for me.
Last edited:
Member II
Put on the new Trasharoo. It's kind of a PITA because they aren't really designed for Pajeros and their weird spare tire situation, but it's doable. I'm sure with enough on and off practice, I'll have it down to a science. Last hurdle is to figure out how to attach my supplemental license plate to the outside of it because, as it is, the bag covers the permanent plate and the Kiwi cops don't like that none too much.
Edit: Done!
Edit: Done!
Last edited:
Member III
I washed it. Then, my wife reminded me I had to go get a yard if mulch. So, it got dirty again.
Enthusiast III
USStrongman
Rank V
Influencer II
I would seriously consider security nuts on those lights. Those will disappear in a heartbeat in the wrong place. I use these for my IPF's, but I prk outside year round in a downtown. No issues yet.
Enthusiast III
You’ll love it! I built mine quite awhile ago and use it all the time. (modular like what you’re doing)
Enthusiast III
Rachel and I got new shoes mounted on the 4Runner this morning. So stoked to get out and use them soon.
Advocate I

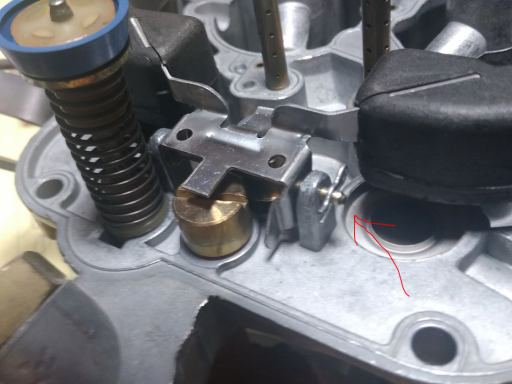

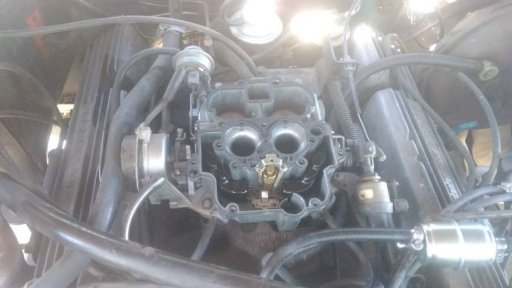

Taking care of the last bits to get the 76 Cherokee daily driveable again. Last on list, tend to what manifests as a random sticking closed float needle. Tap on carb, crank, and good to go again and running very good! Sounds typical of a stuck needle......So opened the 4350 carb to install new needle and seat. Ugh! Found float pivot came undone and metering rod system came unscrewed. And a little damage to the float. Not sure how it ran very well and never once flooded???? Looks like I will have a little fun finding calibration again.
The good news is I have a 2150 and manifold if I need it, or just burn the credit card and finally install a Howell TBI. But I'll give this a go first...
edit: well I was feeling pretty dam defeated, but after a little talk with myself and inspecting parts, all was repairable. Careful reading of the TSM found all the adjustment answers. Stretching a spring and a little disturbance to the threads assures the metering system won't back out again. Drilling the float pin and installing a clip makes sure the pin can't ever fall out. The old beast is back on the road.
Edit: Feb 15- Carb kit finally got here. Pulled the carb off to address the remaining issues. Most importantly when I had it apart last time I found the remanufacturer left out the accelerator pump check ball and retainer. And pulling it apart this time I noticed the remanufacturer double gasketed the top plate (didn't see that last time). Bad idea, this changes the whole metering rod lever pivot point and fuel curve. No wonder it was pretty far off lean when set to the TSM specs.
To my disappointment the carb kit did not have a check ball retainer spring. So with a little music wire from work I made one. Now assembled with one top plate gasket, a working accelerator pump, and correct metering rod control geometry, the carb runs pretty damn well. I'll have to do final tune of the metering system on an exhaust gas analyzer sometime before the next smog, but that's not a problem....while I had it on the bench I replaced a plug on the top plate with a screw setup so I can access the metering rod adjustment without taking the carb apart. It took a 1/4-28 tap perfectly.
The good news is I have a 2150 and manifold if I need it, or just burn the credit card and finally install a Howell TBI. But I'll give this a go first...
edit: well I was feeling pretty dam defeated, but after a little talk with myself and inspecting parts, all was repairable. Careful reading of the TSM found all the adjustment answers. Stretching a spring and a little disturbance to the threads assures the metering system won't back out again. Drilling the float pin and installing a clip makes sure the pin can't ever fall out. The old beast is back on the road.
Edit: Feb 15- Carb kit finally got here. Pulled the carb off to address the remaining issues. Most importantly when I had it apart last time I found the remanufacturer left out the accelerator pump check ball and retainer. And pulling it apart this time I noticed the remanufacturer double gasketed the top plate (didn't see that last time). Bad idea, this changes the whole metering rod lever pivot point and fuel curve. No wonder it was pretty far off lean when set to the TSM specs.
To my disappointment the carb kit did not have a check ball retainer spring. So with a little music wire from work I made one. Now assembled with one top plate gasket, a working accelerator pump, and correct metering rod control geometry, the carb runs pretty damn well. I'll have to do final tune of the metering system on an exhaust gas analyzer sometime before the next smog, but that's not a problem....while I had it on the bench I replaced a plug on the top plate with a screw setup so I can access the metering rod adjustment without taking the carb apart. It took a 1/4-28 tap perfectly.
Last edited:
Traveler III

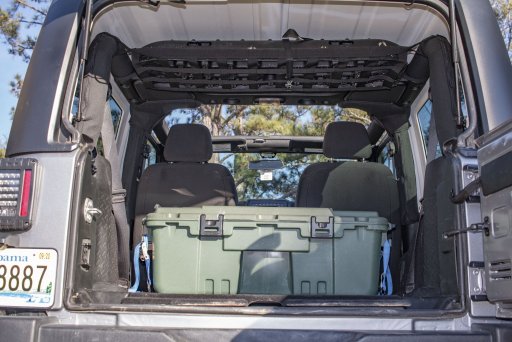

found a place to keep the traction mats when not in use. Cheap cargo net from amazon. A little bit of back and forth adjustment and got it to sit perfectly, a couple of inches from the roof.
also fixed passenger side brake line bracket I broke when getting stuck a couple weeks back with some spare picture-hanging hardware I found in a drawer. It's stronger than factory at least...
next couple of weeks will have the lift and wheels in, which will be fun
Enthusiast II

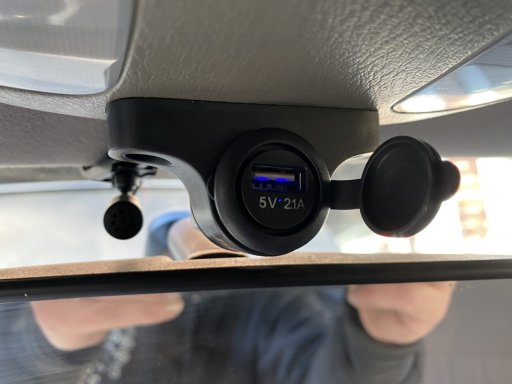

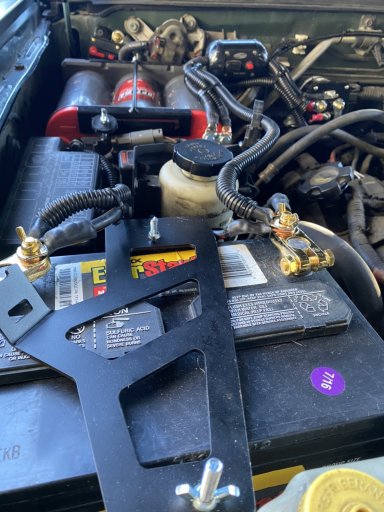

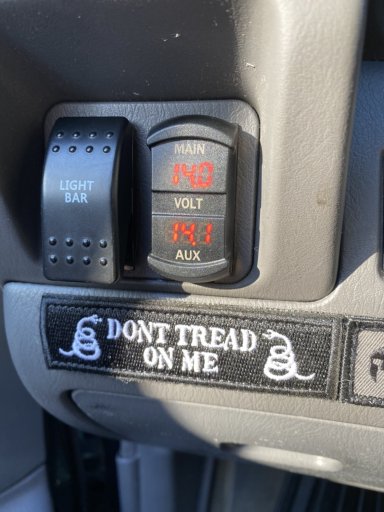

Finalllly got the dual battery setup completed and xtra usb ports and aux power front to rear!
Member III
Enthusiast III
LOVE the switch/monitor setup. Very clean.
Today I took a few minutes and flipped the L-brackets for my 6ft awning “upside down.”
Old:
New:
I’m hoping that this will be sturdier and more aerodynamic. It definitely lowers the profile and brings it closer in to the footprint of the vehicle. This way I’ll be encouraged to leave the awning mounted full-time and get more use out of it. In addition, when I had it mounted upwards setting up the RTT involved bending the rain fly poles around the awning which took more time and effort than the rest of setup combined.
The trade-off, obviously, is that now the awning is down at face level and requires that I either stoop to get under it and sit down or set it up at an incline to get to standing height. Time will tell how much it bothers us and maybe adding a mild lift to the rig will become a higher priority.
Last edited:
Enthusiast II
Thanks! Have you thought about putting a cargo rack up top? I have my awning mounted to the side of my safari rack!
