Next stop? Skid plates

Accessory install time has become quite rare for me here in the shop the last few weeks. As such a project that should take a couple of hours (such as these skids) in fact took 4 days, 10 minutes here, 20 minutes there... I swear I spent more time remembering where I left off :D

I did spent a bit of time with a rattle can cleaning up some factory welds and light corrosion, nothing out of the ordinary but I wanted to address it before I started covering things back up with the clean aluminum skids.

I'm very impressed with the fit and finish and I'm confident they'll offer the protection I'm after. I run the Slee skid system on my 100 Series and they have taken a beating and still clean up nicely. Had they offered them for the 200 I would have given them a really hard look. With the 200, ARB has a fantastic option for a full kit, front, mid (oil pan), trans and even a beefy t-case skid, far better than the tin/plastic covers it started with.

Before, during and after:


The factory setup


Gone with the factory stuff

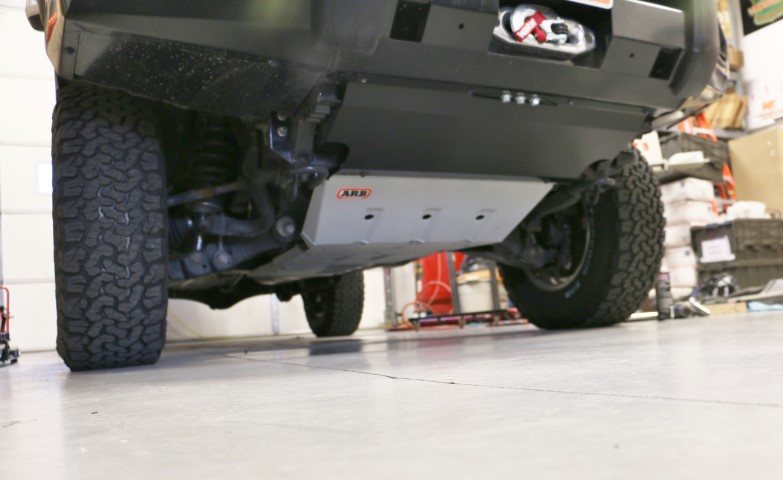

ARB installed


ARB installed

Next up, sliders and side rails. When? Who knows :D


cruiseroutfit

Rank V

Influencer II

1,787
Yewtah
If you wait until the last minute, it only takes a minute. So they say anyways.

With Cruise Moab just around the corner I had made some goals to get the some of the 200 projects finished up. It's a bit frustrating seeing 200 projects stack up with no progress and I've been spending a bunch of time on other rigs that are in reality less of a priority.

ARB Recovery Point. This thing took longer to take out of the box than it did install. Two bolts and you're done. The factory "tow hooks" are not compatible with a standard recovery shackle and are not often recommended for recovery use.

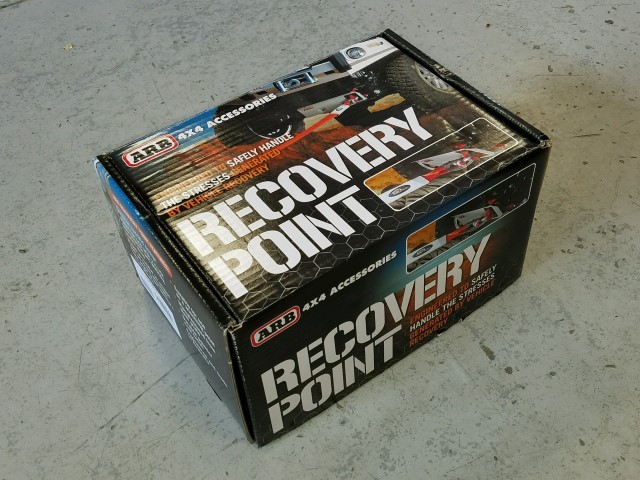

The box of one, about 20 could realistically fit in this box


The old


The new

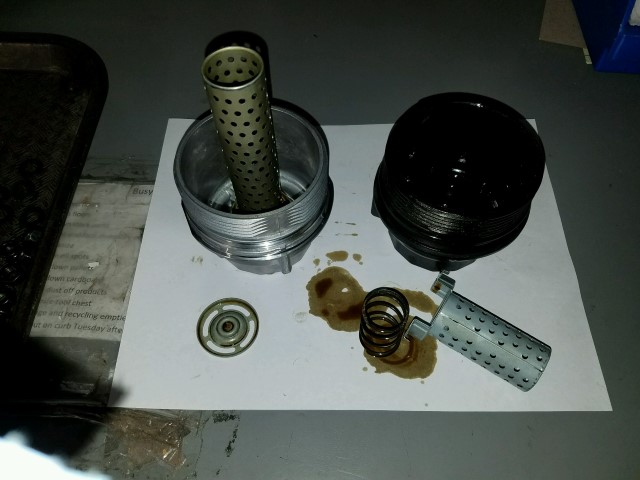

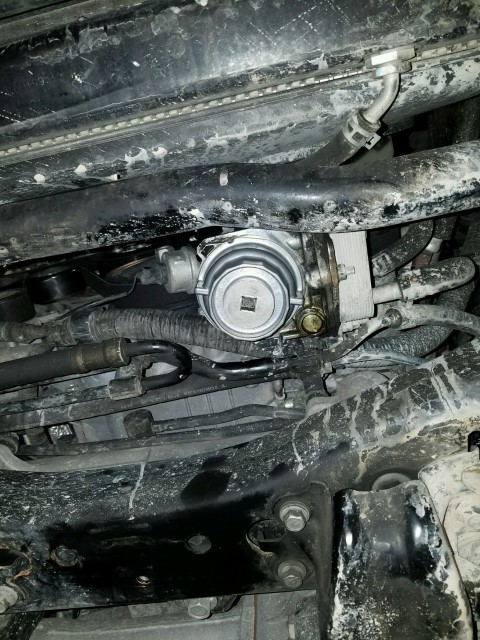

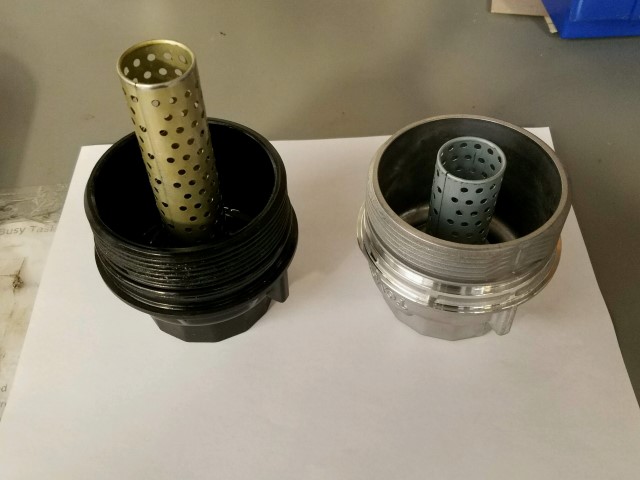

Next up was an oil change. Nothing major there but I did install the Fumoto Valve and upgraded the plastic element housing to the aluminum version. You have to swap out the element tube but it's as easy as tweaking a couple of tabs. I installed the TRD filter element at the same time. All oiled up.


Pre-swap


Swapped


Installed

  • Like
Reactions: Arailt

cruiseroutfit

Rank V

Influencer II

1,787
Yewtah
Next up was the ARB Step/Side Rails. I realize many don't like the look of the integrated side rails between the rockers and the front bumper and I can understand that. For me they are embraced. I've had them on my 40 Series for 15 years, my 100 for 5 and I'm sure I'll come to be glad I have them on the 200 as well. They've saved countless fenders and the look works for me personally. They are a fair bit of work to install, particular the frame mounts on the KDSS side of the frame (left). There is a bunch going on with the KDSS plumbing and ARB really had to make some interesting brackets to allow the mounting. The deck plates come with an natural aluminum finish, I had them coated in a satin black to match the deck plate on the rear bumper, all mirrors of the directions I went on the 100 Series.


Mounting the side rails


Mounting the side rails

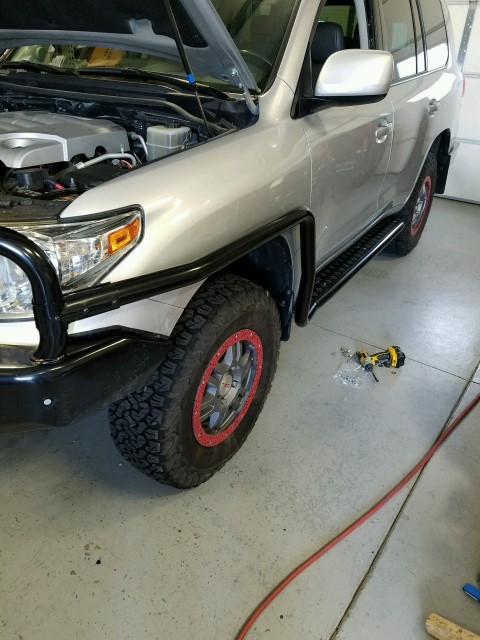

Passenger side complete, waiting for the deck plate


Drivers side complete, powder-coated deck plate installed.


Had a great Cruise Moab, particularly some ghost town exploring on the way home.

  • Like
Reactions: Arailt and Hector

Werner ZA

Rank IV
Launch Member

Advocate II

1,174
South Africa, Centurion
Member #

2966

Next up was the ARB Step/Side Rails. I realize many don't like the look of the integrated side rails between the rockers and the front bumper and I can understand that. For me they are embraced. I've had them on my 40 Series for 15 years, my 100 for 5 and I'm sure I'll come to be glad I have them on the 200 as well. They've saved countless fenders and the look works for me personally. They are a fair bit of work to install, particular the frame mounts on the KDSS side of the frame (left). There is a bunch going on with the KDSS plumbing and ARB really had to make some interesting brackets to allow the mounting. The deck plates come with an natural aluminum finish, I had them coated in a satin black to match the deck plate on the rear bumper, all mirrors of the directions I went on the 100 Series.


Mounting the side rails


Mounting the side rails


Passenger side complete, waiting for the deck plate


Drivers side complete, powder-coated deck plate installed.


Had a great Cruise Moab, particularly some ghost town exploring on the way home.
I also need a blank cheque hahaha!Looking great, sure ill get there in time!So many products to choose from here in SA, but not all available that you are fitting!Doing lots of homework!Today fitting roof rack and dual battery system!Drawers, fridge slide and kitchen done!


Sent from my iPhone using OB Talk

  • Like
Reactions: cruiseroutfit

cruiseroutfit

Rank V

Influencer II

1,787
Yewtah

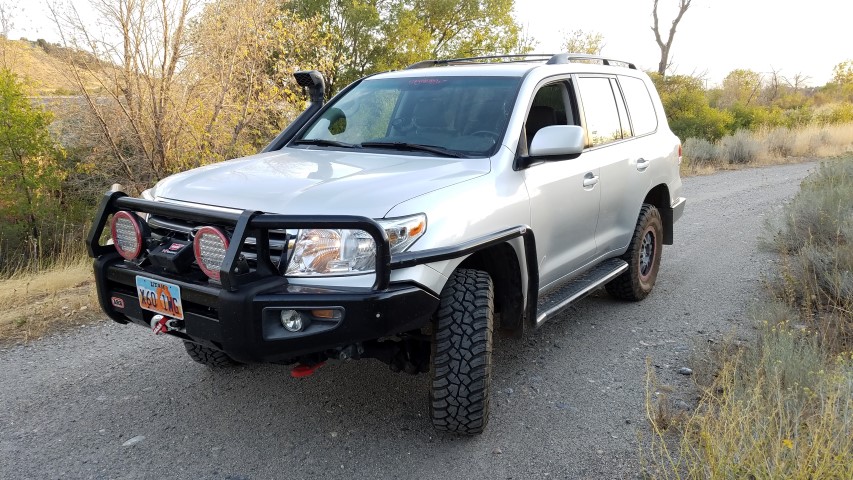

So new tires happened and I'm glad they did.

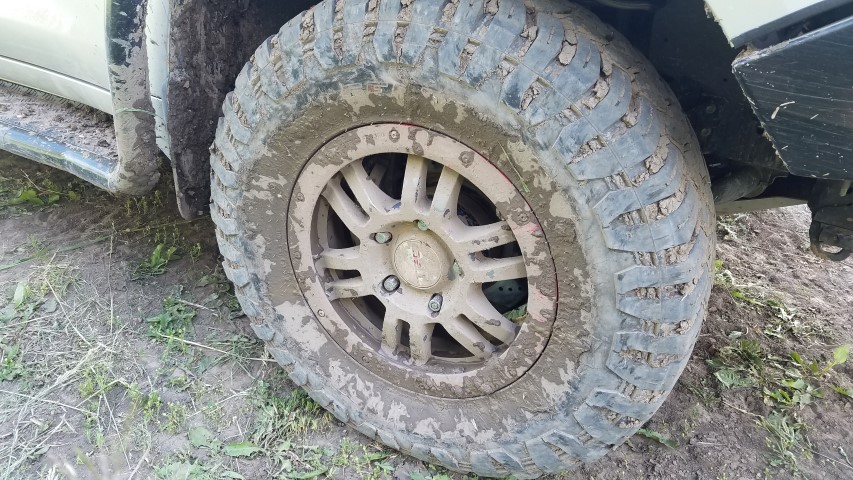

Now equipped with the Grabber X3 mud-terrain tires.

As some of you know I've spent some time traveling with the ExpeditionOverland crew the past couple of years. General Tire offered up some sets of pre-production X3's to the XO fleet for testing and feedback and I was able to get a set of 5 for the 200 Series. I've been very impressed with these tires. Certainly more noise than the K02's but less than KM2's in my not so scientific seat of the pants comparison. They are extremely durable based on my my initial trail time with them. I just completed a trip with XO (more on that soon :cool:) that included many miles of tight timber trails. While we had guys out of foot for what felt like the entire way sawing and clearing deadfall, the tires were still getting the proverbial poke and prod from a variety of trunks and limbs. There was a point where we had a limb deflecting ~4" into the sidewall of the aired down tire and I was 100% positive the tire was going to roll out with a sidewall puncture. Nope, not even mark. General is really hyping their "Duragen" ply technology and I'm not hear to say it's better or worse than BFG's TriGard's or Goodyear's Dupont-Kevlar sidewalls but I'm pretty ecstatic how they've held up thus-far.



Prior to that trip I did a big southern Utah traverse in the 200 as a pre-run for the Drive to the Summit trip. We were running pretty fast/hard and I ran the tires fully inflated on a variety of trail surfaces from hard pack dirt to sand and gravel. No complaints, they were compliant, held traction nicely and didn't pick up an obnoxious amount of gravel in the treads.


cruiseroutfit

Rank V

Influencer II

1,787
Yewtah
It's time to cross the t's and dot the i's on this build. I've made very little progress on finishing this up in the past six months, life has been busy and I've just been a bit apathetic about making some key decisions and really making the time. Quite trivial things to decide really but I needed to come up with a plan on how I'll finish out the electrical, lighting and communication gear. I've liked the layout I have in the 100 Series, USB/12V outlets at the rear drawers, behind the 2nd row and in the center console. Kenwood 2M, CB, dual batteries using the National Luna kit and an ARB compressor under the hood.

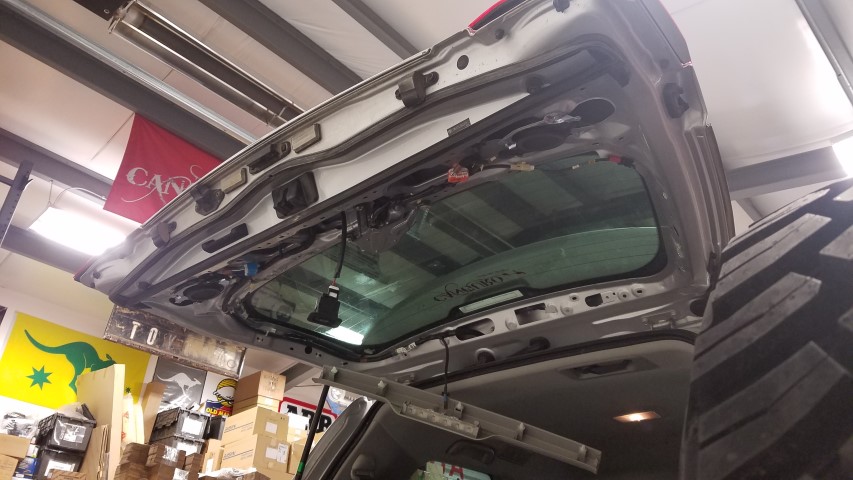

Tearing apart the rear hatch to add switch & lights

I've set up the interior to allow for sleeping inside the vehicle, it's not a two-person solution so when the Mrs. comes along we bring a tent or have historically mounted a RTT. However if I'm rolling solo or have friends along that can fend for themselves... the interior rocks. However the 200 has a major drawback, like really major. From the inside of the vehicle there is no way to exit through the rear hatch. So if you're sleeping in the back you have to maneuver out the 2nd row doors. Certainly not impossible but a pain and when my morning camp ritual has generally included popping the hatch, dropping the tailgate and sitting down on the tailgate to grab brekky out of the fridge, all without even putting shoes on... it has been missed with the 200. Oddly some non-US 200 Series can have the switch so sourcing parts and integrating the wiring isn't a big deal. My pal Johnny installed a switch in his last year and sorted out the two exterior hatch switch wires you need to tap into, easily done. While I was in there I figured it was time to add a handle to make pulling the hatch shut easier and do something about lighting in the rear.


Let there be light!

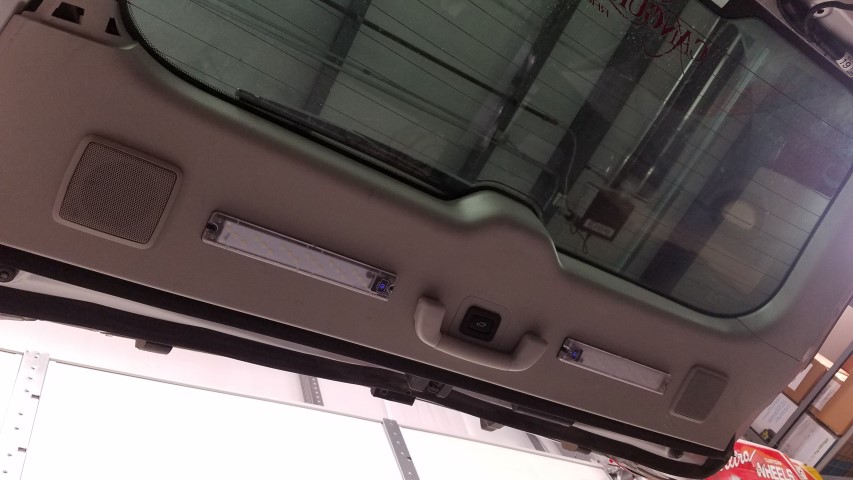

The PFRAN LED replacement bulb kit in the 100 Series has been great, but lighting over the tail gate was always lackluster (no stock light there at all), I added a pair of battery powered LED lights that were a stop gap but never really left me super happy. I knew I wanted something different on the 200 so I hooked up with Pablo @ Equipt and snagged some nice National Luna LED lights. I probably went overkill but the lights have multiple settings and whereas they aren't hitting you in eyes when turned on, the light thusfar has been welcome.

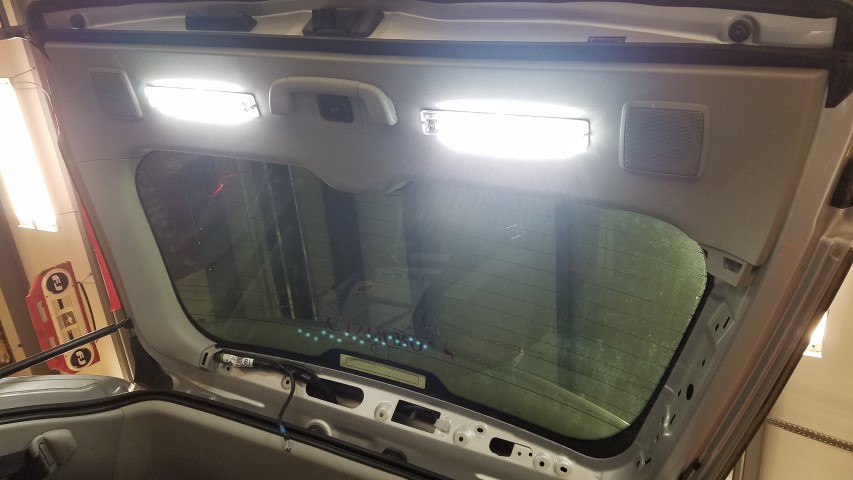

The finished product


Illuminated rear exit switch


cruiseroutfit

Rank V

Influencer II

1,787
Yewtah

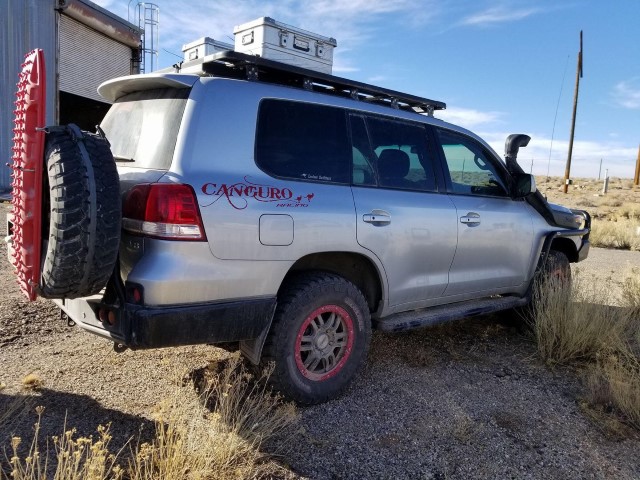

Life has been busy, that is good for business and adventures but bad for making progress on the 200 and thus the old 100 has still been seeing the bulk of the trail duty this past spring and early summer. Then the revolt came. Prep of Monica (the Canguro Racing 200 Series) was already deep under way for the 2017 Baja 1000 and we were starting to work out the details of our chase plan. That plan is a highly orchestrated (and often chaotic) effort of where, who and how 30 people get to Mexico and down the race course adding fuel, performing checks, repairs and swapping drivers/codrivers in and out of the race car along the way. @dmc champions the chase planning and pours countless hours into the logistics effort.

My posse (affectionately know as Chase 3 for the past 5 years) was exhibiting some major push back with another year in the "Ol' 100" they wanted some Fauxverlander action. On top of that the 100 is ready for another set of tires, needed a new battery and some other minor tweaks. I could spend some time on the 100 or hurry and tie up some out the loose 200 ends. Plus I'd rather spend 75+ hours driving in the 200 Series as well. :D



Really, the hitlist was minor and many items in this round of mods could have waited until after Baja. I needed to finalize my Ham radio install, a must for Baja as we rely heavily on car to car comms between chase teams but more importantly the race car and race ops. I needed a way to haul some gear on the rack including a pair of dump cans for fueling the car. What I needed to do was make some progress with my parts stash and this was my excuse.


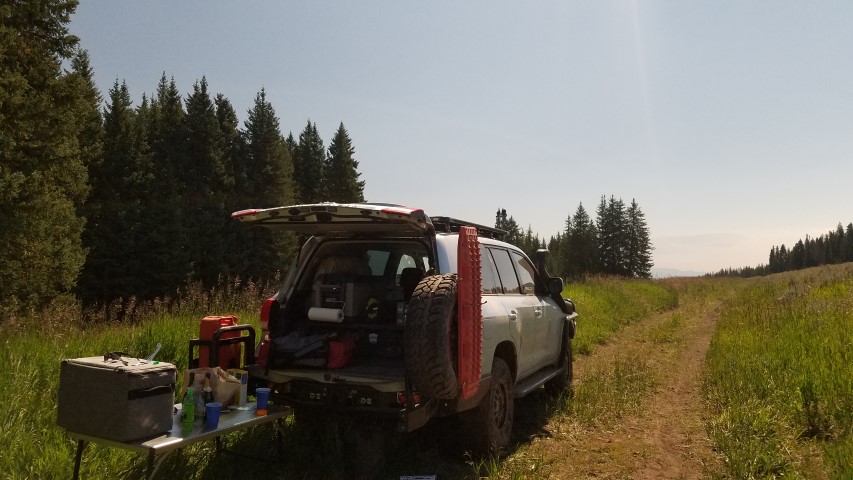

Table in use during last summers Eclipse in Wyoming

While I was in rack mode, I finally mounted my Eezi-Awn table which slides under the rack in what is otherwise useless space. I've used these tables a bunch with Expeditions7 and XOverland... while I love a tailgate for table space it's been nice to have twice as much accessible table space in under a minute. I tweaked the mounts on the rack to tighten up the table, I loathe rattles and don't like mind it's almost too tight.

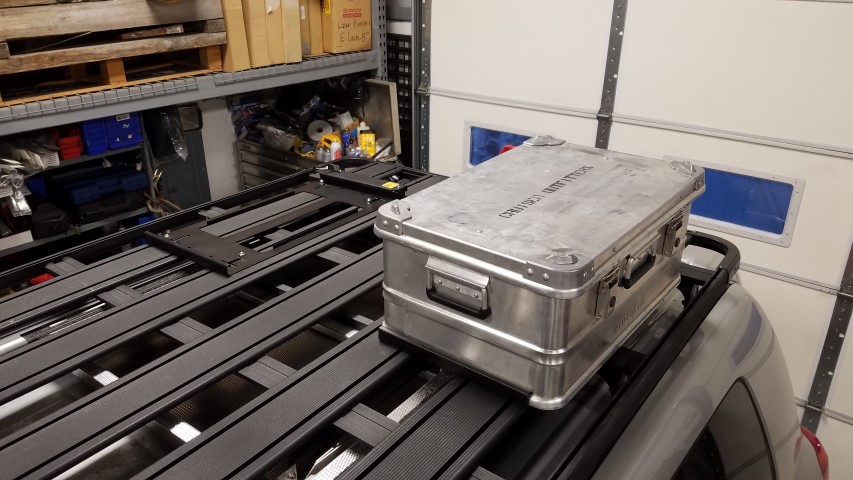

Alubox Rack boxes. These ended up functioning quite splendid. We were literally able to put 4 tents in the one and 4 sleeping bags in the other. We could pull into camp, drop the bins and everyone was ready to set camp with just a single bag needing to come out of the back per person. With 4 adults and camping gear things were bound to be crowded but the ability to securely store soft-goods on the roof was key. Eezi-Awn announced their new rack mounts for the Alubox weeks shortly before the trip and I convinced Pablo @ Equipt to put my name on a set. I mounted them up and was instantly in love. Super quick action to secure the Alubox and remove plus they are low enough profile that I can remove one box, stack it on the other and sleep on the roof rack, my air mattress cushions against mount.



A total non-need but an indulgence for my leather was the Escape Gear set covers. We had these in the Expeditions7 vehicles and I was always amazed by how they held up to abuse, wet clothes, mud, dust, etc... still visit them at the museum and the look clean. Paul @ Equipt set me up with a set of covers and I was waiting for the right time to install them. Well, the right time was Mexico and I didn't even have to do it, Pablo offered to install them while we did race car contingency so I packed them along and sure enough he fitted them in the hotel parking garage.

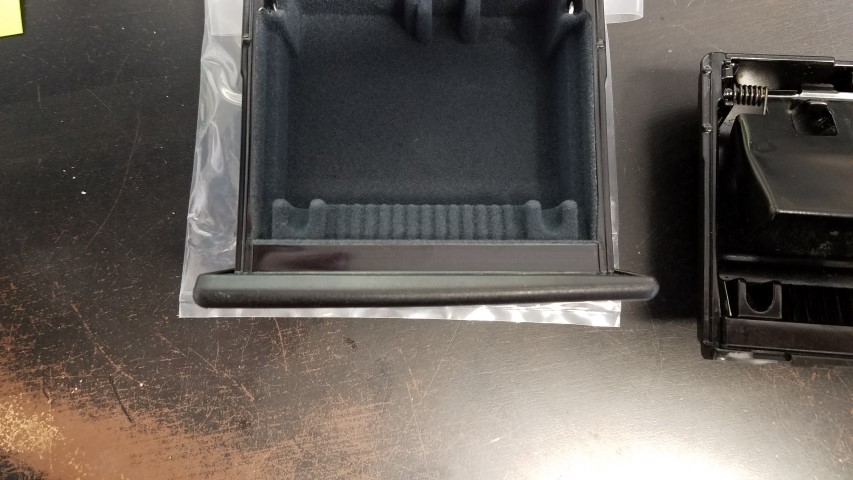

Like the seat covers is the ash tray update. I don't even know where I heard about these (perhaps a ih8mud thread?) but I brought a couple of these over from Japan last summer. They are basically the exact same ash tray but with a felt lining and they lack the upper flap found on a traditional tray. As such this makes a much better change tray and it's a fun OEM Toyota JDM part. You have to swap your "face" from tray to tray, they are color and LHD/RHD specific while the tray itself is not. It's a 5 minute install and that includes opening the box. While I was getting knock-knacks from Japan I ordered a TRD start switch. It's big and red but I love it... I'll be putting one in the racecar soon too. :D





I need to snap some pics of the other pre-baja updates and get caught up on the past stuff. From there I'll work on current projects (new rear axle bearings, ARB Air Locker, Helton shower install) and future projects (ARB LINX system, finishing the dual batteries, etc)

With that... here are some random pics not related to the build but related to having fun with it :cool:







cruiseroutfit

Rank V

Influencer II

1,787
Yewtah
So things haven't been completely peaches and cream. After a 5k mile trip down and up the Baja Peninsula she started to protest. I suppose I should be thankful they all happened within a few hours of home rather than the bottom of Baja? First up was a dead battery in the Swell during the Outlaws Run in early December. Normally not worthy of even mentioning but this was different. It was a newer battery but nothing exotic, I've been holding off on finishing my dual battery system until the ARB Linx system comes out and as such I had a standard AutoZone lead acid battery installed. I went to start it on our final day of camp and the dash cluster lit up for just a brief second as I pressed the start button and then nothing. Like nothing nothing. Zero response to the ignition switch, no lights or headlights, door locks were inop, etc. It was dead in the water. We tried Jackson's battery jump pack and it didn't respond to that at all. We started trouble shooting and found out that my battery wasn't just dead, it was causing a short so it wouldn't jump from a jump pack or even Treeroot's FZJ80 with his dual batteries paired. Remember that electric solenoid rear hatch all 200's come equipped with? Well without power and I couldn't open my hatch, which mean I couldn't open my tailgate, which means I couldn't open my drawers, which means no access to my tools... great. Thankfully I was with some prepared guys and tools weren't scarce.

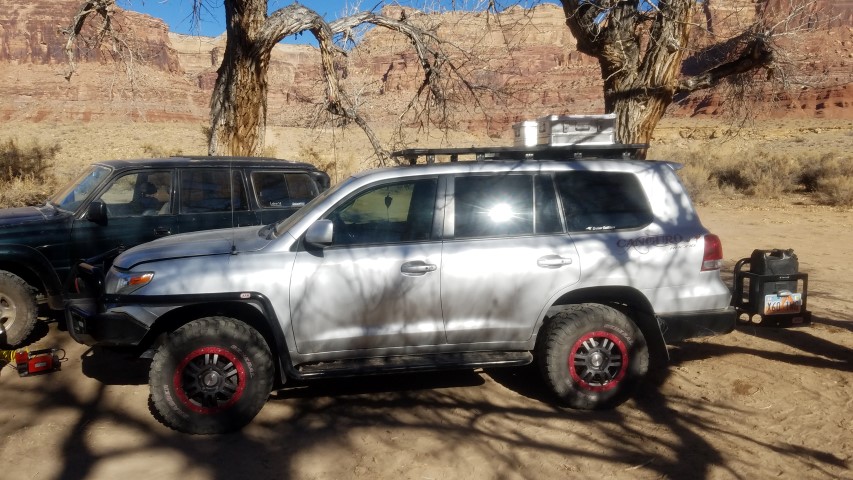

At least it was parked in a shady spot

To confirm our analysis we took a battery out of Treeroot's 80 and temporarily mounted it in mine, we now had power such as dash lights, functioning ACC mode, headlights and thankfully the ability to open my rear hatch but zero crank and my start switch light wasn't illuminating. Did both my vehicle battery and FOB battery die simultaneously? Very unlikely. Jackson (also a 200 owner) and I ran through some random fixes, swapping relays, checking fuses and testing the voltage on my FOB battery, everything was in check. On a whim we pulled out the factory owners manual (who does that right?) and found that there is a reset procedure for the immobilizer system. Sure enough we followed the steps and after some time it reset and fired to life with the donor battery under the hood.


Remember these steps

So I needed a new battery. Jason ran me into Castle Dale, an hour away. The NAPA had battery in stock and I was happy to pay them for it :D Jason wouldn't take any gas money but let me buy him a burger in town before we rolled back down to camp. We quickly installed the battery and she fired right to life, no additional reset required. On the road again...

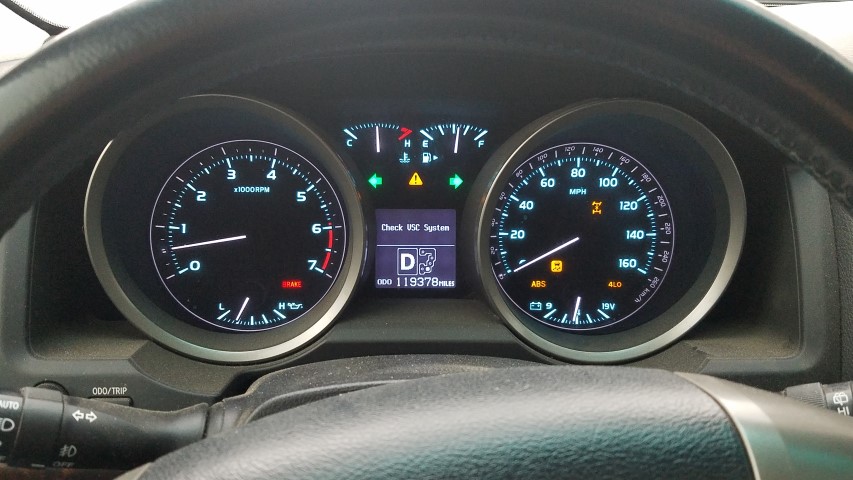

Next up was this this lit up dash disaster

Fast forward a few months and I'm driving over to the machine shop on a rainy afternoon, rushing to snag some parts. Just as I roll around a slight left sweeper at ~40 mph my brakes go bonkers. The dash is lit up with error lights and the ABS is modulating all over the place, much like the feeling of Crawl Control in use. I'm able to get off the road and pop the hood, thinking I'm going to see my brake master/booster purging fluid or melting, nothing. I quickly look over all of the brake hard lines and hoses and everything is tight and in tact, weird. I restart and it drives fine outside of the lights and lack of ABS (which also prevents use of Low Range by the way), so I get it home and park it. It's a few days before I have a chance to troubleshoot but my code reader indicates a few ABS errors. I reset them and all of them stay away with the exception of a LH Rear ABS Speed Sensor code, it would come back on within a few seconds of movement or just stayed on with each attempted reset. I crossed my fingers it was just a bad ABS sensor and got a pair of rear sensors ordered. They arrived and I pulled out the LH rear and found it a tad dirty on the end but nothing crazy odd. They should be running in a sealed part of the axle assembly with a sealed bearing on the outside and a seal on the axle housing side. The grease I encountered was a bit odd but I chalked it up to a bit of weeping at the rear seal and gunk accumulating in the end of the tube, think dirty gear lube.

With the new sensor installed and the wiring inspected, I reset the computer once again and crossed my fingers. Sadly I didn't even make it out of the shop before my dash was lit back up and the LH sensor code was back on. Boo! I happened to be with my buddy Brian who is a mastertech at one of the local Toyota dealerships and he offered to take a look at it on their computer and see if they were getting any signal out of the sensors, new or old. That would at least verify it was bad sensors (new one too), a wiring failure between the sensor and the ECU or something in the axle itself. He confirmed my fears after a short inspection and it was in the axle. Knowing that, he ran his bore scope into the housing via the sensors hole, something wasn't right, there were what appeared to be debris chunks in the housing. More boo! I ciompiled all the parts I would need and snagged the SST we build for separating the rear shaft and bearing assembly, not super easy task. We built the tool for the regular rear bearings swaps we do on Monica (the Canguro Racing 200) and it's since seen a bunch of use, mine was just the latest axle needing bearings.


So, that isn't right...

We made quick work of the tear down, modified the backing plates so we didn't have to crack open the rear brake fluid and slide out the LH shaft. The axle bearing was hosed, fully failing. The design incorporates a magnetic ring as the inner face of the inner bearing, that magnet had broken into pieces and the ball bearings were rolling loosely in the void. Fortunately they can't migrate further inward towards the diff as there is a seal and baffle that would prevent it. OK, so I could get by with a single bearing assembly and a few seals on that side but what did the other side look like? And even if it looked good from the outside, what would it look like inside the bearing? I opted to just replace them both and ended up ordering both brake backing plates at the same time. Both of mine had some corrosion/rust forming between the tin brake dust cover and the caliper bracket it's spot welded too. The LH side was much worse and after a bit of poking I had a full rust hole through the plate.

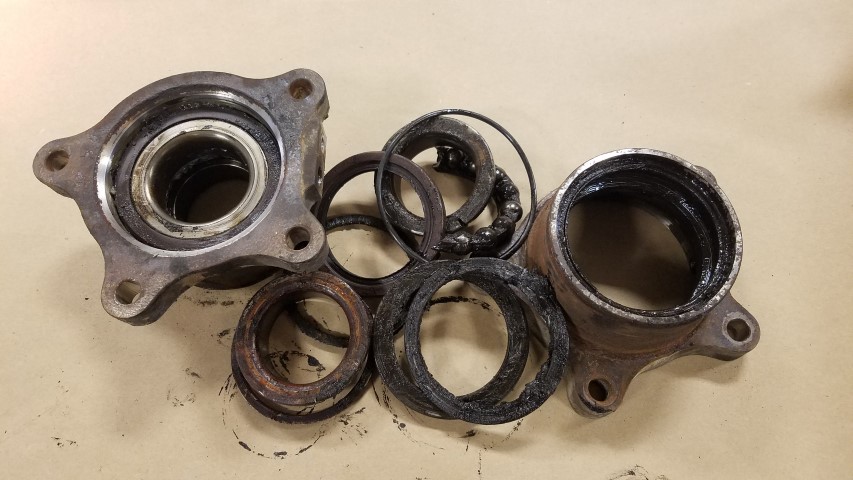

Decent RH bearing top left, the bad bearing and it's parts are on the right.

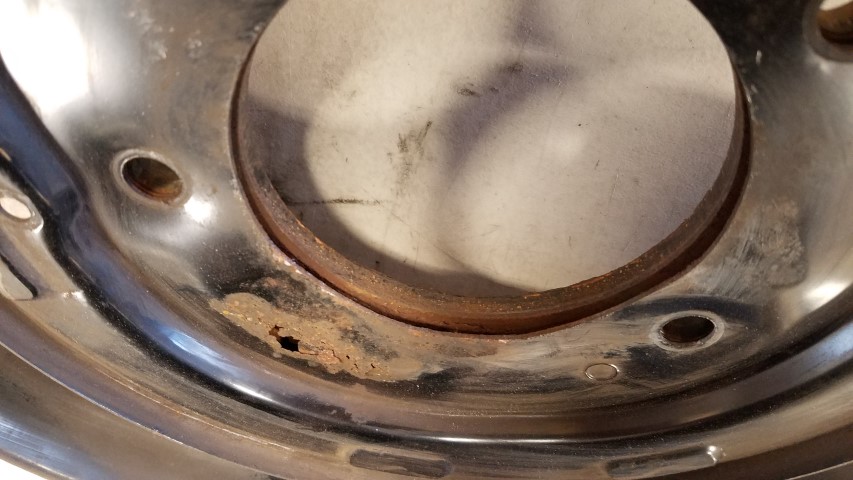

The rusty backing plate. The vehicle is overall really clean underneath but that laminated design is rust prone


A bucket of fun, ARB equipped diff with new carrier bearings.

While I was waiting for the backing plates to arrive I got a core rear stock diff and ARB in the hands of my diff guru, I figured it was a great time to add an Air Locker to the rear axle. With all the parts in hand it went together in a few hours, plumbed the ARB, assembled the rear shafts and filled it with fluid. The ultimate test... any lights? Zero :cool:


cruiseroutfit

Rank V

Influencer II

1,787
Yewtah
Catching up on this thread upload_2019-1-9_8-54-57.gif


Not my 200 (which makes it funner to push hard right?) but @sleeoffroad, Ben from Slee and I joined ARB and a handful of their tech/sales staff for a new product training and demo day. Ironically I think Christo and I have the first two BP-51's setups in the US (I installed mine in Oct 2015). It was good to see a closer look at some of the new internal mods, discuss rebuilds and tuning, etc. Plus doing this over and over is always fun.


  • Like
Reactions: Steve and Jimmy P

cruiseroutfit

Rank V

Influencer II

1,787
Yewtah
We also do this pretty well :D


Tacos! We've been hitting this taco join religiously for about a decade


The Fauxverlander aka Chase 3 getting work done as Nakaya and I get in the race 200

  • Like
Reactions: Steve and Jimmy P

cruiseroutfit

Rank V

Influencer II

1,787
Yewtah

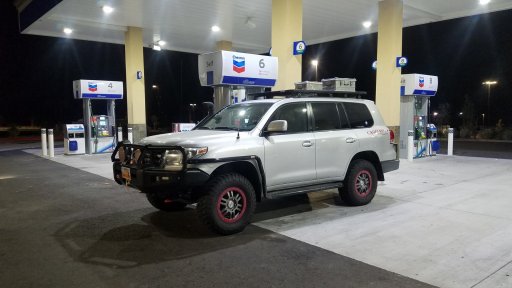

Suspension update. Still love it!

My BP-51 is one of the oldest installs to date, over 3 years old now, lots of flogging and still comfortable and compliant. I did add some trim spacers front and rear and a larger set of General X3's right before departing for the B1K. My loads have changed, I wanted taller tires and it was time to recharge the Nitrogen in the shocks. I topped off everything to 300psi, made some small rebound/compression tweaks and we hit the road south.

I've still got a great deal of things to install but it's totally workable at currently I want to finalize my electrical as I'd like a few more outlets at the rear drawers and the dual batteries are still lingering on completion. I've also got plans to do a Long Range tank shortly. Time... anyone have some spare time?
