Post Up Your Cockpit

brien said:
Nice setup, is that the seicane audio head unit? what is the mount you are using for the tablet up at the driver side sun visor?
Click to expand...
Yes, is the seicane 10inch android head unit.

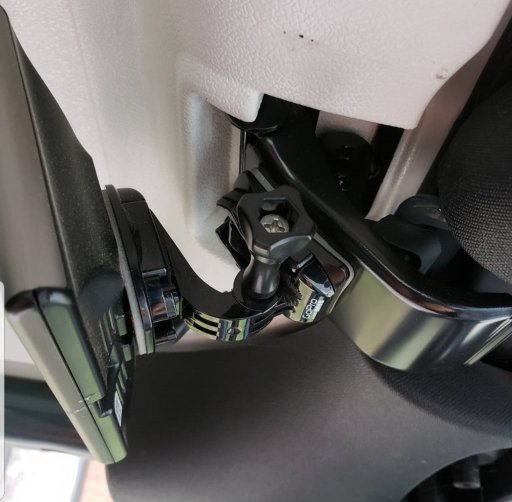

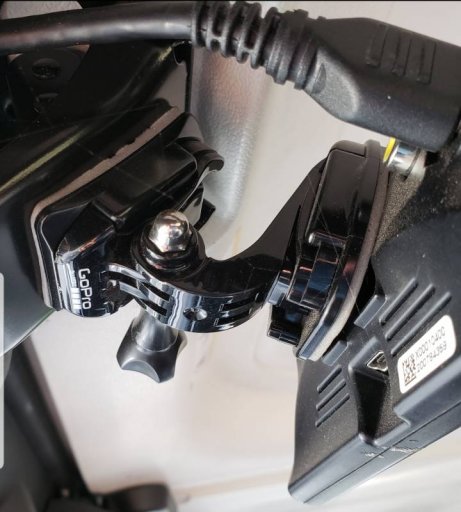

The little display above driver side is not a tablet but a Superchips programmer for JK. Its mount is made up with a few GoPro pieces I put together to fit that location. The location is high up, out of the way, so the display is not really visible from outside by walking by unless you stop and look for it, for safety.
(I can take a side pic of the mount later if you want one, let me know.)

  • Like
Reactions: BlueLineOverland
jeep670 said:
Yes, is the seicane 10inch android head unit.
The little display above driver side is not a tablet but a Superchips programmer for JK. Its mount is made up with a few GoPro pieces I put together to fit that location. The location is high up, out of the way, so the display is not really visible from outside by walking by unless you stop and look for it, for safety.
(I can take a side pic of the mount later if you want one, let me know.)
Click to expand...
Yeah, if you wouldn't mind that would be awesome! Thanks for the info. I've been looking at the seicane head unit for a couple years now, would you buy it again if doing it all over? Is there a way to update the version of Android on it if desired?

brien said:
Yeah, if you wouldn't mind that would be awesome! Thanks for the info. I've been looking at the seicane head unit for a couple years now, would you buy it again if doing it all over? Is there a way to update the version of Android on it if desired?
Click to expand...
I'll get the pic later.

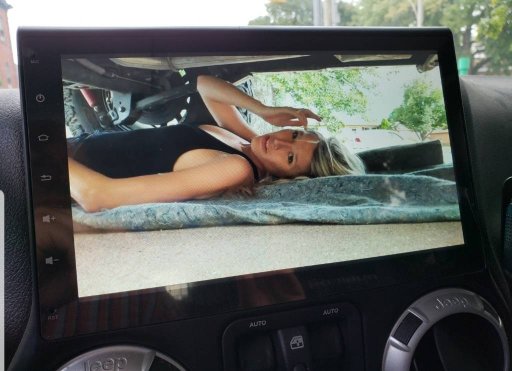

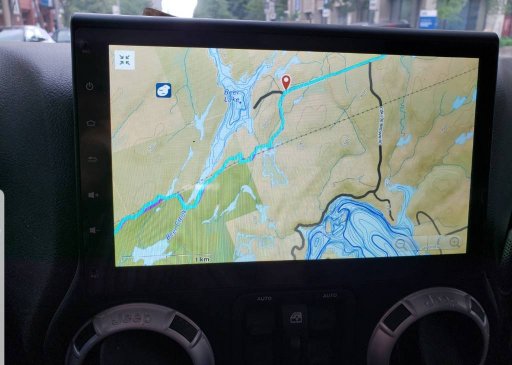

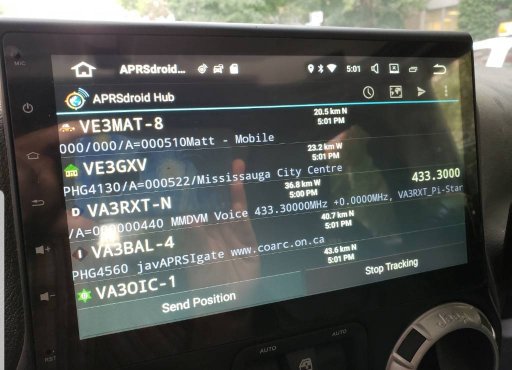

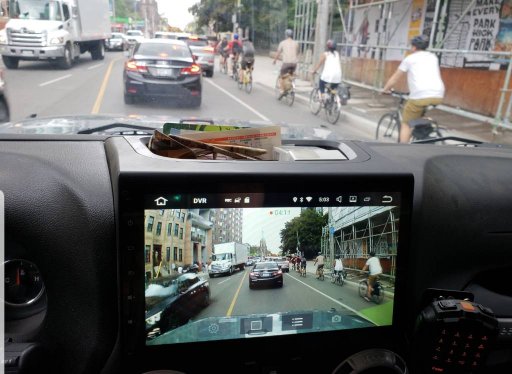

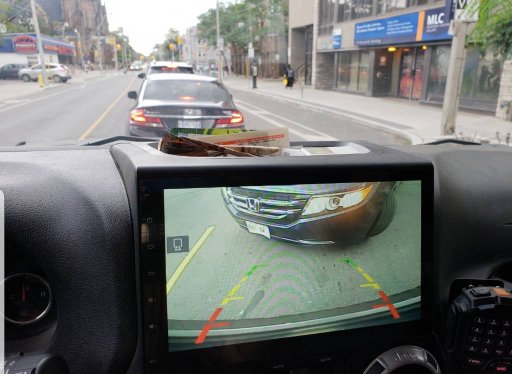

Yes, I'd buy the seicane unit again no second thoughts. It is very nice and useful. I hotspot my phone for internet and leave it in the pocket. Everything is done with the seicane unit. If you look again in my pics, behind the mirror there's a little dash cam that records directly to seicane. Rear cam also displays on the seicane. Too many useful things with that unit. Not to mention running maps, gaia, etc, plus aprsdroid, echolink, and everything you'd run on an android tablet or phone.
I guess it can be updated but I did not bother to mess up with something that works very well as is.

That's awesome to hear. You've listed off like all of my desired use cases as well, hah!

Thank you for the photos!

That system is awesome. I think this has helped me finally make the decision to order one.

Steve said:
Ummm, no electronics here...

Click to expand...
Lucas, the dark lord of electronics.

  • Like
Reactions: Steve

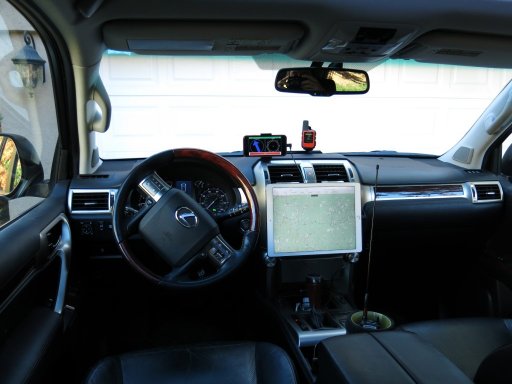

iPhone 7 running ViewRanger for "big arrow" off-road route navigation
iPad Pro 12.9 running Gaia GPS for overview mapping and route planning
Garmin inReach Mini tethered via Bluetooth to iPad for GPS position and messaging
Baofeng UV-82HP with Diamond SRJ77CA antenna

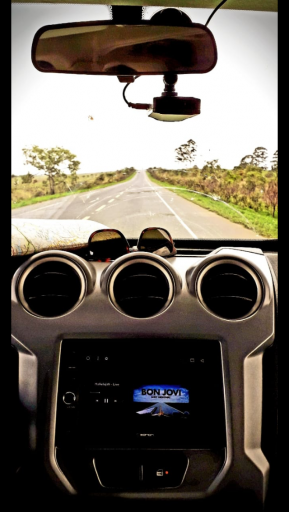

iPhone can serve as an impromptu dash cam, "Hey Siri, launch Horizon."

i_iphone dash cam.jpg

  • Like
Reactions: RoarinRow and In Itinere

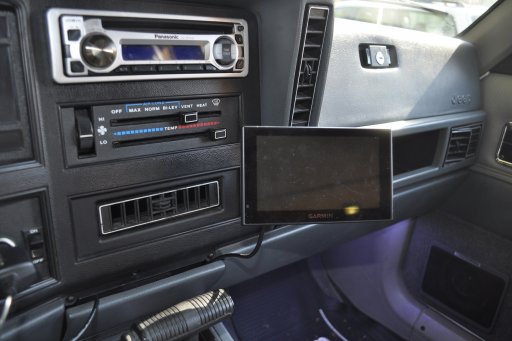

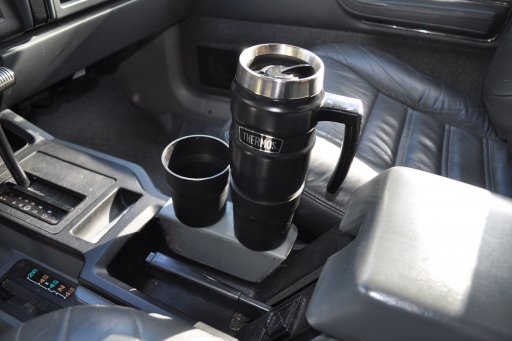

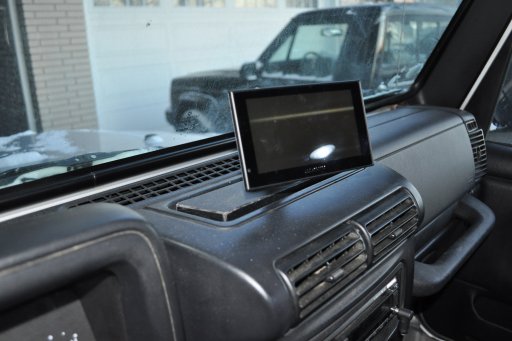

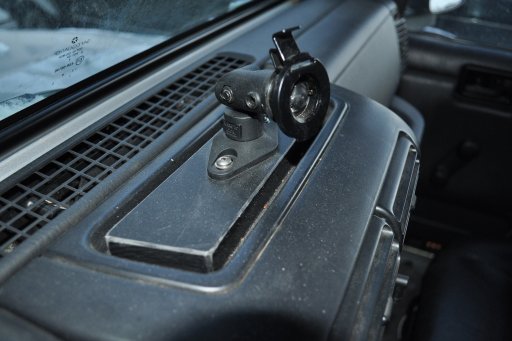

Apart from a fire extinguisher tucked down next to the driver's seat, the only additions to my Jeep XJ & MJ (same set up in both) are a coffee cup holder and Garmin GPS … so I can find the next coffee shop.


18-01-23 5.JPG
18-10-22 2.JPG
18-10-22 1.JPG

  • Like
Reactions: HappyOurOverlanding

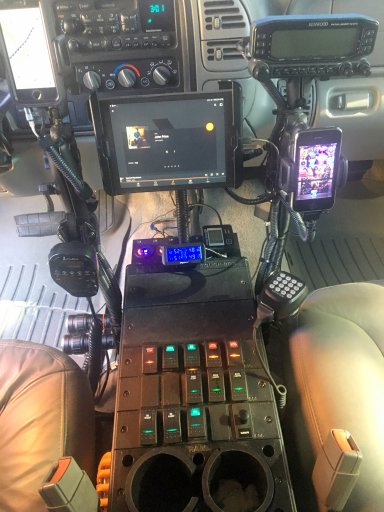

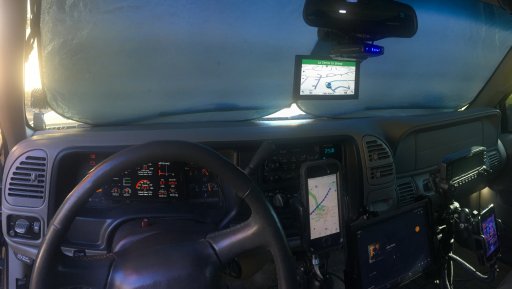

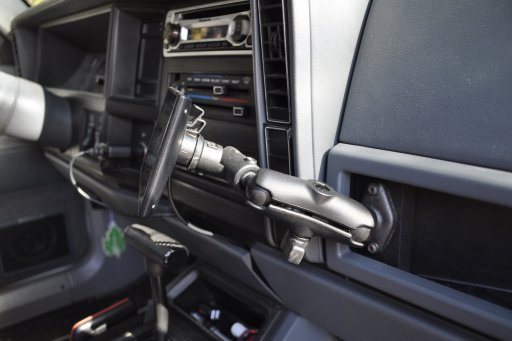

1-IMG_7839b.JPG 1-IMG_7845a-001.JPG My original console was so bad, I took it completely out. The lack of usable space and cup holders sucked. Everything got replaced with Ram Mount components. The modular form of the Ram Mount Console allowed me to completely customize and hold everything. Ram Mount stalks hold my phone, radios, and tablets within easy viewing range.

Garmin GPS
Escort Radar Detector
Thinkware Dashcam
Cell phone for music and weather radar as needed
CB Radio
Ham Radio
IPOD for audio books / music
Android tablet 8" for music, video (when not driving), maps, email etc
Android tablet 7" in dash panel for Torque OBD2 console screen
voltage gauges for dual batteries (Blue Seas dual battery control, love it)
gauge for tire pressures/temps
gauge for ARB fridge
Assorted switches for lights, seat heaters, radios, GPS, radar alert, subwoofer volume, battery control switch yet to be installed

Last edited:
  • Like
  • Wow
Reactions: Redbear, JohnnyStLou, Jeffrey Dill and 4 others
