Overland Xterra

[TreXTerra]

Any decent welder should be able to make you one. While you are in there, I recommend having him weld the ends of the frame to the frame rails all the way around. A friend of mine noticed his starting to crack; after adding more weld he was good to go and has had no further problems.



[KD7WCD]

Thanks, I'll have to look at that. I am a pretty good welder my self.



[Overland-Indiana]

Sweet rig man!



[Mad Garden Gnome]

Djessssssssssss..........

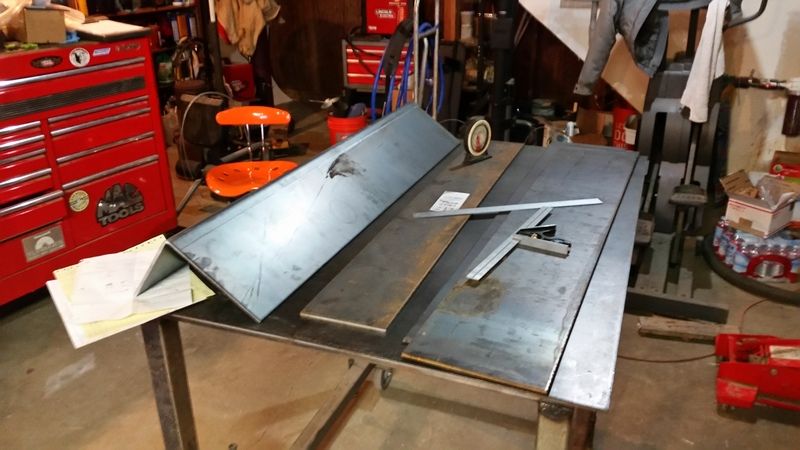

The steel for the rear bumper has arrived........



[IronPercheron]

Im gettin crackin on mine too, im cheating though....

Cant wait to see what you come up with!

Sent from my SM-G920V using Tapatalk



[Lifestyle Overland]

Ohhh, shiny... yes, progress pics needed.



[Mad Garden Gnome]

Im gettin crackin on mine too, im cheating though....

Cant wait to see what you come up with!

Sent from my SM-G920V using Tapatalk

It's not cheating if it accomplishes the mission.....



[IronPercheron]

It's not cheating if it accomplishes the mission.....

I started with a bent ranch hand rear bumper.

Pressed it strait at the shop and im building the tire gate now to go on it.

Sent from my SM-G920V using Tapatalk



[Mad Garden Gnome]

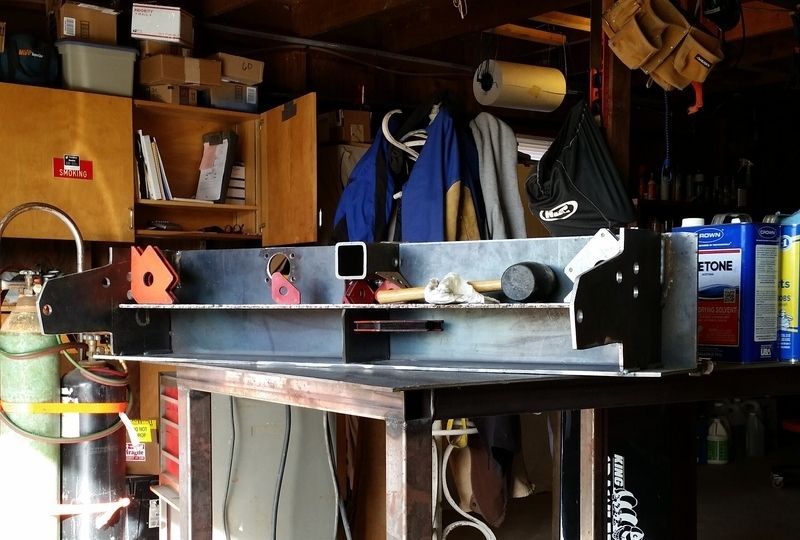

Fitting and trimming main bumper piece. Making up template for frame rail mount brackets.

Recovery points came in.



Forming mount brackets.



Pilot drilling for broaching.



Test fit.



[Dunco]

Awesome rig man im really liking all these Xtrra's



[Mad Garden Gnome]

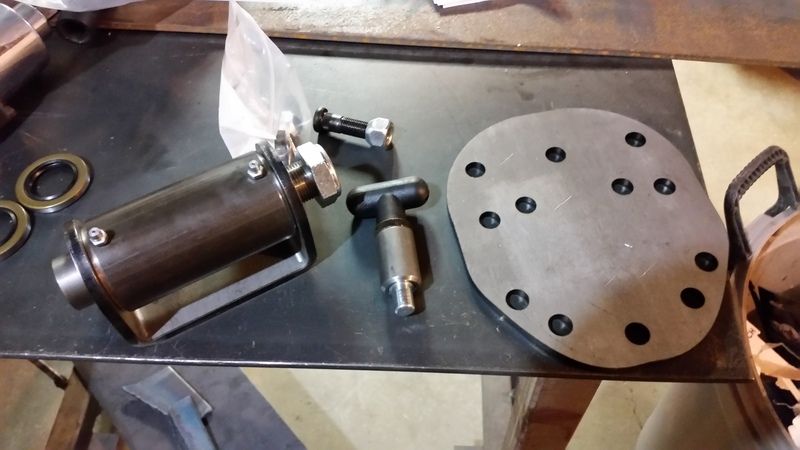

More new parts.....



New Bullmastiff puppy

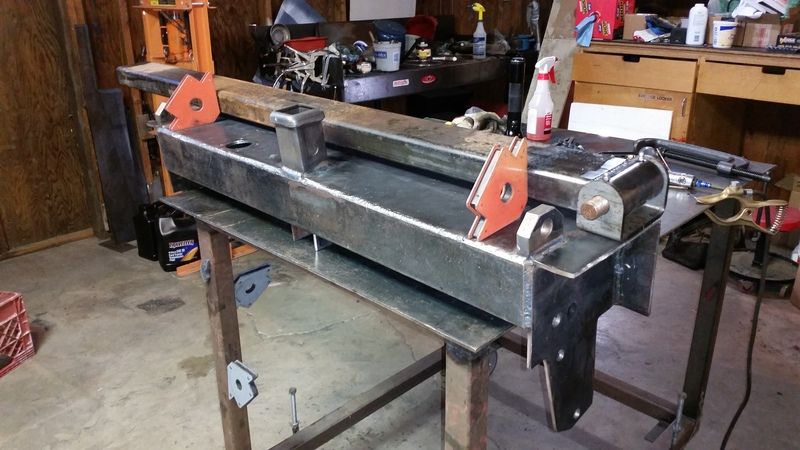

Fitting the box structure with internal bulkhead that will be the air tank.



[Mad Garden Gnome]

The new bumper I wasn't planning on buying. Apparently I hit a mud pit harder than expected during the Great Hungry Valley Alternator Massacre and sheared just about every mount on the plastic valance.



[Overland-Indiana]

Looks good though!



[Trowbocop]

Cool rig, I'm excited to see how you complete the rear bumper with OBA


Sent from my iPhone using Overland Bound Talk



[Mad Garden Gnome]

Cool rig, I'm excited to see how you complete the rear bumper with OBA


Sent from my iPhone using Overland Bound Talk

Thank You. The math for the tank capacity is coming out around 3.7 gallons.



[Mad Garden Gnome]

Yeayah



[Mad Garden Gnome]

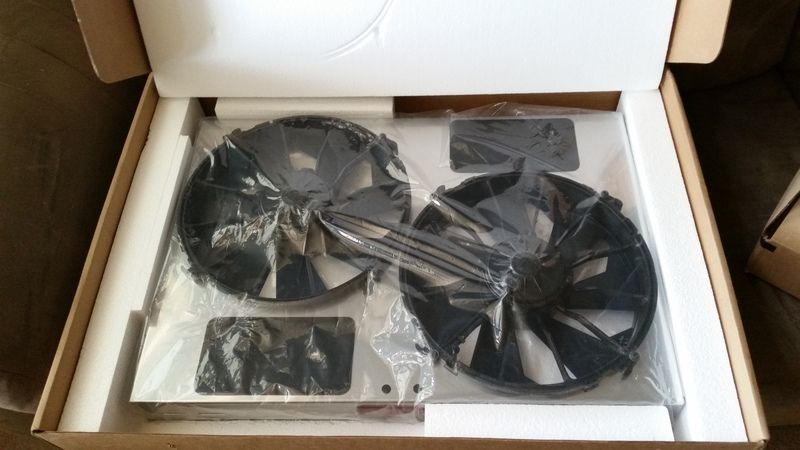

Had to pull the fan back out. I wanted to add more support to take some weight off of the top radiator mount points. I also wanted to expand the fairing in order to increase the area that the fans drew through the radiator. So I cut off the bottom of the fan fairing and fabbed a new combination support and fairing that would take advantage of the old mount locations on the bottom of the radiator.


Mock up.



DIMPLES!



Between cutting heat and dimpling, this panel was an arch. With some creative heating I got it reasonably straight.



Meh. Rusty on the TIG machine.



Everything looks good in flat black.



[Mad Garden Gnome]

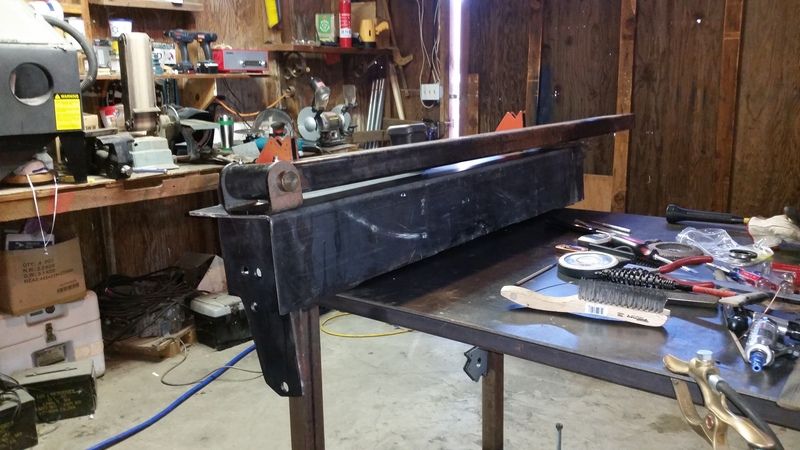

Mocking up the swing arm hinge after welding the hinge barrel to the arm and setting position







And attached





It's a swinger it is



[Mad Garden Gnome]

Not ......... exactly bought for overland .......... but I see it in it's future ......



'17 Laramie Longhorn 2500 A/T CC LB 6.7 Cummins





Needed something a little higher rated for pulling the ponies.



[Mad Garden Gnome]

Growing Bull Mastiff Puppy



Haven't had some good bumper time in a wee bit. Welded in end cap to arm. Drilled, tapped, and installed over center latch onto arm. Mocked up latch anchor point with rub strip then welded. Not pictured is the anchor point end shape with chamfered edges and softened corners. High amounts of corrosion thanks to upstairs renters ... housekeeping ... habits.
