Pathfinder III
Hey folks,
Tomorrow I nbeed to swop my transfer case. But I dont had ramps to do so.
So, now I have.
Tomorrow I nbeed to swop my transfer case. But I dont had ramps to do so.
So, now I have.
I have to change my transfer case
- Thread starter Robert OB 33/48
- Start date
Member III
- 2,827
- First Name
- Kevin
- Last Name
- Trvlr
- Member #
-
20466
- Ham/GMRS Callsign
- KK7NAZ
- Service Branch
- MM1 US Navy
Things
Rank IV
Enthusiast III
Thats nice! Like the inserts and ramps. Flame torch will get rid of the oil spots on those beautiful pavers....
Member II
Pathfinder III
Off-Road Ranger III
- 13,288
- First Name
- Bjoern
- Last Name
- Eldracher
- Member #
-
20111
- Ham/GMRS Callsign
- DO3BE
This is a great DIY work, Robert! I like it!
I think you have built this safe and solid. But please be careful when you go under the car! Maybe there is a possibility to put something under the front and back or sideways for example (solid square timber, wheels, or something else) for safety purposes?
Have fun and success with the transfer case swap! Too bad we have the C19 restrictions, otherwise I would have come by and help out!
I think you have built this safe and solid. But please be careful when you go under the car! Maybe there is a possibility to put something under the front and back or sideways for example (solid square timber, wheels, or something else) for safety purposes?
Have fun and success with the transfer case swap! Too bad we have the C19 restrictions, otherwise I would have come by and help out!
Pathfinder III
Not worried about my security. I trust my own work.
And I think that I tested it well today.
And I think that I tested it well today.
Just toss your extra jackstands and floor jack under there, just incase.
I use two tranny jacks the lift a Superduty or Ram for suspension upgrades, but toss some cribbage and my floor jack under there just incase.
I use two tranny jacks the lift a Superduty or Ram for suspension upgrades, but toss some cribbage and my floor jack under there just incase.
Pathfinder III
No jacks that are around 65 cm. We will see tomorrow.
We do need the space but we will see what we need tomorrow .
We do need the space but we will see what we need tomorrow .
Pathfinder III
Pathfinder III
Advocate III
- 5,584
- First Name
- Michael
- Last Name
- Rose
- Member #
-
20990
- Ham/GMRS Callsign
- W7FSB
- Service Branch
- US ARMY Retired
Influencer II
Pathfinder III

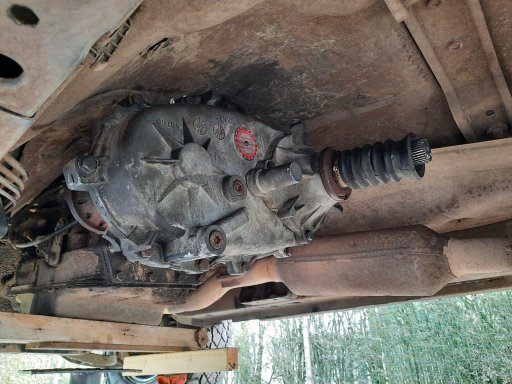

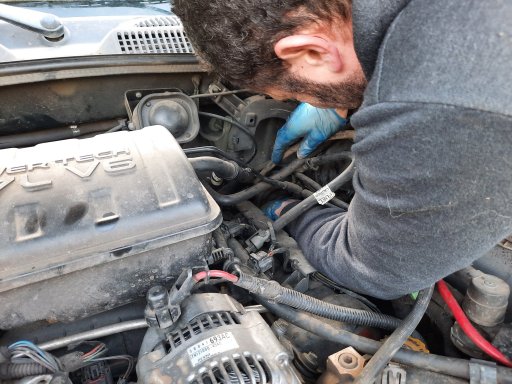

Today it was working time. Together with @Claus_za I did change my transfer case.
We had almost no issues.
Just three.
1. A bushing from the shiftcable was gone. So I had to build one myself. No problem there.
2. When we tried to fill up the transfer case we did forget that the breather hose was down, so we lost like 600 ml of oil. Lucky me I had some spare.
3. The upper bolt on the exhaust side we just could turn, so after getting annoyed I made a slit under the gear lever. Then that problem was solved. Next time, which I hope will last a while I can easier acces that bolt.
The ramps hold the care perfectly and driving of it forward made things very easy.
All good!!
The breather hose we did extend that one and now it is up and above the coolant expansion thingy.
It was a good day of work.
Tomorrow a very easy test run.
We had almost no issues.
Just three.
1. A bushing from the shiftcable was gone. So I had to build one myself. No problem there.
2. When we tried to fill up the transfer case we did forget that the breather hose was down, so we lost like 600 ml of oil. Lucky me I had some spare.
3. The upper bolt on the exhaust side we just could turn, so after getting annoyed I made a slit under the gear lever. Then that problem was solved. Next time, which I hope will last a while I can easier acces that bolt.
The ramps hold the care perfectly and driving of it forward made things very easy.
All good!!
The breather hose we did extend that one and now it is up and above the coolant expansion thingy.
It was a good day of work.
Tomorrow a very easy test run.
Advocate III
- 5,584
- First Name
- Michael
- Last Name
- Rose
- Member #
-
20990
- Ham/GMRS Callsign
- W7FSB
- Service Branch
- US ARMY Retired
Glad to see you got your Jeep back up on the rad Robert. I really like your ramp idea... wish I would have built a set for my Bronco before I tore it all a part
Pathfinder III
Nicely done.
I don't know how things compare over there, but over here you can fairly easily find bed frames for free, and that means free angle iron.
That said it is not quite proper angle iron. A bit on the thin side and a radiused corner. It requires some design considerations. But free steel is free steel and I can easily work around its differences for the price.
I don't know how things compare over there, but over here you can fairly easily find bed frames for free, and that means free angle iron.
That said it is not quite proper angle iron. A bit on the thin side and a radiused corner. It requires some design considerations. But free steel is free steel and I can easily work around its differences for the price.
