What Bands Are Usual Fixtures In Your Overland Rig

  • HF Bands + 6M

    Votes: 24 23.5%

  • 2M (VHF)

    Votes: 95 93.1%

  • 70CM (UHF)

    Votes: 78 76.5%

  • Other. (Describe in comment)

    Votes: 21 20.6%

  • None.

    Votes: 3 2.9%
  • Total voters
    102
KD7WCD

KD7WCD

Rank VI
Founder 500
Member
Investor

Influencer I

3,002
Tempe, AZ, USA
First Name
Jayson
Last Name
Adamsen
Member #

399

Ham/GMRS Callsign
KD7WCD
TerryD said:
Thanks! What is the one in the rear step in under the plastic?
Click to expand...
As I remember it, I just put it through the thicker part of the step and backed it with a washer. Next time I crawl under there I'll take a look. Because the counter pose ground at the tuner I just had the feed line running to it. I wanted to keep it isolated so no metal bits attached to the cars chassis.

Like I said it did not work well. I suspect it may have been where I put the tuner and the length of wire I used. The mount is still in place because I have wanted to give it another try at some point.

Sent from my XT1650 using OB Talk mobile app

  • Like
Reactions: TerryD
KD7WCD

KD7WCD

Rank VI
Founder 500
Member
Investor

Influencer I

3,002
Tempe, AZ, USA
First Name
Jayson
Last Name
Adamsen
Member #

399

Ham/GMRS Callsign
KD7WCD
Sorry Terry. I think I miss read your question. I was trying to use an Antenna tuner with a tall whip for work HF. As the last post stated, it did not work out all that well. I could not really getting he rig to tune up all that well.

I wanted something that was durable and a screwdriver Antenna seems just to fragile for the money. The idea of being able to hop bands with out changing hamsticks out was the end goal.

As for the mount it self. It worked great with an 8½' stainless steel whip.

Sent from my XT1650 using OB Talk mobile app

  • Like
Reactions: TerryD
TerryD

TerryD

Rank VI
Launch Member

Member III

3,402
Covington, Virginia, USA
First Name
Terry
Last Name
R
Member #

3710

Ham/GMRS Callsign
KT4OZ
KD7WCD said:
Sorry Terry. I think I miss read your question. I was trying to use an Antenna tuner with a tall whip for work HF. As the last post stated, it did not work out all that well. I could not really getting he rig to tune up all that well.

I wanted something that was durable and a screwdriver Antenna seems just to fragile for the money. The idea of being able to hop bands with out changing hamsticks out was the end goal.

As for the mount it self. It worked great with an 8½' stainless steel whip.

Sent from my XT1650 using OB Talk mobile app
Click to expand...
OK, sounds like you and I had had a similar idea. I was toying with the idea of turning a 80m Ham stick into a "random wire" with a tuner in the cabin, very similar to your idea. I was going to use a body grounded mount though.

KD7WCD

KD7WCD

Rank VI
Founder 500
Member
Investor

Influencer I

3,002
Tempe, AZ, USA
First Name
Jayson
Last Name
Adamsen
Member #

399

Ham/GMRS Callsign
KD7WCD
Yep. One thing that I found out that the tuner I have does not like tuning an already matched Antenna. That is why I was running with the tuner a little further away with some extra wire to throw things out of whack.

The tuner idea seems like a good bit of magic in theory. I seem to have better luck with a properly tuned antenna for a particular band.

As cool as it all is with the whizz-bang stuff it is kind of like the the Overland Bound mantra. It is not about what you drive but it is about what gets you out on the air.

I might have to take another swing at the tuner idea. This conversation has me thinking about it again. Maybe something to work on for Field Day this year.

http://www.arrl.org/field-day


Sent from my XT1650 using OB Talk mobile app

  • Like
Reactions: TerryD
TerryD

TerryD

Rank VI
Launch Member

Member III

3,402
Covington, Virginia, USA
First Name
Terry
Last Name
R
Member #

3710

Ham/GMRS Callsign
KT4OZ
One of my Elmers runs hamsticks with shunt caps setup in power poles so when he swaps a stick, he swaps the cap out to get the right match. I can't remember the theory behind the cap but if your hamsticks present as very broad banded, them you need a shunt cap. Hamsticks should be VERY narrow banded, especially the 20-40m band antennas. The 80m is another story entirely though...

KD7WCD

KD7WCD

Rank VI
Founder 500
Member
Investor

Influencer I

3,002
Tempe, AZ, USA
First Name
Jayson
Last Name
Adamsen
Member #

399

Ham/GMRS Callsign
KD7WCD
I may have to pick up an 80m. I have not played with one. Switching out caps is kind of what the tuner does so that might be a solution. Might go with MFJ version because the whips look to be a little more flexible.

Sent from my XT1650 using OB Talk mobile app

  • Like
Reactions: TerryD
TerryD

TerryD

Rank VI
Launch Member

Member III

3,402
Covington, Virginia, USA
First Name
Terry
Last Name
R
Member #

3710

Ham/GMRS Callsign
KT4OZ
With the caps, you don't have to mount or power a tuner, but you do have to keep up with the caps and what goes where.

GoneBush

GoneBush

Rank I
Founder 500
Launch Member

Contributor I

233
Mississauga
Member #

0426

TerryD said:
I currently have a TYT TY-9800 I just picked up in my Xterra and an Icom IC-2100H in my truck. I want Kenwood TM-D710GA in both eventually and would like to have a TS-480SAT in the Xterra for HF+6. But that's a ways down the road yet.
Click to expand...
Hey, how do you like the TYT 9800? What antenna are you running with it?

TerryD

TerryD

Rank VI
Launch Member

Member III

3,402
Covington, Virginia, USA
First Name
Terry
Last Name
R
Member #

3710

Ham/GMRS Callsign
KT4OZ
GoneBush said:
Hey, how do you like the TYT 9800? What antenna are you running with it?
Click to expand...
So far I like it quite well. It's no Kenwood or Yaesu as far as finish, but it works well for it's price. I'm currently just using a 2m/440 Tram dual band. I have a duplexer to go with it and I want to add a 6m whip to my other antenna mount. I considered the quad band that goes with it but I've not gotten there yet. I don't know that I'll ever use the 10m capability so I'm still on the fence about that.

I would recommend the radio for a beater but I think I'm going to go with a Kenwood TM-D710GA and a TS-480SAT in the future though.

Lyon McKeil

Lyon McKeil

Rank VI
Launch Member

Influencer II

3,135
Sunnyvale, CA
First Name
Lyon
Last Name
McKeil
Member #

4052

Ham/GMRS Callsign
AI6F WQZP709 M0GVK (UK Ham Licesne)
Service Branch
CAL FIRE
I normally run with a Kenwood TM-V71 and a CB in case I'm with folks that primarily use it. When I'm stopped and set up I pull out the Icom 718. The front antenna has a quick release so I can take off the CB antenna and put on a Hustler. In this photo I have the FT-8900 installed which was moved to the other car.


  • Like
Reactions: Ubiety and KD7WCD
RyanC

RyanC

Rank V
Launch Member

Off-Road Ranger I

2,354
Pinckney, MI
Member #

1410

Ham/GMRS Callsign
K1RAC
I'm thinking of having 2m/70cm installed all of the time and then having a portable 6m/10m radio I can setup at camp or in an emergency but I'm not sure about the feasibility of that. I'm pretty new to amateur radio.

TerryD

TerryD

Rank VI
Launch Member

Member III

3,402
Covington, Virginia, USA
First Name
Terry
Last Name
R
Member #

3710

Ham/GMRS Callsign
KT4OZ
6 and 10 are more novelty bands, neither are good for emergency coms. You'd want 40 or 20 for semi-reliable (again, depending on ionosphere) communicating. But even then, you can't guarantee you can make contact with a particular location. Your best bet is to find a net and announce that you have an emergency, then amateur radio will really come through for you. There is the maritime emergency net that runs every day on 14.300 and sorted other nets around the bands throughout the day.

I try to participate in a few 80m statewide nets and there are days I can't hear the guys 40mi away running 1kW but I can copy the guys on the coast with a homebrew qrp rig 100%.

But 10m, especially 10m FM, is rarely an active band right now. 6m is a little more active, but still not something I would want to rely on.

  • Like
Reactions: KD7WCD
KD7WCD

KD7WCD

Rank VI
Founder 500
Member
Investor

Influencer I

3,002
Tempe, AZ, USA
First Name
Jayson
Last Name
Adamsen
Member #

399

Ham/GMRS Callsign
KD7WCD
Upgrade is the lesson there. It will open up all kinds of opportunities.

For short distance HF you should try a little cloud warning with an NVIS antenna. Or so I am told. I have one I home brewed to use with my truck but have not really had much luck with it. In theory it should be good for about 50 to 400 mile range. Problem being someone has to be listening with a similar antenna in that range.

Sent from my XT1650 using OB Talk mobile app

  • Like
Reactions: TerryD
TerryD

TerryD

Rank VI
Launch Member

Member III

3,402
Covington, Virginia, USA
First Name
Terry
Last Name
R
Member #

3710

Ham/GMRS Callsign
KT4OZ
KD7WCD said:
Upgrade is the lesson there. It will open up all kinds of opportunities.

For short distance HF you should try a little cloud warning with an NVIS antenna. Or so I am told. I have one I home brewed to use with my truck but have not really had much luck with it. In theory it should be good for about 50 to 400 mile range. Problem being someone has to be listening with a similar antenna in that range.

Sent from my XT1650 using OB Talk mobile app
Click to expand...
What band? NVIS only works below 5MHz IIRC.

KD7WCD

KD7WCD

Rank VI
Founder 500
Member
Investor

Influencer I

3,002
Tempe, AZ, USA
First Name
Jayson
Last Name
Adamsen
Member #

399

Ham/GMRS Callsign
KD7WCD
  • Like
Reactions: NV Badlands and TerryD
Ubiety

Ubiety

Rank VI
Member

Explorer I

5,221
Sammamish, WA, USA
First Name
Greg
Last Name
Ubiety
Member #

6193

Ham/GMRS Callsign
Ribs
  1. Modified Kenwood TMD700A - UHF/VHF including APRS (terrestrial and sat), FRS, GMRS
  2. Kenwood/Baofeng UHF/VHF HTs for camp/walking around
  3. CB radio to be installed (not in a rush, yet)
  4. Outernet Dreamcatcher satellite data RX (hardware acquired, enclosure in progress)
  5. Valentine 1. It is a receiver... ;)
Forgot to add the Rino 530 - my goto waypoint/track collection device. It is a GPS plus FRS/GMRS radio, oh so handy for overlanding!

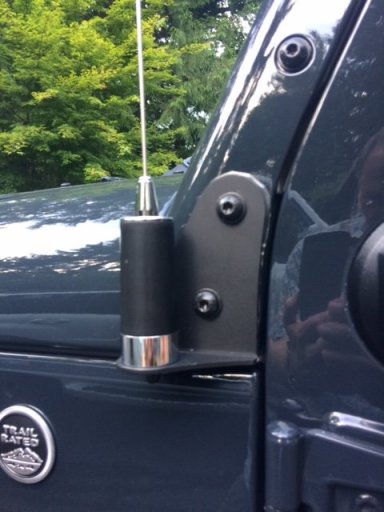

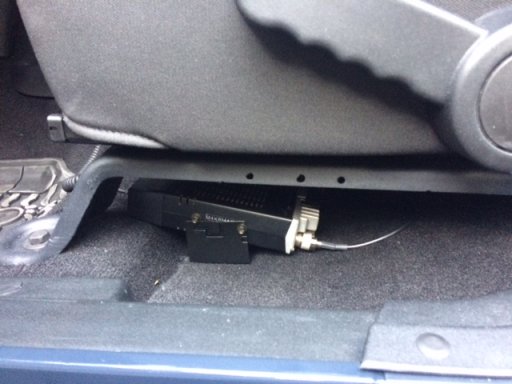

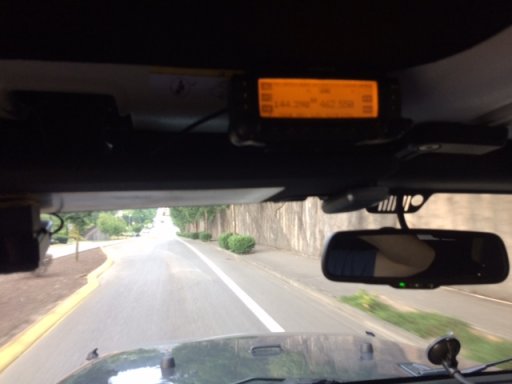

New Jeep, just installed TMD700A. I used a Rugged Radios JK antenna mount (with vinyl paint protector between mount and paint), found a bolt sticking up from floor under driver's seat to attach radio mount to and placed the head end up on top of the driver's side sun visor. I don't use the sun visor and have other stuff stuck to it (V1, garage door opener, etc.)

Have not tested SWR yet but am getting APRS packets in and out and voice to/from an HT sounds great.

IMG_3958.JPG IMG_3959.JPG IMG_3963.JPG

Last edited:
  • Like
Reactions: 9K2KA and NV Badlands
9

9K2KA

Rank III
Launch Member

Advocate II

628
Kuwait
Member #

4933

ICOM IC-7100 All band/All mode transceiver

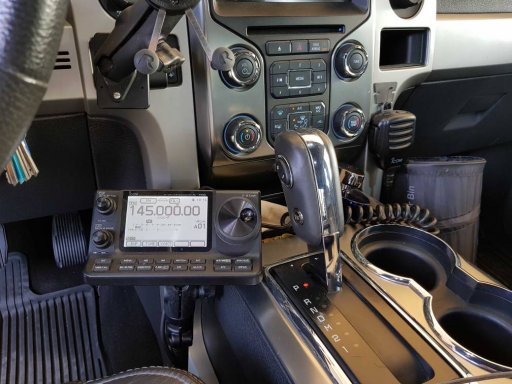

Head unit

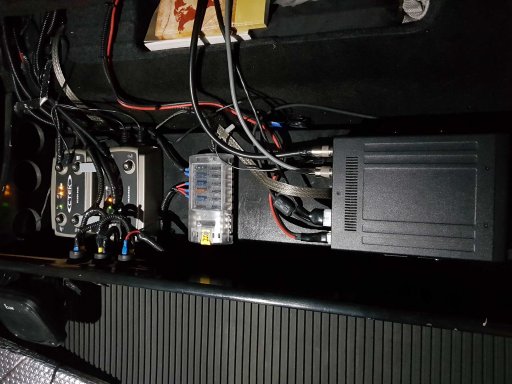

Main Unit with other electrical goodies

As for antennas

A dual bander VHF/UHF

And ICOM AH-4 mated with a whip that will tune from 40m to 6m ham radio bands + 11m CB radio

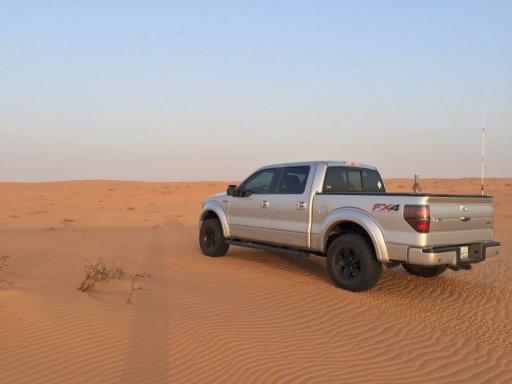

My rig but the whip was removed but you can see the spring

  • Like
Reactions: Lars and Jimmy P
Dave Decker

Dave Decker

Rank V
Launch Member

Advocate III

2,306
Paradise Hills, NM
Member #

6887

On the cheap! Running a dual band Wouxun KG-UV2D hand held at 2 meters and 0.7 meters. Also carry FRS and getting ready to install a Cobra 75 WX CB.
