GMRS Radio!

  • HTML tutorial

Redbear

Rank IV
Launch Member

Enthusiast III

1,213
Bayville, NJ
First Name
Kenneth
Last Name
Murdoch
Member #

19981

Ham/GMRS Callsign
KD2TQO GMRS: WREQ743
Thanks Downs, great info. Sorry to hear about your antenna but thanks for the pic!


Prerunner1982

Local Expert, Oklahoma USA
Launch Member
Member

Member III

3,372
Navina, Oklahoma
First Name
Jon
Last Name
B
Member #

16274

How do I know which types of antennas would be compatible with my MXT 115? Would any antenna that says it is UHF compatible work? GMRS is UHF,right?
There are some antennas marketed as GMRS antennas, Midland offers a couple.
However, if you are looking on your own for other options you can look for a UHF antenna that operates around 462/467 Mhz.
As @Downs noted the antennas your looking for typically operate 450-470Mhz though they won't specifically mention GMRS but will work fine.


Relic6.3

Rank V
Launch Member

Member III

1,691
North Carolina, USA
First Name
Pat
Last Name
Crowell
Member #

22681

The best option is to have all 3.
Just kind of getting started in the whole outfitting a rig. Might be a really dumb question but can all three be tied into the same antenna? Maybe should have read the whole thread before posting this...

Last edited:

Prerunner1982

Local Expert, Oklahoma USA
Launch Member
Member

Member III

3,372
Navina, Oklahoma
First Name
Jon
Last Name
B
Member #

16274

Just kind of getting started in the whole outfitting a rig. Might be a really dumb question but can all three be tied into the same antenna? Maybe should have read the whole thread before posting this...
Not really, antennas are frequency specific and the 3 radio services use very different frequencies.
Ham radio (70 cm aka 440 MHz) is close to GMRS (462 and 467 Mhz) but CB is way off at 27Mhz.
Now there are one or two companies that make an antenna for 28Mhz, 50MHz, 144MHz, and 440MHz but when one antenna tries to do all that it doesn't necessarily do all of them well. And since it's not really tuned to CB or GMRS, though close it would not be the best option.


Sparksalot

Rank VI
Launch Member

Influencer III

4,312
Bastrop County, TX, USA
First Name
Rex
Last Name
Drake
Member #

19540

Ham/GMRS Callsign
KI5GH
Service Branch
Air Force
Just kind of getting started in the whole outfitting a rig. Might be a really dumb question but can all three be tied into the same antenna? Maybe should have read the whole thread before posting this...
In general, no. You MIGHT get an antenna braod enough to cover UHF ham and GMRS frequencies, but you'd still need a switch or diplexer of some sort to isolate each radio to prevent destruction of one when the other is transmitting. You'll be better served with an antenna per radio. Locating these becomes another challenge, but that is mostly physical.

  • Like
Reactions: Relic6.3

Colo14er

Rank I

Enthusiast I

269
Colorado Springs, CO
First Name
Jason
Last Name
Ulrich
It seems more and more that we use GMRS over CB in the last few years in Colorado. The Midland units all work well including the handhelds for easy hiking when you stop for a break.


Wanderlost

Rank VI
Launch Member

Member III

3,316
Caledonia, Illinois
Member #

8490

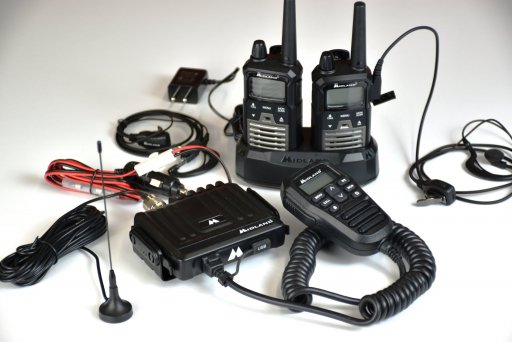

We've used a CB for many years but now the trend with the groups we go out with is GMRS. I think having both, for a while at least, is good practice. We're in the process of doing a custom install of a Midland MXT275 and 6db antenna in our 4Runner. The video will probably be available in a couple days, if you're interestedmidland2.JPG.

  • Like
Reactions: Colo14er

Colo14er

Rank I

Enthusiast I

269
Colorado Springs, CO
First Name
Jason
Last Name
Ulrich

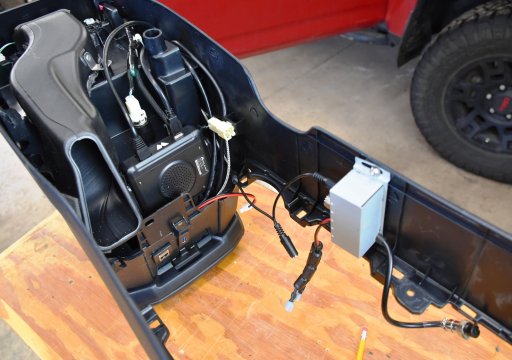

We've used a CB for many years but now the trend with the groups we go out with is GMRS. I think having both, for a while at least, is good practice. We're in the process of doing a custom install of a Midland MXT275 and 6db antenna in our 4Runner. The video will probably be available in a couple days, if you're interestedView attachment 138963.
View attachment 138964
I have a 4Runner too so i'd be interested in seeing your install of this. Looks like a good location to hide everything out of sight.

  • Like
Reactions: Wanderlost

Relic6.3

Rank V
Launch Member

Member III

1,691
North Carolina, USA
First Name
Pat
Last Name
Crowell
Member #

22681

Radio Communications is one of the seminars I plan to sit in on at MOORE next weekend. That, and I plan on asking a LOT of questions at the first meet-up I go to locally. Haven't played with CB or anything in more than 20 or so years.

  • Like
Reactions: Sparksalot

Wanderlost

Rank VI
Launch Member

Member III

3,316
Caledonia, Illinois
Member #

8490

Our GMRS radio install and test video is uploaded, if any of you are interested.

We went with the popular Midland MXT275 with 6db antenna. We tested it against our Cobra 75WXST cb with 4' Firestik antenna. The GMRS blew its doors off! But we assumed that would happen. We also tested the range of a couple handheld units. They were pretty impressive too.



Sparksalot

Rank VI
Launch Member

Influencer III

4,312
Bastrop County, TX, USA
First Name
Rex
Last Name
Drake
Member #

19540

Ham/GMRS Callsign
KI5GH
Service Branch
Air Force
Our GMRS radio install and test video is uploaded, if any of you are interested.

We went with the popular Midland MXT275 with 6db antenna. We tested it against our Cobra 75WXST cb with 4' Firestik antenna. The GMRS blew its doors off! But we assumed that would happen. We also tested the range of a couple handheld units. They were pretty impressive too.

That was a clean install. How is heat build up addressed?


Tex.Proud

Rank IV
Launch Member

Enthusiast III

889
Huntsville, TX, USA
First Name
Ryan
Last Name
Gills
Member #

20503

Ham/GMRS Callsign
K4TXN
Service Branch
Army Veteran
Most new GMRS radios from Midland and BTECH are repeater capable. Yes GMRS Repeaters exist. Check out MyGMRS.com and search your area to see if there are any local, or search where your trip is headed. This is the only GMRS database that I know of. If someone else knows of another, please chime in. It's free to search, and you don't have to join unless you want to chat in the forums.


M Rose

Local Expert
Mod Team
Member

Advocate III

5,584
Northeast Oregon, United States
First Name
Michael
Last Name
Rose
Member #

20990

Ham/GMRS Callsign
W7FSB
Service Branch
US ARMY Retired
Most new GMRS radios from Midland and BTECH are repeater capable. Yes GMRS Repeaters exist. Check out MyGMRS.com and search your area to see if there are any local, or search where your trip is headed. This is the only GMRS database that I know of. If someone else knows of another, please chime in. It's free to search, and you don't have to join unless you want to chat in the forums.
How far does a GMS Repeater reach? I’m asking because the closest one is about 100 miles a way with a very tall mountain between us.


Tex.Proud

Rank IV
Launch Member

Enthusiast III

889
Huntsville, TX, USA
First Name
Ryan
Last Name
Gills
Member #

20503

Ham/GMRS Callsign
K4TXN
Service Branch
Army Veteran
How far does a GMS Repeater reach? I’m asking because the closest one is about 100 miles a way with a very tall mountain between us.
Not going to reach it with a mountain between you. Line of sight and all. Otherwise, being UHF it would work like a HAM radio repeater...dependent on terrain, elevation, and transmit power. Try to hit it from the top of that mountain.


M Rose

Local Expert
Mod Team
Member

Advocate III

5,584
Northeast Oregon, United States
First Name
Michael
Last Name
Rose
Member #

20990

Ham/GMRS Callsign
W7FSB
Service Branch
US ARMY Retired
Not going to reach it with a mountain between you. Line of sight and all. Otherwise, being UHF it would work like a HAM radio repeater...dependent on terrain, elevation, and transmit power. Try to hit it from the top of that mountain.
That’s what I thought ... I’ll just use GRMS for trail coms.


Redbear

Rank IV
Launch Member

Enthusiast III

1,213
Bayville, NJ
First Name
Kenneth
Last Name
Murdoch
Member #

19981

Ham/GMRS Callsign
KD2TQO GMRS: WREQ743
Not really, antennas are frequency specific and the 3 radio services use very different frequencies.
Ham radio (70 cm aka 440 MHz) is close to GMRS (462 and 467 Mhz) but CB is way off at 27Mhz.
Now there are one or two companies that make an antenna for 28Mhz, 50MHz, 144MHz, and 440MHz but when one antenna tries to do all that it doesn't necessarily do all of them well. And since it's not really tuned to CB or GMRS, though close it would not be the best option.
Great answer Prerunner!
Tex.Proud:

I have been to my games.com and tried sending messages by going to the map, clicking the repeater icon and requesting access to the repeater but I have not received any messages back. Am I missing something?
when I hit a repeater is it as simple as choosing the channel and picking a ctcss that the owner selected for it?

thanks,


Tex.Proud

Rank IV
Launch Member

Enthusiast III

889
Huntsville, TX, USA
First Name
Ryan
Last Name
Gills
Member #

20503

Ham/GMRS Callsign
K4TXN
Service Branch
Army Veteran
Great answer Prerunner!
Tex.Proud:

I have been to my games.com and tried sending messages by going to the map, clicking the repeater icon and requesting access to the repeater but I have not received any messages back. Am I missing something?
when I hit a repeater is it as simple as choosing the channel and picking a ctcss that the owner selected for it?

thanks,
Correct. Tune to that channel and enter the CTCSS Tone. Depending on the radio you may need to make sure it's set for repeater operation. It transmits on a different frequency than the channel frequency for repeaters.

If it says "Open System" in the repeater info on MyGMRS.com there's no need to request access. Really, as long as you can program the CTCSS there's no way to restrict access to a repeater. It's just an honor system / protocol sort of thing.

  • Like
Reactions: Redbear and Downs

Downs

Rank V
Launch Member

Member III

2,827
Hunt County Texas
First Name
Joshua
Last Name
Downs
Member #

20468

Ham/GMRS Callsign
KK6RBI / WQYH678
Service Branch
USMC 03-16, FIRE/EMS
Ive got a GMRS repeater local to me. Its got a 40 or 50 mile radius on it depending on position. We dony have much but rolling terrain here.

They're certainly a lot less common than HAM units and some owners can be quite protective of them. But i get more conversations on it then my local HAM units. Go figure.

Im still trying to convince more in the local Jeep club to make the move.

  • Like
Reactions: Redbear and M Rose
