Hello Everyone... I'm posting my DIY adventure trailer build story with the hope that it may inspire others to share their adventure trailer project. I started this project a few months back and I plan to post more photos in the coming weeks. To kick us off... It all started off with a search for a utility trailer on Craigslist when I ran across this M101 military trailer. After bringing it home I quickly decided to make it an off road adventure / camping trailer.







After pressure-washing the trailer, I separated the body from the frame. This allowed me to get a better look at the frame.


After close inspection I found no issue with the frame. It was covered with surface rust but no structural issues.


This is what I used to paint the frame. It covers really well with a hard gloss finish.


In this is a photo I put the body back on the frame and stared work on removing the axle and springs. The metal rack on top is a ladder rack from a truck. The tire in the photo is just prop to get an idea of what it will look like.



That all for now..

  • Like
  • Love
Reactions: Craig Cooper, 64Trvlr, Lanlubber and 4 others
jcgraves3

jcgraves3

NorthWest Region Member Rep's Portland OR
Member

Contributor III

1,759
Portland, OR, USA
First Name
John
Last Name
Graves
Member #

20803

Ham Callsign
KJ7RJJ
I replaced the solid axle with two independent Timbren axles from eTrailer. eTrailer provided a lot of detailed measurements, so It was easy to get the right combination of components to fit the trailer.


The rubber pad in the hinge of the axle works like a spring and shock all-in-one. The ride is a little different then a leaf spring set up. The rubber is softer over bumps and feels less stiff then a leaf spring.



In order to get the Jeep rims to fit on the trailer hub I had to drill out a small ridge in the center of the rim. The ridge was used to hold the Jeep center cap. I used a standard doorknob drill bit that fit perfectly. I ran the hand drill on low speed and slowly worked through the ridge.


Here is a photo of the trailer with the new axles and rimes (I was very worried about the final stance being to high or to low).

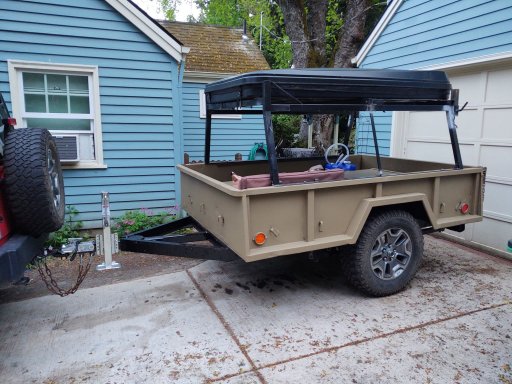

I replaced the side reflectors and painted the trailer desert tan. I added and modified a ladder rack from a truck to fit the trailer and our roof top tent.
We tried this configuration on a few camping trips and decided we did not like the rooftop tent or the color. :(

MORE TO COME...


Last edited:
  • Like
  • Love
Reactions: Downs, 64Trvlr, Lanlubber and 6 others
M Rose

M Rose

US Northwest Region Director
Expedition
Benefactor
Member

Explorer I

5,171
La Grande, Oregon, USA
First Name
Michael
Last Name
Rose
Member #

20990

Ham Callsign
KJ7MFV
Service Branch
US ARMY Retired
jcgraves3 said:
I replaced the solid axle with two independent Timbren axles from eTrailer. eTrailer provided a lot of detailed measurements, so It was easy to get the right combination of components to fit the trailer.

View attachment 179394
View attachment 179395

The rubber pad in the hinge of the axle works like a spring and shock all-in-one. The ride is a little different then a leaf spring set up. The rubber is softer over bumps and feels less stiff then a leaf spring.

View attachment 179399


In order to get the Jeep rims to fit on the trailer hub I had to drill out a small ridge in the center of the rim. The ridge was used to hold the Jeep center cap. I used a standard doorknob drill bit that fit perfectly. I ran the hand drill on low speed and slowly worked through the ridge.

View attachment 179400

Here is a photo of the trailer with the new axles and rimes (I was very worried about the final stance being to high or to low).
I replaced the side reflectors and painted the trailer desert tan. I added and modified a ladder rack from a truck to fit the trailer and our roof top tent.
We tried this configuration on a few camping trips and decided we did not like the rooftop tent or the color. :(

MORE TO COME...

View attachment 179401
Click to expand...
That’s going to be a nice trailer... while I prefer not to have a toad, I see the appeal. If I didn’t have the T4+ I would be looking for another trailer for an adventure trailer... and if I were to do another adventure trailer I would definitely be using a 105 or a Bantam trailer.

  • Like
Reactions: Lanlubber and Timbren-Industries
jcgraves3

jcgraves3

NorthWest Region Member Rep's Portland OR
Member

Contributor III

1,759
Portland, OR, USA
First Name
John
Last Name
Graves
Member #

20803

Ham Callsign
KJ7RJJ
We sold the rooftop tent, removed the the ladder rack and....

IMG_20200426_102249427_HDR (1).jpg

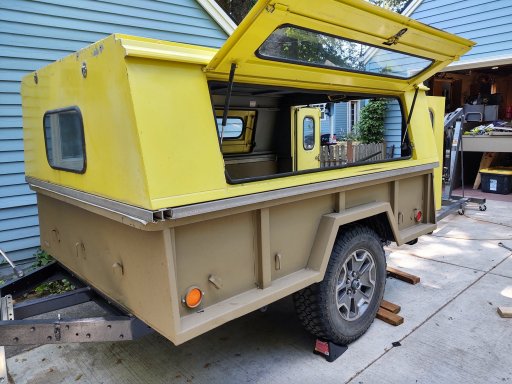

... bought a (very yellow) truck camper top :). The plan is to make this into an overland version of a 'teardrop' camper.



The side door will access kitchen area. The other side will be for accessing camping gear.


Unlike the teardrop style campers where the access door is on the side, we will access the inside from the back. To help counter balance, I plan to mount the spare on the back (left side).



More to come..

  • Like
  • Love
Reactions: SAR-MEDIC, DieselRamOverlander, mdoverl and 6 others
jcgraves3

jcgraves3

NorthWest Region Member Rep's Portland OR
Member

Contributor III

1,759
Portland, OR, USA
First Name
John
Last Name
Graves
Member #

20803

Ham Callsign
KJ7RJJ
Now with some focus on the inside. I started with using Flex Seal to help waterproof the seams. The spray version was OK, but it was to thin for this application. I went with the can and brush version. This worked out really well.

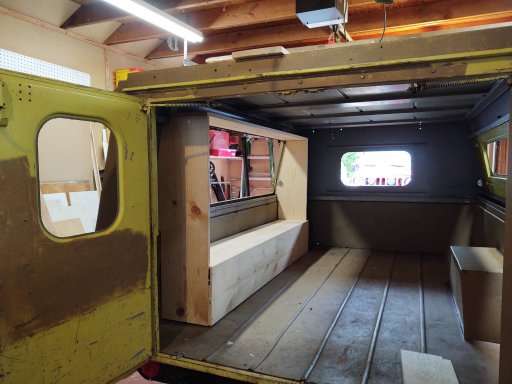

Started with the kitchen cabinet. To get a tight fit with the side walls I made a template using cardboard and hot glue. I transferred the template to the wood then framed it out.





We decided to paint the trailer a duck boat green color, so here we are painting the cabinet with the new green paint.


More to come..


Attachments

  • Like
Reactions: Downs, 64Trvlr, Liberty08 and 2 others
M Rose

M Rose

US Northwest Region Director
Expedition
Benefactor
Member

Explorer I

5,171
La Grande, Oregon, USA
First Name
Michael
Last Name
Rose
Member #

20990

Ham Callsign
KJ7MFV
Service Branch
US ARMY Retired
You have some great skills John

Lanlubber

Lanlubber

Rank V
Member

Member III

2,827
Mimbres, NM, USA
First Name
Jim
Last Name
covey sr
Member #

16986

Ham Callsign
none - BREAKER BREAKER HAND HELD CB AND WALKIE TALKIE
jcgraves3 said:
Hello Everyone... I'm posting my DIY adventure trailer build story with the hope that it may inspire others to share their adventure trailer project. I started this project a few months back and I plan to post more photos in the coming weeks. To kick us off... It all started off with a search for a utility trailer on Craigslist when I ran across this M101 military trailer. After bringing it home I quickly decided to make it an off road adventure / camping trailer.



View attachment 177651View attachment 177653



View attachment 177666

After pressure-washing the trailer, I separated the body from the frame. This allowed me to get a better look at the frame.

View attachment 177667

After close inspection I found no issue with the frame. It was covered with surface rust but no structural issues.

View attachment 177668

This is what I used to paint the frame. It covers really well with a hard gloss finish.

View attachment 177670

In this is a photo I put the body back on the frame and stared work on removing the axle and springs. The metal rack on top is a ladder rack from a truck. The tire in the photo is just prop to get an idea of what it will look like.


View attachment 177669

That all for now..
Click to expand...
I'm to old to take on a project like yours but I wish I could. Looks like you have some good material to start with.

  • Like
Reactions: jcgraves3
jcgraves3

jcgraves3

NorthWest Region Member Rep's Portland OR
Member

Contributor III

1,759
Portland, OR, USA
First Name
John
Last Name
Graves
Member #

20803

Ham Callsign
KJ7RJJ
Here are some recent photos.

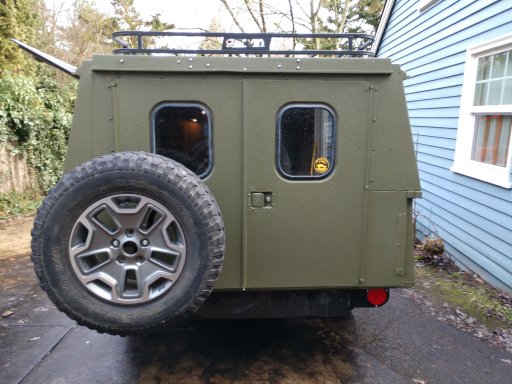

I built the tire rack so that it will swing down to open the door. I may change this later.

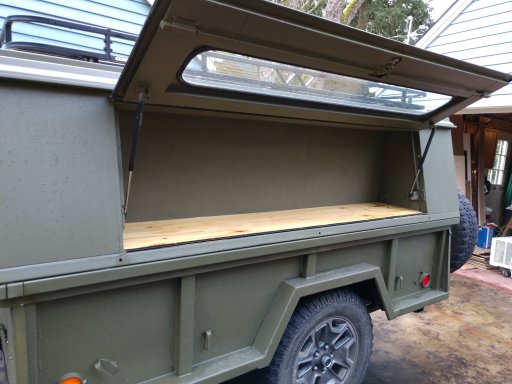

I found a good deal on this used roof rack and it fits so good.


Now I will start work on the inside..


Attachments

  • Like
Reactions: SAR-MEDIC, mdoverl, Timbren-Industries and 5 others
jcgraves3

jcgraves3

NorthWest Region Member Rep's Portland OR
Member

Contributor III

1,759
Portland, OR, USA
First Name
John
Last Name
Graves
Member #

20803

Ham Callsign
KJ7RJJ
The rain and cold weather has subsided and I finely got some trailer time in. Here are my latest updates..

Notice the cabinet on the left. There is a table attached in the storage position. The table can be removed and attached to the side of the trailer.


We decided to go with the MOLLE set up in the kitchen to keep with the military look. Im trying out various bags to see what works best..


The bed is an old futon rack that slides on some angle iron. This allows me to fold up the bed for both access to items under the bed and to use the trailer to haul stuff when not using it as a military version of a 'teardrop' camper.



I had to fashion a door handle latch, so that we can open the door from the inside. I also installed and pull handle to close the door.


The mattress is a self inflating camping mattress call Qomotop Ultra found on Amazon. This is a nice mattress.


The water system made up of a 'Road Shower' with pex pipe and a simple water valve. No pump needed just gravity.. :)

That's all for now..

  • Like
  • Love
Reactions: Phillysteak, SAR-MEDIC, Downs and 7 others
DieselRamOverlander

DieselRamOverlander

Rank III
Member
Adventure

Member III

771
Clovis, CA, USA
First Name
Jeremy
Last Name
Thissell
Member #

28251

Ham Callsign
WRMP824
Love this!!! Very inspirational build!!! I have been wanting to do something like this for a long time, and you are definitely giving me an itch!!!...

  • Like
Reactions: jcgraves3
tjZ06

tjZ06

Rank V
Member

Member III

1,925
Lincoln, California, USA
First Name
TJ
Last Name
Adams
Member #

20043

Nice build! I particularly like how you'll have room to sit on the foot of the bed and take your boots off before climbing into your sleeping bag.

-TJ

  • Like
Reactions: jcgraves3
Submariner

Submariner

Rank II
Member
Adventure

Contributor II

365
Montesano, WA, USA
First Name
Wayne
Last Name
Harper
Member #

26741

Nice build. So how does it pull behind your JKU? is it heavy? And what shell did you use for the top?
I got a M214 that I am using for my tagalong trailer. We are lloking for a "camper" to sleep in. You have done some great Ideas here.
