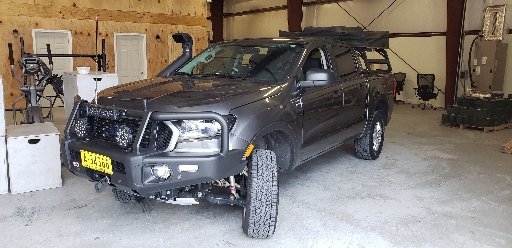

Post up a photo of your truck! I love seeing these things overseas!
Enthusiast III
She is less than thrilled. She thinks I have too many hobbies.
We need more Ranger Pictures!!! After deployment, I'll continue the build and post my own.
Enthusiast III
I'd totally invite myself to come and join in on same Ranger fun. Not that far from Indiana. :)
Yay!

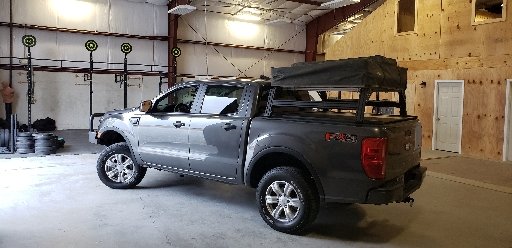

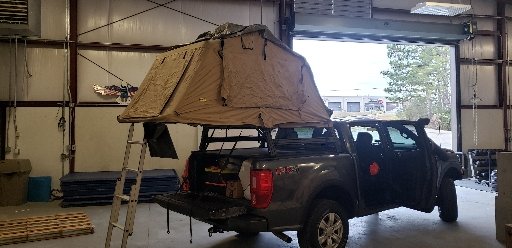

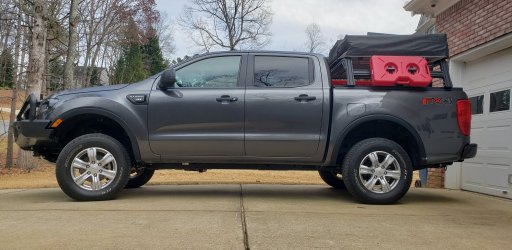

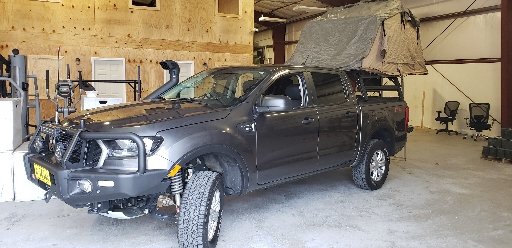

Prototype XtrusionOverland rack and Smittybilt tent got installed yesterday. It wasn't bad at all and I'm really liking the rack. I need to clean and re-waterproof the tent and patch up the transit cover.
Prototype XtrusionOverland rack and Smittybilt tent got installed yesterday. It wasn't bad at all and I'm really liking the rack. I need to clean and re-waterproof the tent and patch up the transit cover.
Got some of my gear out of the bed and onto the rack. I think I'm going to leave my HiLift jack in the bed under the cover and out of the weather. I might move the shovel to the rack though.
View attachment 181343
View attachment 181344
View attachment 181343
View attachment 181344
Nice build good choice! I really dont want a truck or a SUV but I might have to go that route in order to get the tow rating and cargo capacity I might need; so I am thinking base model Ranger XL with tow & FX4 package myself. It seems to be the best value for the money going. Its actually cheaper than my X-GF BroncoSport BigBend base no options was. But as I said I am resisting a truck or SUV hard.
Last edited by a moderator:
I love it. It drives very nicely and is kinda like a car with the windshield rake and with the back seat. :D I bought mine slightly used with 12,000 miles on it for $28,000 and it was beautiful!

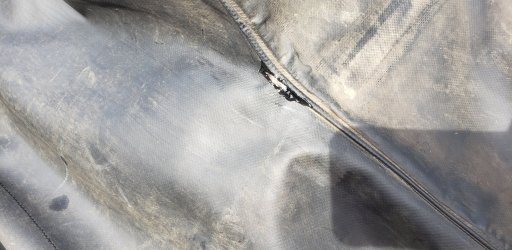

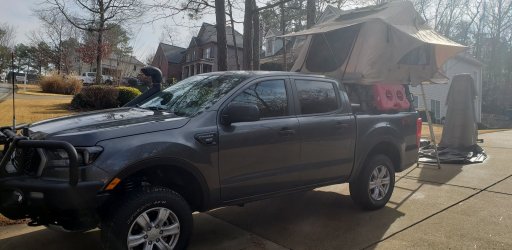

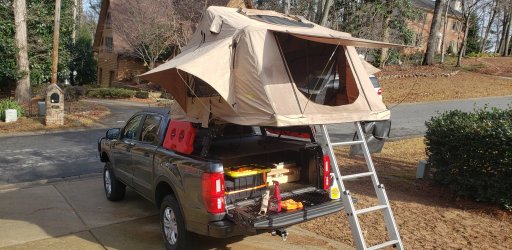

Today I took advantage of the nice weather in the area of 65° and decided to do a little maintenance on my purchased-use RTT. I put it up all the way, for the first time today. Once it was all up, I treated the canvas with a mold and mildew neutralizer, and patched two small tears in the PVC travel cover.

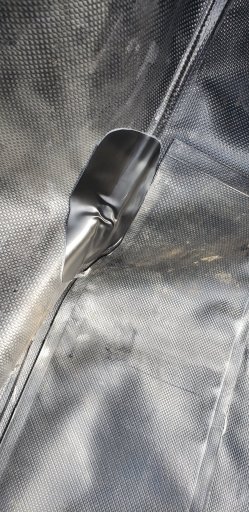

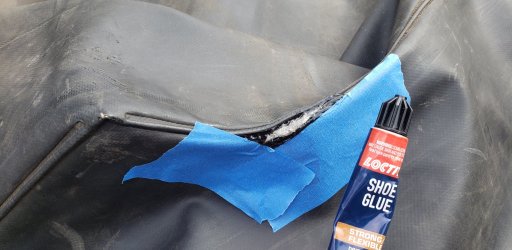

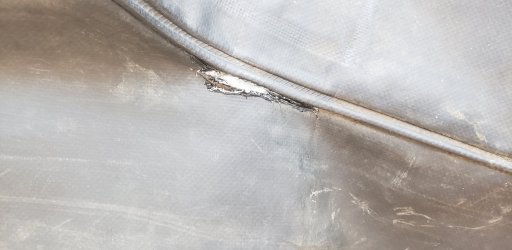

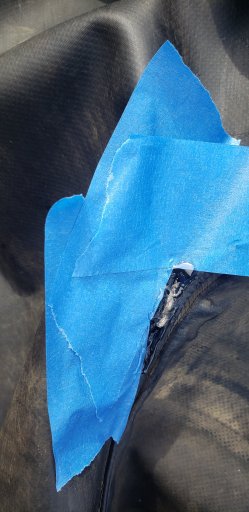

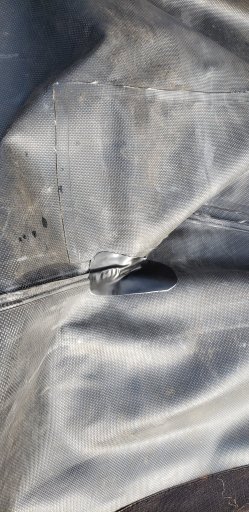

I'm a little disappointed in the mold and mildew situation. The cleaner I used seemed to do a really good job of neutralizing the odor, but it only lightened the stains and didn't remove them. The situation with the travel cover went better though. I used Gorilla Glue brand flex-seal tape to patch the two little tears the cover had on the inside. On the outside I masked off the areas around the tears and used Locktite Shoe Glue to seal 'em up. I had a lot of people from the neighborhood stop and ask me about the truck and tent while I was working on it!
View attachment 182059
View attachment 182060
View attachment 182061
View attachment 182062
View attachment 182063
View attachment 182064
View attachment 182065
View attachment 182066
I'm a little disappointed in the mold and mildew situation. The cleaner I used seemed to do a really good job of neutralizing the odor, but it only lightened the stains and didn't remove them. The situation with the travel cover went better though. I used Gorilla Glue brand flex-seal tape to patch the two little tears the cover had on the inside. On the outside I masked off the areas around the tears and used Locktite Shoe Glue to seal 'em up. I had a lot of people from the neighborhood stop and ask me about the truck and tent while I was working on it!
View attachment 182059
View attachment 182060
View attachment 182061
View attachment 182062
View attachment 182063
View attachment 182064
View attachment 182065
View attachment 182066
I don't know if it's still available but Amway Corp LOC or Zoom cleaner works good on Mold. The outdoor stores sell formulas that are intended for outdoor gear and mold/mildue comes in a brown medicine type bottle with an applicator wand cap. cant remember the name I'll look for my bottle.
My traction boards came with a "mounting bracket" setup that I wasn't very happy with. The backing plates were plastic, and I drilled two holes through them to mount them to my bed rack. I didn't have a lot of confidence in them holding up, and I has images in my head of my traction boards going ballistic, off my truck, all over the interstate. So I took them to a buddy's steel business the other days, and his guys cut me new backing plates that I picked up yesterday! Once I got them home, I cleaned them with sandpaper, rust converter, and then denatured alcohol. Once all cleaned up, I painted them, hitting them after each coat of paint with the heat gun. I'm pretty happy with how they turned out!
The plastic brackets are on the left with the new, raw metal ones on the right.
View attachment 182452
Here is my field expedient paint booth! HAHAHAHA!
View attachment 182453
Not bad!
View attachment 182455
All painted up and on the truck!
View attachment 182456

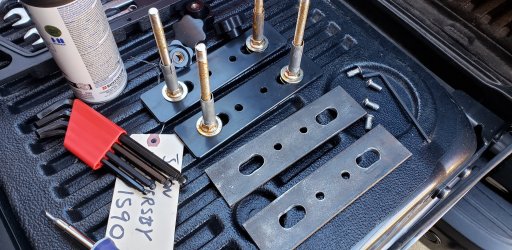

Here they are with the hardware all assembled. I'll eventually need new threaded rod and bolts as these cheap ones are already surface rusting through the chrome.
View attachment 182457

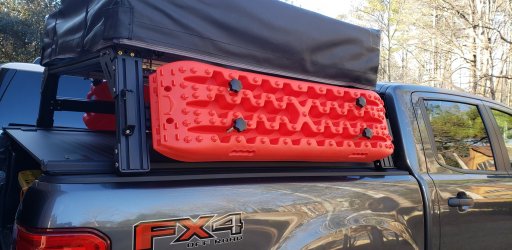

And the traction boards are back on my truck, and they don't need wrapped with a bungee chord anymore! YAY!
View attachment 182458
The plastic brackets are on the left with the new, raw metal ones on the right.
View attachment 182452
Here is my field expedient paint booth! HAHAHAHA!
View attachment 182453
Not bad!
View attachment 182455

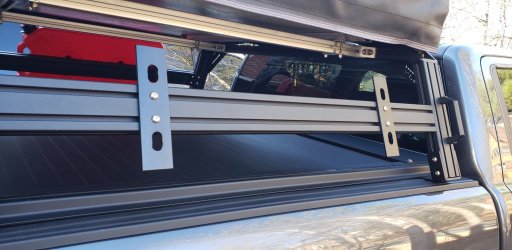

All painted up and on the truck!
View attachment 182456

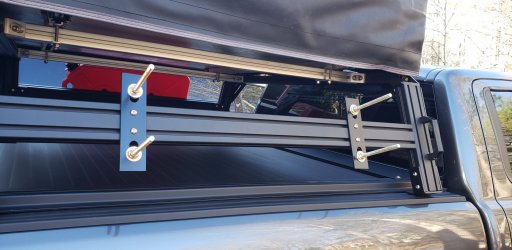

Here they are with the hardware all assembled. I'll eventually need new threaded rod and bolts as these cheap ones are already surface rusting through the chrome.
View attachment 182457
And the traction boards are back on my truck, and they don't need wrapped with a bungee chord anymore! YAY!
View attachment 182458
@Osteology posted his camp kitchen countertop, and it was too good of an idea not to do myself. I'm pretty thrilled with how my version came out!

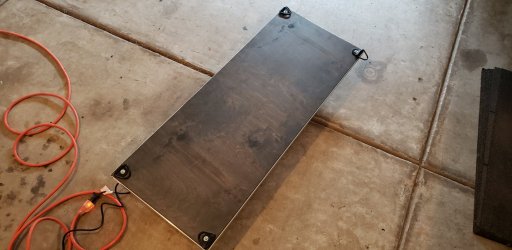

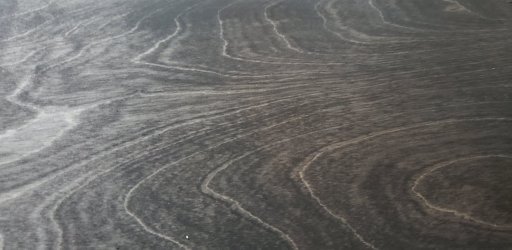

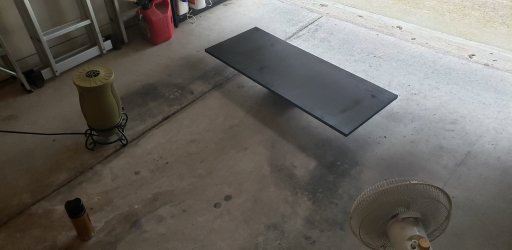

I started with a piece of 2' x 4' birch ply that I trimmed down to the same footprint as my RTT's ladder when collapsed. I used "charred wood accelerator" to stain it and finished it with a matte spray polyurethane.
View attachment 184329
View attachment 184330

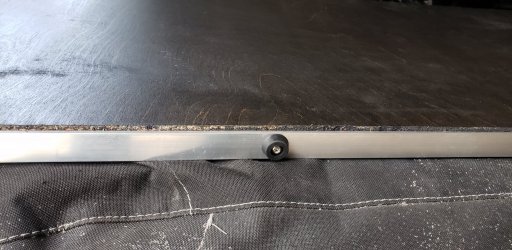

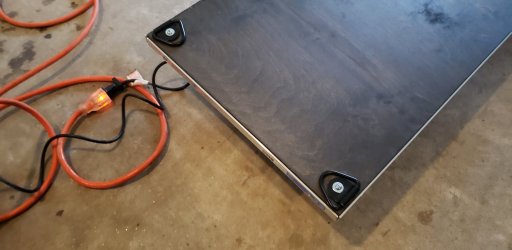

I cut 3/4" wide aluminum angle to frame out the wood, drilled it for countersinking the screws, and added rubber bumpers for the side that goes up against the truck bed. I then through-bolted cargo loops to the four corners for it to hang from.
View attachment 184331
View attachment 184332
View attachment 184333

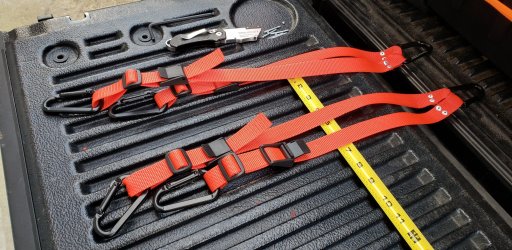

I attached two more cargo d-rings to my Xtrusion Overland bed rack, and then put together some nylon straps and carabiners to hang my camp kitchen work top.
View attachment 184334

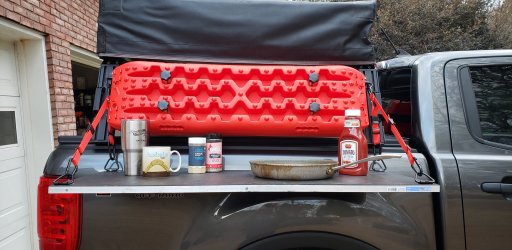

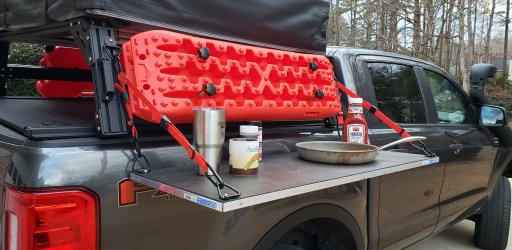

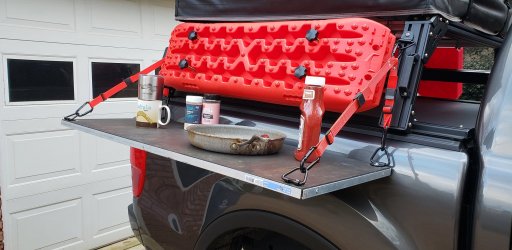

I'm really happy with the kitchen work top. It's not the boggest but it has plenty of room.
View attachment 184335
View attachment 184336
View attachment 184337

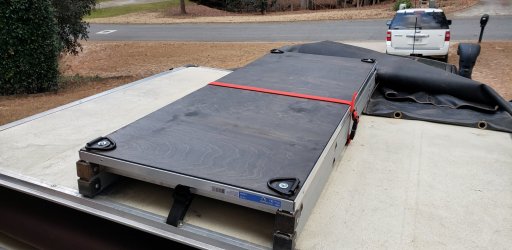

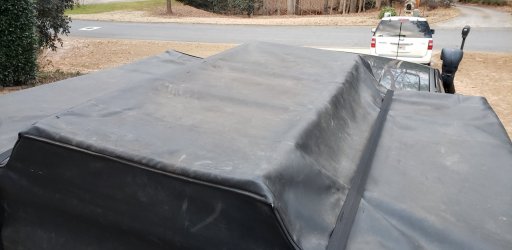

And one of the nicest features is that when I'm not using it, it stows out of the way without taking up any useable space on my truck!
View attachment 184338
View attachment 184339
I started with a piece of 2' x 4' birch ply that I trimmed down to the same footprint as my RTT's ladder when collapsed. I used "charred wood accelerator" to stain it and finished it with a matte spray polyurethane.
View attachment 184329
View attachment 184330
I cut 3/4" wide aluminum angle to frame out the wood, drilled it for countersinking the screws, and added rubber bumpers for the side that goes up against the truck bed. I then through-bolted cargo loops to the four corners for it to hang from.
View attachment 184331
View attachment 184332
View attachment 184333
I attached two more cargo d-rings to my Xtrusion Overland bed rack, and then put together some nylon straps and carabiners to hang my camp kitchen work top.
View attachment 184334
I'm really happy with the kitchen work top. It's not the boggest but it has plenty of room.
View attachment 184335
View attachment 184336
View attachment 184337
And one of the nicest features is that when I'm not using it, it stows out of the way without taking up any useable space on my truck!
View attachment 184338
View attachment 184339
Minor update:

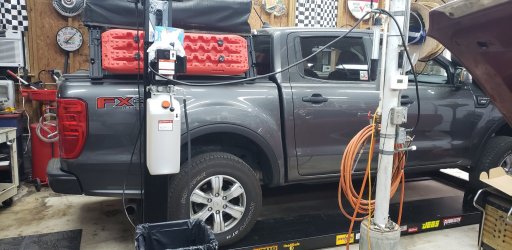

I scored an add-a-leaf kit already installed on a set of leaf springs for my truck. It was a pretty quick process, just having to swap out the complete leaf packs. Doing the work on a 4-post was nice as our backs weren't dead at the end of the installation. I'm very happy to have the slight reverse rake taken out of my setup! Towing my boat should be a little better too!
View attachment 194447

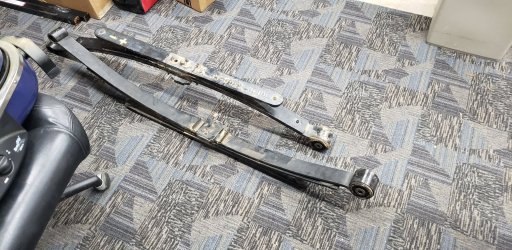

These are the "new" leaf pack with the add-a-leaf kit installed on them. I got them from a fellow Ford Ranger guy; the leaf packs were nearly new when he took them off.
View attachment 194448

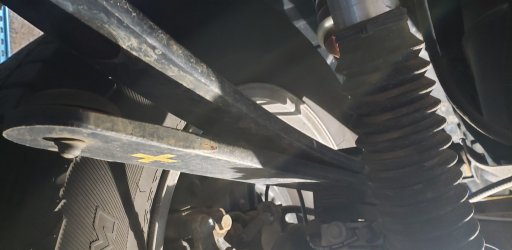

This is a stock leaf pack. Really just one leaf spring.
View attachment 194450

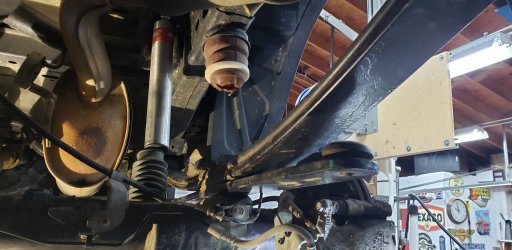

And here is the driver side with the add-a-leaf spring pack installed.
View attachment 194449

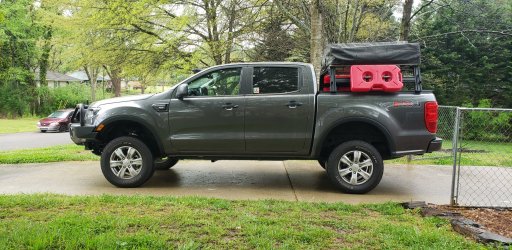

And all done!!!!
View attachment 194451

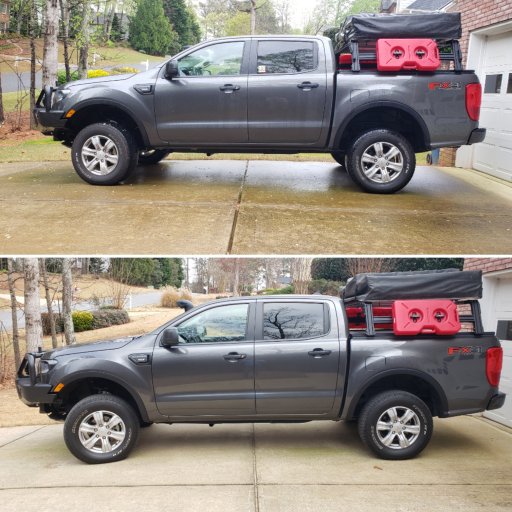

When I got back home I took an "after" shot. The top is the "after" and the bottom is the "before".
View attachment 194452
I scored an add-a-leaf kit already installed on a set of leaf springs for my truck. It was a pretty quick process, just having to swap out the complete leaf packs. Doing the work on a 4-post was nice as our backs weren't dead at the end of the installation. I'm very happy to have the slight reverse rake taken out of my setup! Towing my boat should be a little better too!
View attachment 194447
These are the "new" leaf pack with the add-a-leaf kit installed on them. I got them from a fellow Ford Ranger guy; the leaf packs were nearly new when he took them off.
View attachment 194448
This is a stock leaf pack. Really just one leaf spring.
View attachment 194450
And here is the driver side with the add-a-leaf spring pack installed.
View attachment 194449
And all done!!!!
View attachment 194451
When I got back home I took an "after" shot. The top is the "after" and the bottom is the "before".
View attachment 194452
