Been a little MIA because of work, a trade show, and just general life.

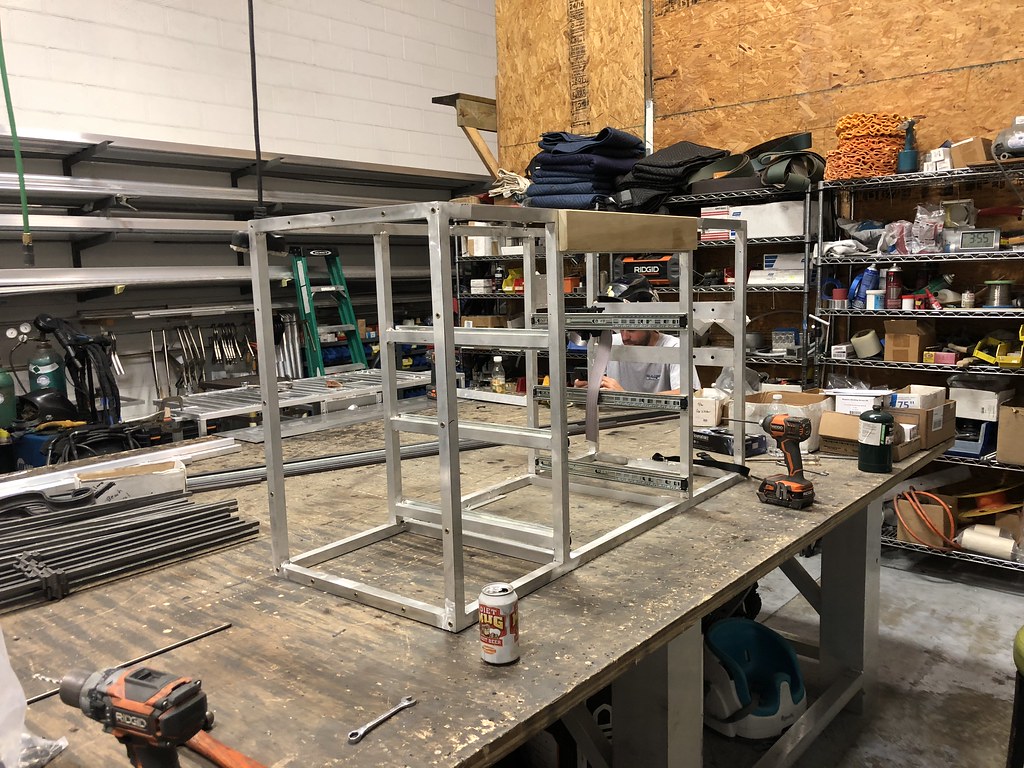

The entire interior is removed, powdercoated, and at the workshop waiting for me to put it all back together
Untitled by Grant Wilson, on Flickr
Had to strip everything down to bare metal and go from there
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr

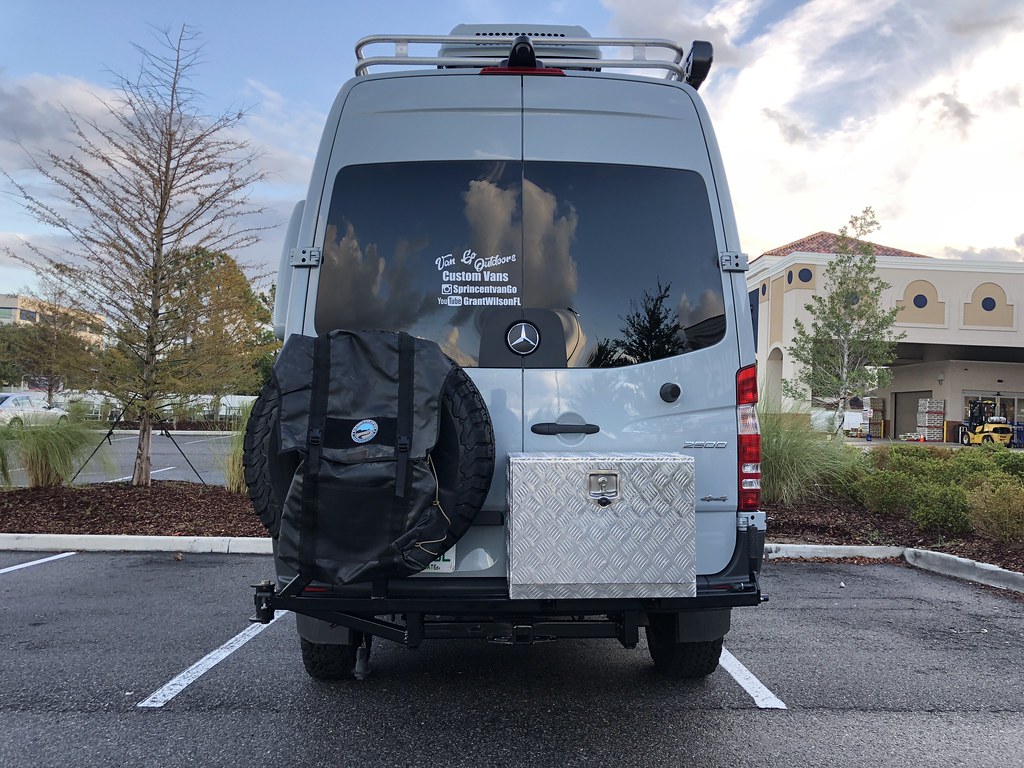

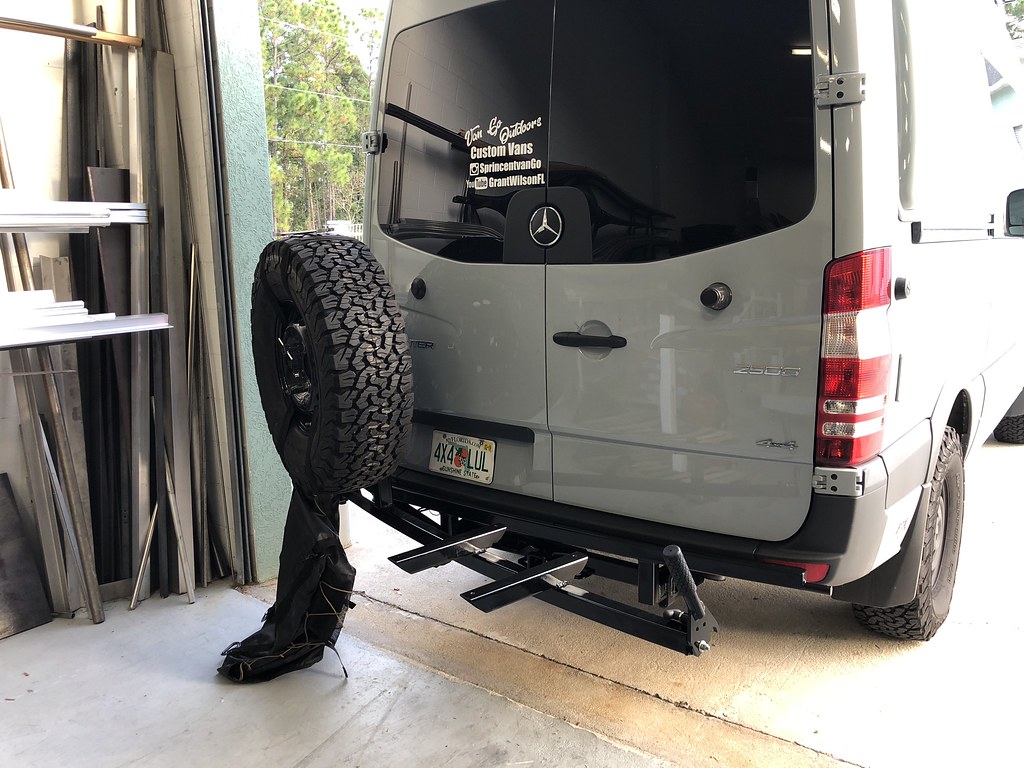

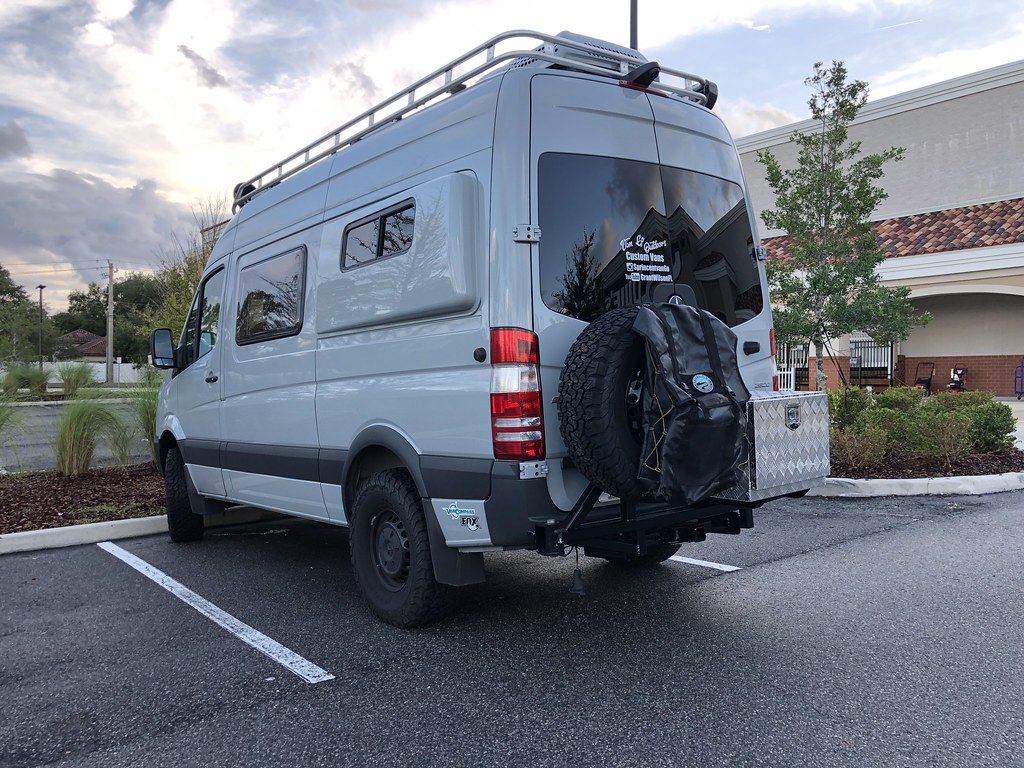

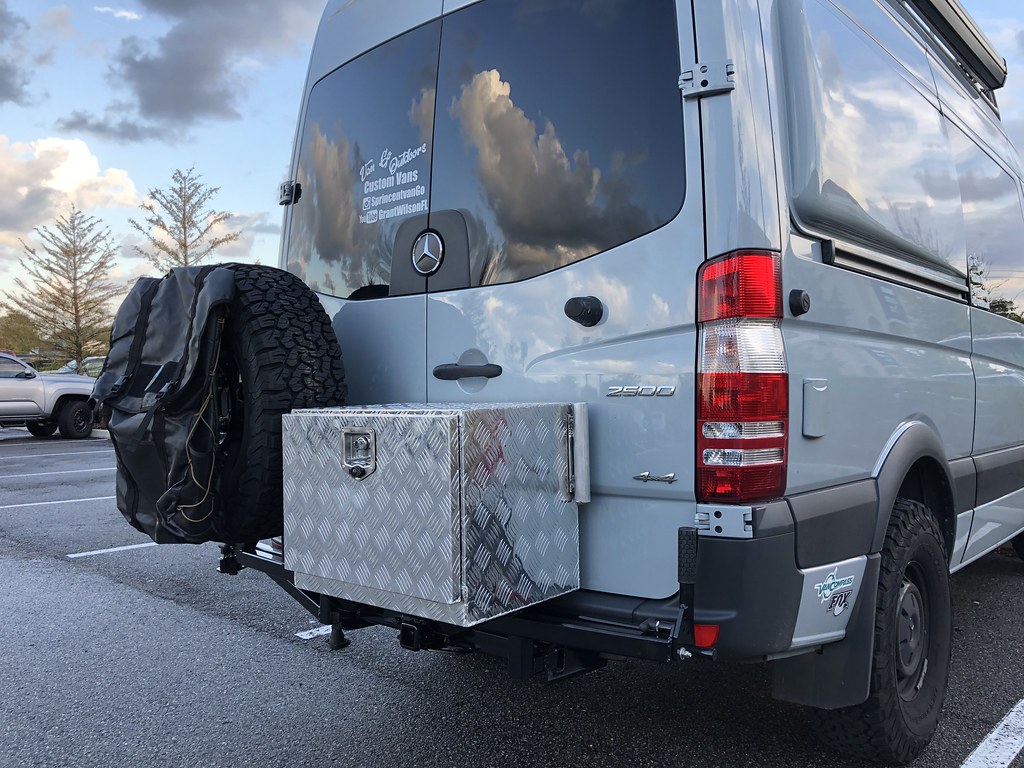

After loosing the locking handle, because I was complacent, and left it on the back of the truck, then someone drove off a bit and i forgot. Is what it is. 4xinnovations got me a new one out for a good price and got that coated, and the swingout and everything installed today
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr

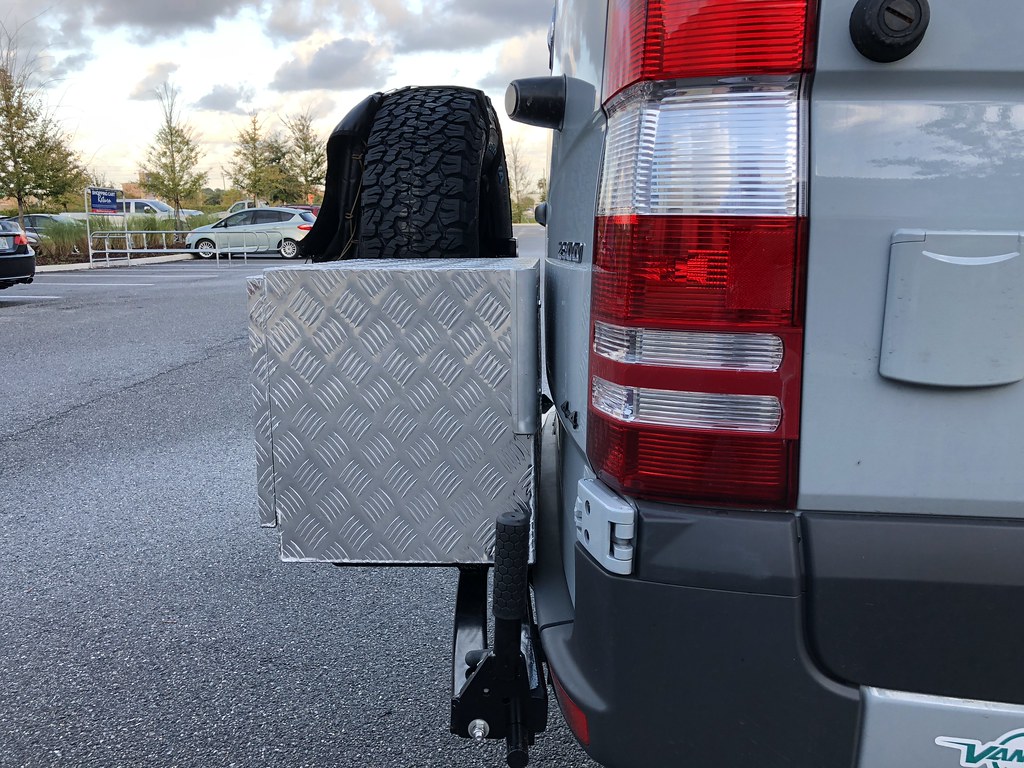

even with my full weight pushing on the box, i cant get it to be anywhere near the door, confident in the spacing
Untitled by Grant Wilson, on Flickr

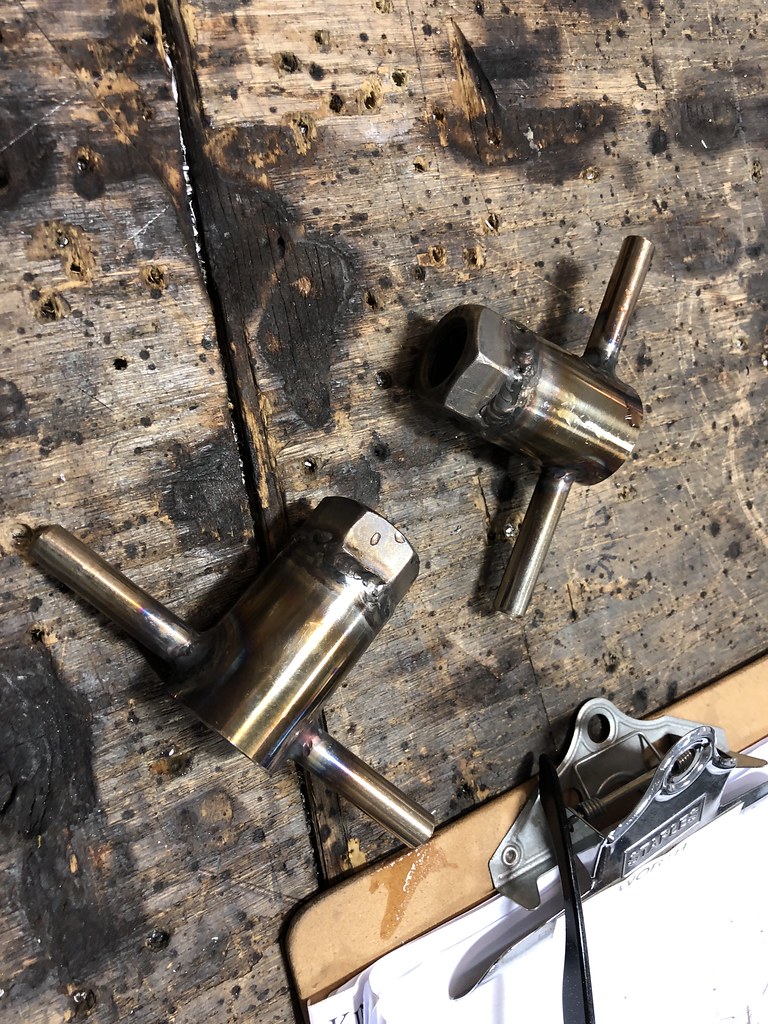

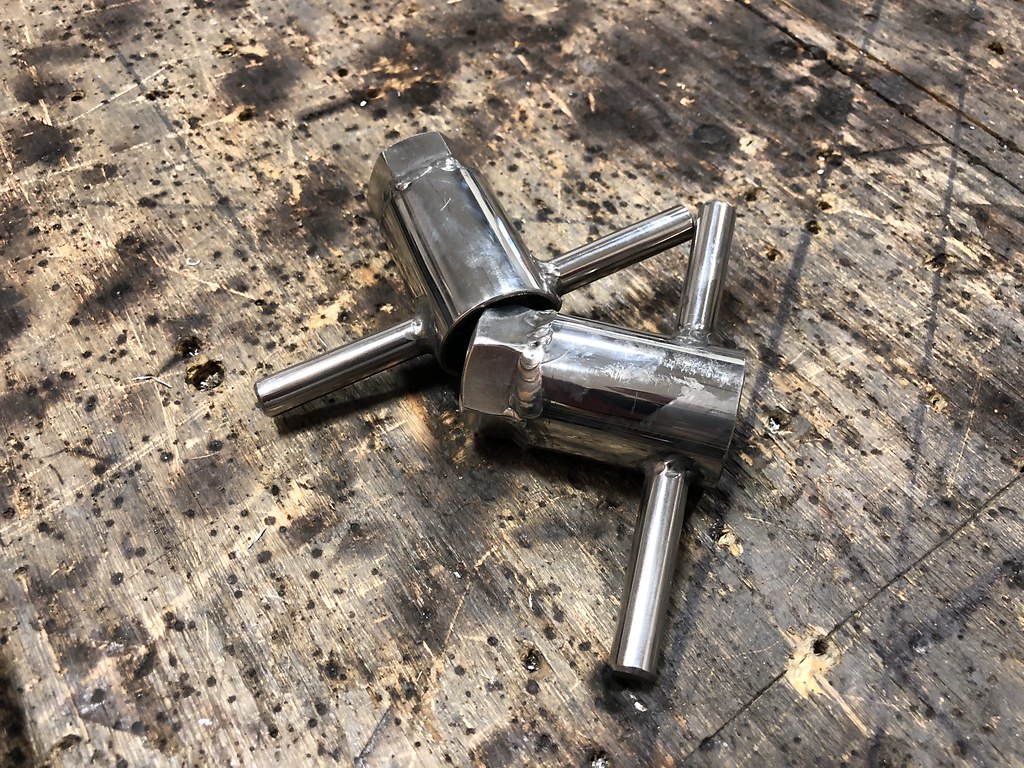

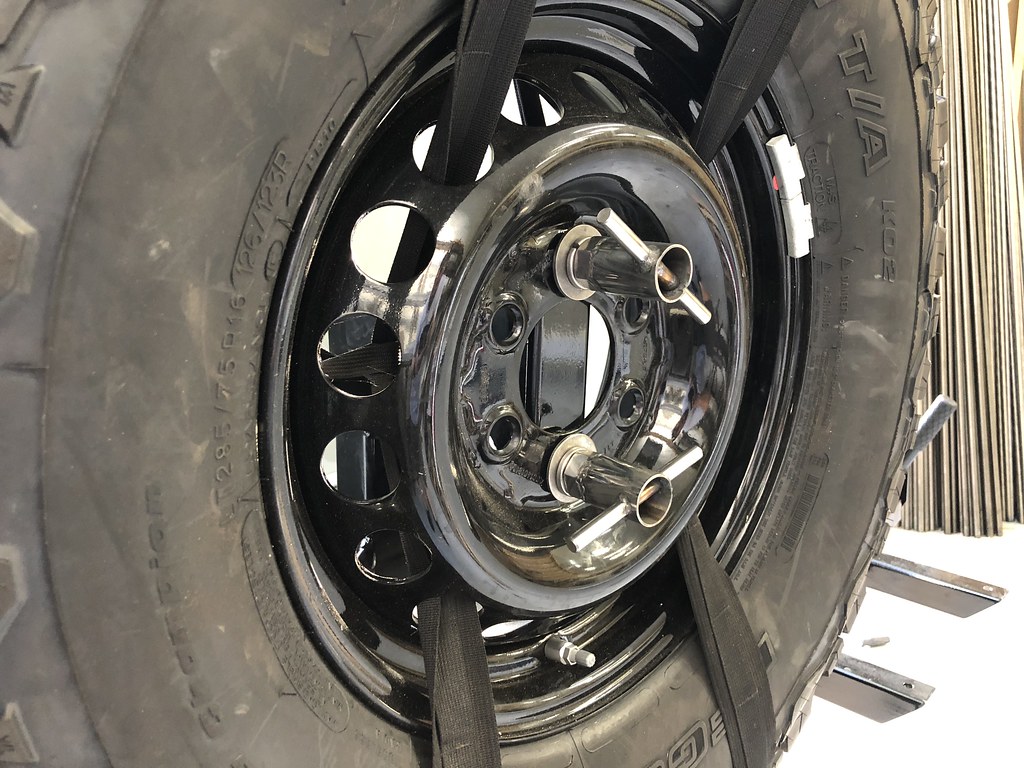

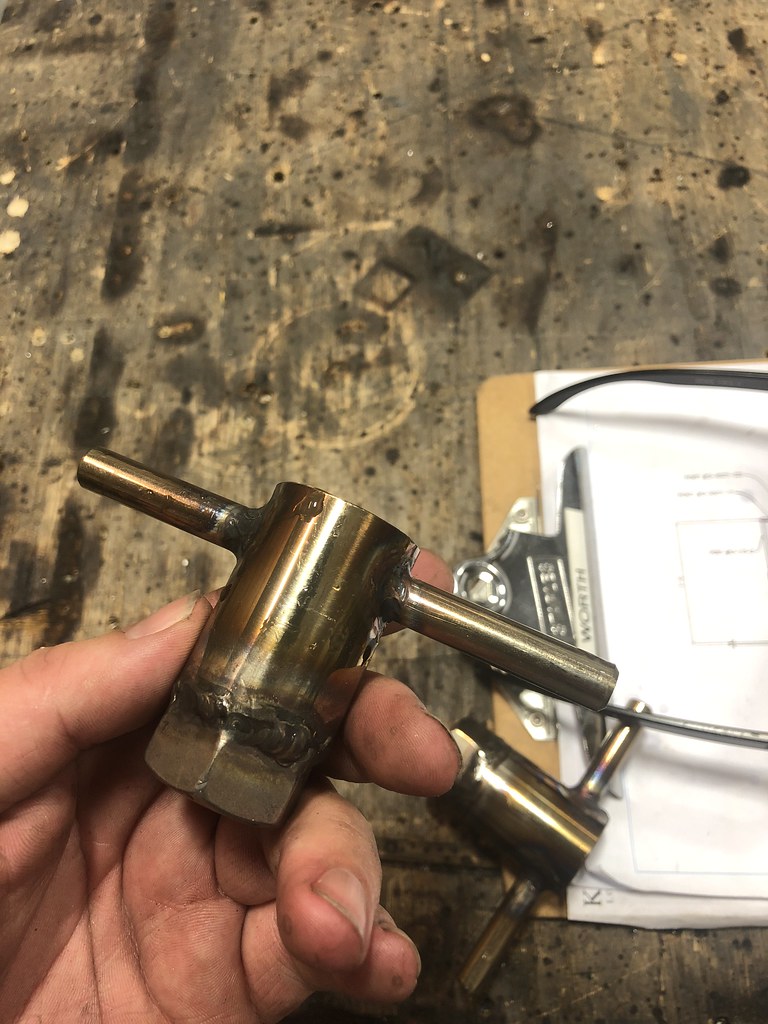

Last but not least, I did not want to keep an 1 1/8th wrench around so i made some T handle nuts! All stainless, then polished
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr

Plan tomorrow is to take out the side window, remake a new interior bezel, cover the wall and put it all back together to get the whole interior back in this weekend

I have to go monday to do an electrical system for a customer in savannah. So would like to be able to stay in the van the few days i am there

  • Like
Reactions: adventure_is_necessary and Russell Peters
grantwilson

grantwilson

Rank V
Launch Member

Influencer II

2,886
St. augustine, Fl
Member #

1616

Deadlines!

Have to leave sunday to go do an electrical system for a customer in Savannah (about 4 hours north)
Van is (as of this morning) completely apart because im lazy

So the race is on. Today was a big day of tidying up wiring ,painting the cabinet faces and some ceiling panels (where the cabinets go) and getting it all back together

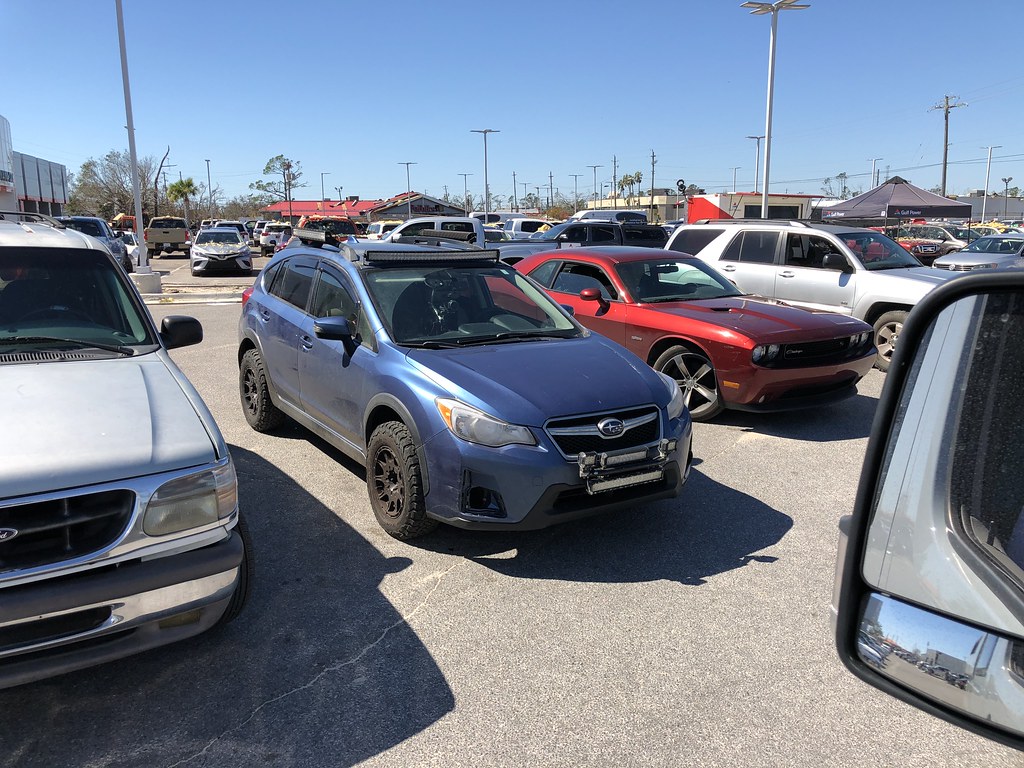

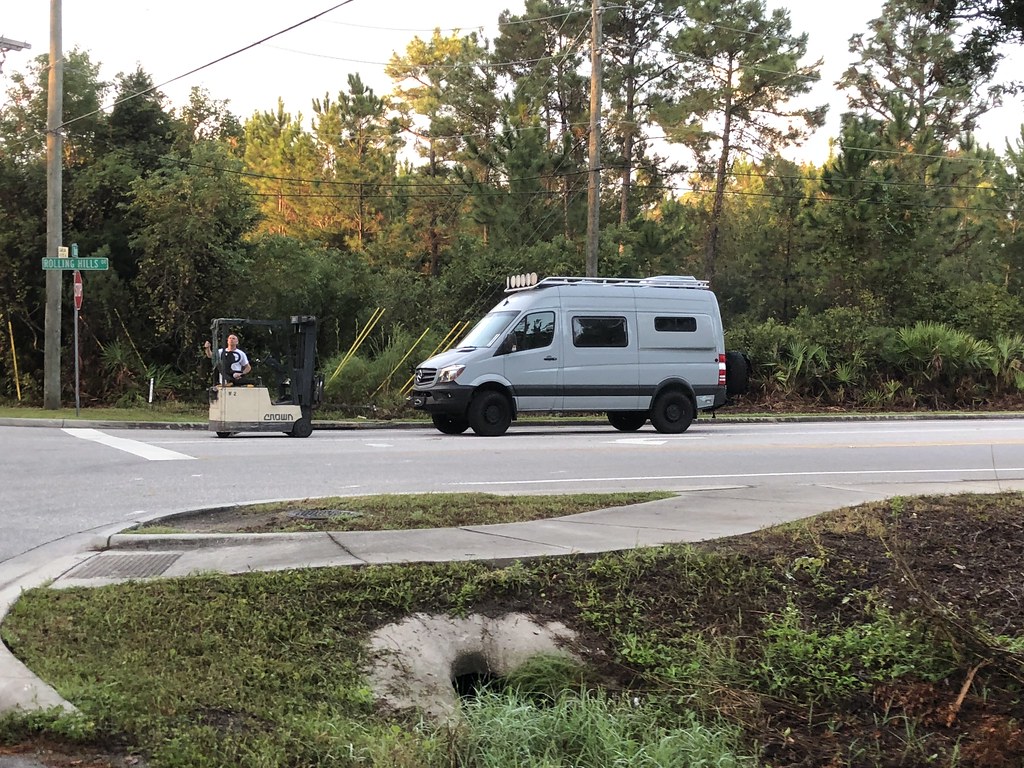

Day started off with running out of fuel right next to work....go figure
Untitled by Grant Wilson, on Flickr

Put some in and good to go, whatever

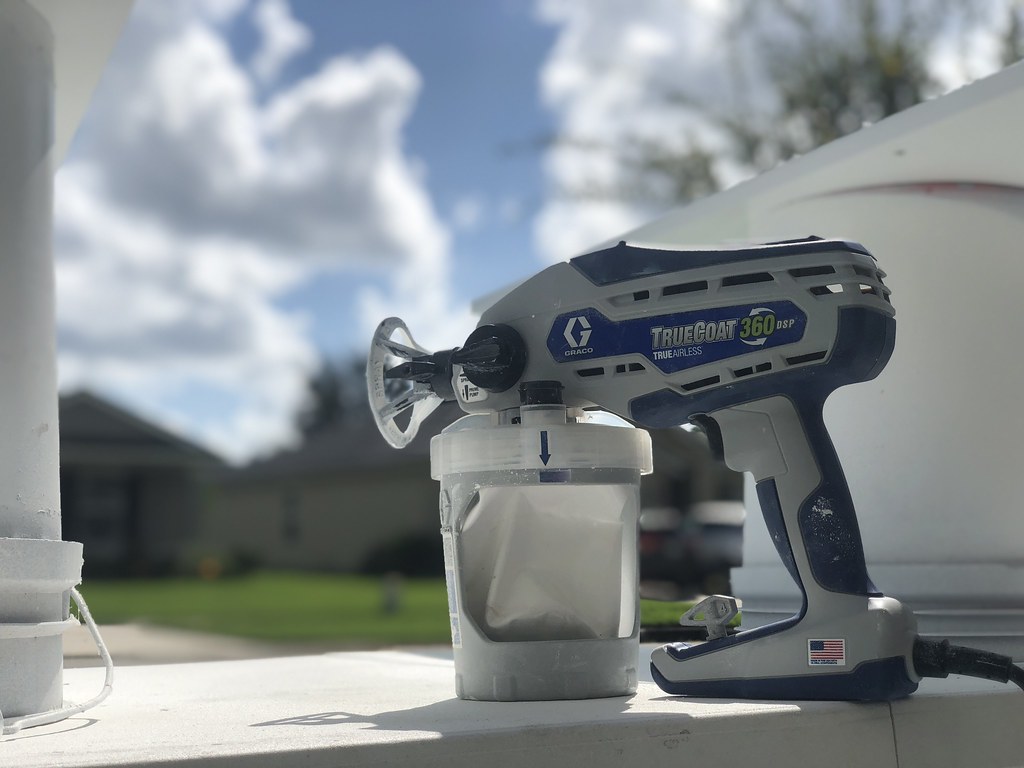

This little guy has put in work. Painted all the cabinets and drawers as well as the ceiling with no brush marks and a perfect finish using 50.00 a gallon cabinet paint. Worth it
Untitled by Grant Wilson, on Flickr

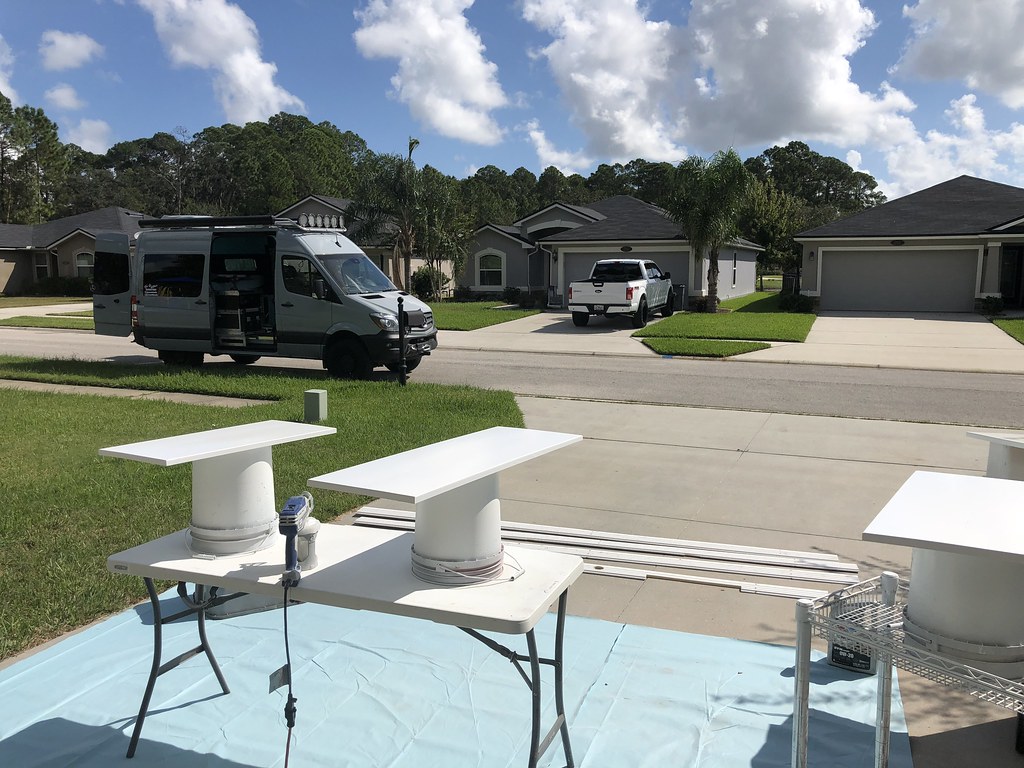

Set up a nice outdoor painting situation, and make it happen
Untitled by Grant Wilson, on Flickr

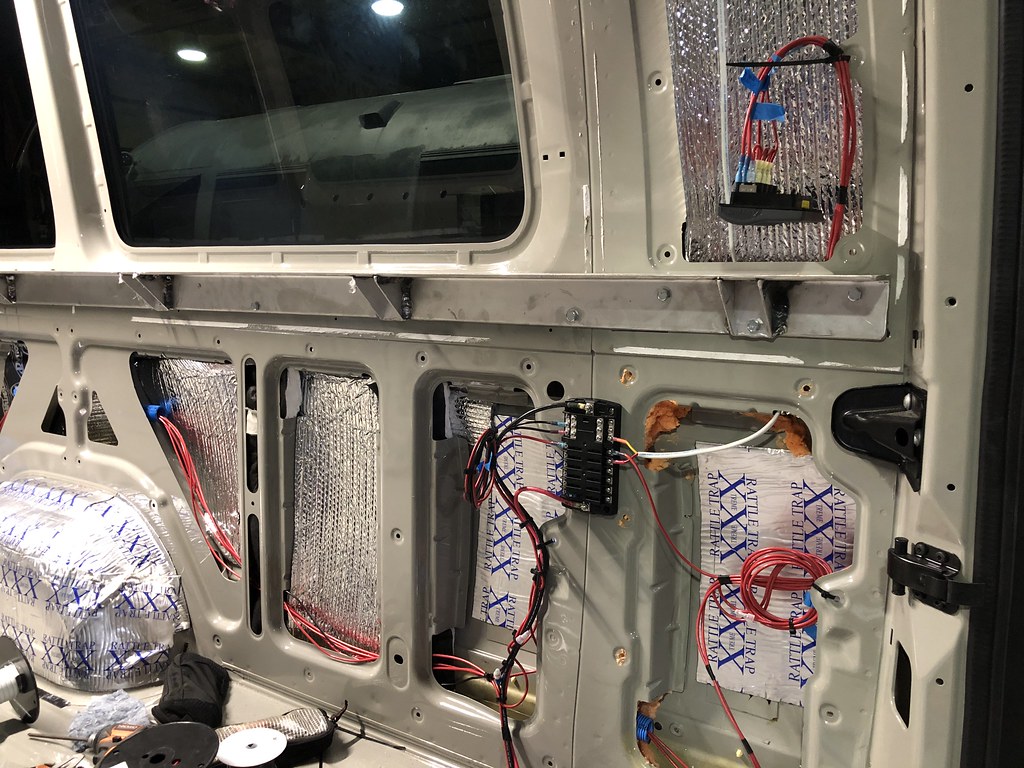

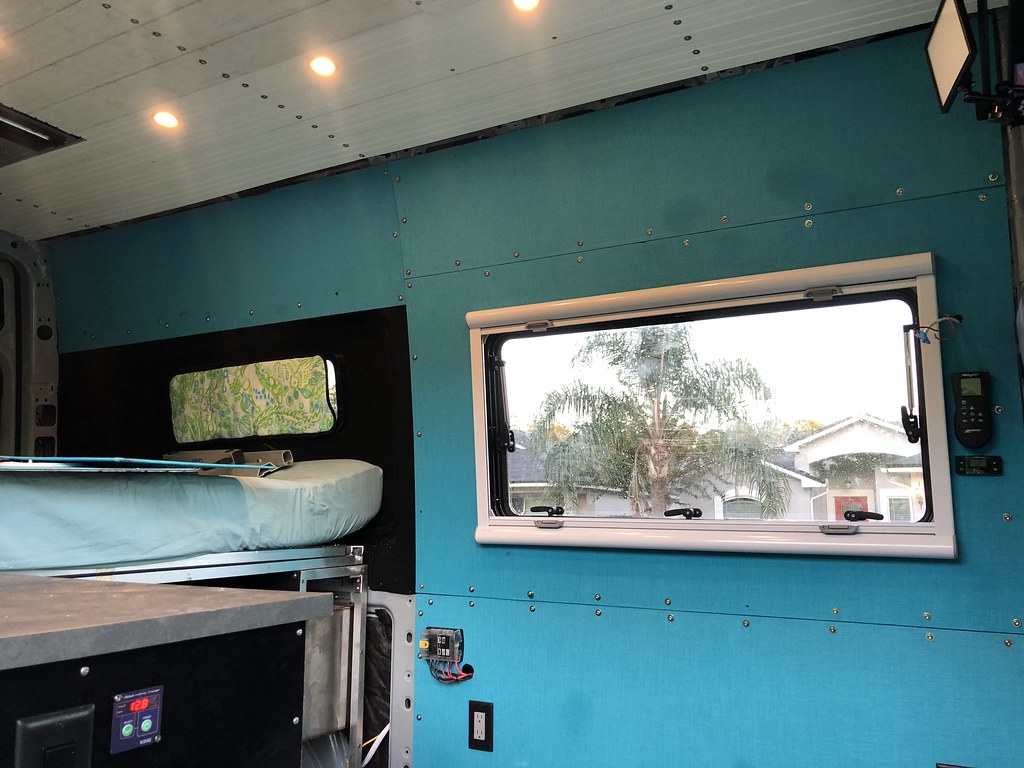

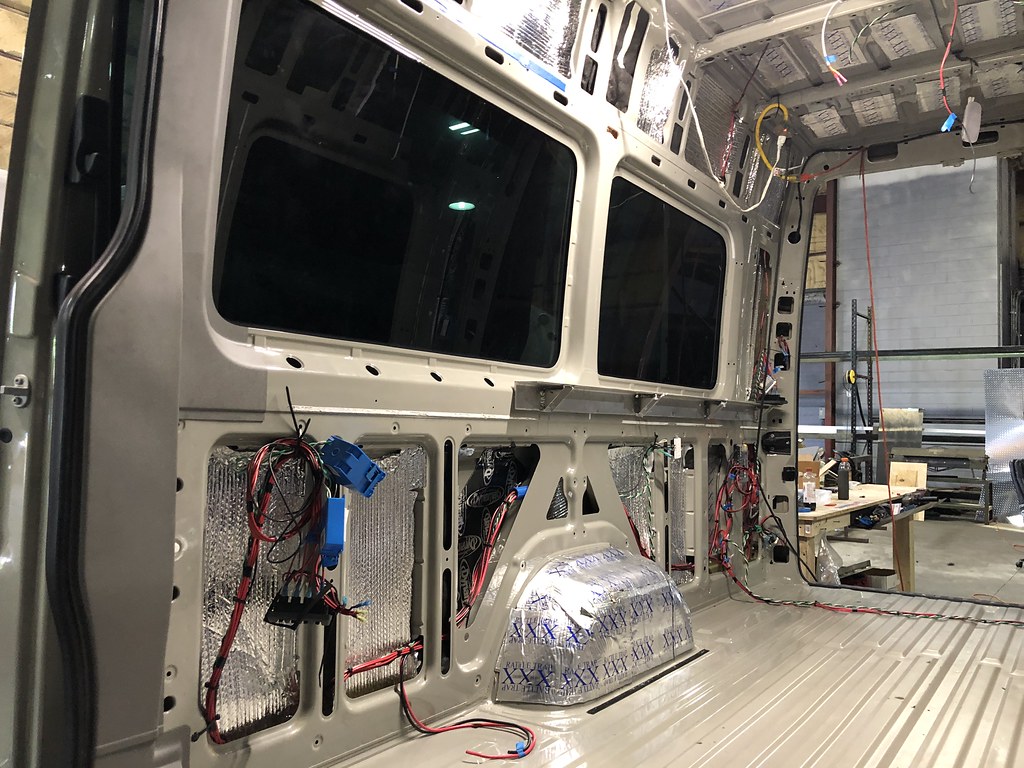

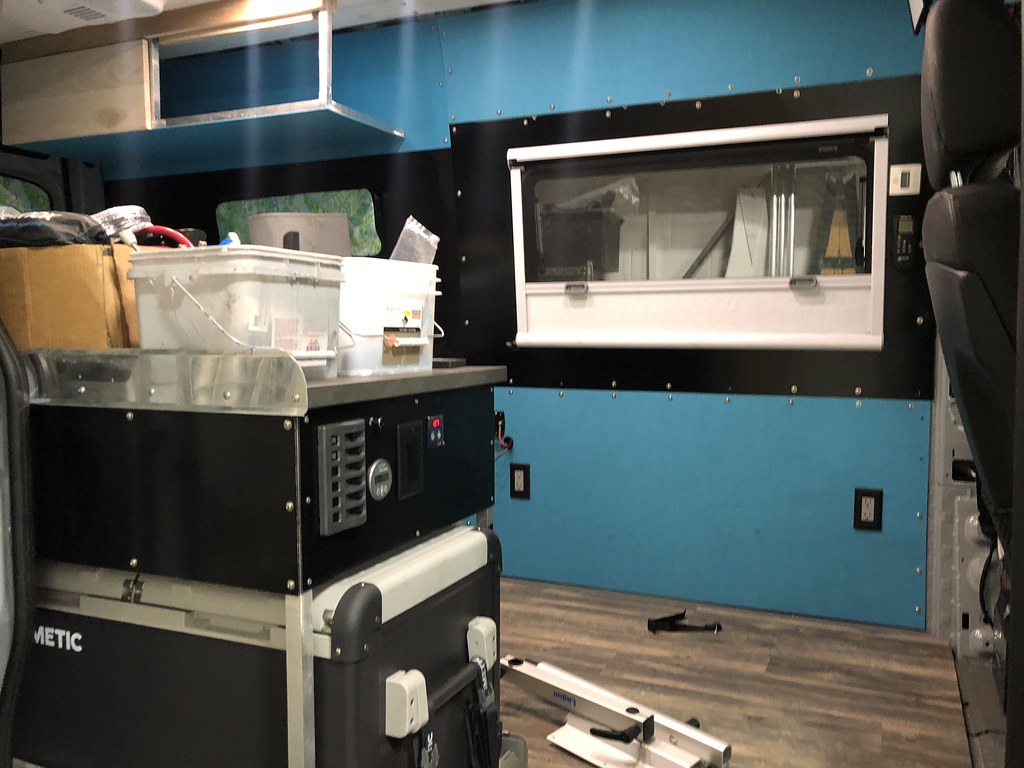

The main reason for pulling everything out other than powdercoating was to redo the window bezel behind the wall, cover that wall, wire the espar heater controller, and tidy up the wiring above the ceiling for the lights and awning that were temp tapped into the fan wiring, and now have their own fuse.
Untitled by Grant Wilson, on Flickr

The spots are where i cleaned dirt, and dried fine, in case someone asks.

tomorrow, will be back at it and hopefully have the whole interior in by lunch, then come home and finish the plumbing and stuff. as long as i have my drawers and cabinet faces in, I will be happy

  • Like
Reactions: Russell Peters and Overland_Mitsu
grantwilson

grantwilson

Rank V
Launch Member

Influencer II

2,886
St. augustine, Fl
Member #

1616

Untitled by Grant Wilson, on Flickr

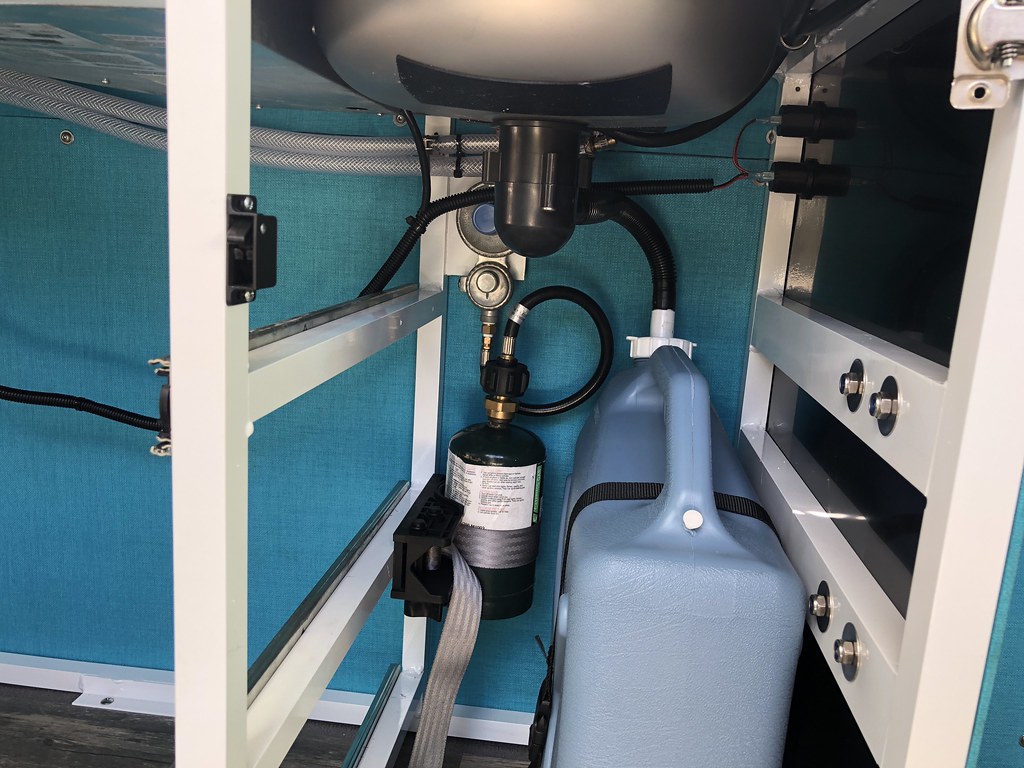

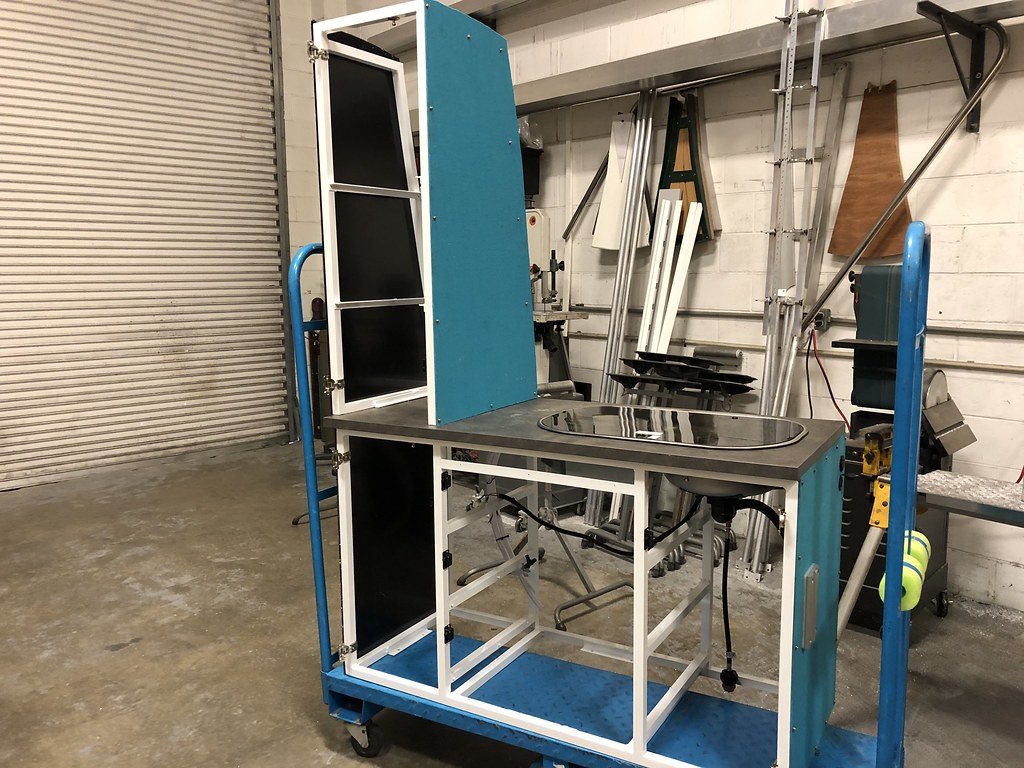

Got the subassemblies all put together and jazz to put in. Decided to do 1lb bottles this time around in a quick fist mount instead of 5lb tanks. Just easier.
Untitled by Grant Wilson, on Flickr

Drawers need some adjusting to be perfect, but they have to come out anyways to have the faces sanded anda few more coats. the cabinet faces are good to go, but the drawers haven't had enough prep and paint. same with half the ceiling.
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr

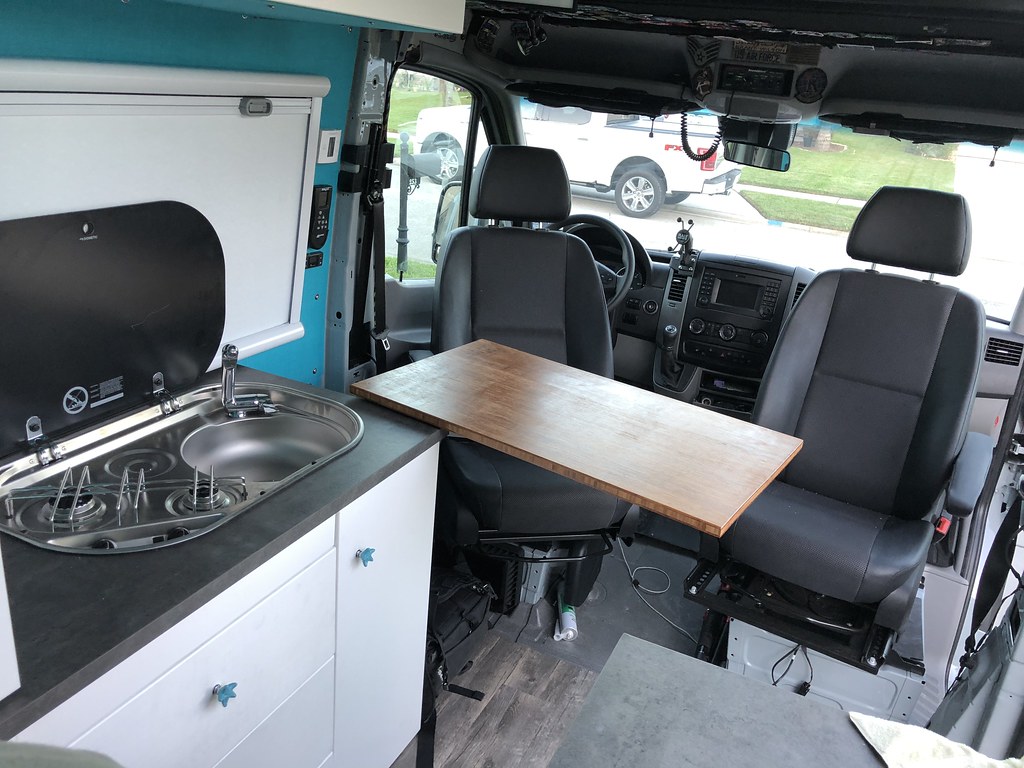

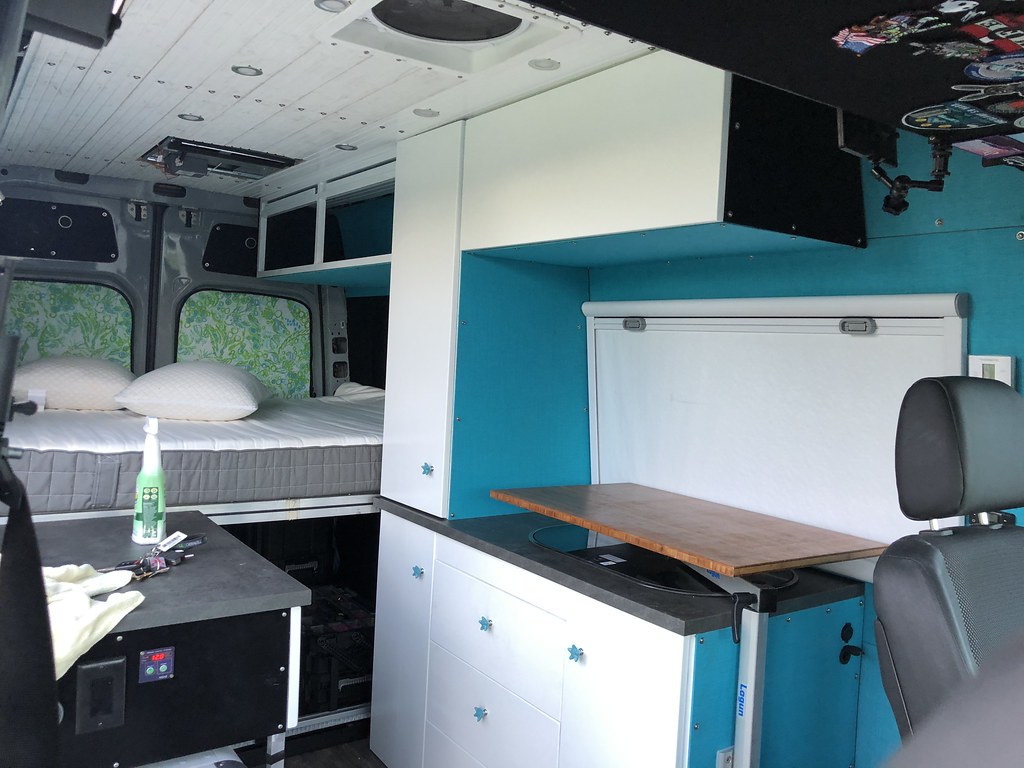

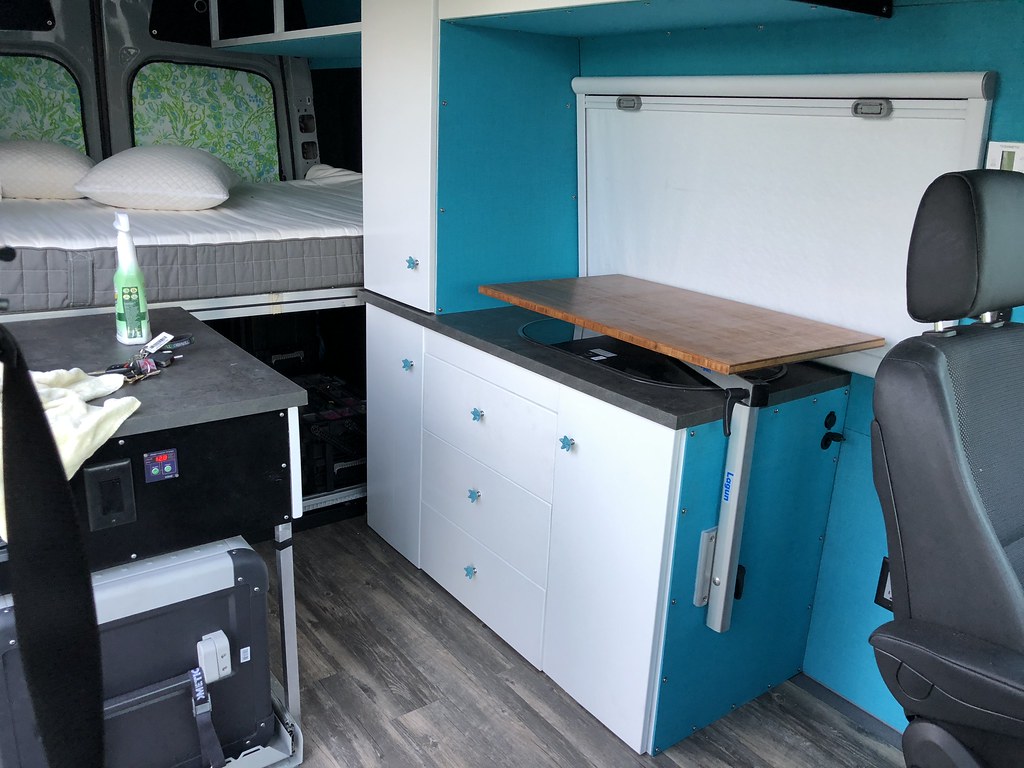

but that being said. the kitchen, cabinets and uppers are in for good!
Untitled by Grant Wilson, on Flickr
bamboo top on the lagun mount. best table mount ever!


so it is off to savannah we go tomorrow for a couple days of wiring and urban camping in the van, and then back to work on another customers cabinet set! And a few racks as well

  • Like
Reactions: adventure_is_necessary, jimmynotjim and Russell Peters
grantwilson

grantwilson

Rank V
Launch Member

Influencer II

2,886
St. augustine, Fl
Member #

1616

well, all is good!

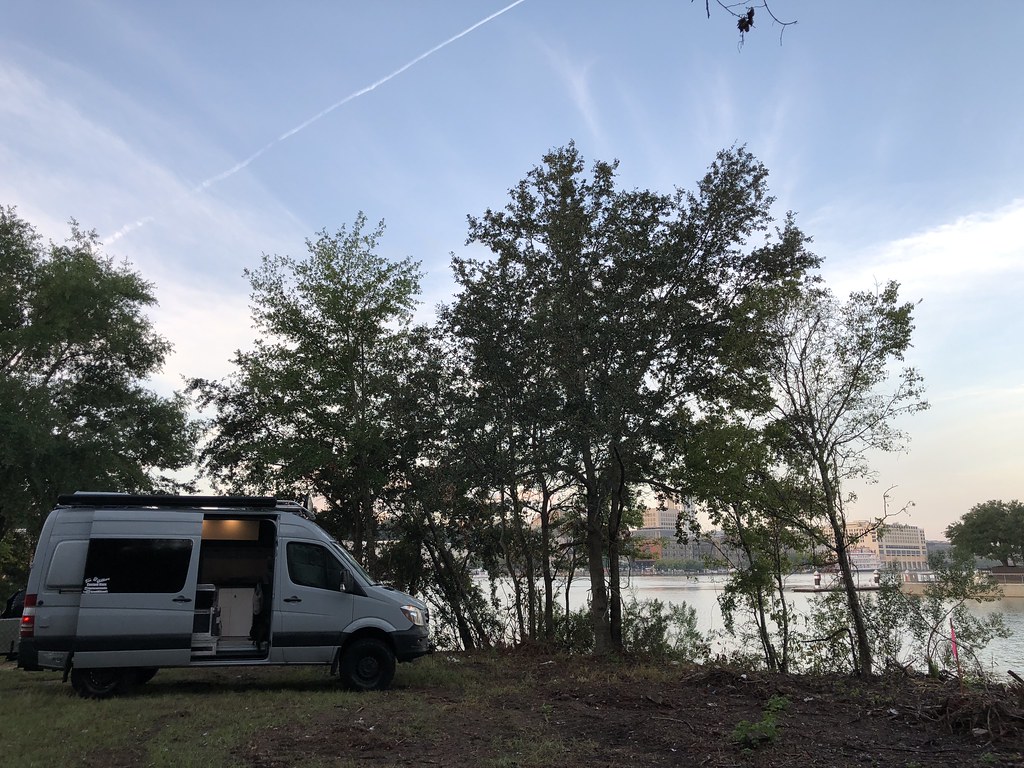

Great camp spot by the river almost under a bridge
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Savannah is a pretty cool place.
Untitled by Grant Wilson, on Flickr

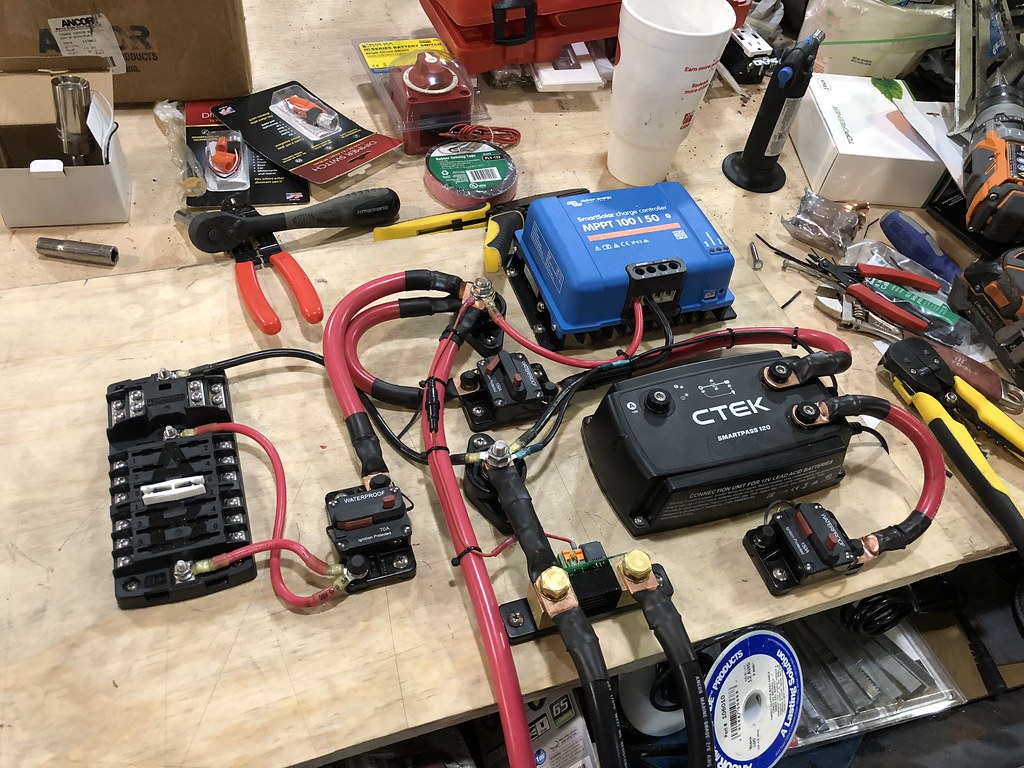

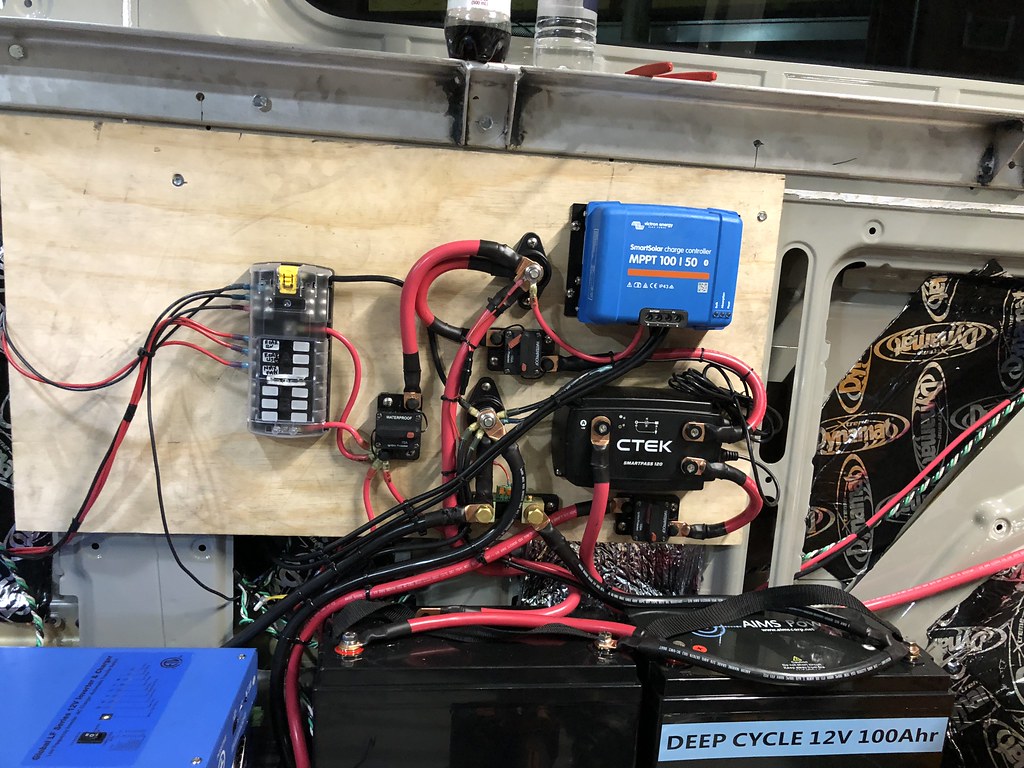

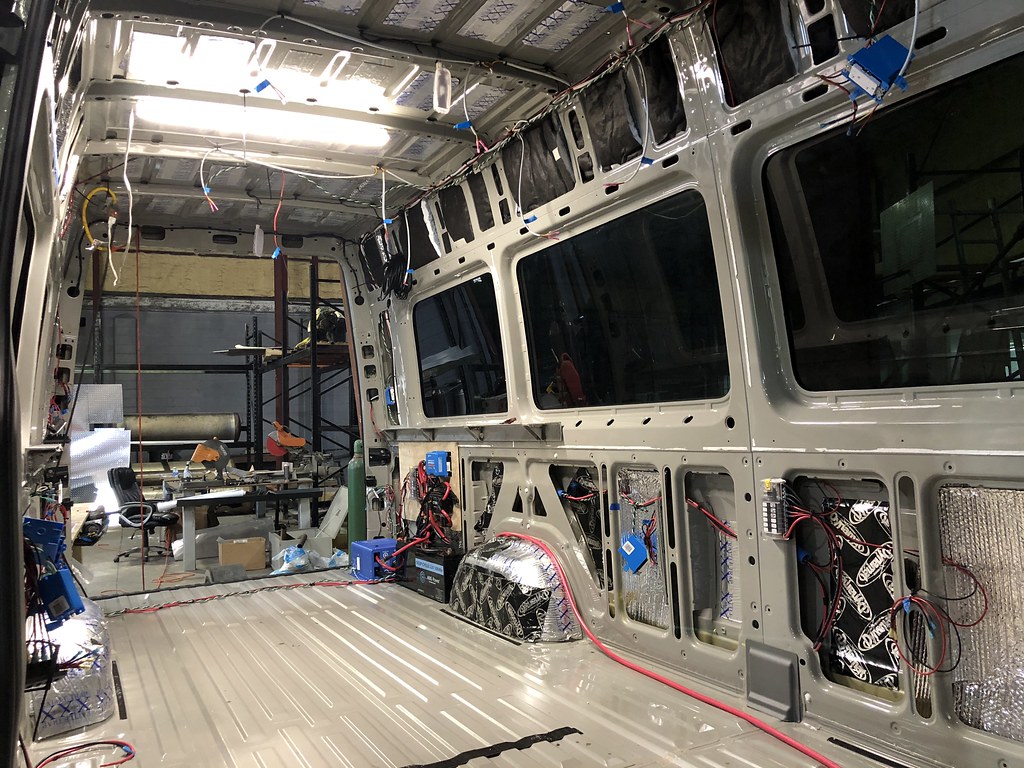

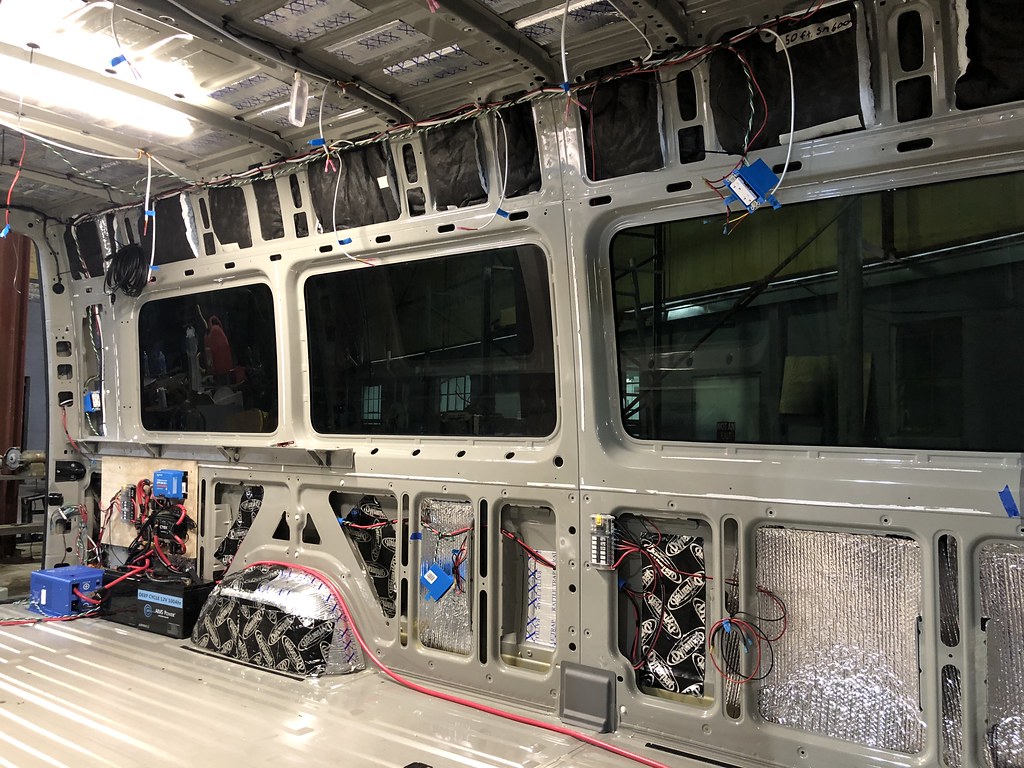

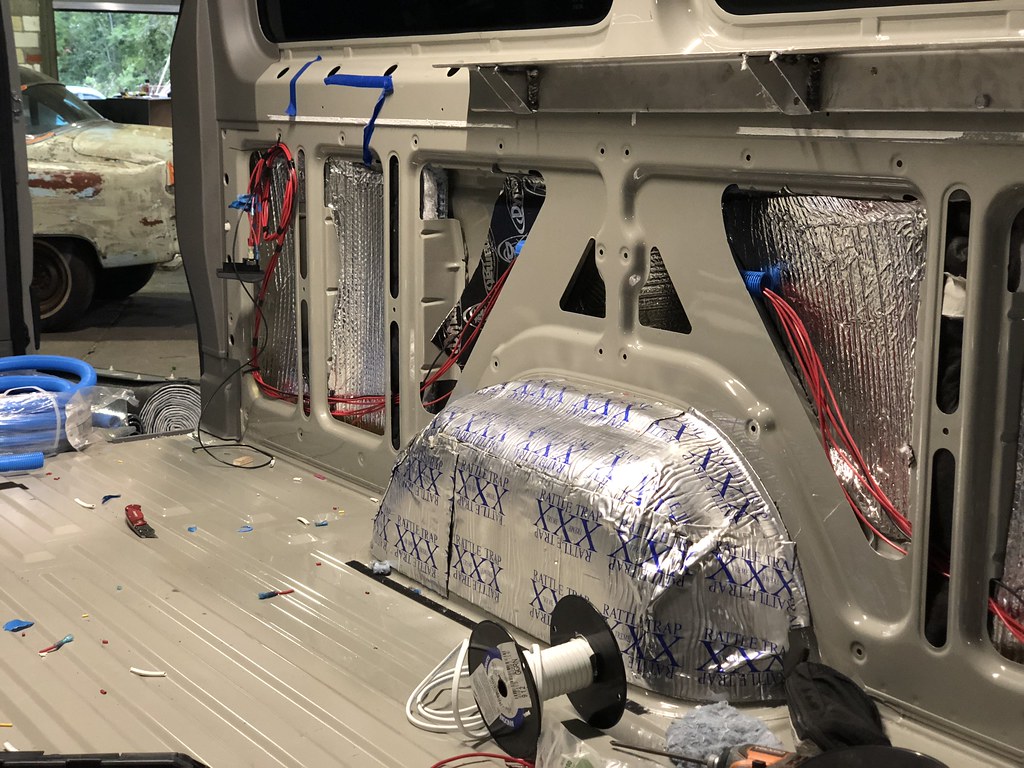

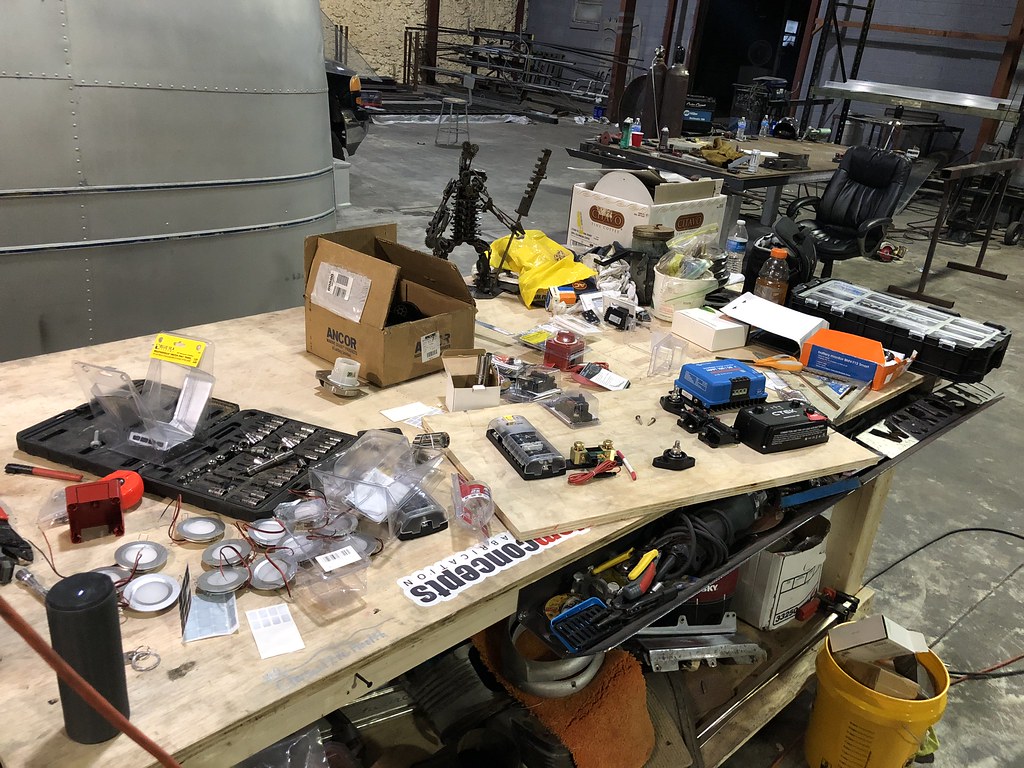

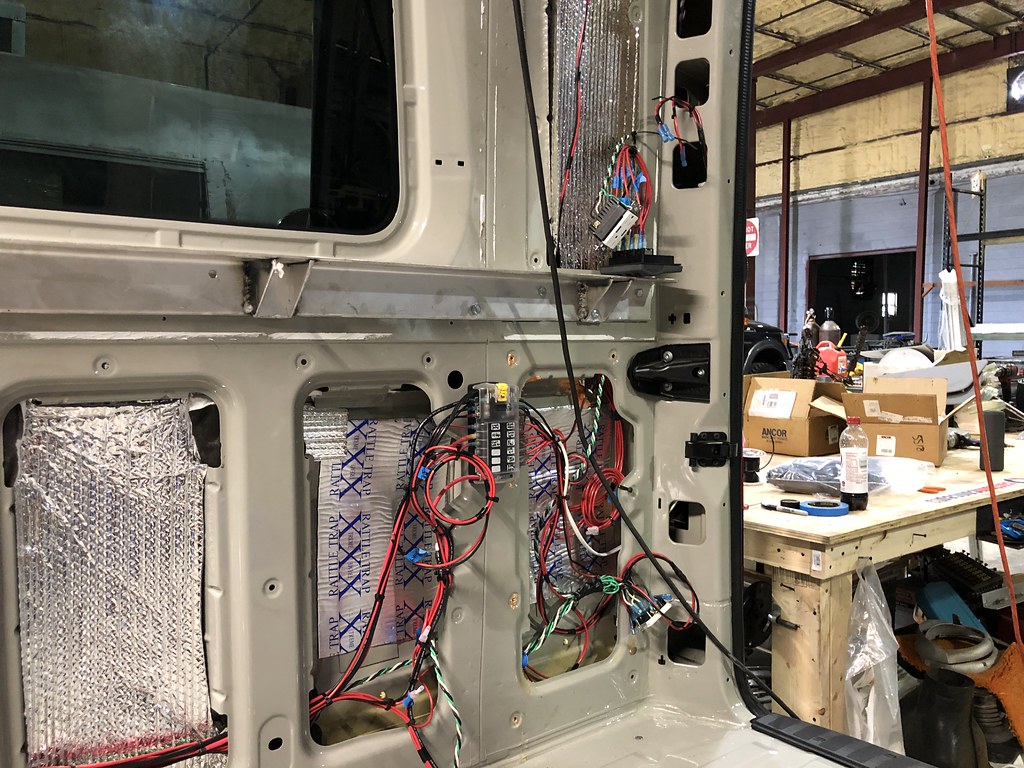

Did the wiring on a 170 extended long ass van.
over 400 ft of wire
Ctek Smartpass
3 blue sea fuse boxes
10 12v outlets
10 usb outlets
8 110 outlets
2000watt inverter
Victron solar control
Victron battery monitor
and some other stuff
Took roughly 25 hours over two and a half days.
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr

This weekend, hopefully, I will pull out the rest of the ceiling, paint it, put it back in and work on some trim pieces to clean everything up on my van to get it ready for expo and some test runs!

  • Like
Reactions: ChepoCDT, martin_j001, adventure_is_necessary and 1 other person
grantwilson

grantwilson

Rank V
Launch Member

Influencer II

2,886
St. augustine, Fl
Member #

1616

Well, place is super duper trashed. Like as bad as africa trashed.
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr

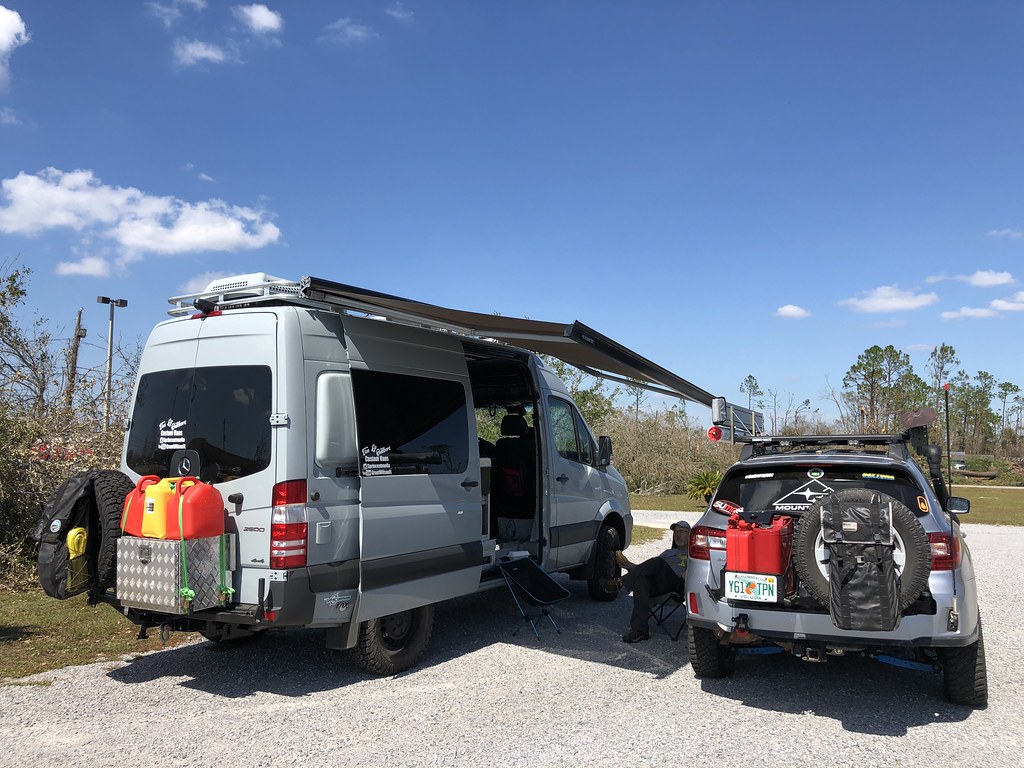

Helped clear out pathway blocking debris for a few people, driveways, trees blocking streets. Pretty sure both of our winch lines are toast, Mine has some pretty slick spots in it now. But worth it i think.
Untitled by Grant Wilson, on Flickr
Untitled by Grant Wilson, on Flickr
IMG_9554 by Grant Wilson, on Flickr

Saw a revel, insurance adjuster guy
IMG_9552 by Grant Wilson, on Flickr

Saw this stupid thing
IMG_9550 by Grant Wilson, on Flickr

And got to hang out with my good friend Rob who was a good sport and came with me (yes thats my old outback). Never work alone!
Untitled by Grant Wilson, on Flickr

  • Like
Reactions: ChepoCDT, adventure_is_necessary and martin_j001
grantwilson

grantwilson

Rank V
Launch Member

Influencer II

2,886
St. augustine, Fl
Member #

1616

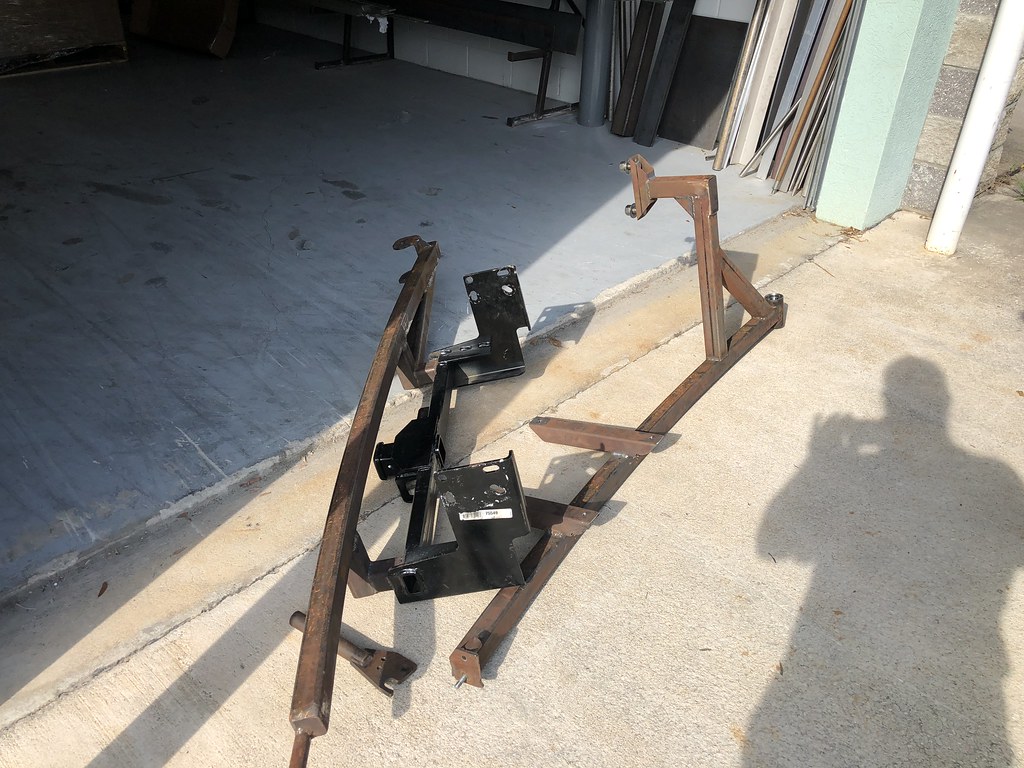

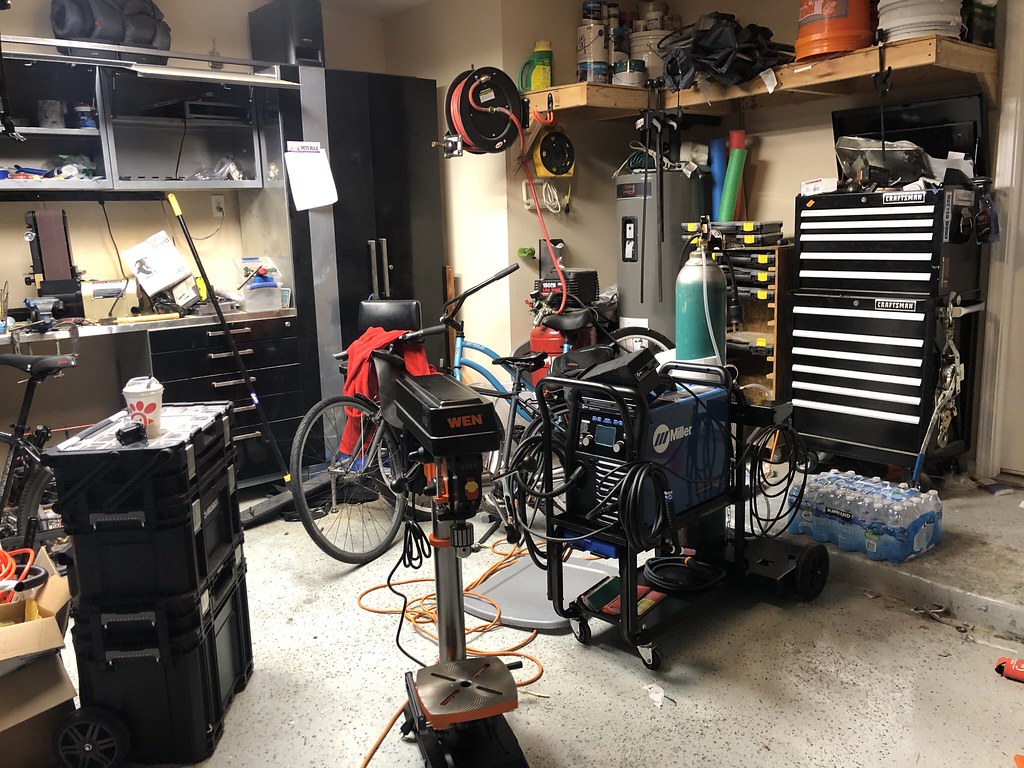

Progress on the home shop is making way! I have most of the garage cleaned out from junk, got the welder and cart put together
Untitled by Grant Wilson, on Flickr

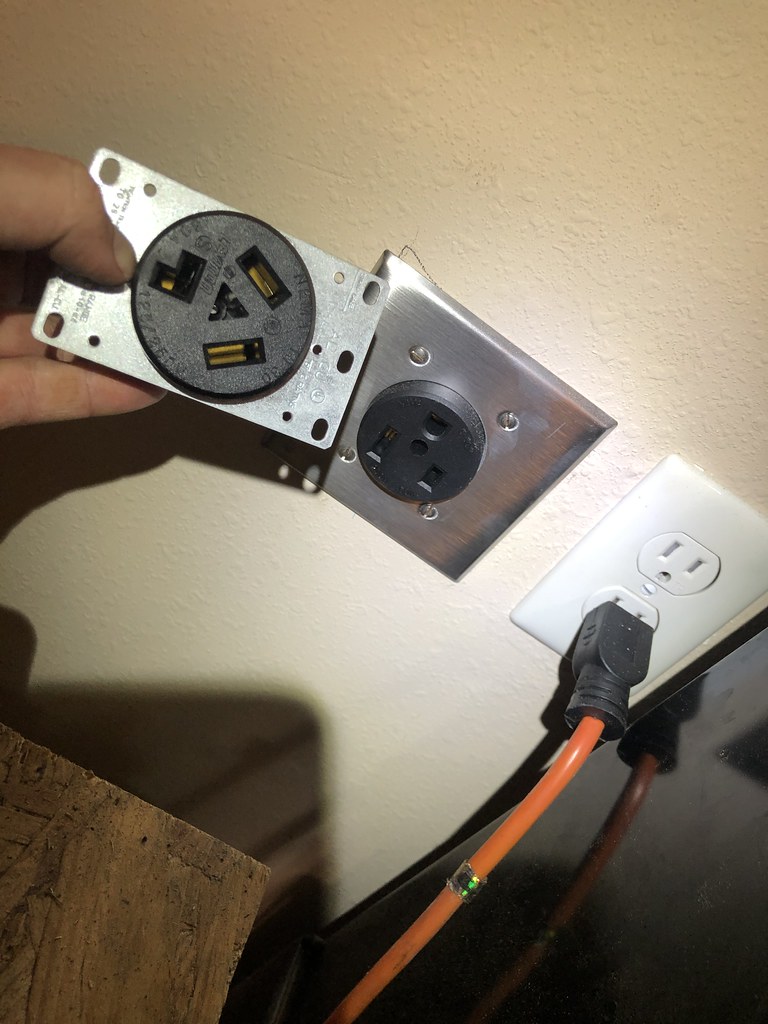

Changed out my plug i had put in when i bought the house, to the correct one for the welder!
Untitled by Grant Wilson, on Flickr

(installed one is right)

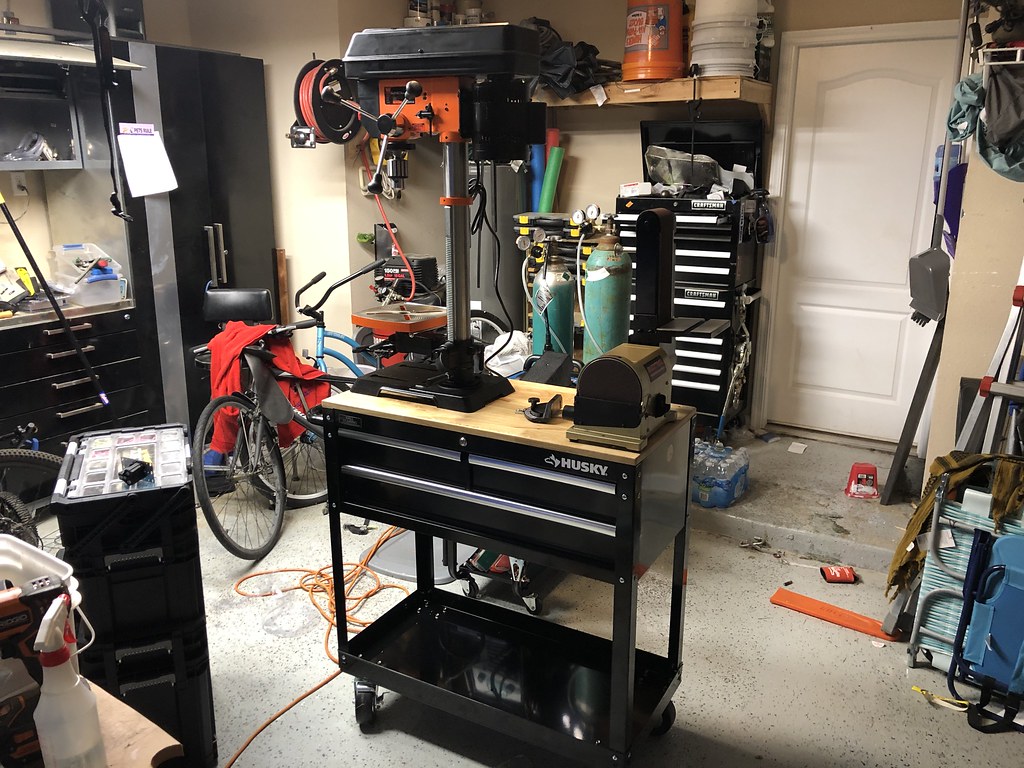

Then the tool cart came in, this will house my drill press and sanding station. Everything has to be on wheels in such a small space so i can actually use the space.
Untitled by Grant Wilson, on Flickr

And I also got about 3/4 of the way done with my welding table!
2x2x2/16 base

3/8 plate top

4x6 size

Casters will be installed today, and the top dropped on as well. Then its home to the shop.
Today and tomorrow I hope to have most everything done, and start actually setting the garage up and maybe make something.
I got argon for the tig, an extension cord that will be here friday that will allow me to use the welder in the driveway if i had to as well. Slowly but surely I am working my way to independence from the main shop at work when they have larger projects that take up the work space

  • Like
Reactions: Overland_Mitsu and adventure_is_necessary
blackntan

blackntan

Rank V
Launch Member

Pathfinder I

2,271
Uk. 53.4084 N 2 .9916W.
First Name
Black
Last Name
Tan
Member #

2385

Service Branch
Boys brigade
:wink:Been watching this thred As i do mine grant more hands on thou, Looking better by the week grant what kind of MPH achieving Grant

blackntan

blackntan

Rank V
Launch Member

Pathfinder I

2,271
Uk. 53.4084 N 2 .9916W.
First Name
Black
Last Name
Tan
Member #

2385

Service Branch
Boys brigade
grantwilson said:
82-8500 based on whats in it
Click to expand...
That sounds ok as you have a lot of steel on the bumpers , Were govened over here re bar work and add ons. Have to be carefull on the wight ,
Ive posted pics on my build take a butches and give me your thoughts amigo

MercedesOvrLnd

MercedesOvrLnd

Rank I
Launch Member

Traveler I

233
Omaha, NE, USA
Member #

15384

WOW, great build. Glad to see im not the only one building a Mercedes. The 4x4 sprinters are way cool. I just started building my little ML this for Overlanding. Zero aftermarket parts for these so everything has to be custom.

Great job.
