When I first started this project the plan was to just build a nice restomod/daily, but then it snowballed...

Started with a cheap 1967 c10 and a 2002 duramax that I rolled. I chopped 26 inches out of the chassis and welded it back together with a fish plate on the outside and c channel on the inside. Sat the cab and box on the chassis just sitting on 2x4s
View attachment 79561

Took it back apart to try and straighten the control arm mounts as they were twisted but the frame rails measured square and this is when it snowballs. The mounts were to too twisted to make it worth messing with. With all the broken junk I was with in $1000 of just doing an sas so off came the ifs.
View attachment 79562

And on went the WFO 3 inch sas kit.
View attachment 79564
View attachment 79566
View attachment 79563View attachment 79565

Engine/trans/tcase reinstalled
View attachment 79567

Currently working on body work and engine/chassis wiring.
View attachment 79568View attachment 79569
.

Dang, man. I had a '67 C10 with the small window in back I wish I still had to do this with. I run a 6.6 Duramax in my '08 Savana van and have over 410,000 miles on it and would love to have something like that in a pickup just for camping and wandering.

Looking forward to seeing what else you do here. I come through North Dakota every once in a blue moon if you ever want to meet up.

~ Road

.

  • Like
Reactions: Boepeep

Boepeep

Rank 0

Contributor I

Body work done and primed at this point. Interior, engine bay, and between the cab and bed were painted, sanded and polished at this point. View attachment 195340
In paint, managed to mess it up real good and had to do a ton of wet sanding and polishing
View attachment 195341

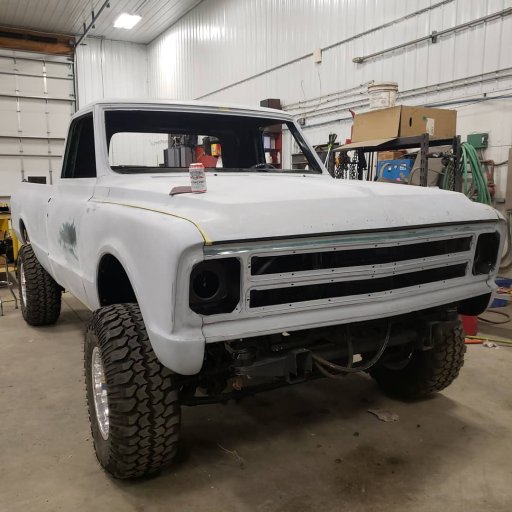

Shined up and trim on, mocking up a 72 bumper. Going to mount some Baja designs less in the holes eventually
View attachment 195342
Lights wired up! Using Amber round lights mounted in place of the reflectors for my turns to simplify using the 02 harness.


Electric windows mocked up. I still have to swap out to new glass as the original glass has some bad scratches


Headlights and DRL/turns working! Gm switches the hi/low beams with the ground on the 02 trucks so to make the leds work I used the ground signal on a pair of 30 amp relays to power the leds, high beam signal is wires up to ground both relays so I have full power with highs

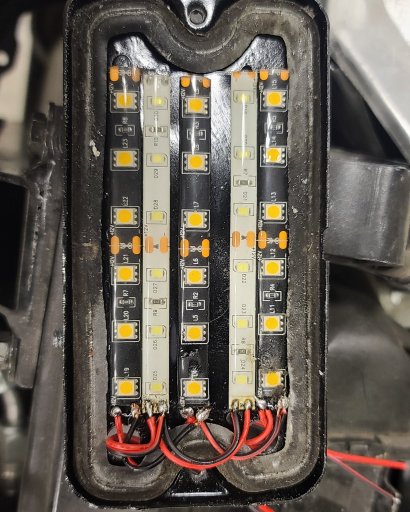

Made my own drls/turns
View attachment 195343
View attachment 195349

Bed liner
View attachment 195350

Dash mocked up, still working on wiring stuff up. I'm using a onegauge system for my main gauges and some glow shift gauges for egt and boost. Light switch and push button 4x4 on either side. Built it out of a glove box door, probably only going to be temporary as I'd like to ditch the gmt800 switches at some point.
View attachment 195351

Radio mounted up, using a kicker marine radio with amps mounted behind the seat to run the ChanelView attachment 195372

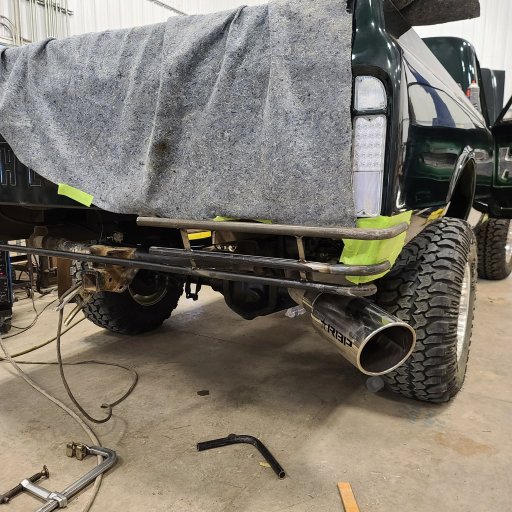

Rear bumper build. Irrigation pipe and flat iron lol
View attachment 195374
View attachment 195375
View attachment 195376

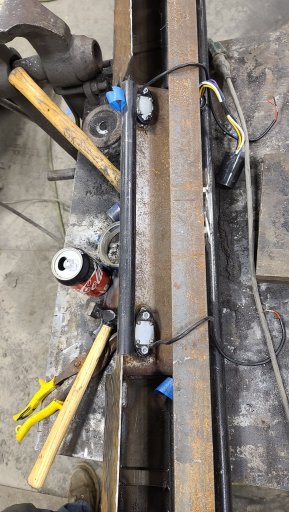

Flush mounted rock lights for extra reverse lights
View attachment 195377
View attachment 195378

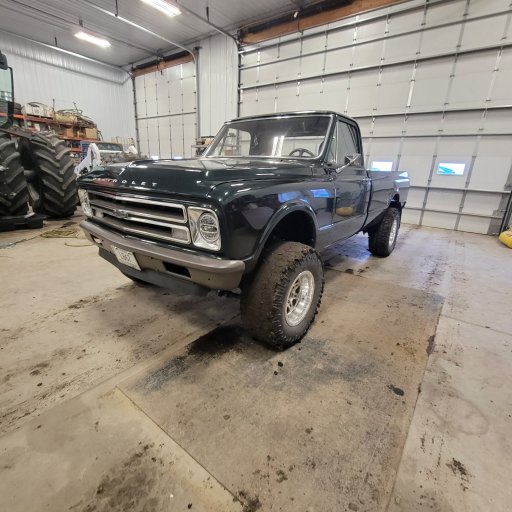

As it sits now after it's first drive with the tunes loaded. Kept blowing off the hot side intercooler boot but other then that it went well. Pretty much just have to finish up the interior and drive it to find the minor issues and fix them.
View attachment 195379
