What is the best way to water proof my roof mounted lighting harness?

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!
  • HTML tutorial

GreenKoala

Rank II
Member
Adventure

Traveler III

327
California, USA
First Name
Jazmine
Last Name
Diaz
Member #

28814

I am looking to mount some lights to the roof rack, but I'm concerned about water entering the cab through the hole for wiring harness. I have not drilled, yet, so my plans are fluid. (hehe) Any advice on how to not mess this up would be appreciated. I'm very new to this.


leeloo

Rank V
Member

Member III

1,473
Luxembourg
First Name
Mihai
Last Name
Doros
Member #

19403

You use some rubber gromets that you grease a bit as well.
You find all kind of assortments on amazon.
If you need to install some kind of plug outside the the vehicle, or someplace exposed to rain, dust etc., best is to use a deutch plug, much better than anderson plugs when the connection is exposed to the elements..


NCFireGuy

Rank III
Member
Adventure

Influencer III

838
West Jefferson, North Carolina, USA
First Name
Marc
Last Name
Bouchard
Member #

29282

Service Branch
Retired Fire/EMS
I am looking to mount some lights to the roof rack, but I'm concerned about water entering the cab through the hole for wiring harness. I have not drilled, yet, so my plans are fluid. (hehe) Any advice on how to not mess this up would be appreciated. I'm very new to this.
Because I have a RAM I replaced the Satellite through roof system with Link Solar Weatherproof ABS Solar Double Cable Entry Gland for All Cable Types 2mm² to 6mm² for Solar Project on Rv, Campervan, Boat


MidOH

Rank IV

Off-Road Ranger I

1,298
Mid Ohio
First Name
John
Last Name
Clark
Ham Callsign
YourHighness
GE clear silicone caulk.

Not as fancy as RV or marine caulk, but works and is available everywhere.


smritte

Rank V
Member

Member III

2,827
Ontario California
First Name
Scott
Last Name
.
Member #

8846

Ham Callsign
KO6BI
Gland nuts. I use these for anything I need to feed through. Size them correctly and they don't leak. If you look hard enough they make them with a 90 degree end.
The link is just to show what they are.

  • Like
  • Love
Reactions: velo47 and M Rose

reaver

Rank V
Member

Traveler III

1,674
Caldwell, ID, USA
First Name
Brian
Last Name
McGahuey
Member #

23711

Ham Callsign
GMRS WRMV941
GE clear silicone caulk.

Not as fancy as RV or marine caulk, but works and is available everywhere.
I've been informed that silicone on bare metal will cause it to rust (water or not), and fairly quickly.

I will second using a waterproof plug on the outside of the vehicle though.

  • Like
Reactions: MidOH

MidOH

Rank IV

Off-Road Ranger I

1,298
Mid Ohio
First Name
John
Last Name
Clark
Ham Callsign
YourHighness
Well, paint it first.


Consider a plug, that's sealed with Ptex or silicone.


Pathfinder I

I am looking to mount some lights to the roof rack, but I'm concerned about water entering the cab through the hole for wiring harness. I have not drilled, yet, so my plans are fluid. (hehe) Any advice on how to not mess this up would be appreciated. I'm very new to this.
Can you run the harness out thru the engine bay up the side of the windshield? Most have room between the glass and body, use 3M tape to secure.


MOAK

Rank V
Member

Member II

2,835
Wernersville, PA, USA
First Name
Donald
Last Name
Diehl
Member #

0745

Here’s the thing; the OP admits to being new at this and seeks advice. Well, I’m old at this and have ran a multitude of vehicles over the past 45 plus years. There in one thing I have never done. I’ve never drilled a hole in the roof of any vehicle. Lights up on the racks look cool. I had em up top on a couple of vehicles, however, as I recall, I didn’t care for them and soon moved them down on the front bumper. If you do insist on mounting them up top, I suggest finding a way to go down through the floor boards, then up the outside of the vehicle. Better yet, if you end up still having to drill through your roof, pay the money and hire a pro to do it. If it leaks it’s guaranteed. Then again, if you live in the southwest a leaking roof can’t be all bad as it very rarely rains there.


MMc

Rank V

Influencer II

1,749
San Dimas, Ca.
First Name
Mike
Last Name
McMullen
Member #

18647

I am looking to mount some lights to the roof rack, but I'm concerned about water entering the cab through the hole for wiring harness. I have not drilled, yet, so my plans are fluid. (hehe) Any advice on how to not mess this up would be appreciated. I'm very new to this.
Good to hear from you, we at the meet up! ( I have the big grey stash) I would mount the lights up front. The overhead lights tend to shine on the windshield and hood. With them up front you are driving behind them without the glare. Maybe ask the guys at Expo pick up Subi after parts vendors for you!
Is there a bull ball or bumper replacement for the Subi. The overheads look cool but not the best for driving.


smritte

Rank V
Member

Member III

2,827
Ontario California
First Name
Scott
Last Name
.
Member #

8846

Ham Callsign
KO6BI
I removed my factory roof rack and used a couple of mounting holes from the factory nut serts. I have a power feed and two coax. I sized the gland nuts to match the existing holes that way "if" I ever wanted to remove them I just reinstall a nut sert.
Looking back I should have just cut a hole, used a 90 degree fitting and called it good.

In my profession, I have had to drill a whole bunch of holes in vehicles mostly for roof racks. I have a set of special hole saws just for that. If you use a drill bit with a stop (so it doesn't go deep), the bit will drill an oblong hole. Now you have sealing issues.
This isnt the brand I have but they look like this Hole Saw
You can also drill then open it one size with a Step Bit.
You need to make sure you have enough room to de burr the inside with any type of drill bit.

  • Like
Reactions: velo47 and MOAK

MOAK

Rank V
Member

Member II

2,835
Wernersville, PA, USA
First Name
Donald
Last Name
Diehl
Member #

0745

I removed my factory roof rack and used a couple of mounting holes from the factory nut serts. I have a power feed and two coax. I sized the gland nuts to match the existing holes that way "if" I ever wanted to remove them I just reinstall a nut sert.
Looking back I should have just cut a hole, used a 90 degree fitting and called it good.

In my profession, I have had to drill a whole bunch of holes in vehicles mostly for roof racks. I have a set of special hole saws just for that. If you use a drill bit with a stop (so it doesn't go deep), the bit will drill an oblong hole. Now you have sealing issues.
This isnt the brand I have but they look like this Hole Saw
You can also drill then open it one size with a Step Bit.
You need to make sure you have enough room to de burr the inside with any type of drill bit.
Words from a pro


velo47

Rank VI
Member

Explorer III

3,059
Albuquerque, NM, USA
First Name
Matt
Last Name
Harland
Member #

21731

Ham Callsign
W3TAX
Gland nuts. I use these for anything I need to feed through. Size them correctly and they don't leak. If you look hard enough they make them with a 90 degree end.
The link is just to show what they are.
These are the way to go if you need to put a hole in the roof. And definitely take his advice on drilling, too.


Road

Not into ranks, titles or points.
Member

Advocate III

3,379
On the road in North America
First Name
Road
Last Name
Dude
Member #

6589

.
If you must go through the roof of your vehicle, RV, hardshell RTT, etc, gland nuts are great, as mentioned above.

Even better in most applications are entry cable glands; gland nuts enclosed in an entry that allows the gland nut(s) to be at a right angle to the mounting surface and further protects the hole itself from ingress of any weather. I'm using these on my van and hardshell. I point the entry to the rear of the vehicle or trailer. Excellent solution, professional looking, and long-lived.

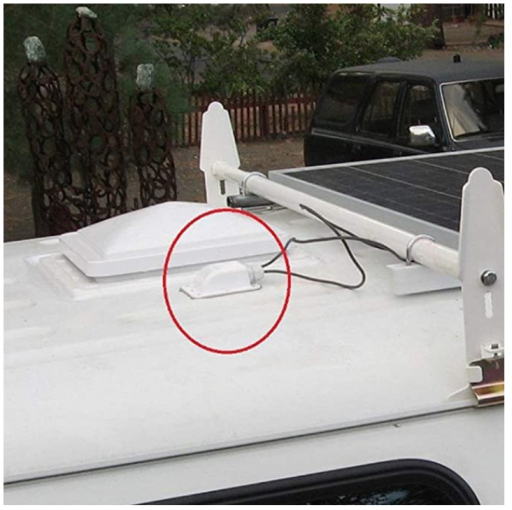

Screen Shot 2021-10-03 at 12.02.54.png
(not my roof, though shows a good installation)

Most of us can use either a single or double, and they often come in white, gray, or black. Best suited to round wiring and cables.

Here's a whole page from which to choose: Entry Cable Glands

Be patient, know where your wiring will be routed inside, and figure it all out before drilling.

Good luck with your project.
.
