Traction board mounts?

  • HTML tutorial

scottoffroad

Rank VI
Member

Influencer I

3,806
Grand Island, Nebraska
First Name
Scott
Last Name
Piercy
Member #

14473

Santa Wife was great to me this year...can you say traction boards ;) Now the question is how to mount them? What have you done on your rigs...More specifically Jeep Wranglers or mounts on the spair tire/tailgate area. TIA


Matoolie

Rank III
Member

Enthusiast II

509
Virginia
First Name
Michael
Last Name
Allen
Member #

20828

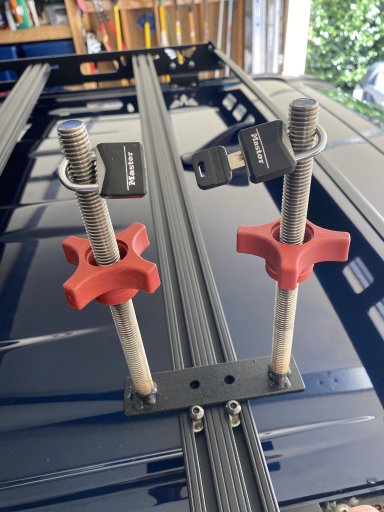

Not tire carrier, but maybe some food for thought. Custom board mounts secured to rack crossbars. Board mounts are made from stainless all-thread welded to plates. Knobs tightened down on boards to secure them. All-threads long enough for stack of up to 4 boards. Then a simple padlock at top of all-threads to keep honest people honest, not a serious theft deterrent for true misfits. one mount at each end of boards, and 1 knob on each mount even though pic shows both on one single mount. Overall much cheaper than purchased options, though slower to remove boards as have to unscrew knobs.

Last edited:

TheBison

Rank IV
Member
Adventure

Pathfinder II

1,345
Hartsel, CO
First Name
Brian
Last Name
Foltz
Member #

27816

Ham Callsign
AA0BF
Service Branch
U.S. Army
Not tire carrier, but maybe some food for thought. Custom board mounts secured to rack crossbars. Board mounts are made from stainless all-thread welded to plates. Knobs tightened down on boards to secure them. All-threads long enough for stack of up to 4 boards. Then a simple padlock at top of all-threads to keep honest people honest, not a serious theft deterrent for true misfits. one mount at each end of boards, and 1 knob on each mount even though pic shows both on one single mount. Overall much cheaper than purchased options, though slower to remove boards as have to unscrew knobs.
View attachment 219361
I did something similar, with 1/4-20 threaded rod through my roof rack cross bars and plastic knobs from the local Ace Hardware to secure the boards down. I used a spare gun cable lock threaded through the four boards for modest security.

  • Like
Reactions: Desert Runner

NMBruce

Rank V
Member
Adventure

Advocate II

1,808
Pagosa Springs, CO, USA
First Name
Bruce
Last Name
Cooper
Member #

27527

Ham Callsign
KE0NBD
Service Branch
U.S. Air Force
Not tire carrier, but maybe some food for thought. Custom board mounts secured to rack crossbars. Board mounts are made from stainless all-thread welded to plates. Knobs tightened down on boards to secure them. All-threads long enough for stack of up to 4 boards. Then a simple padlock at top of all-threads to keep honest people honest, not a serious theft deterrent for true misfits. one mount at each end of boards, and 1 knob on each mount even though pic shows both on one single mount. Overall much cheaper than purchased options, though slower to remove boards as have to unscrew knobs.
View attachment 219361
nice. What size bolts?

I need to make some for my half bed rack.


trail_runn4r

US Rocky Mtn. Member Rep. Colorado: Denver Area
Member
Expedition

Advocate I

4,678
Denver, CO, USA
First Name
Carlo
Last Name
Donzelli
Member #

16845

Santa Wife was great to me this year...can you say traction boards ;) Now the question is how to mount them? What have you done on your rigs...More specifically Jeep Wranglers or mounts on the spair tire/tailgate area. TIA

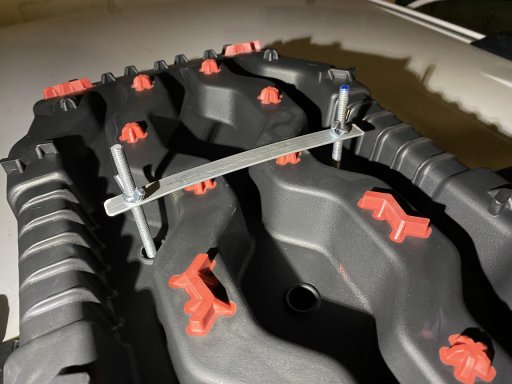

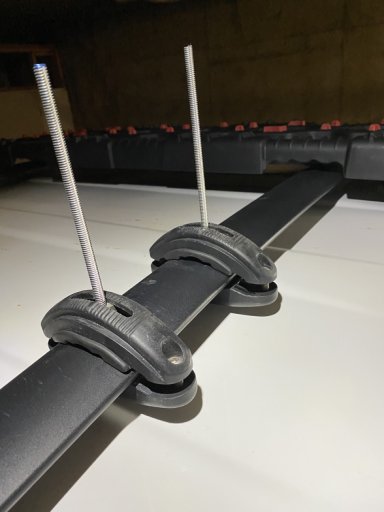

Went I didn't have a rack, I re-used some old yakima ski rack mounts with stock crossbars.
IMG_1821 Large.jpeg
IMG_1830 Large.jpeg
IMG_1833 Large.jpeg

If you want to mount them to the spare tire, you can buy some specific mounts or may try with 1 or 2 ratchet straps!


Matoolie

Rank III
Member

Enthusiast II

509
Virginia
First Name
Michael
Last Name
Allen
Member #

20828

nice. What size bolts?

I need to make some for my half bed rack.
1/2”-13 as that is largest would easily fit through holes in my particular boards. I wanted to use largest bolt I could for sturdiness. And length will vary depending on your boards and number of them.

  • Like
Reactions: NMBruce

NMBruce

Rank V
Member
Adventure

Advocate II

1,808
Pagosa Springs, CO, USA
First Name
Bruce
Last Name
Cooper
Member #

27527

Ham Callsign
KE0NBD
Service Branch
U.S. Air Force
1/2”-13 as that is largest would easily fit through holes in my particular boards. I wanted to use largest bolt I could for sturdiness. And length will vary depending on your boards and number of them.

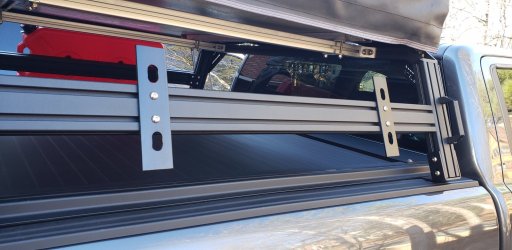

Thanks, I two different types of boards (2each), one set came with buying my Ironman suspension, so I will only mount 2 on the side until I can get 2 more of the same. But I also hope I will also use this for mounting my axe, shovel on the other side.


Attachments

  • Like
Reactions: Matoolie

MOAK

Rank V
Member

Member II

2,835
Wernersville, PA, USA
First Name
Donald
Last Name
Diehl
Member #

0745

I just use a cut to length ratchet strap securing a pair on the racks right behind the solar panel. Easy to deploy and easy to ratchet back down. If your not at least 7’ tall they are nearly impossible to see, tucked between the panel & gear boxes.. 68D1995A-C5FF-4B24-A68D-5899E08EA2E0.jpeg

  • Like
Reactions: El-Dracho

Speric

Rank V
Member

Off-Road Ranger I

2,439
Santa Rosa, CA, USA
First Name
Eric
Last Name
Speric
Member #

18037

Ham Callsign
KN6SCT

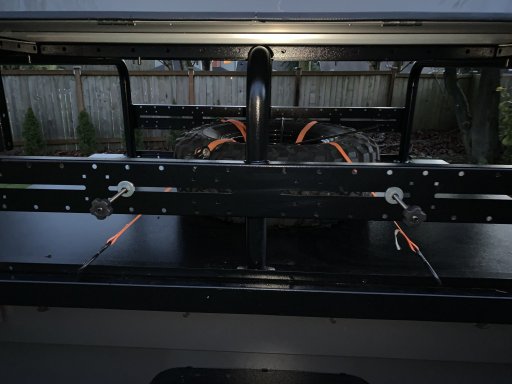

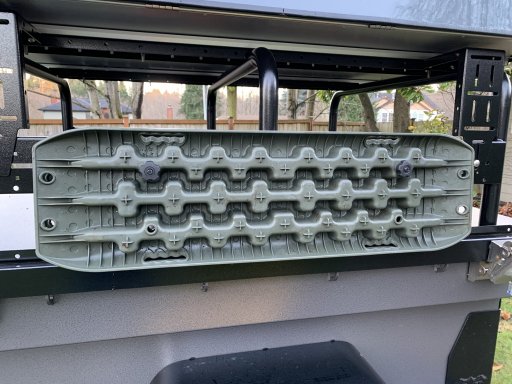

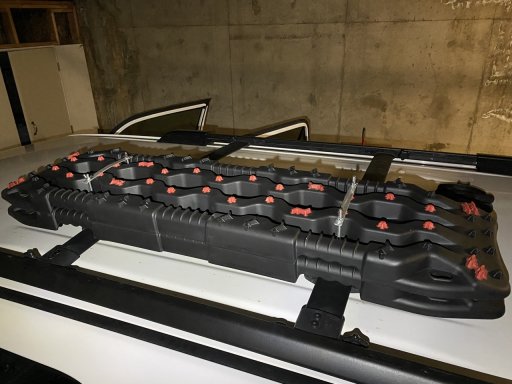

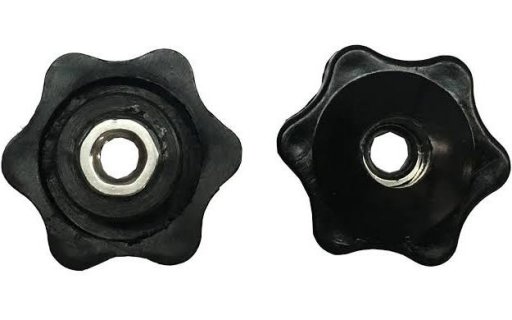

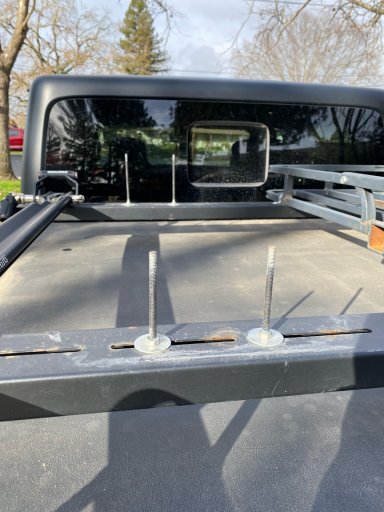

My solution is a lot like the others. A couple of long bolts that fit the channels of my racks, and a couple of large plastic knobs. I did try wing nuts at first, then discovered what a pain they were to twist off in the snow when your fingers are cold, and an even bigger pain to look for when they fell into the snow. All in all about $10.


Attachments

  • Like
Reactions: Advtres

genocache

Rank V
Member

Advocate I

1,872
Boulder Creek, CA, USA
First Name
gene
Last Name
L
Member #

24181

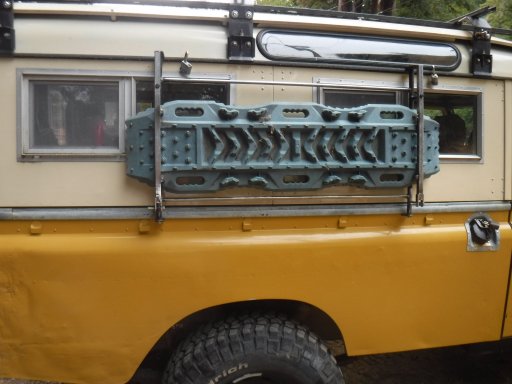

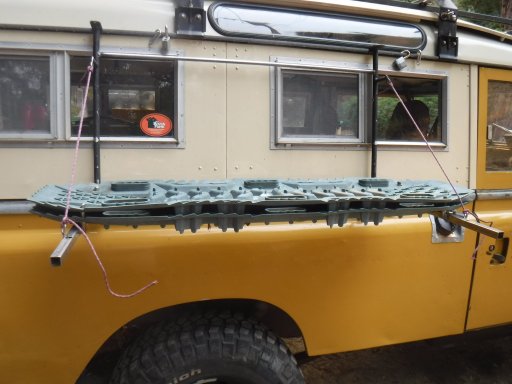

I mounted mine on the side and they fold down for tables;



Attachments

scottoffroad

Rank VI
Member

Influencer I

3,806
Grand Island, Nebraska
First Name
Scott
Last Name
Piercy
Member #

14473

Those are some great ideas...and good looking rigs. I may use some if the ideas and make my own rack. The issue I am having is a total lack of a roof rack, and swingout tire carrier to mount to. Currently mine are setting in the cargo area with the seats folded down.


Dcwn.45

Rank IV
Member
Adventure

Member I

1,338
Minnesota
First Name
David
Last Name
Nyman
Member #

30299

Ham Callsign
KF0GNE
I have a pair of gen 1 Treds and I have the Tred mounting plate, but I don’t like it, while it holds the boards fine and can take a small padlock, the knobs that screw on have super fine threads and are hard to operate. Also they require regular anti seize or they will be stuck.
There is also the issue of not losing the knobs in whatever I’m stuck in necessitating use of them!
I have a trip planned in February which I’m bringing 2 paddle boards, so roof space is at a premium so I’m going to strap them to my roof box (Pelican copy) with 2 Rok straps.
I have thought about making a mount to hold them vertically but I haven’t come up with a system to attach them without the stupid knobs
maybe just the studs to locate and support them and the straps to keep them there?
Hmmmm


Dcwn.45

Rank IV
Member
Adventure

Member I

1,338
Minnesota
First Name
David
Last Name
Nyman
Member #

30299

Ham Callsign
KF0GNE

I may do something like this only vertically to save space.


GLOCKer

Rank IV

Pathfinder II

1,209
Marietta, Georgia, USA
First Name
John
Last Name
Battersby

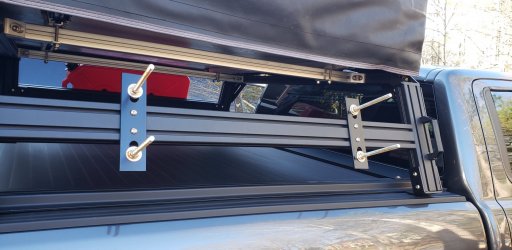

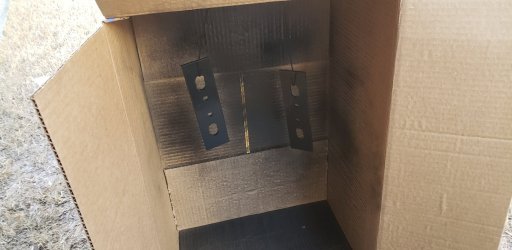

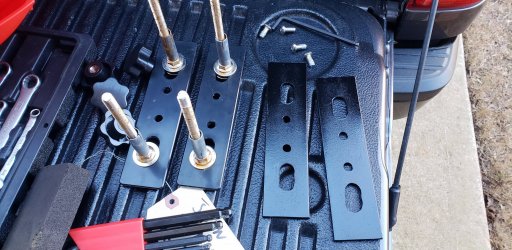

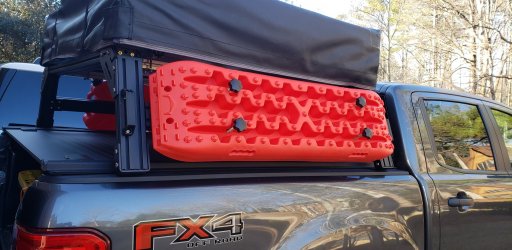

I got a buddy of mine who owns a steel supply and structural fabrication business to get one of his guys to punch some holes in some flat steel for me. I painted it and ran some threaded rods through it with nuts, and it works PERFECT! You could easily do this with aluminum easily purchased from Home Depot or Lowes. Same for the threaded rod and nuts. :D
2021-01-04 15.01.00.jpg
2021-01-04 15.20.20-1.jpg
2021-01-04 15.21.59.jpg
2021-01-04 15.29.24.jpg
2021-01-04 15.34.45.jpg

  • Like
Reactions: NMBruce

Dcwn.45

Rank IV
Member
Adventure

Member I

1,338
Minnesota
First Name
David
Last Name
Nyman
Member #

30299

Ham Callsign
KF0GNE
I have mine roof mounted on my 4Runner, and the thing I’m struggling with is what to do with the knobs when I need the boards, I don’t want to drop them in the mud or snow.
I want quick access without small parts to keep track of.


scottoffroad

Rank VI
Member

Influencer I

3,806
Grand Island, Nebraska
First Name
Scott
Last Name
Piercy
Member #

14473

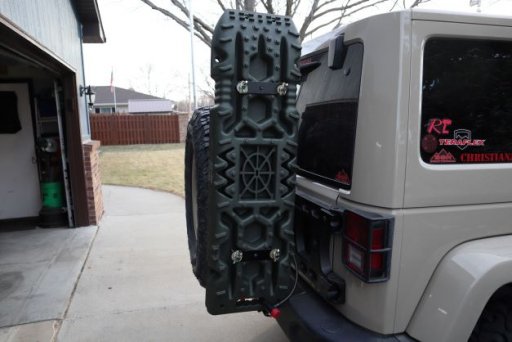

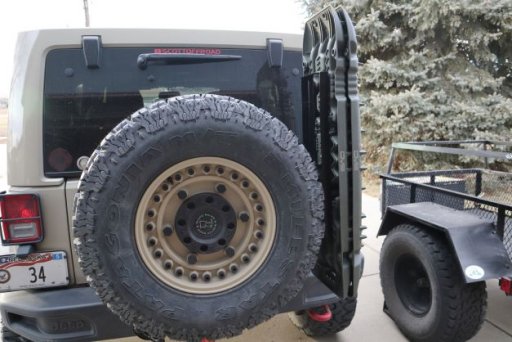

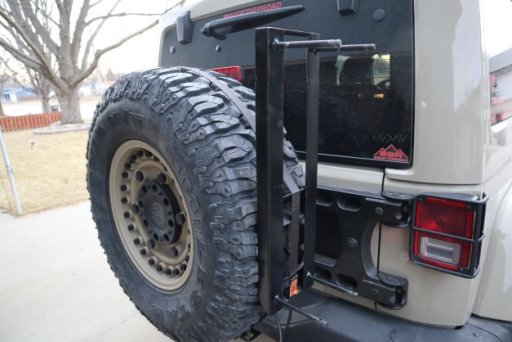

Well I dug through my metal scrap bin. Found a old bed frame, and chunk of angle iron. Ran to the home supply store and bought some All-Thread a couple of wing nuts catch pins and a ratchet strap. All in $20.00 (actually $35 because the ratchet strap was a 2 pack at $25...but since I only used 1 I am claiming 12.50) All in all I am pretty happy. Will be posting a video in a couple of weeks on my YouTube Channel "ScottOffRoad"


Attachments

  • Like
Reactions: 64Trvlr and Shahn
