Very good idea.
Already thank you for lighten the problem with my Visco coupling of the Jeep Liberty. I knew it was broken, what I didnt knew was that is is a problem that occurs more often.
So, my descision to have my now fixated visco coupling as a spare in the car is a good idea.
Thank you Tobias.

Last edited:

TangoRomeo7688

Rank II

Enthusiast III

473
Wadern, Deutschland
First Name
Tobias
Last Name
Ripperger
You should visit Rockauto shop.

The parts are much much cheaper directly from US, inlcuding shipping and taxes. FedEx delivers within 3-4 days.
If any OEM numbers are needed to compare, I can help out.

  • Like
Reactions: MazeVX

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Thank you, I found it this time too late, but that is one I will notice for the next time. Hopefully not next week, hehehe.


John Bishop

Rank V
Launch Member

Advocate I

1,451
Harpers Ferry, WV, USA
First Name
John
Last Name
Bishop
Member #

17942

I’m contending with a recent development on my ‘17 JKU w/ Ursa Minor top of the dreaded front door water leaks.
I’ve watched a few ewetoober videos of their solutions to the ambiguous cause. I’ve tried a couple of things, without any real progress. Seems a lot depends on how it’s parked.

Thoughts?


TangoRomeo7688

Rank II

Enthusiast III

473
Wadern, Deutschland
First Name
Tobias
Last Name
Ripperger
@John Bishop
Well, the Ursa Minor top is absolutely rare here in Germany, I just saw it once my life in real, on a LR Defender, not a Wrangler.

From what I can tell you with OEM hardtop: There are several reasons, causing water leaks to the interior. The flimsy pads on the freedom panels, weak sealings, doors installed too loose.

Maybe the attached file helps you finding the leaking.


Best regards

Tobias


Attachments

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Trouble today with my Jeep Liberty
first code P0301 and P0306 and the P0300
Found the definition of the code and Luckely not the head gasket.
I drove the car home on 4 cylinders and took the other car.
When I came home at the end of the day I tried again the car and there was no problem. Just the codes which I read through OBD2 with Torque (app)
I will check tomorrow my spark plugs and wiring. I hope I can find something, because then I can solve it.
Everything else in the list was;
P0301 JEEP Possible Causes
What does this mean?
  • Faulty spark plug 1
  • Clogged or faulty fuel injector 1
  • Faulty ignition coil 1
  • Fuel injector 1 harness is open or shorted
  • Fuel injector 1 circuit poor electrical connection
  • Ignition coil 1 harness is open or shorted
  • Ignition coil 1 circuit poor electrical connection
  • Insufficient cylinder 1 compression
  • Incorrect fuel pressure
  • Intake air leak
So will check all the electrical as well.
Hope that I wont have that problem again.


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Did check for loose stuff. The only thing I found was at cylinder 6 the spark plug was wet and the spark plug cap was wet.
So I cleaned it, at this moment no problem. Need to do a test drive. Maybe this evening.


TangoRomeo7688

Rank II

Enthusiast III

473
Wadern, Deutschland
First Name
Tobias
Last Name
Ripperger
Trouble today with my Jeep Liberty
first code P0301 and P0306 and the P0300
Found the definition of the code and Luckely not the head gasket.
I drove the car home on 4 cylinders and took the other car.
When I came home at the end of the day I tried again the car and there was no problem. Just the codes which I read through OBD2 with Torque (app)
I will check tomorrow my spark plugs and wiring. I hope I can find something, because then I can solve it.
Everything else in the list was;
P0301 JEEP Possible Causes
What does this mean?
  • Faulty spark plug 1
  • Clogged or faulty fuel injector 1
  • Faulty ignition coil 1
  • Fuel injector 1 harness is open or shorted
  • Fuel injector 1 circuit poor electrical connection
  • Ignition coil 1 harness is open or shorted
  • Ignition coil 1 circuit poor electrical connection
  • Insufficient cylinder 1 compression
  • Incorrect fuel pressure
  • Intake air leak
So will check all the electrical as well.
Hope that I wont have that problem again.
Unfortunately, I could not find any more information about this DTC than you already did without having the car here.

P0301 means: Misfire Cly.1
P0306 means: Misfire Cyl.6
P0300 means: Multiple Cly. Misfires

When were the spar plugs changed? Maybe you can check this:

IGNITION COIL RESISTANCE - 3.7L V-6
PRIMARY RESISTANCE 21-27°C (70-80°F) 0.6 - 0.9 Ohms
SECONDARY RESISTANCE 21-27°C (70-80°F) 6,000 - 9,000 Ohms

ENGINE PLUG TYPE ELECTRODE GAP
3.7L V-6 2FR6F - 11G (NGK #) 1.1 mm (0.042 in.)

3.7L Battery voltage is supplied to the 6 ignition coils from the ASD relay. The Powertrain Control Module (PCM) opens and closes each ignition coil ground circuit at a determined time for ignition coil operation. Base ignition timing is not adjustable. By controlling the coil ground circuit, the PCM is able to set the base timing and adjust the ignition timing advance. This is done to meet changing engine operating conditions. The ignition coil is not oil filled. The windings are embedded in an epoxy compound. This provides heat and vibration resistance that allows the ignition coil to be mounted on the engine. Because of coil design, spark plug cables (secondary cables) are not used with the 3.7L engine.

An individual ignition coil is used for each spark plug (Fig. 19). The coil fits into machined holes in the cylinder head. A mounting stud/nut secures each coil to the top of the intake manifold (Fig. 18). The bottom of the coil is equipped with a rubber boot to seal the spark plug to the coil. Inside each rubber boot is a spring. The spring is used for a mechanical contact between the coil and the top of the spark plug. These rubber boots and springs are a permanent part of the coil and are not serviced separately. An o-ring (Fig. 19) is used to seal the coil at the opening into the cylinder head. (1) Depending on which coil is being removed, the throttle body air intake tube or intake box may need to be removed to gain access to coil. (2) Disconnect electrical connector from coil by pushing downward on release lock on top of connector and pull connector from coil. (3) Clean area at base of coil with compressed air before removal. (4) Remove coil mounting nut from mounting stud (Fig. 18). (5) Carefully pull up coil from cylinder head opening with a slight twisting action. (6) Remove coil from vehicle.

IGNITION COIL CAPACITOR DESCRIPTION One coil capacitor is used. It is located in the engine compartment and attached (clipped) to a wiring trough near the brake power booster. OPERATION The coil capacitor(s) help dampen the amount of conducted electrical noise to the camshaft position sensor, crankshaft position sensor, and throttle position sensor. This noise is generated on the 12V supply wire to the ignition coils and fuel injectors. REMOVAL The coil capacitor is located in the engine compartment and is attached (clipped) to a wiring harness trough near the brake power booster (graphic not available). (1) Unclip capacitor from wiring harness trough. (2) Disconnect electrical connector at capacitor. INSTALLATION (1) Connect electrical connector to coil capacitor. (2) Position capacitor into v-clip on wiring harness trough.


CAMSHAFT POSITION SENSOR DESCRIPTION The camshaft position (CMP) sensor is mounted in the top of cylinder head cover/intake manifold at the rear of the engine (Fig. 1) (Fig. 2) The CMP sensor is a hall effect device. OPERATION The CMP sensor is a hall effect switch. A tooth made of a ferromagnetic material is attached to the camshaft. When this tooth passes the CMP sensor an lectronic signal is created. This signal is then sent to the engine control module (ECM). This signal is used by the ECM to determine which cylinder has just entered its compression phase.


Maybe you can check first all plugs and check if every O-ring sealing is okay ( cause you said there was water in it ).-


Best regards

Tobias


Attachments

Last edited:
  • Like
Reactions: Robert OB 33/48

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Hello Tobias,

Thank you so much.
Next week my car will go to the pre- TUV/MOT/APK.
Everything will be checked and also the compression will be checked on every cylinder.
During that we will check the O-rings and such for damage or just going old.

Thanks again.

  • Like
Reactions: El-Dracho

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Hello Tobias,

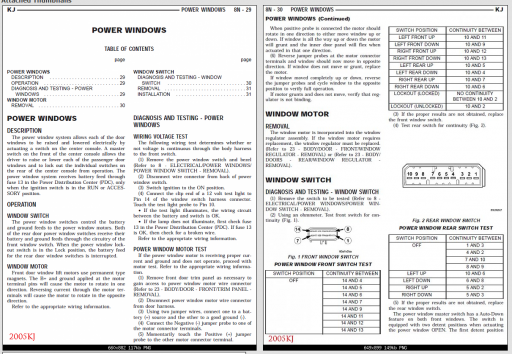

I have already a newer switch for my power windows Jeep KJ 2003.
Everything except the passenger door works fine.

now my investigation.
Checked the wires behind the switch and the down wire gives no light when a test lamp is connected to wire 13

I check boldy the motor with a batterie, not funny, but the motor goes up and down.
Then I checked the switch, it works when going up. It is not working when going down.
What can be the problem?

Thanks in advance.

Greetings from Robert


TangoRomeo7688

Rank II

Enthusiast III

473
Wadern, Deutschland
First Name
Tobias
Last Name
Ripperger
Hi Robert,

was the problem since chaning the switch?

Over the distance I can only say:

1. switch problem
2. wire problem

Maybe you can throw a flying line from switch to motor to check if it will work then. If not, it is a switch problem.

Greets

Tobias


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Problem was before
And there is no power on the wire straight behind the switch.
Will try the wiring.


El-Dracho

Ambassador, Europe
Moderator
Member
Supporter
Investor

Inventor I

13,232
Lampertheim, Germany
First Name
Bjoern
Last Name
Eldracher
Member #

20111

Ham/GMRS Callsign
DO3BE
Then I checked the switch, it works when going up. It is not working when going down.
What can be the problem?
Mmmhh, so you can close the window, but not open it. Maybe some kind of winter mode? Hahaha. Joking aside, could you open the switch? See the contacts? Maybe there is just something corroded over the years.


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Tomorrow I will have a tool to open the connector. taking out the mini connector. I think that could be the problem.

  • Like
Reactions: El-Dracho

Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Hello Tobias,

Well I opened the connector and with a bit of bending power was detected, but it didnt arrive at the motor. So the cable is faulty.
Then I made a flying cable and checked of power came through the connector.
Again, it did, so, connecting and no such thing as a movement.

So, I have to check the motor. I already found how to remove and mount that part, but the question is how can I check if the motor is good or faulty?

Thanks in advance.


Robert OB 33/48

Rank VI
Founder 500
Member

Pathfinder III

4,697
Gaanderen
First Name
Robert
Last Name
Keim
Member #

0033

Took the regulator out, checked it. just once it moved, then it stopped forever. So, I guess the motor is done for.
Strangely it still works to go up so one way. But I tried somethings to get it working again. No succes for now.

Think I need that one new as well.
