My take on a bed rack - now with 270 deg awning mount

  • HTML tutorial

Pyrotech

Rank V
Launch Member

Enthusiast III

1,808
Austin Texas
First Name
Chris
Last Name
Hanson
Ham/GMRS Callsign
KB9ZKI
Well.. getting a couple steps closer.

I finally got the right die set


Then then found out that I got the wrong tube the steel yard gave me 2" instead of the 1.75".. minor delay while they order in the right stuff this time.
Expensive stuff... there was a couple of.short pieces that will be used to practice bending the tube and probably get cut up to get some.pra rice welding tube. Along with slicing some off to get the right angle for the mounting of the bed brackets.

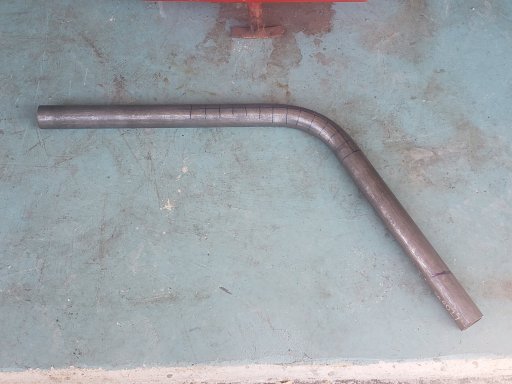

A test bend to verify angles and to help calculate the length of tube needed


During all.of this the cheap harbor freight ram blew a seal. So it will need to be replaced.

I am going to wait until the brain fog from the covid infection clears up before bending tube for real. Just to expensive to mess up and I rather not slug it if I can avoid it.


Pyrotech

Rank V
Launch Member

Enthusiast III

1,808
Austin Texas
First Name
Chris
Last Name
Hanson
Ham/GMRS Callsign
KB9ZKI
Made some progress this afternoon.. FINALLY!!!

First bed bar...

I spent part of the afternoon laying out the bed bars. Ran some numbers double checked numbers. And then ran the layout with a couple different versions of the numbers just to confirm I did in fact understand what was going on.

Once I confirmed my numbers for the layout . I broke the saw out and made the cut of no return. Layed out my reference lines and placed the tube into the bender and made the first bend.


The new "invisi-bender 9000" is so smooth like it’s not even there...

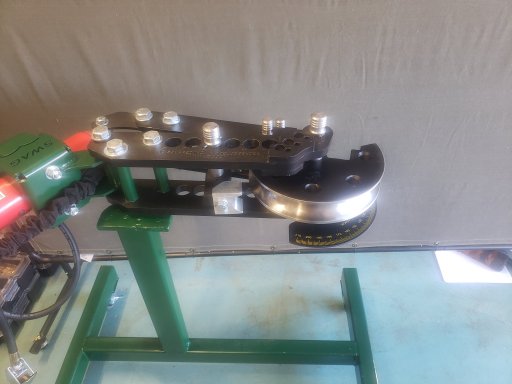

Took the picture after setting up the second bend. Since the tube was removed from the die to flip it around. You have to reset the tube to the same plane as the die.
