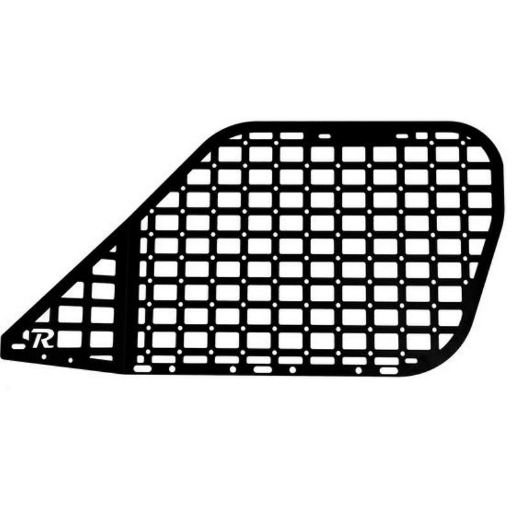

I'm interested in making my own molle panels.

Does anyone how the standard Sizing for the square holes for molle panels?

I believe the circled are 0.25in, but I can't seem to find information on the squares.

Thank you!

U

USStrongman

Rank V

Influencer II

1,596
Lubbock, TX, USA
First Name
Bryan
Last Name
Hildebrand
Member #

20099

Look at most straps. I have a BROC, Smitty, generic first aid and a SOG folding saw in a pich and all straps are roughly 3/4" wide.

S

Showmemuny

Rank II
Launch Member

Contributor III

327
Portland, OR, USA
First Name
Robert
Last Name
Munnerlyn
Member #

12301

MOLLE grids of webbing are 1 in wide webbing with 1.5 in spacing between each sewing point is the specifications.

  • Like
Reactions: jcx03
