I decided on adding a house battery, so I've ordered the following:

Renogy 20A DCDC Charger (would like to upgrade to Redarc 1225 in the future, but not in the budget now)
Odyssey PC1100
American Adventure Labs rear cargo bracket (Jeep JL)

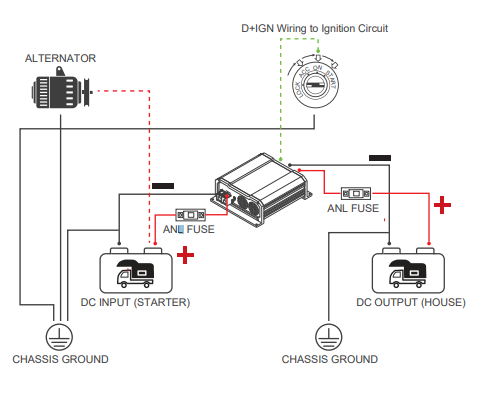

I was planning on a 70amp fuse and 4 gauge wire. Are ANL fuses ideal, or are there other types I should consider? I will be wiring as below. Anything I am missing? Any advice?
