DIY folks? what have you used for drawer sliders!?

  • Hi Guest, you may choose a LIGHT or DARK theme that works best for you with the "Style Chooser" button at the bottom left on this page!
  • HTML tutorial

Enthusiast III

792
Ontario, Canada
First Name
James
Last Name
Girard
Member #

0

Hello! I am in need of advice about drawer sliders. I plan on putting a slider in the back of my LJ with possibly another mounted above. I tend to have a roof basket mounted in the back and the cooler gets strapped to that with a CO2 tank and some clothes, underneath is usually spare parts, tools, water, fuel, and a quick grab bag.
I have been looking for some heavy duty sliders that can handle some weight and extend a good distance. Everything I see seems to be crazy expensive. Any suggestions are appreciated.

  • Like
Reactions: Conner Hunt

grubworm

Rank V
Member

Member III

2,358
Thibodaux, LA, USA
First Name
grub
Last Name
worm
Member #

17464

Ham Callsign
WRMA515
Service Branch
USN-Submarines

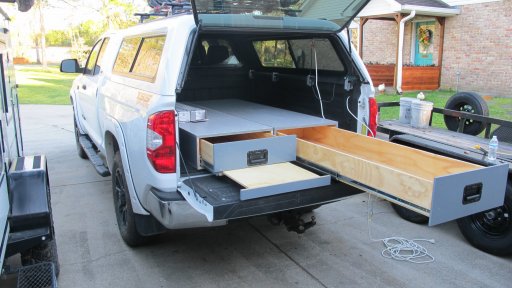

i built a platform in the back of my tundra and the drawers are on 5' slides. i originally used thin strips of UHMW plastic as runners to reduce friction and allow the drawer to slide out easily. it half-assed worked, but still had a lot of drop the further i pulled the drawer out. i removed that and made my own slide system by using rollerblade wheel bearings and 5/16" bolts as an axle. i made two rows of the bearings on each side of the box with a piece of uni-strut mounted to the drawer and slide in between the two rows of bearings. it worked ok, but would bind up and had some slop in it. i ended up going on amazon and buying 60" heavy duty slides and they work great.
i built this back before covid and the 300% increase in lumber. my 3/4" plywood was $30 a sheet at home depot and now its almost $70 a sheet...not sure how much the slides have gone up in price. if you are going a short distance on the drawer, you might could get by using plastic strips as runners on the bottom and sides. the roller bearings are not a bad idea and would probably do better on a short drawer...my drawer is over 6' deep and i was running the two rows of bearings spaced 9" apart, so that was a lot of bearings to get perfectly aligned. i used 5/16" bolts as the axle and used blind nuts in the side of the box for the bolt to thread into and not need a nut sticking out on the outside of the box. like i said, that would probably be doable with a shorter drawer.

here's a link to the DIY slides... Make your own Truck Bed Drawers — Pask Makes


Last edited:

Enthusiast III

792
Ontario, Canada
First Name
James
Last Name
Girard
Member #

0

i built a platform in the back of my tundra and the drawers are on 5' slides. i originally used thin strips of UHMW plastic as runners to reduce friction and allow the drawer to slide out easily. it half-assed worked, but still had a lot of drop the further i pulled the drawer out. i removed that and made my own slide system by using rollerblade wheel bearings and 5/16" bolts as an axle. i made two rows of the bearings on each side of the box with a piece of uni-strut mounted to the drawer and slide in between the two rows of bearings. it worked ok, but would bind up and had some slop in it. i ended up going on amazon and buying 60" heavy duty slides and they work great.
i built this back before covid and the 300% increase in lumber. my 3/4" plywood was $30 a sheet at home depot and now its almost $70 a sheet...not sure how much the slides have gone up in price. if you are going a short distance on the drawer, you might could get by using plastic strips as runners on the bottom and sides. the roller bearings are not a bad idea and would probably do better on a short drawer...my drawer is over 6' deep and i was running the two rows of bearings spaced 9" apart, so that was a lot of bearings to get perfectly aligned. i used 5/16" bolts as the axle and used blind nuts in the side of the box for the bolt to thread into and not need a nut sticking out on the outside of the box. like i said, that would probably be doable with a shorter drawer.

here's a link to the DIY slides... Make your own Truck Bed Drawers — Pask Makes

View attachment 207792
I have considered skateboard bearings and a lengths of square tubing to ru n on them. But I wasn't sure how much it would droop. I need to re-measure but I think it's about 5'.


reaver

Rank V
Expedition
Member

Traveler III

1,674
Caldwell, ID, USA
First Name
Brian
Last Name
McGahuey
Member #

23711

Ham Callsign
GMRS WRMV941
I have two drawers in the back of my Xterra. Each drawer rides on a set of 22" non locking slides.


To lock the drawers, I used some barrel latches.

I also built a tilting fridge slide. The pull out section rides on a set of these.


I would recommend just spending the money on slides that lock. There's nothing wrong with the setup I have, but after using locking slides for the fridge, I wish I'd done it with the drawers.

  • Like
Reactions: Red_Leaf_Overland

Moebius01

Rank IV
Member
Adventure

Enthusiast I

968
TN, USA
First Name
Jason
Last Name
Jowers
Member #

28732

I’m just finishing a build using Vevor. They have both a 500lb and 240lb lock in/lock out slides,and were about the cheapest heavy duty locking ones I could find. Quick sevice too. Ordered direct and had them in 3 days.


Enthusiast III

792
Ontario, Canada
First Name
James
Last Name
Girard
Member #

0

I have two drawers in the back of my Xterra. Each drawer rides on a set of 22" non locking slides.


To lock the drawers, I used some barrel latches.

I also built a tilting fridge slide. The pull out section rides on a set of these.


I would recommend just spending the money on slides that lock. There's nothing wrong with the setup I have, but after using locking slides for the fridge, I wish I'd done it with the drawers.
I would love to do a locking slide. Mine would need to be about twice that length at least and they get expensive quick lol. I'll have to have another skim through Amazon and see what I can find.


Enthusiast III

792
Ontario, Canada
First Name
James
Last Name
Girard
Member #

0

I’m just finishing a build using Vevor. They have both a 500lb and 240lb lock in/lock out slides,and were about the cheapest heavy duty locking ones I could find. Quick sevice too. Ordered direct and had them in 3 days.
I'll have to check those out. You wouldn't happen to have a link would you?


grubworm

Rank V
Member

Member III

2,358
Thibodaux, LA, USA
First Name
grub
Last Name
worm
Member #

17464

Ham Callsign
WRMA515
Service Branch
USN-Submarines
I would recommend just spending the money on slides that lock.
yeah, anytime i'm parked on the slightest incline , i get 2 heavy drawers sliding out the second i drop the tailgate. a locking slide is the way to go, especially on a long drawer.

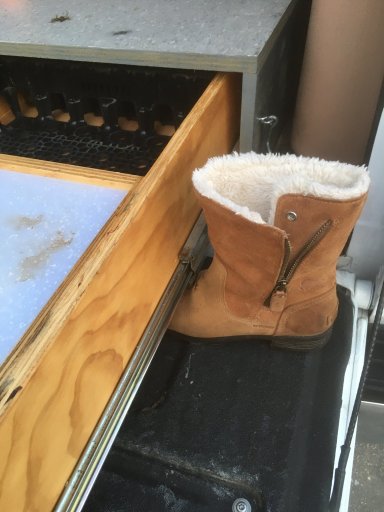

i just let the drawer slide out to where i need it and shove one of my wife's hiking boots between it and the lowered tailgate and all is well. if you can't find a locking slide, you can use a size 6 hiking boot and be good...


Last edited:
  • Haha
Reactions: Red_Leaf_Overland

Moebius01

Rank IV
Member
Adventure

Enthusiast I

968
TN, USA
First Name
Jason
Last Name
Jowers
Member #

28732

I'll have to check those out. You wouldn't happen to have a link would you?

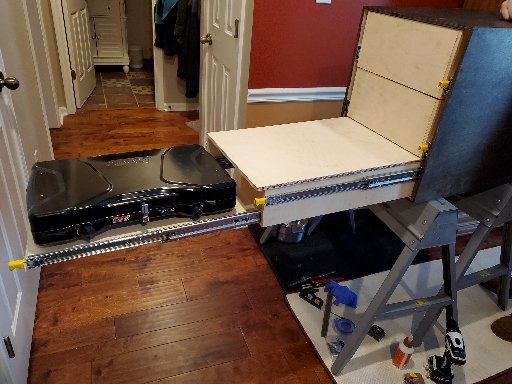

I used 24" 250lb locking for my build including a double nested drawer.


Attachments

  • Like
Reactions: Red_Leaf_Overland

Enthusiast III

792
Ontario, Canada
First Name
James
Last Name
Girard
Member #

0


I used 24" 250lb locking for my build including a double nested drawer.
Thank you! I will have a look at these. nice looking drawers!


DMS1

Rank II

Enthusiast II

336
San Dimas
First Name
Dave
Last Name
Schmitz
I didn't use sliders, I just waxed the bottom of the drawer and put aluminum angle Iron on the top of the drawer enclosure where the tops of the drawers would make contact as I pull it out. I can pull my fully loaded drawers out with only 4" left inside the cabinet with no issues. My drawers fit the cabinet I made so good, I had to drill holes in the back to eliminate the suction created when pulling the drawers out or pushing them in.


Canadian Joe

Rank III

Traveler I

Slides for me take up to much room

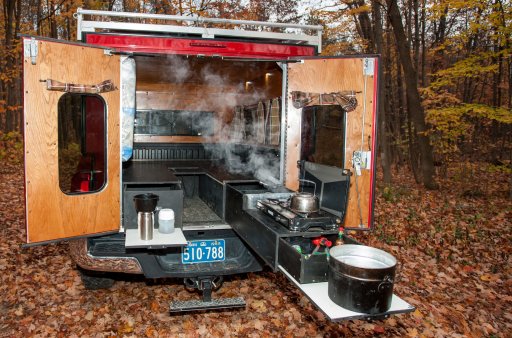

After much consideration this is what I did,built the boxes fairly snug .They run on 1/8 inch strips of hardwood on each side and Teflon tape on the bottom of the boxes . Tape is similar to this


  • Like
Reactions: Red_Leaf_Overland

outside.perception

Rank IV
Expedition
Member
Adventure

Member III

921
King County, WA, USA
First Name
Brian
Last Name
Aurich
Member #

26163

Ham Callsign
GMRS: WREY362
Are there any heavy duty locking drawer slides that would also let me remove the drawer from the cabinet easily?

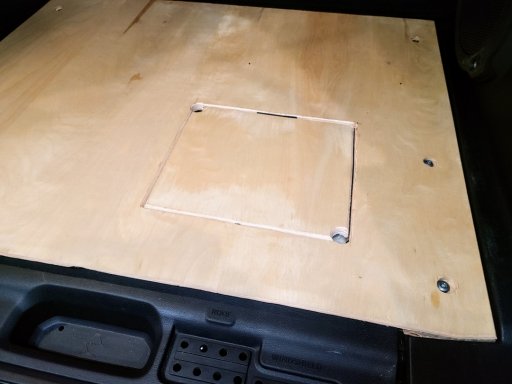

I'm going to build drawers for my Jeep JLU and want to be able to use the lower tub space under the fridge/drawers. It'll be lesser used items, but I figure if I could pop the bottom drawer off, I'd still have access to the space. Here's a pic of the base I already built for the fridge slide and tie downs for tubs (to be replaced with cabinet and drawers on top of this).
